Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶

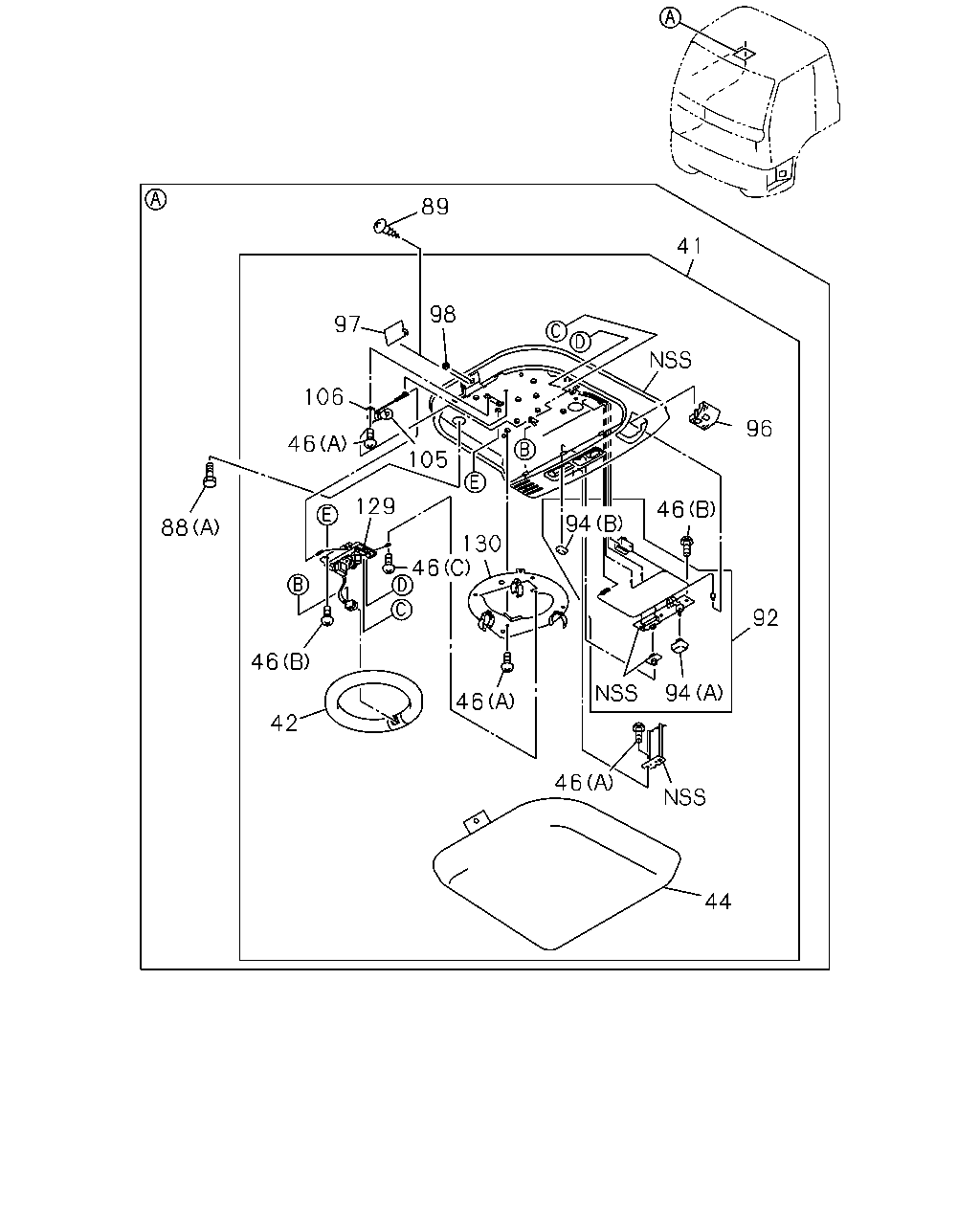

8-05 — INTERIOR LAMP
(#165329) — 34 parça
◀
[805A] ROOM LAMP (21 parça)
[805A] STEP LAMP (13 parça)
▶
41
89
98
97
106
46
88
129
105
130
46
46
42
46
46
44
92
94
94
46
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
LAMP ASM; FLUORESCENT
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ>
1-86830-323-1
01
1
1508-
41
LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ>
1-86830-315-2
01
1
1508-
42
LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG>
1-86830-094-1
01
1
1508-
44
LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-092-0
01
1
1508-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING
1-86830-095-0
08
1
1508-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12
1-86830-202-0
07
1
1508-
46
SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING
1-86830-336-0
01
1
1508-
88
BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1508-
88
BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
1508-
89
SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING
0-71240-510-0
01
1
1508-
92
SWITCH ASM; FLUORESCENT
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ>
1-86830-341-0
01
1
1508-
92
SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ>
1-86830-306-0
01
1
1508-
94
KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A)
1-86830-312-0
01
1
1508-
94
KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B)
1-86830-313-0
01
1
1508-
96
CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-385-0
01
1
1508-
97
CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG>
1-86830-311-0
01
1
1508-
98
GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG>
1-86830-102-0
01
1
1508-
105
BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W
1-86830-200-0
01
1
1508-
106
SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG>
1-86830-201-0
01
1
1508-
129
INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-338-0
01
1
1508-
130
PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG>
1-86830-339-0
01
1
1508-
56
88
33
15
15
16
87
113
27
33
33
24
25
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
LAMP; INSPECTION
1-82140-052-1
01
1
1508-
16
BULB; INSPECTION LAMP
24V 5W
1-82194-042-0
01
1
1508-
24
LAMP; STEP
1-82140-052-1
01
1
1508-
25
BULB; STEP LAMP
24V 5W
1-82194-042-0
01
1
1508-
27
LENS; STEP LAMP
1-82145-019-0
01
1
1508-
33
GROMMET; SCREW,LAMP
(B)
1-09983-182-0
02
1
1508-
33
GROMMET; SCREW,LAMP
(A) M4
5-09470-002-0
02
1
1508-
35
SCREW; STEP LAMP
M4X20
1-82149-006-0
02
1
1508-
56
BRACKET; LAMP
8-98121-191-0
01
1
1508-
87
LENS; INSPECTION LAMP
1-82145-019-0
01
1
1508-
88
BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1508-
88
BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
1508-
113
SCREW; LAMP
M4X20
1-82149-006-0
02
1
1508-
