◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#165327) — 91 parça

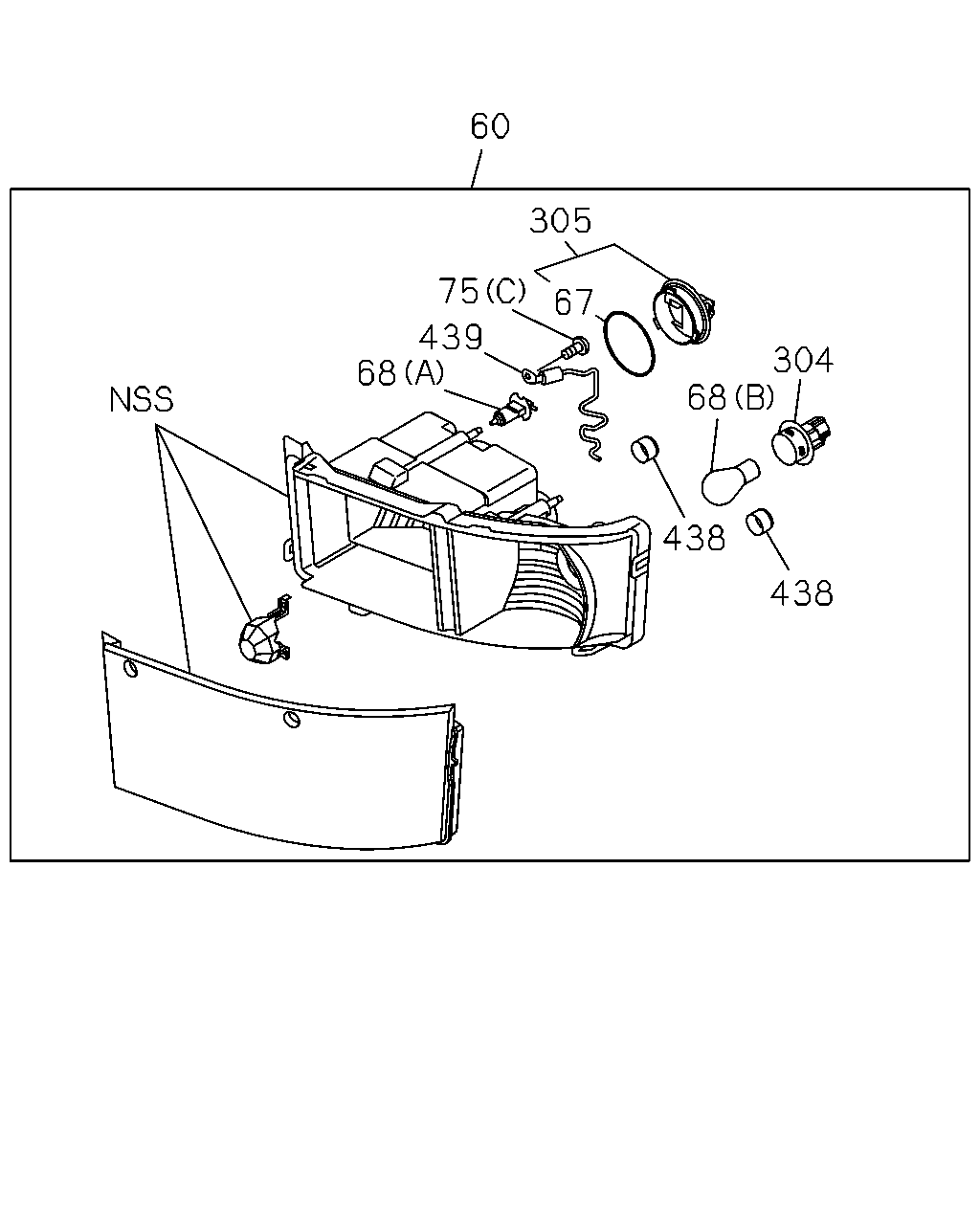

çizim 488285
60 305 75 439 68 67 304 68 438 438
BalonParca AdiParca NoAdetTipApplied Date
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1508-
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1508-
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1508-
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1508-
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1508-
75 SCREW; FRT COMB LAMP
(A) M6X16 FLANGE 		0-28650-616-0 04 1 1508-
75 SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1508-
75 SCREW; FRT COMB LAMP
(C) 		8-98074-439-0 02 1 1508-
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1508-
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1508-
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1508-
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1508-

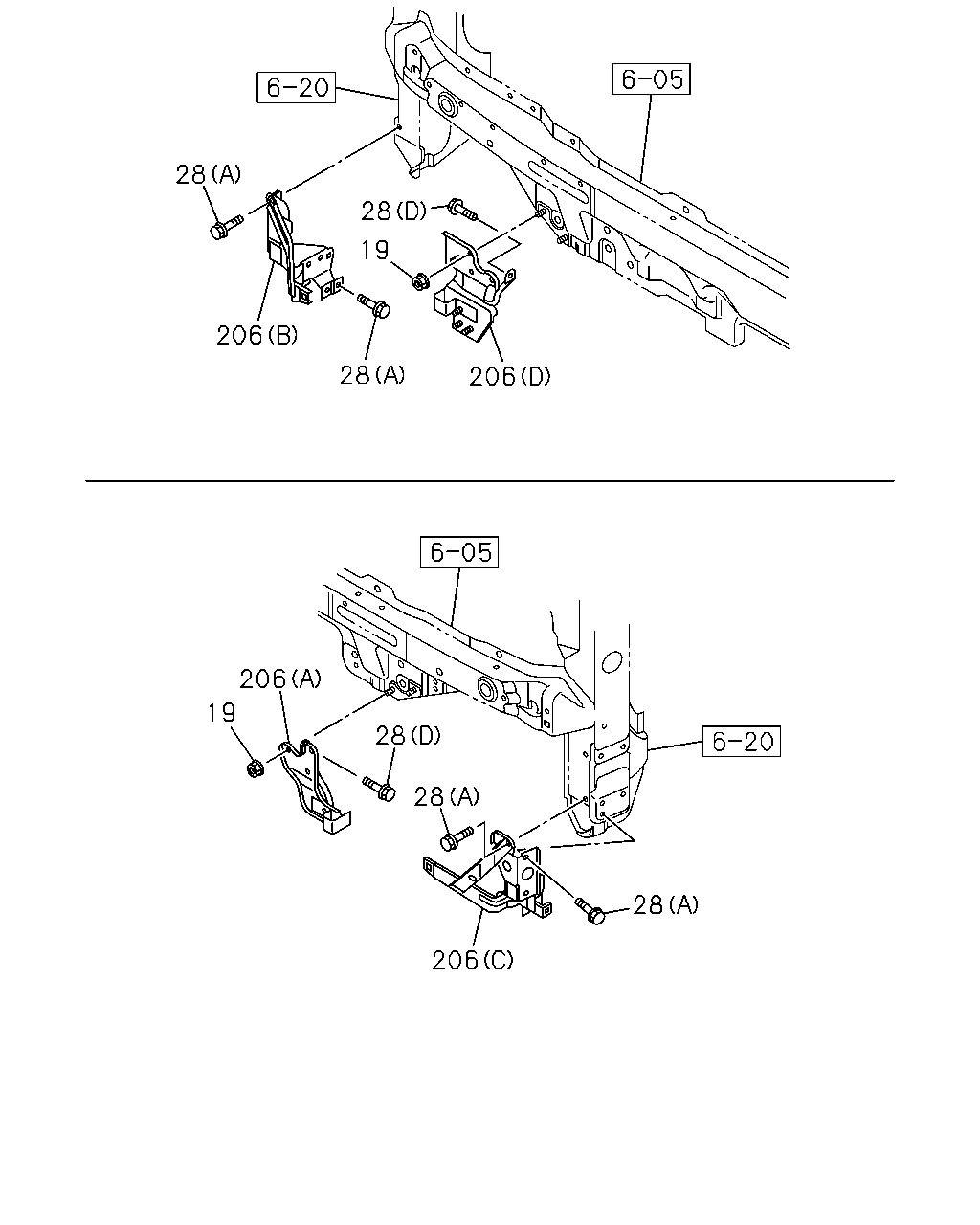

çizim 488384
28 28 19 206 28 206 206 19 28 28 28 206
BalonParca AdiParca NoAdetTipApplied Date
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1508-
28 BOLT; HEADLAMP
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1508-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1508-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1508-
28 BOLT; HEADLAMP
(B) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1508-
206 HOLDER; HEADLAMP
(A) 		8-98121-219-1 01 1 1508-
206 HOLDER; HEADLAMP
(C) 		8-98121-335-0 01 1 1508-
206 HOLDER; HEADLAMP
(D) 		8-98121-218-2 01 1 1508-
206 HOLDER; HEADLAMP
(B) 		8-98121-330-0 01 1 1508-
206 HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) 		8-97378-878-0 02 1 1508-
206 HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (F) 		8-97378-879-0 02 1 1508-

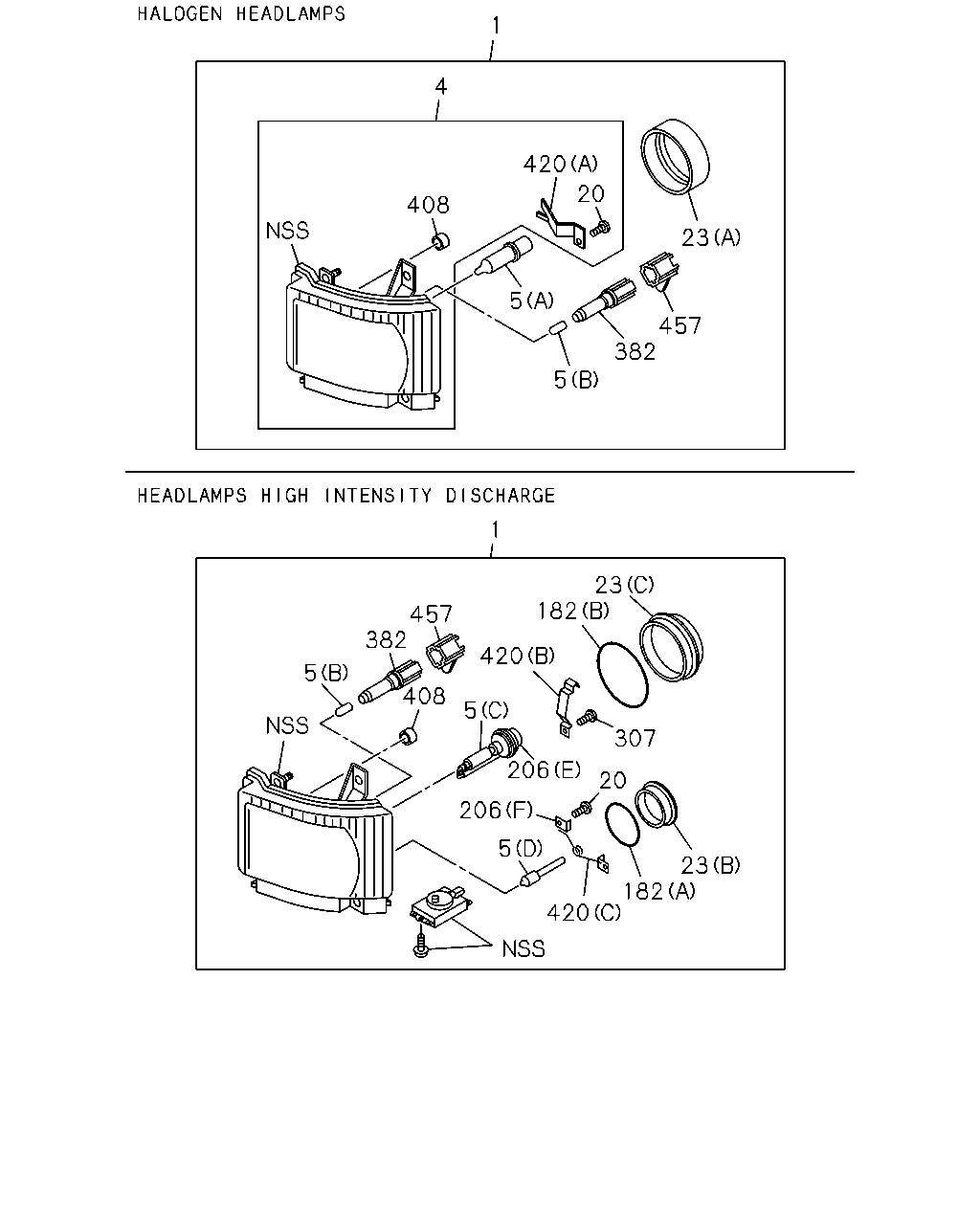

çizim 488462
1 4 408 5 420 20 23 457 382 5 1 457 382 5 408 5 420 182 23 307 20 206 206 5 420 23 182
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98241-311-0 01 1 1508-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98241-310-0 01 1 1508-
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98241-348-0 01 1 1508-
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98241-347-0 01 1 1508-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> 		8-98199-565-0 01 1 1508-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> 		8-98199-564-0 01 1 1508-
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W 		1-82194-063-0 02 1 1508-
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 85V 35W 		1-82194-092-0 02 1 1508-
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 24V 70W 		8-94405-658-0 02 1 1508-
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5> (B) 24V 5W 		1-82194-042-0 02 1 1508-
20 SCREW; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-871-0 06 1 1508-
20 SCREW; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97378-871-0 04 1 1508-
23 COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 		8-97232-491-0 02 1 1508-
23 COVER; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		8-98051-392-0 02 1 1508-
23 COVER; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-98051-393-0 02 1 1508-
182 GASKET; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		8-98051-391-0 02 1 1508-
182 GASKET; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		8-98051-394-0 02 1 1508-
206 HOLDER; HEADLAMP
(A) 		8-98121-219-1 01 1 1508-
206 HOLDER; HEADLAMP
(C) 		8-98121-335-0 01 1 1508-
206 HOLDER; HEADLAMP
(D) 		8-98121-218-2 01 1 1508-
206 HOLDER; HEADLAMP
(B) 		8-98121-330-0 01 1 1508-
206 HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) 		8-97378-878-0 02 1 1508-
206 HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (F) 		8-97378-879-0 02 1 1508-
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-97378-871-0 06 1 1508-
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5> 		8-98225-685-0 02 1 1508-
408 CAP; BREATHER,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5> 		8-97378-874-0 02 1 1508-
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 		8-98218-601-0 02 1 1508-
420 SPRING; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		8-97378-876-0 02 1 1508-
420 SPRING; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97378-877-0 02 1 1508-
457 GRIP; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5> 		8-98241-354-0 02 1 1508-
çizim 488510
16 175 175 28 140 28 175 162 75 272 60 272 75 7 1 162 175
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98241-311-0 01 1 1508-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98241-310-0 01 1 1508-
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98241-348-0 01 1 1508-
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98241-347-0 01 1 1508-
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1508-
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1508-
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1508-
28 BOLT; HEADLAMP
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1508-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1508-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1508-
28 BOLT; HEADLAMP
(B) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1508-
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1508-
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1508-
75 SCREW; FRT COMB LAMP
(A) M6X16 FLANGE 		0-28650-616-0 04 1 1508-
75 SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1508-
75 SCREW; FRT COMB LAMP
(C) 		8-98074-439-0 02 1 1508-
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1508-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1508-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1508-
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1508-
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1508-
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1508-
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1508-

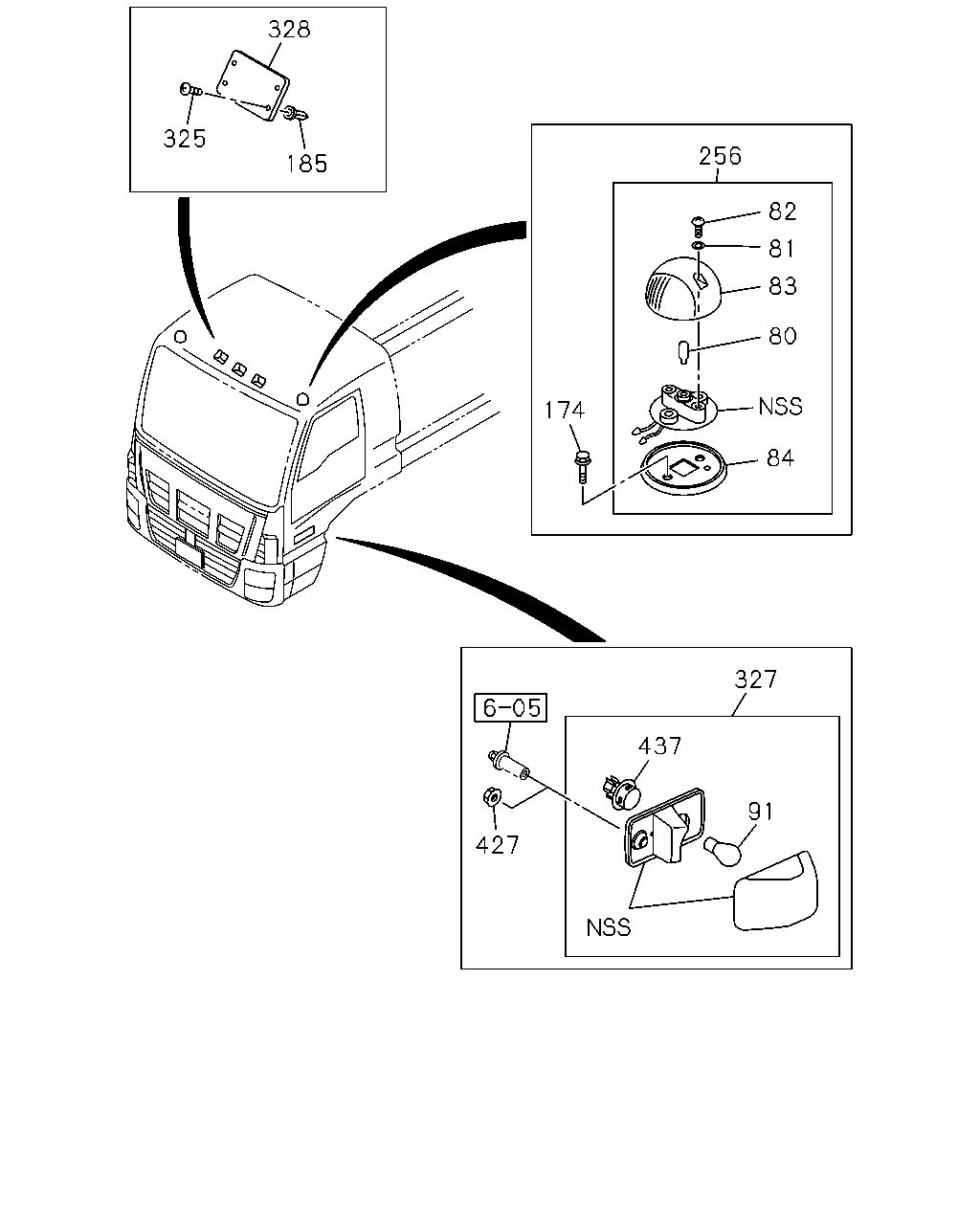

çizim 488532
328 325 185 256 174 82 81 80 83 84 327 437 91 427
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 1508-
81 SEAT; SCREW 1-82219-012-0 04 1 1508-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1508-
83 LENS; MARKER LAMP 1-82215-046-0 02 1 1508-
84 GASKET; MARKER LAMP 1-86830-288-0 02 1 1508-
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1508-
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1508-
185 GROMMET; SCREW
LOW ROOF<6XQ> M5 SCREW GROMMET 		1-09983-131-0 12 1 1508-
256 LAMP; MARKER 1-86830-242-3 02 1 1508-
325 SCREW; SPD INDICATOR LAMP
LOW ROOF<6XQ> M5X14 TAPPING 		0-71040-514-0 12 1 1508-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1508-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1508-
328 COVER; LAMP
LOW ROOF<6XQ> 		1-76217-122-1 03 1 1508-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1508-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1508-
