◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#165326) — 39 parça

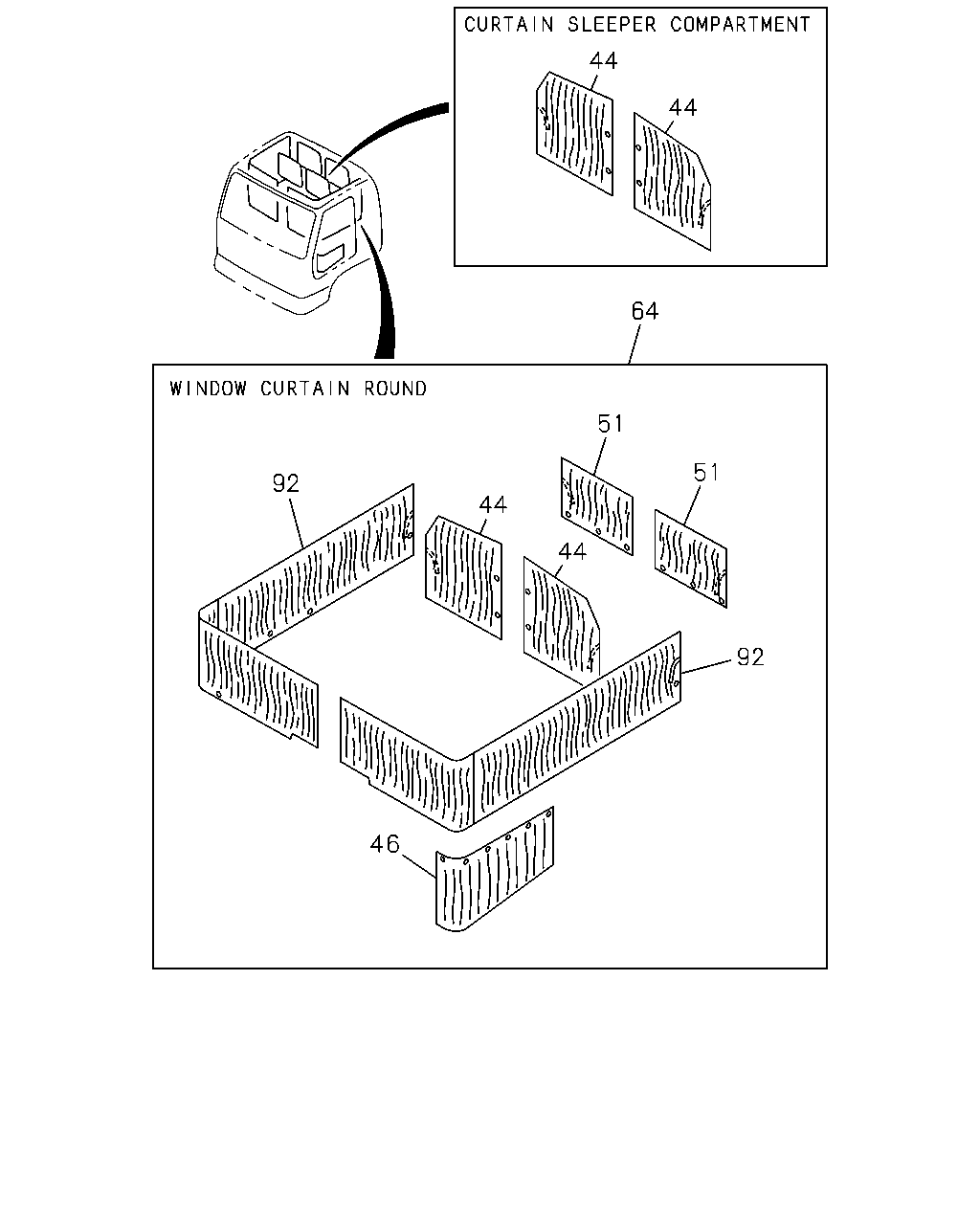

çizim 488284
44 44 64 51 51 92 44 44 92 46
BalonParca AdiParca NoAdetTipApplied Date
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> 		1-73907-505-1 01 1 1508-
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> 		1-73907-504-1 01 1 1508-
44 CURTAIN ASM; CABIN CENTER
LOW ROOF<6XQ> 		1-73907-481-1 01 1 1508-
44 CURTAIN ASM; CABIN CENTER
LOW ROOF<6XQ> 		1-73907-480-1 01 1 1508-
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-426-0 01 1 1508-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-483-1 01 1 1508-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-482-1 01 1 1508-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-578-1 01 1 1508-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-479-1 01 1 1508-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-485-1 01 1 1508-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-484-1 01 1 1508-

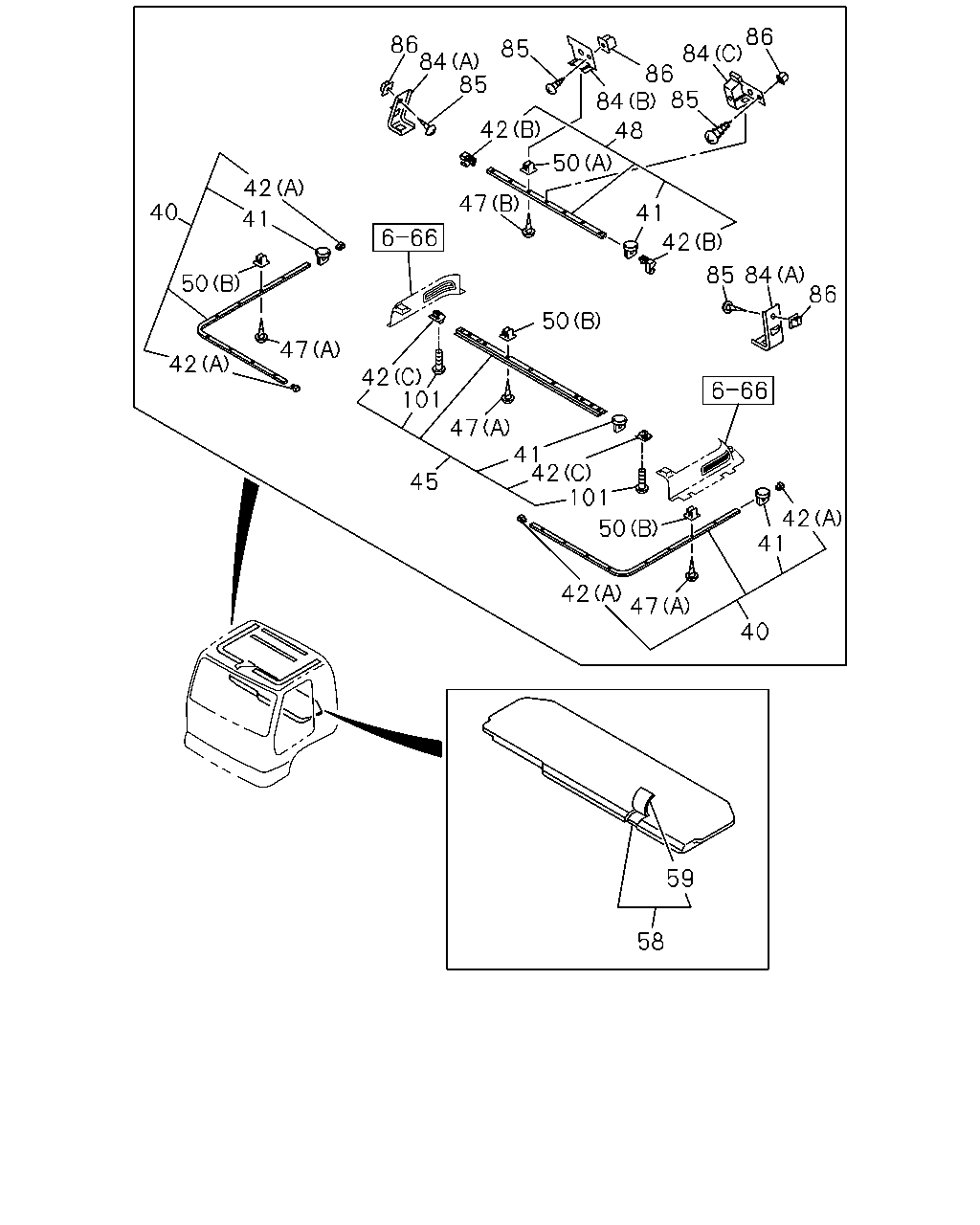

çizim 488626
59 58 40 47 42 50 101 42 41 47 101 45 42 47 50 42 40 42 41 86 84 85 85 42 47 50 48 85 86 84 84 86 41 42 85 84 86 42 41 50
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-536-1 01 1 1508-
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-535-1 01 1 1508-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1508-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1508-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 1508-
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 14 1 1508-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73996-393-0 02 1 1508-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73996-399-0 01 1 1508-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 04 1 1508-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1508-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-657-0 02 1 1508-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> 		1-73907-592-2 01 1 1508-
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> 		1-73907-546-3 01 1 1508-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1508-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1508-
48 RAIL; CURTAIN,BACK
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73996-385-1 01 1 1508-
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1508-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1508-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1508-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 1508-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 1508-
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1508-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 1508-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 1508-
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1508-
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1508-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1508-
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 1508-
