7-45 — CONSOLE BOX (#165323) — 49 parça

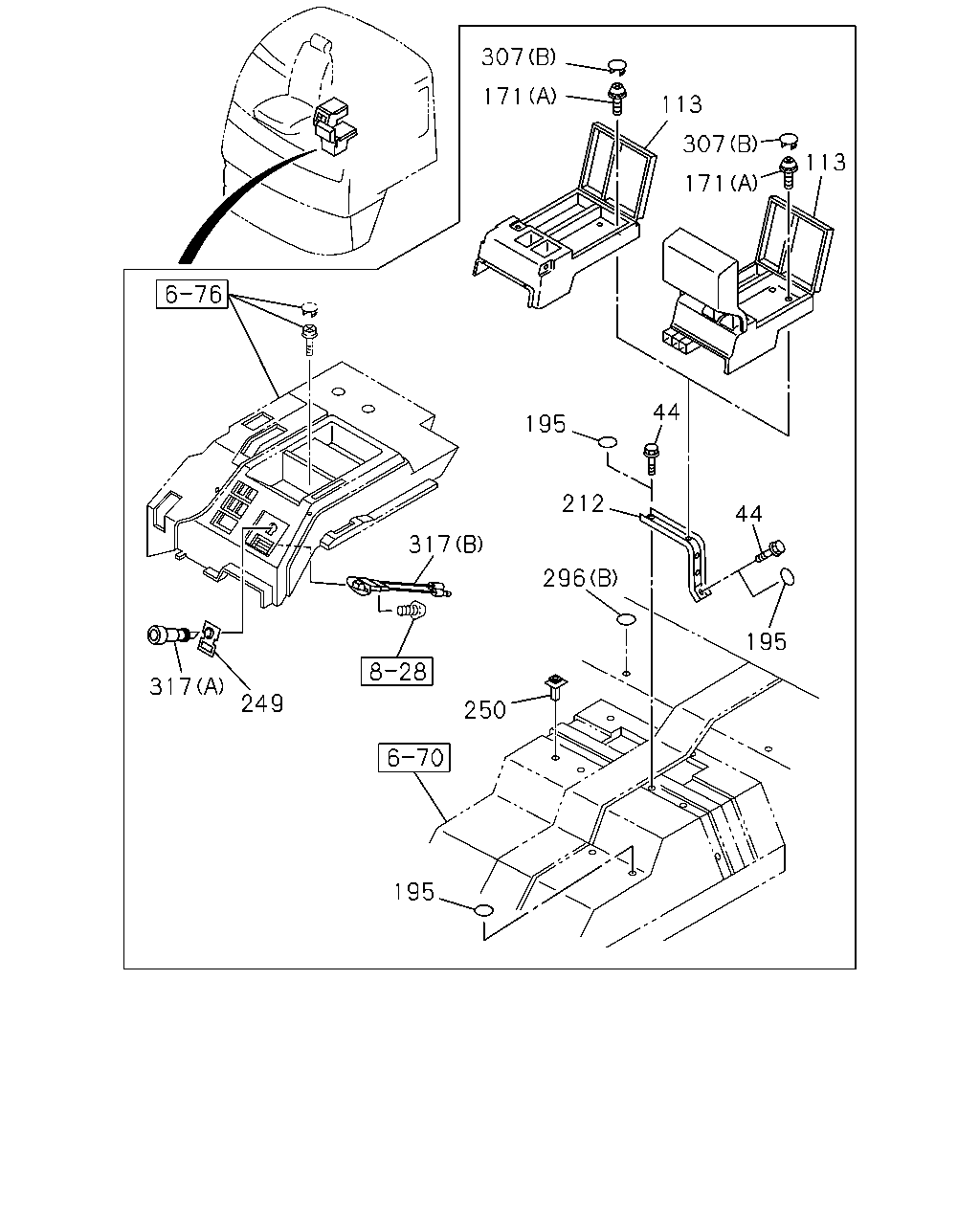

çizim 488275
307 171 113 307 171 113 195 44 44 195 250 195 249 317 317 296 212
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1512-
113 BOX; CONSOLE
FRONT CONSOLE<D55> TABLE CONSOLE BOX<TDL> EXC. SMOOTHER-G(C1W) 		8-98337-067-0 01 1 1512-
113 BOX; CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W),TABLE CONSOLE BOX<TDL> 		1-72537-325-1 01 1 1512-
171 SCREW; CONSOLE BOX
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1512-
171 SCREW; CONSOLE BOX
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1512-
195 SEAL; CENTER CONSOLE
OD=25 BLACK 		1-76798-019-0 05 1 1508-1511
195 SEAL; CENTER CONSOLE
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 05 1 1512-
195 SEAL; CENTER CONSOLE
EXC. SMOOTHER-G(C1W),FRONT CONSOLE<D55> OD=25 BLACK 		1-76798-019-0 05 1 1512-
212 SUPPORT; CONSOLE TO COMPT
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72537-095-1 01 1 1512-
249 COVER 1-82529-001-0 01 1 1508-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 1508-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1508-
296 SEAL
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (A) 		1-72537-094-1 01 1 1512-
307 COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (A) 		1-72537-188-0 02 1 1512-
307 COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (B) 		1-76337-461-0 04 1 1512-
307 COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W),TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 1512-
317 CONSENT
(B) 		1-82523-020-2 01 1 1508-
317 CONSENT
(A) 		8-94382-451-1 01 1 1508-

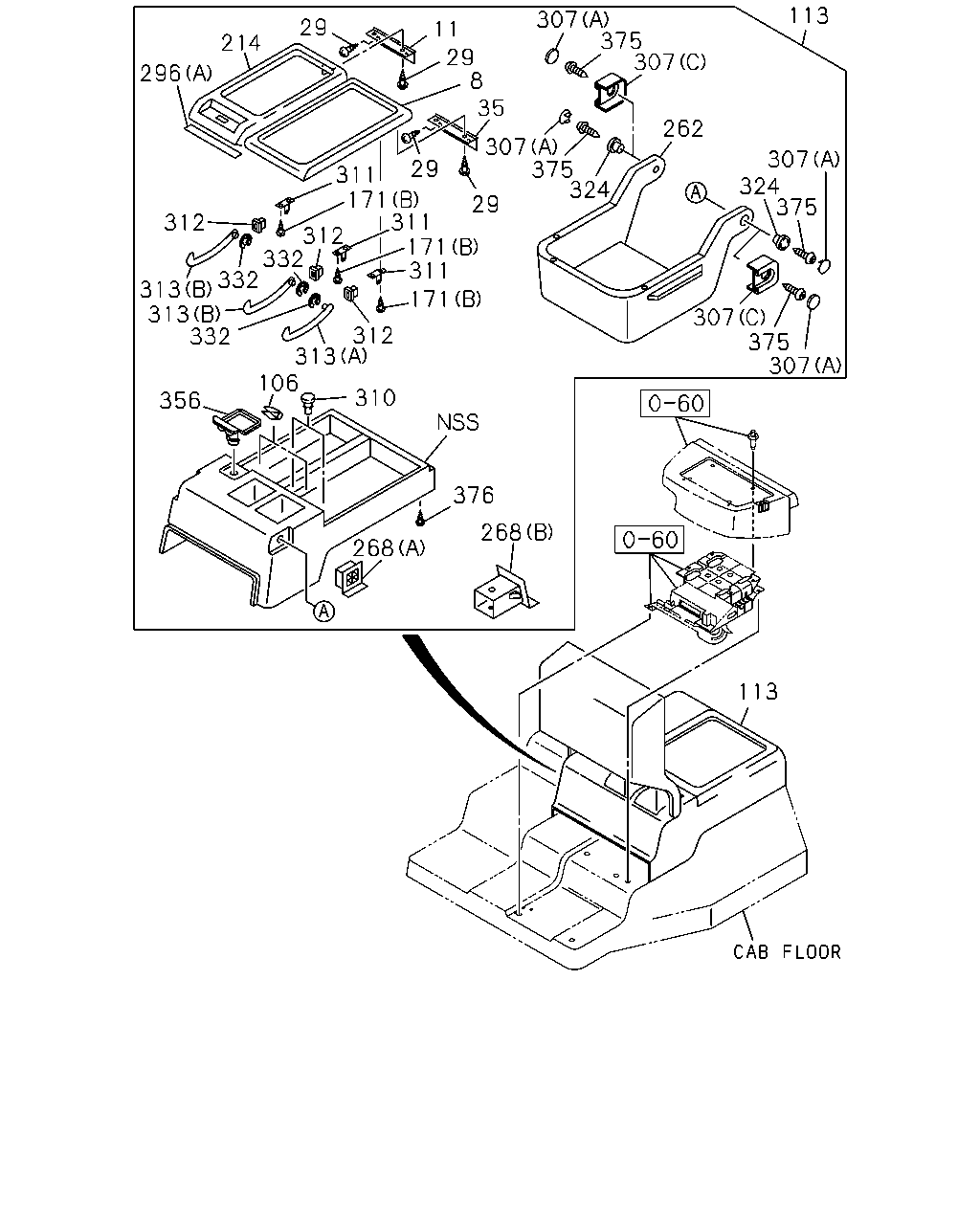

çizim 488276
296 214 312 313 313 356 332 332 106 313 312 310 268 376 268 171 311 171 311 171 311 312 332 29 29 29 11 29 8 35 307 375 324 307 375 307 262 113 307 324 375 307 375 307 113
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72537-332-0 01 1 1512-
11 HINGE; CONSOLE LID
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72537-070-2 01 1 1512-
29 SCREW; HINGE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) M5X14 BINDING HEAD 		1-72537-168-0 08 1 1512-
35 HINGE; CENTER CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72538-182-1 01 1 1512-
106 LOCK; CONSOLE LID
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72537-079-0 02 1 1512-
113 BOX; CONSOLE
FRONT CONSOLE<D55> TABLE CONSOLE BOX<TDL> EXC. SMOOTHER-G(C1W) 		8-98337-067-0 01 1 1512-
113 BOX; CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W),TABLE CONSOLE BOX<TDL> 		1-72537-325-1 01 1 1512-
171 SCREW; CONSOLE BOX
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1512-
171 SCREW; CONSOLE BOX
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1512-
214 LID; CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72537-339-0 01 1 1512-
262 TABLE ASM
FRONT CONSOLE<D55> TABLE CONSOLE BOX<TDL> EXC. SMOOTHER-G(C1W) 		1-72537-187-1 01 1 1512-
268 COVER; DUCT
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (B) 		1-72537-268-0 01 1 1512-
268 COVER; DUCT
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (A) 		1-72537-269-0 01 1 1512-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1508-
296 SEAL
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (A) 		1-72537-094-1 01 1 1512-
307 COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (A) 		1-72537-188-0 02 1 1512-
307 COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (B) 		1-76337-461-0 04 1 1512-
307 COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W),TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 1512-
310 CUSHION; CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72538-187-0 02 1 1512-
311 HOLDER; CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72538-188-2 03 1 1512-
312 STOPPER; CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72538-186-1 03 1 1512-
313 ARM; CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (A) 		1-72538-184-3 01 1 1512-
313 ARM; CTR CONSOLE
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (B) 		1-72538-185-3 02 1 1512-
324 BUSHING
FRONT CONSOLE<D55> TABLE CONSOLE BOX<TDL> EXC. SMOOTHER-G(C1W) 		1-72537-116-0 02 1 1512-
332 RING; SNAP,CONSOLE BOX
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72537-170-0 03 1 1512-
356 COVER; KNOB
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72537-271-1 01 1 1512-
375 SCREW; TAP BUSHING
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) M6X20 		1-72537-319-0 02 1 1512-
376 SCREW; TAP DUCT
FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W),TABLE CONSOLE BOX<TDL> M4X14 		1-72537-320-0 03 1 1512-

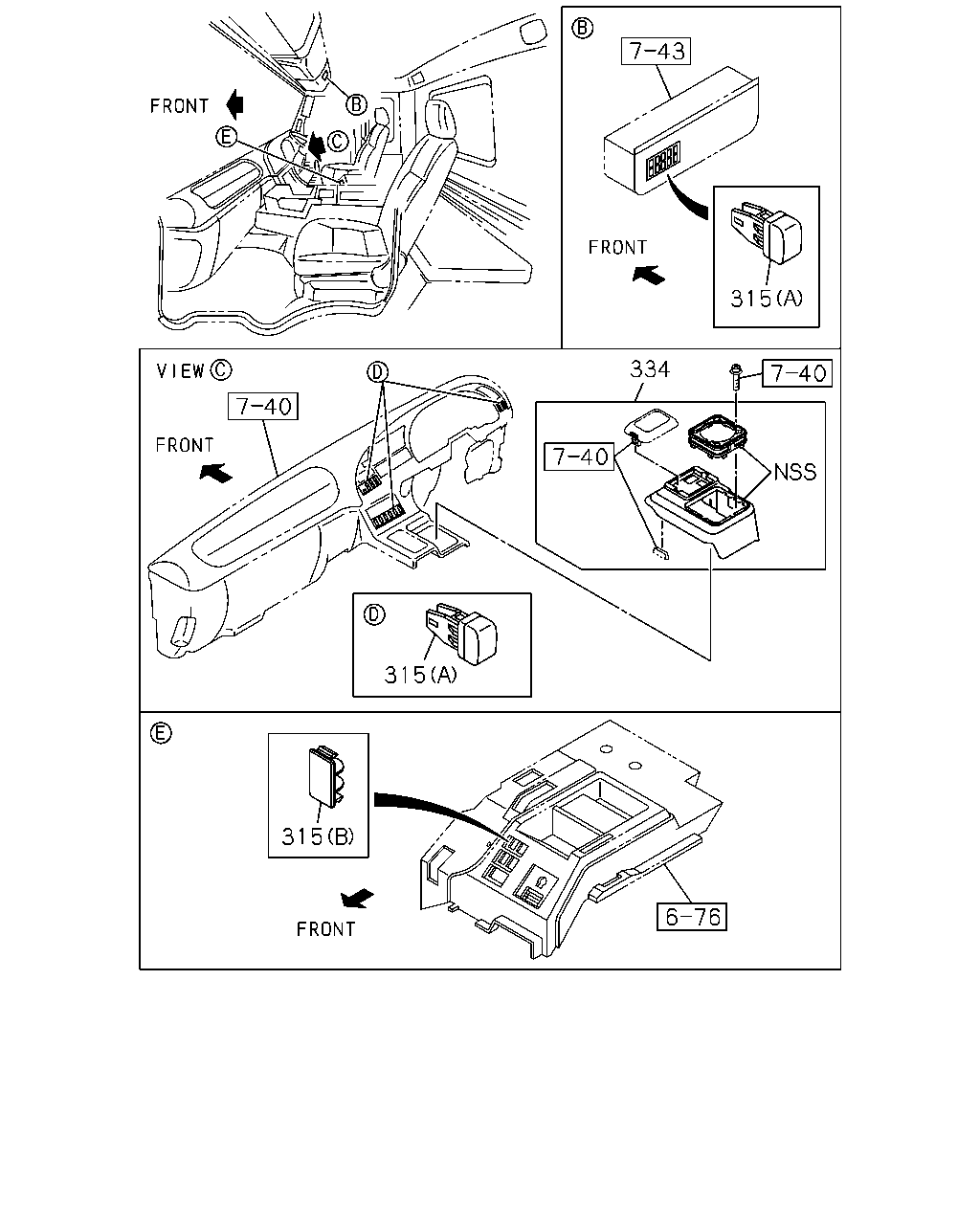

çizim 514549
315 315 334 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 1508-
315 COVER; HOLE,SW
(A) 		8-98025-954-1 AR 1 1508-
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 1508-
