7-40 — INSTRUMENT PANEL AND BOX (#165321) — 113 parça

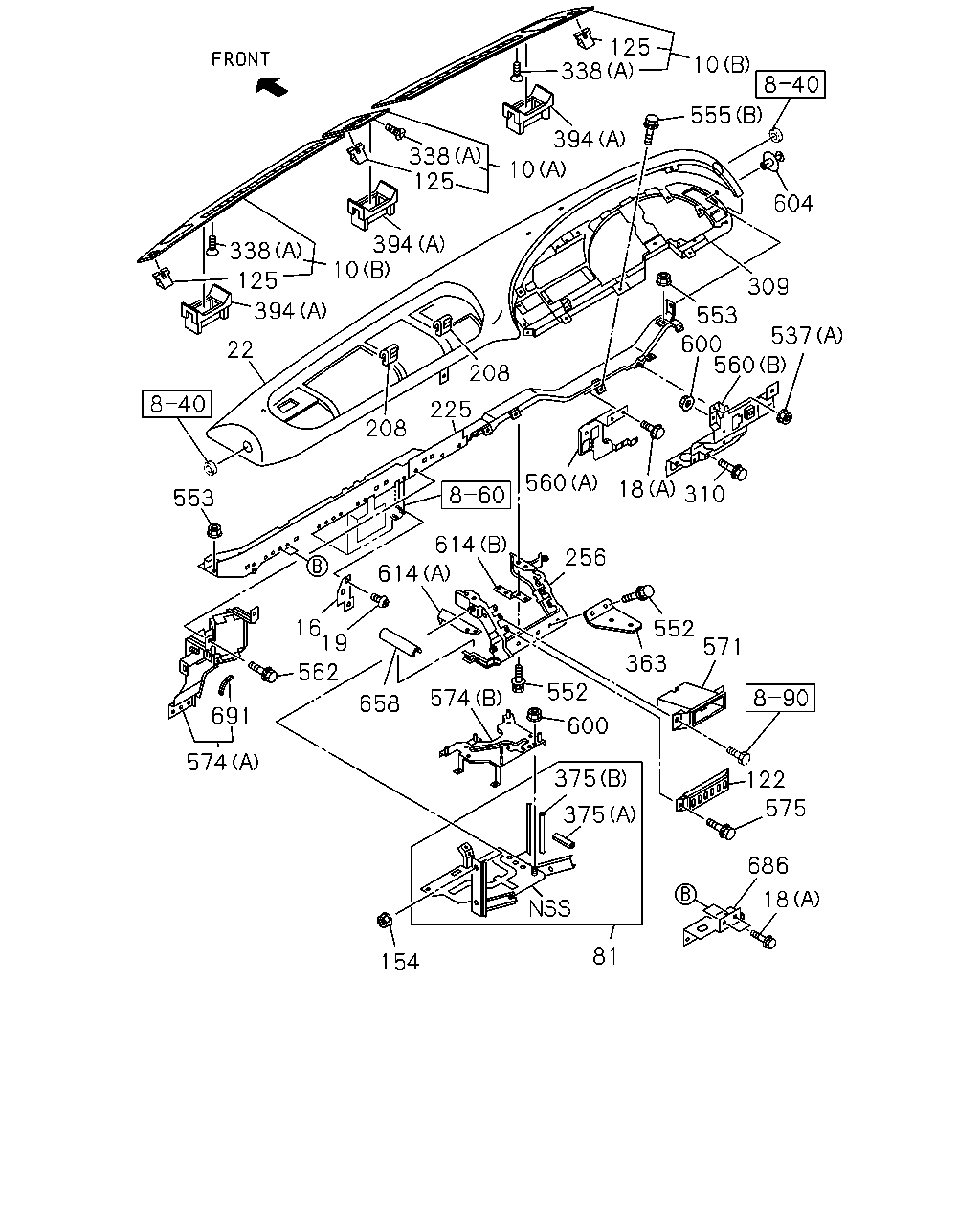

çizim 488630
10 555 125 338 394 10 338 125 394 10 338 125 394 22 553 208 225 208 16 19 562 658 691 574 574 552 600 363 552 571 122 614 614 560 18 310 560 600 537 309 553 604 256 154 81 375 375 575 686 18
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1508-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1508-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 1508-
16 BRACKET; INST PNL 1-73908-023-2 01 1 1508-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1508-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1508-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1508-
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1508-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1508-
22 PAD; INST 1-72317-372-1 01 1 1508-
81 BRACKET; ELEC CONT UNIT 8-98160-932-0 01 1 1508-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1508-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1508-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1508-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1508-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1508-
225 FRAME; FACIA 1-65671-725-8 01 1 1508-
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1508-
309 PANEL; SW,INST 1-72418-009-6 01 1 1508-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1508-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 1508-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1508-
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1508-
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-776-0 01 1 1508-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1508-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1508-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1508-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1508-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1508-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1508-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1508-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1508-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1508-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1508-
560 BRACKET
(A) 		1-65681-197-2 01 1 1508-
560 BRACKET
(B) 		1-65681-223-2 01 1 1508-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1508-
571 BEZEL; POCKET 1-72438-151-3 02 1 1508-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1508-
574 PANEL; RELAY BOX
FULL FLOATING CAB(W16) (B) 		1-73907-690-2 01 1 1508-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1508-
600 NUT; PANEL
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 03 1 1508-
604 CLIP; INST PAD 1-09983-123-0 01 1 1508-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1508-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1508-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1508-
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 1508-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1508-

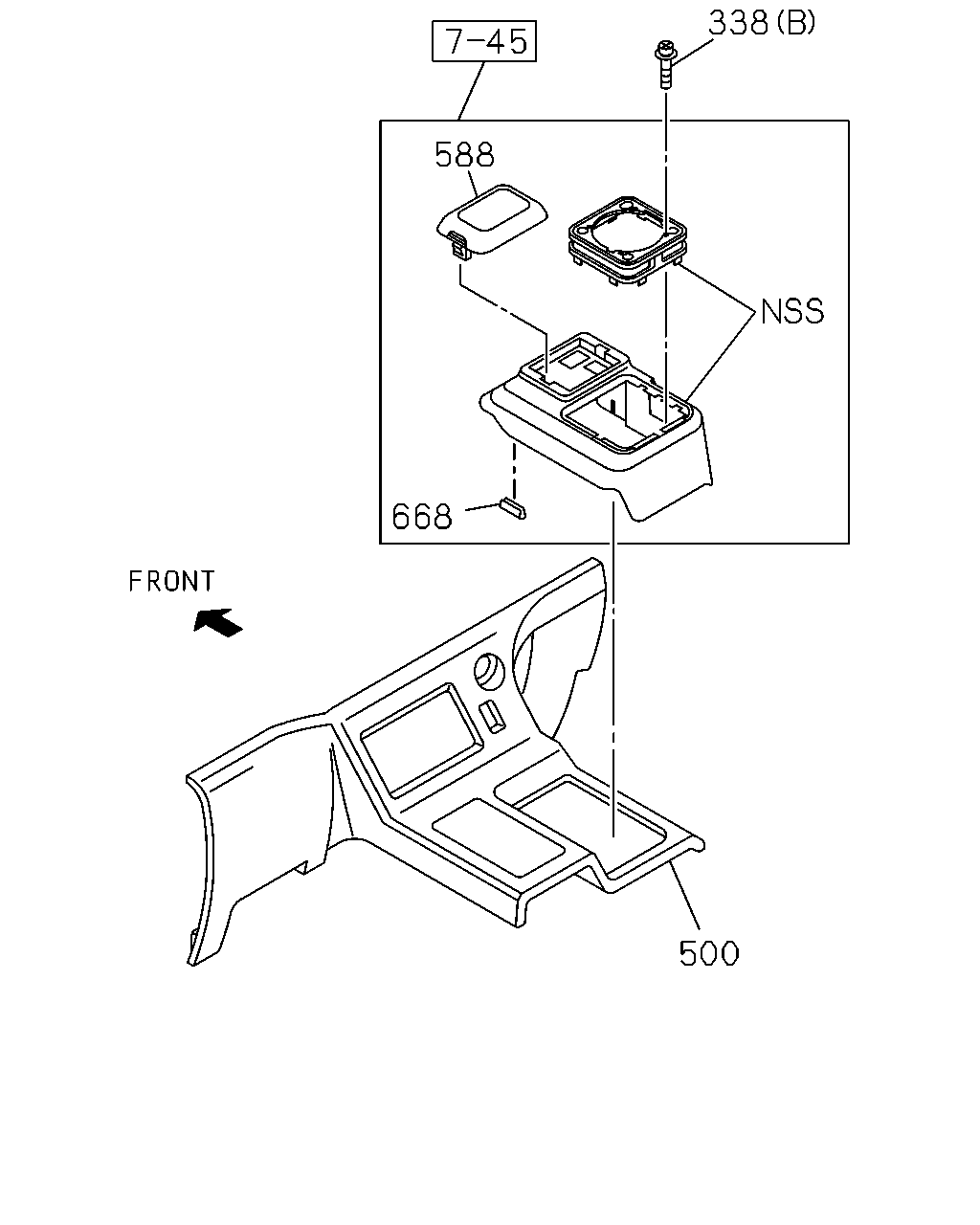

çizim 488712
500 668 338 588
BalonParca AdiParca NoAdetTipApplied Date
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 1508-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1508-
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1508-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) INST PANEL CARBON<EGW> 		8-98217-877-0 01 1 1508-
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1508-
588 LID; BOX
SMOOTHER-G(C1W) 		1-72447-974-1 01 1 1508-
668 FINISHER; COVER
SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 1508-

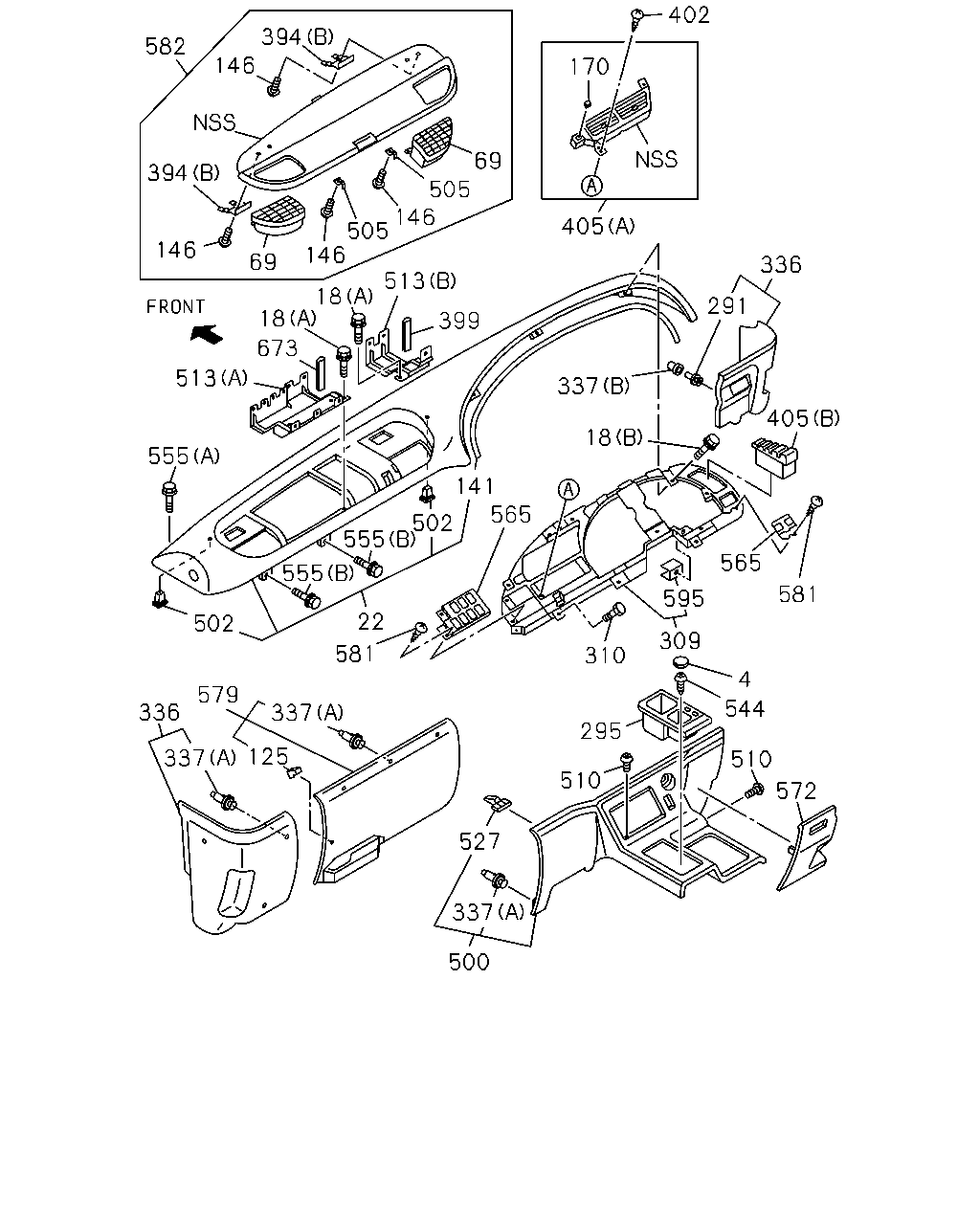

çizim 488762
582 394 146 394 146 69 146 505 146 505 69 170 402 405 513 18 18 399 673 513 555 502 555 502 555 22 581 579 337 125 337 336 141 18 337 565 310 295 510 527 337 510 572 544 4 309 595 581 565 405 336 291 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 1508-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1508-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1508-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1508-
22 PAD; INST 1-72317-372-1 01 1 1508-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1508-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1508-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1508-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1508-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1508-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1508-
170 COVER; HOLE 1-76367-068-0 01 1 1508-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1508-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1508-
309 PANEL; SW,INST 1-72418-009-6 01 1 1508-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1508-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1508-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1508-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1508-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1508-
337 FASTENER; COVER
INST PANEL CARBON<EGW> (A) 		1-72438-124-2 02 1 1508-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1508-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1508-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1508-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1508-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 1508-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 1508-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) INST PANEL CARBON<EGW> 		8-98217-877-0 01 1 1508-
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1508-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1508-
505 LOCK; LID 1-72558-024-2 02 1 1508-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1508-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1508-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1508-
527 CLIP; INST CLUSTER
INST PANEL CARBON<EGW> 		8-97217-066-0 04 1 1508-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1508-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1508-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1508-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1508-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1508-
572 COVER; INSPECTION 1-72437-634-0 01 1 1508-
579 COVER; INST PNL 1-72437-626-0 01 1 1508-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1508-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1508-
595 NUT; HOOK 1-72418-013-0 11 1 1508-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1508-

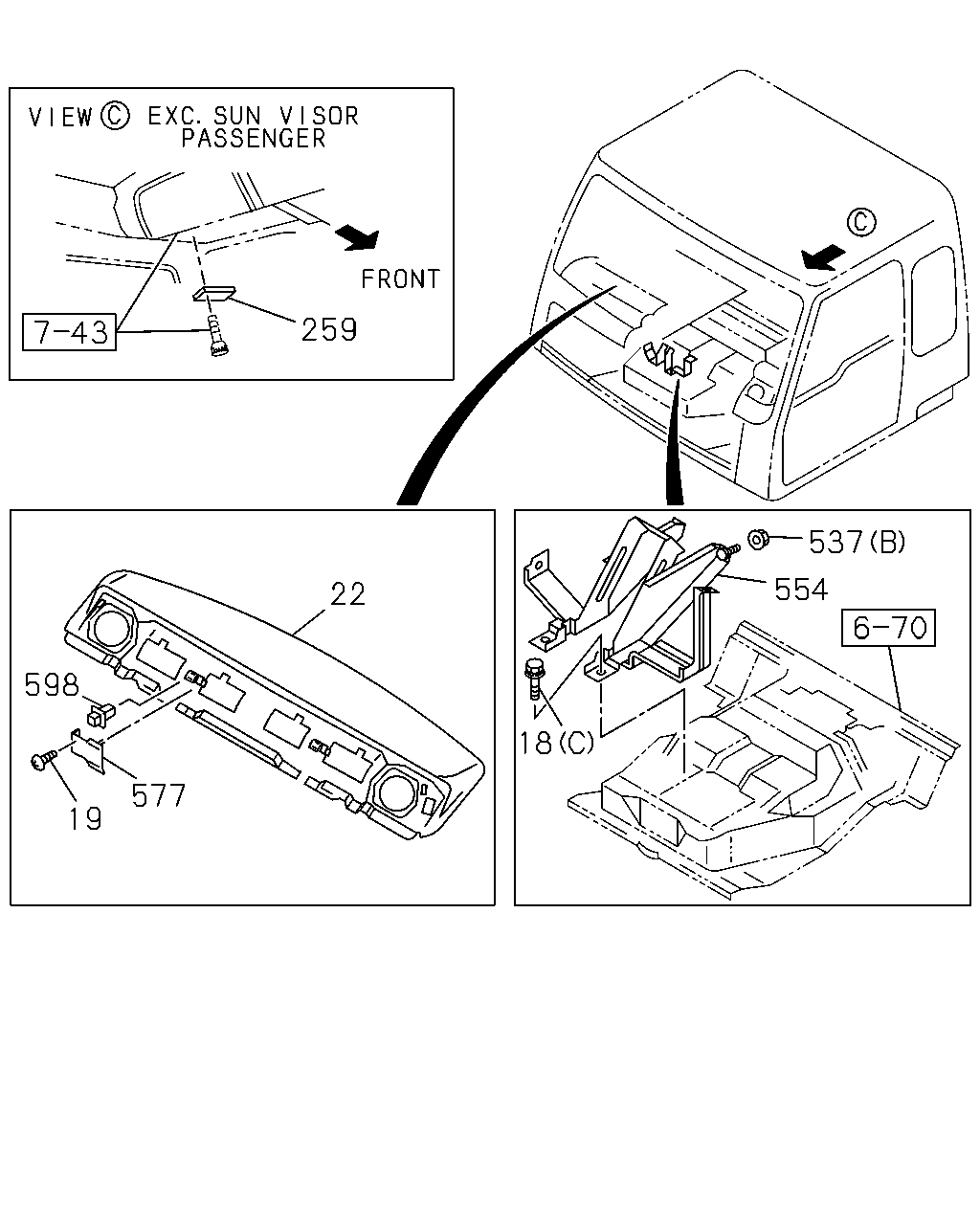

çizim 488769
537 554 18 22 577 19 598 259
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1508-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1508-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1508-
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1508-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1508-
22 PAD; INST 1-72317-372-1 01 1 1508-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1508-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1508-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1508-
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1508-
577 BRACKET; SENSOR 1-72318-413-0 01 1 1508-
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 1508-
