7-20 — MIRROR AND MIRROR STAY
(#165319) — 75 parça
◀

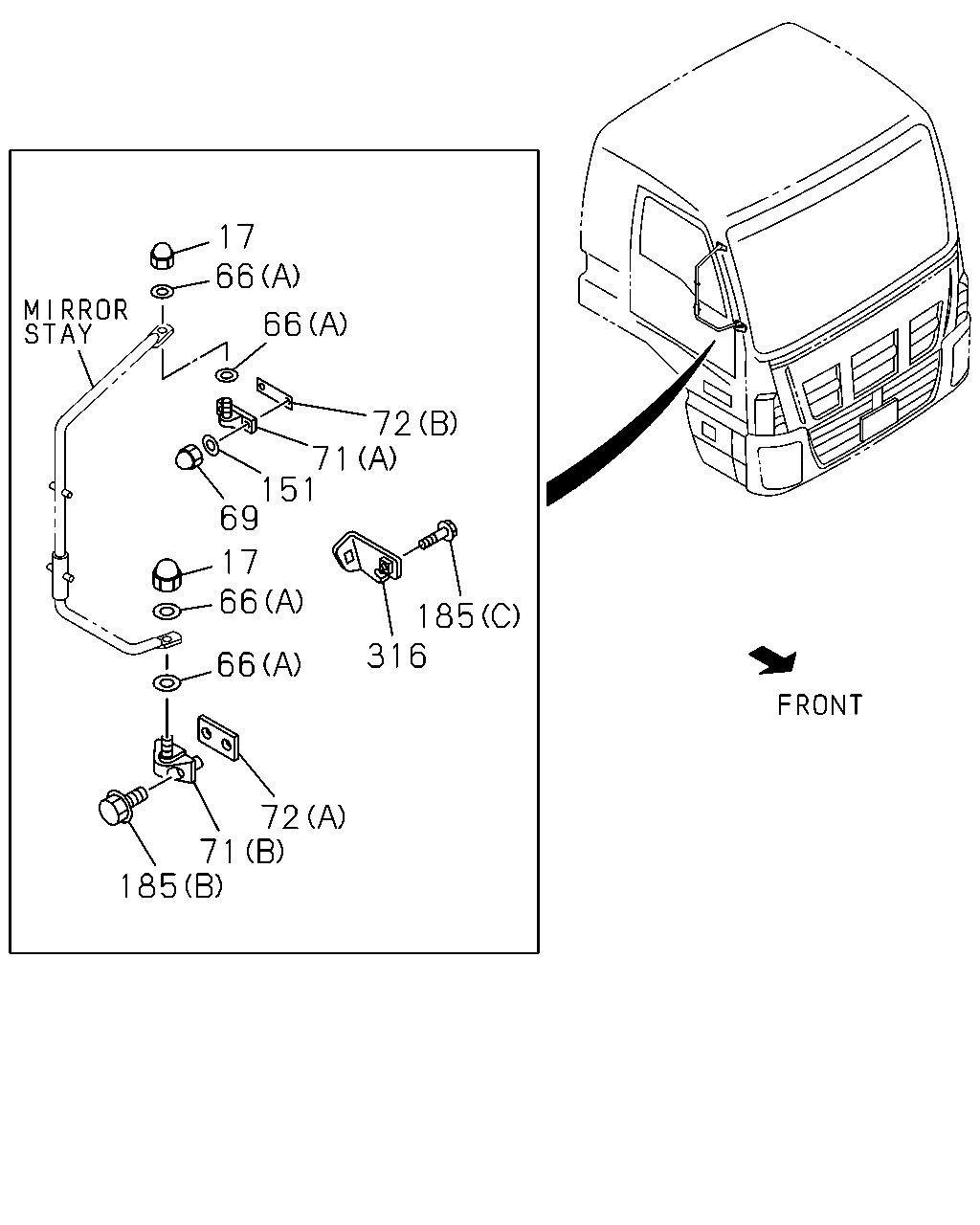

[720A] LH NO.1 (18 parça)

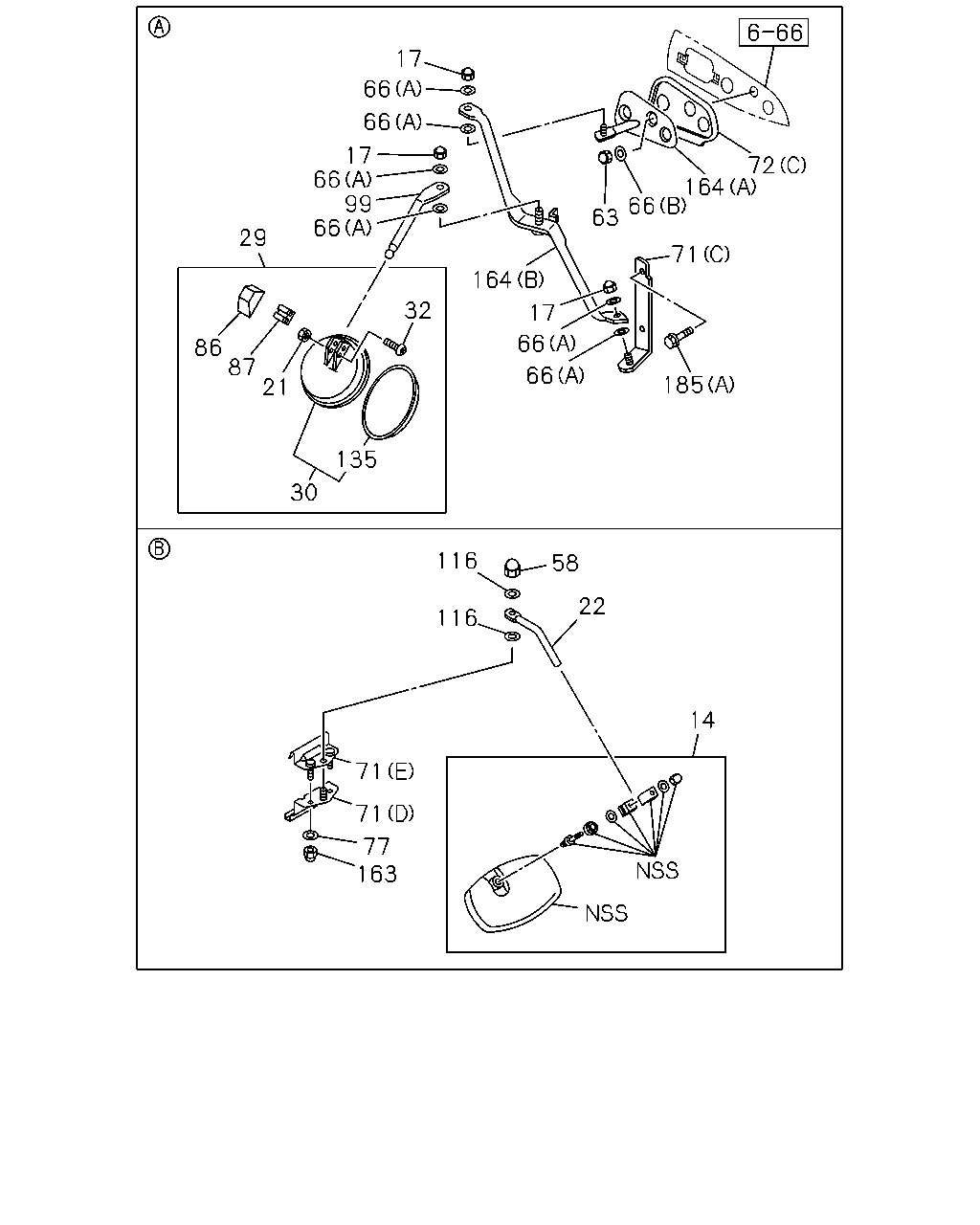

[720A] LH NO.2 (33 parça)
[720A] RH (19 parça)
[720A] ROOM MIRROR AND BRACKET (5 parça)
▶
17
66
66
72
71
151
69
17
66
66
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
03
1
1508-
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
04
1
1508-
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
06
1
1508-
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
1508-
66
WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
1508-
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
04
1
1508-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-484-1
02
1
1508-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-486-2
02
1
1508-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71707-255-2
01
1
1508-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98099-810-0
01
1
1508-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98167-111-0
01
1
1508-
72
SHEET
(B)
1-71798-487-3
02
1
1508-
72
SHEET
(A)
1-71798-488-1
02
1
1508-
72
SHEET
HIGH ROOF<S2F> (C)
1-71797-799-1
01
1
1508-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
1508-
185
BOLT; BRKT
(B) M8X35 FLANGE
8-98046-876-0
04
1
1508-
185
BOLT; BRKT
(A) M5X16
1-71707-259-0
02
1
1508-
185
BOLT; BRKT
(C) M6X16 FLANGE
0-28660-616-0
01
1
1508-
17
66
66
17
66
99
66
29
86
87
21
32
135
30
164
66
17
66
185
71
63
66
164
72
58
22
14
116
116
71
71
77
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
MIRROR ASM; OUTSIDE
1-71798-895-0
01
1
1508-
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
03
1
1508-
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
04
1
1508-
21
NUT; MIRROR
M5
1-09984-124-0
02
1
1508-
22
STAY; OUTSIDE MIRROR
1-71798-663-1
01
1
1508-
29
MIRROR ASM; UNDER
1-71798-422-0
01
1
1508-
30
MIRROR; UNDER
1-71798-591-1
01
1
1508-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
02
1
1508-
58
NUT; MIRROR STAY
M10
1-09984-183-0
01
1
1508-
63
NUT; STAY
M8
1-09984-187-0
03
1
1508-
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
06
1
1508-
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
1508-
66
WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
1508-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-484-1
02
1
1508-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-486-2
02
1
1508-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71707-255-2
01
1
1508-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98099-810-0
01
1
1508-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98167-111-0
01
1
1508-
72
SHEET
(B)
1-71798-487-3
02
1
1508-
72
SHEET
(A)
1-71798-488-1
02
1
1508-
72
SHEET
HIGH ROOF<S2F> (C)
1-71797-799-1
01
1
1508-
77
WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
1508-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-649-1
01
1
1508-
87
SPACER
1-71737-646-2
01
1
1508-
99
STAY; MAIN UNDER MIRROR
1-71707-265-1
01
1
1508-
116
WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6
1-09985-204-0
02
1
1508-
135
LENS; MIRROR,SIDE UNDER
1-71798-838-0
01
1
1508-
163
NUT; MIRROR BRKT
M8 CAP NUT
8-98059-914-0
02
1
1508-
164
STAY; ROOF
(A)
1-71707-248-2
01
1
1508-
164
STAY; ROOF
(B)
1-71707-266-1
01
1
1508-
185
BOLT; BRKT
(B) M8X35 FLANGE
8-98046-876-0
04
1
1508-
185
BOLT; BRKT
(A) M5X16
1-71707-259-0
02
1
1508-
185
BOLT; BRKT
(C) M6X16 FLANGE
0-28660-616-0
01
1
1508-
17
66
66
72
71
151
69
66
17
66
316
185
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
03
1
1508-
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
04
1
1508-
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
06
1
1508-
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
1508-
66
WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
1508-
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
04
1
1508-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-484-1
02
1
1508-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-486-2
02
1
1508-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71707-255-2
01
1
1508-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98099-810-0
01
1
1508-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98167-111-0
01
1
1508-
72
SHEET
(B)
1-71798-487-3
02
1
1508-
72
SHEET
(A)
1-71798-488-1
02
1
1508-
72
SHEET
HIGH ROOF<S2F> (C)
1-71797-799-1
01
1
1508-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
1508-
185
BOLT; BRKT
(B) M8X35 FLANGE
8-98046-876-0
04
1
1508-
185
BOLT; BRKT
(A) M5X16
1-71707-259-0
02
1
1508-
185
BOLT; BRKT
(C) M6X16 FLANGE
0-28660-616-0
01
1
1508-
316
BRACKET; CONNECTOR
1-71798-896-1
01
1
1508-
1
2
181
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73117-033-1
01
1
1508-
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
1508-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
1508-
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
1508-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
1508-
