◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#165318) — 31 parça

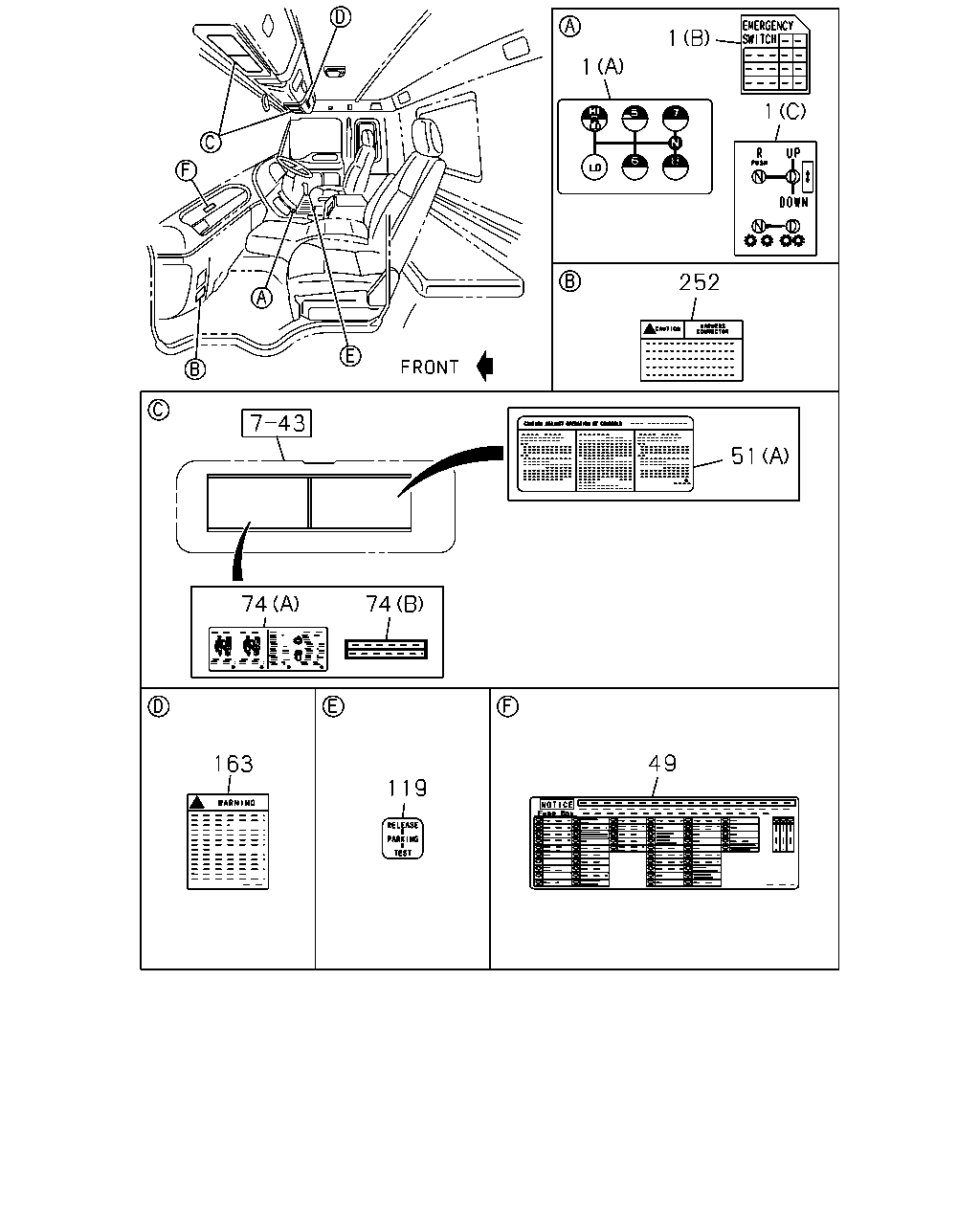

çizim 488257
1 1 1 252 51 49 119 74 74 163
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
MJX16P M/T(Y3Z) (C) 		1-85881-798-0 01 1 1508-
1 PLATE; CAUTION,SHIFT PATTERN
MJX16P M/T(Y3Z) (B) 		8-98306-221-0 01 1 1508-
1 PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		1-85881-519-0 01 1 1508-
49 PLATE; CAUTION,FUSE BOX 8-98290-502-0 01 1 1508-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1508-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 1508-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) (B) 		1-85881-869-0 01 1 1508-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		1-85881-786-0 01 1 1508-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 1508-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 1508-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 1508-

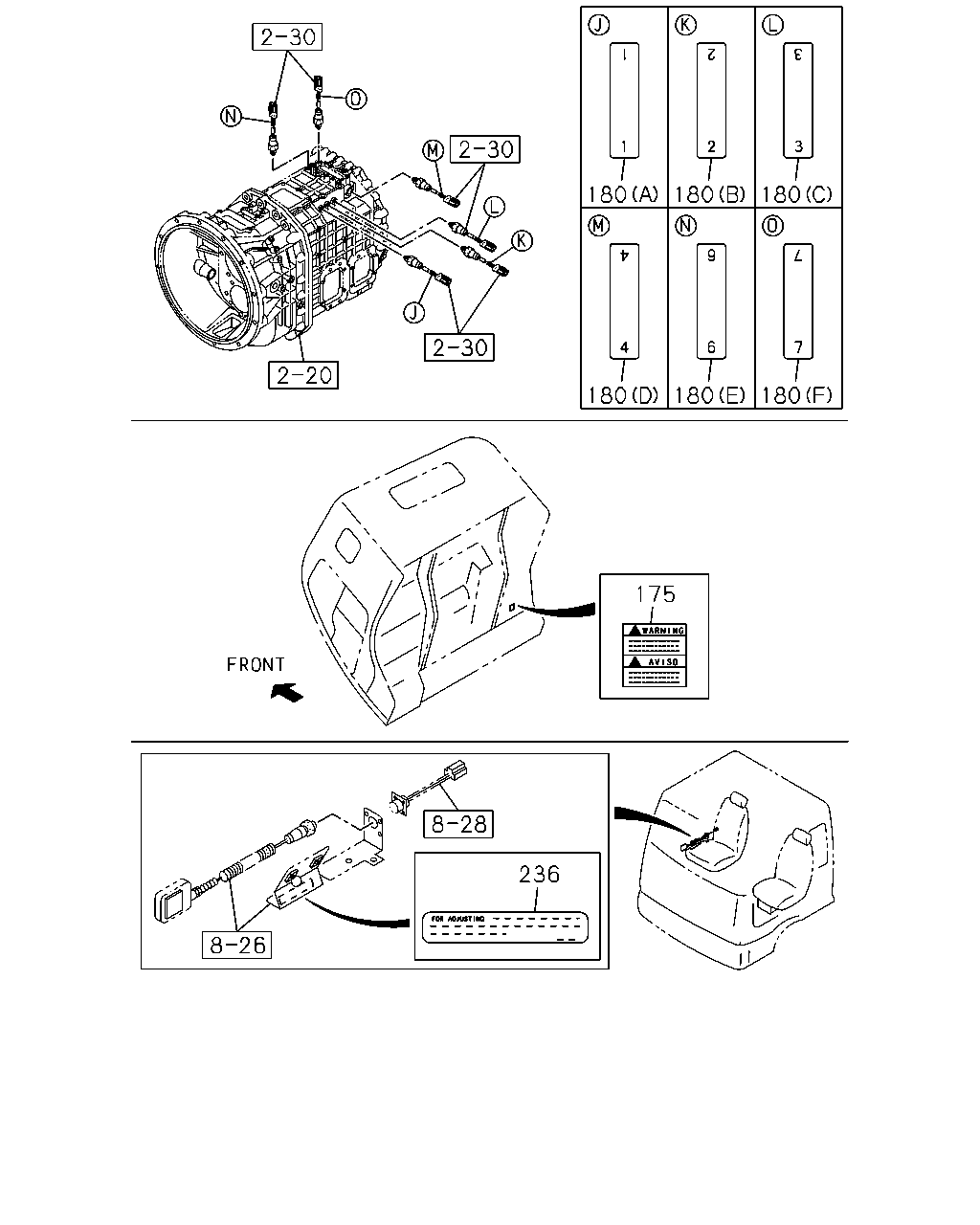

çizim 488264
180 180 180 180 180 180 175 236
BalonParca AdiParca NoAdetTipApplied Date
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 1508-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (A) 		1-85881-871-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (B) 		1-85881-872-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (C) 		1-85881-873-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (E) 		1-85881-880-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (F) 		1-85881-881-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (D) 		8-98269-760-0 01 1 1508-
236 PLATE; CAUTION,AIR SUS 1-85881-823-0 01 1 1508-

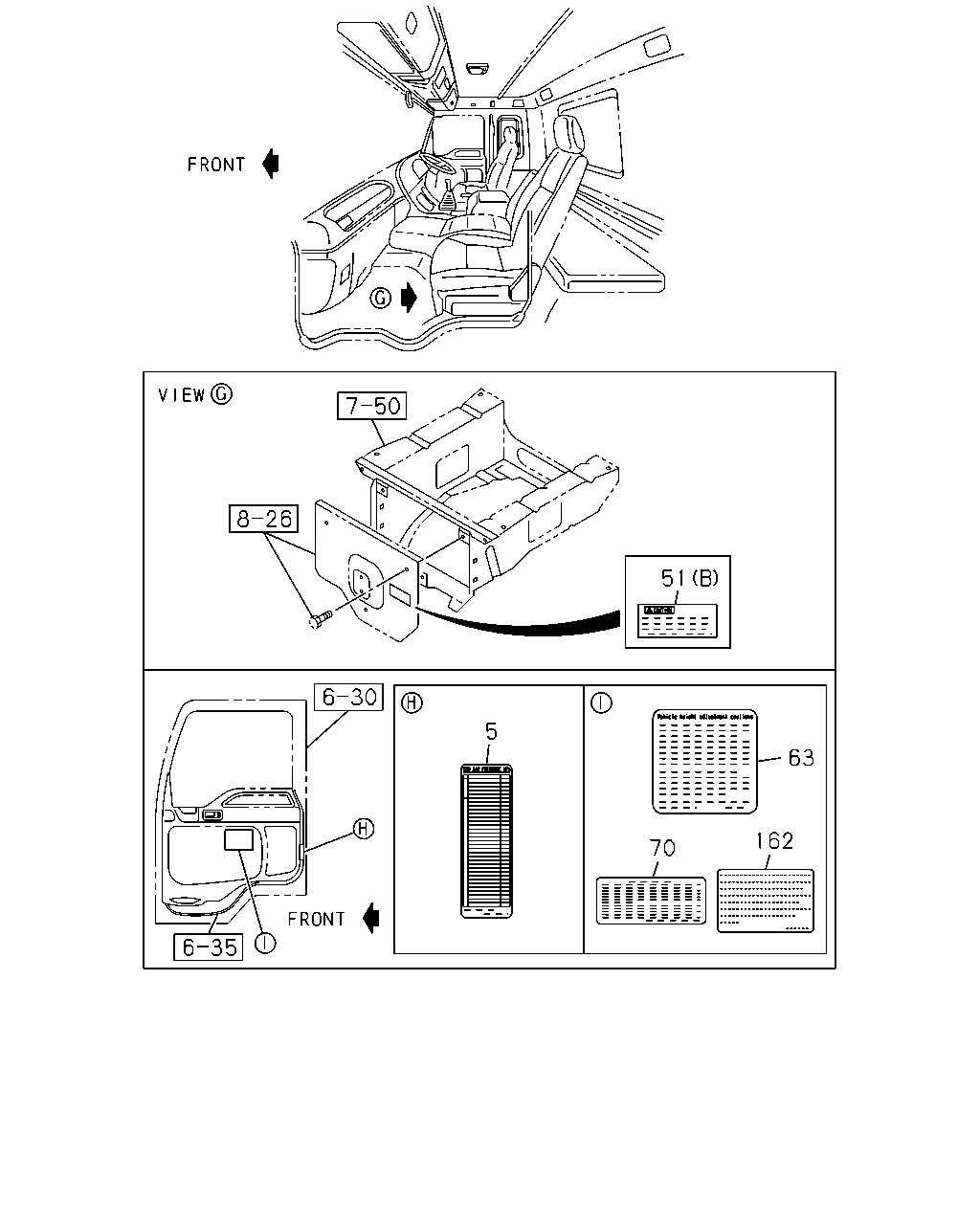

çizim 488579
51 5 70 162 63
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 1508-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1508-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 1508-
63 PLATE; CAUTION,SEAT AIR 1-85881-861-0 01 1 1508-
70 PLATE; CAUTION,ACT
MJX16P M/T(Y3Z) 		1-85878-484-0 01 1 1508-
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 1508-

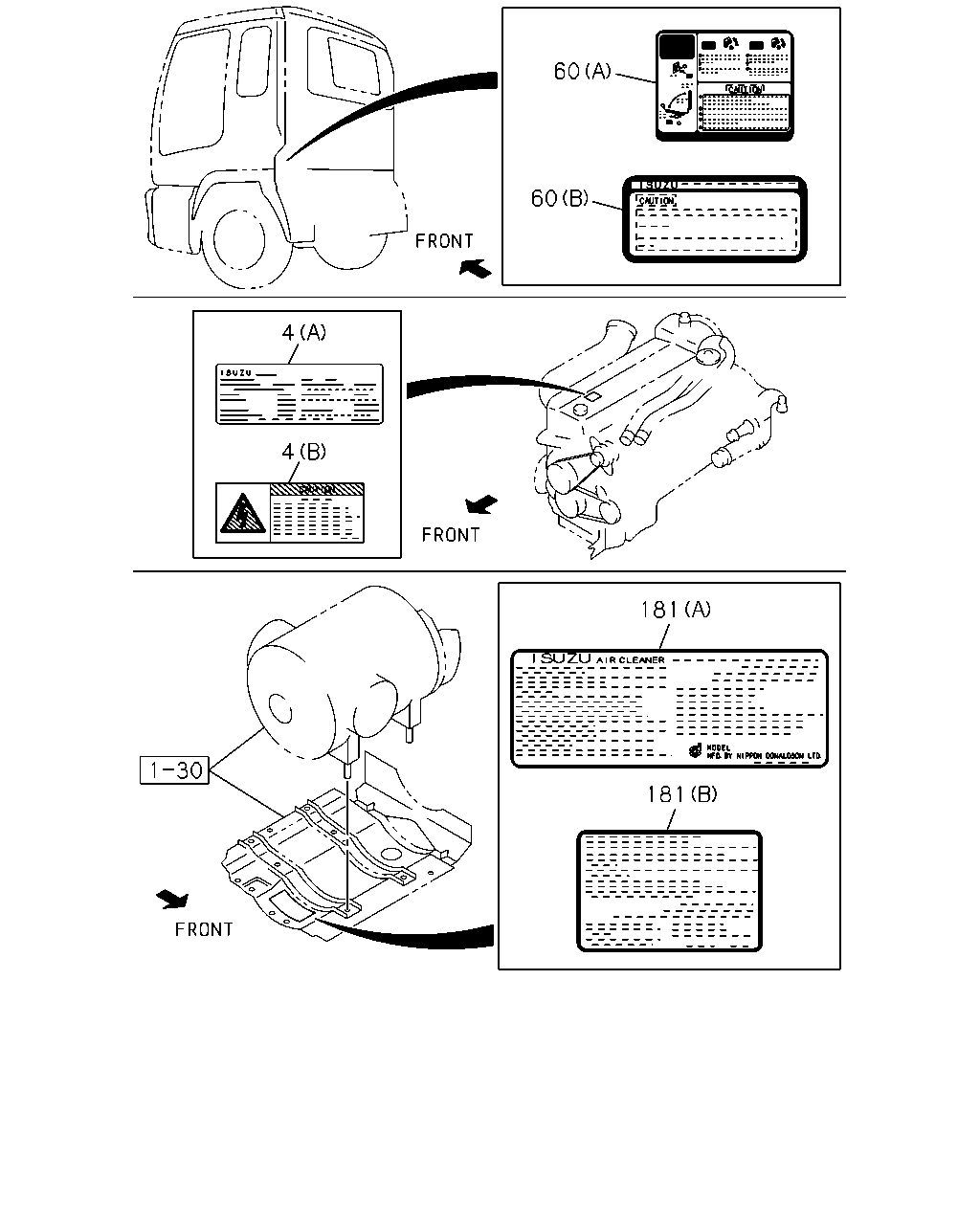

çizim 488692
60 60 4 4 181 181
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 1508-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1508-
60 PLATE; CAUTION,CAB TILT
(A) 		8-98174-581-0 01 1 1508-
60 PLATE; CAUTION,CAB TILT
(B) 		8-98174-582-0 01 1 1508-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 1508-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
