Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11199 - CYZ NEW ZEALAND EURO4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#16531) — 78 parça
◀

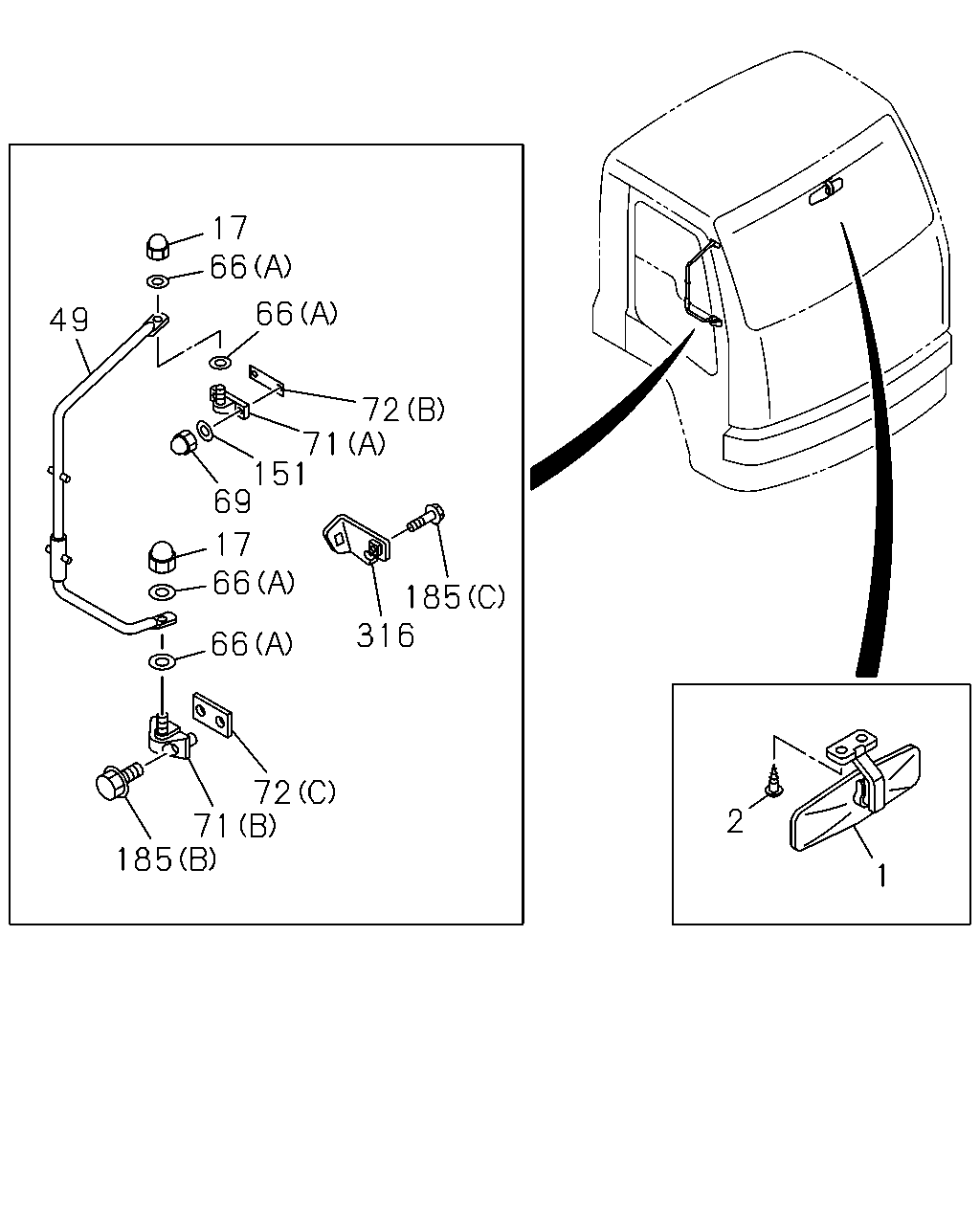

[720A] NO.1 (22 parça)

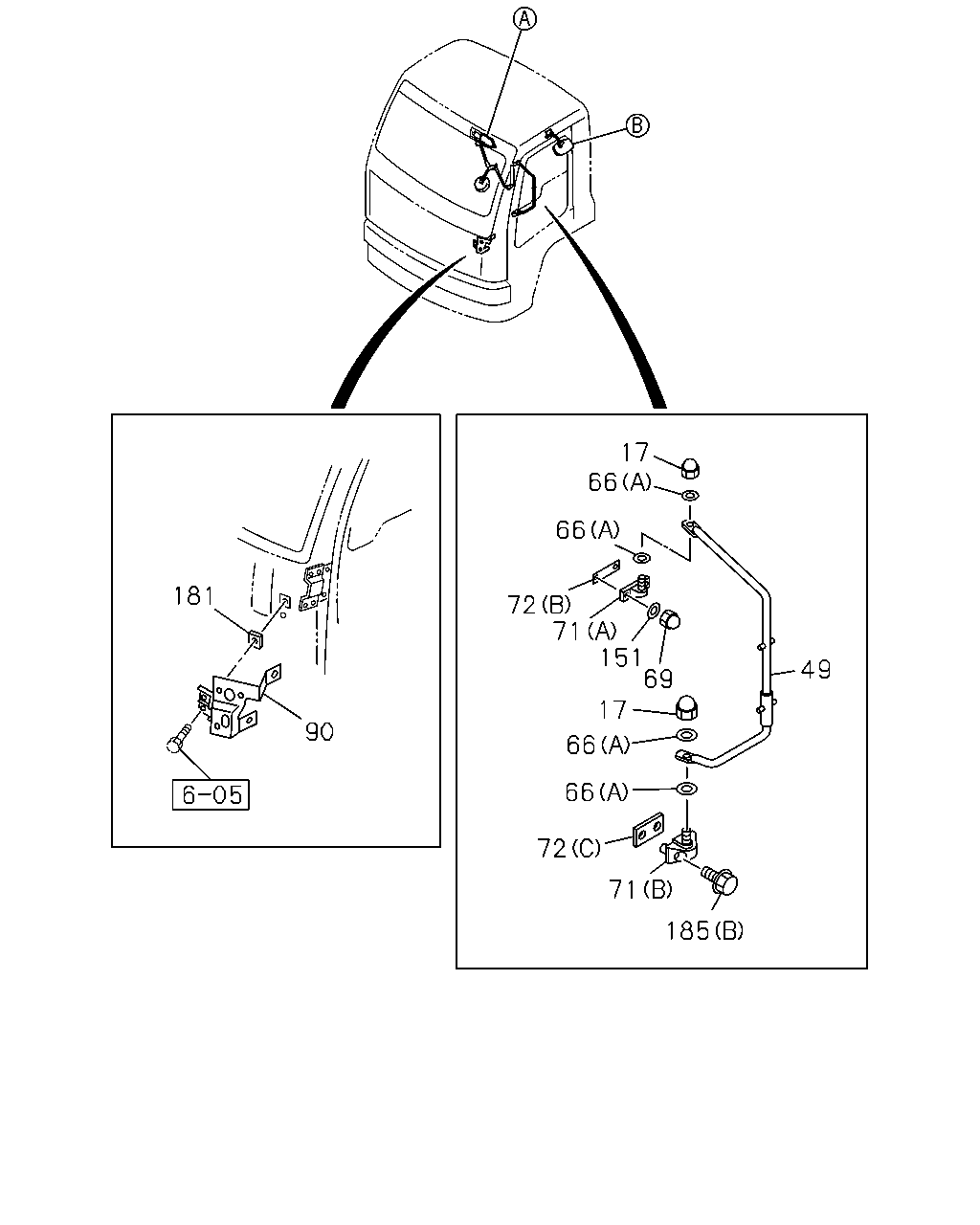

[720A] NO.2 (22 parça)

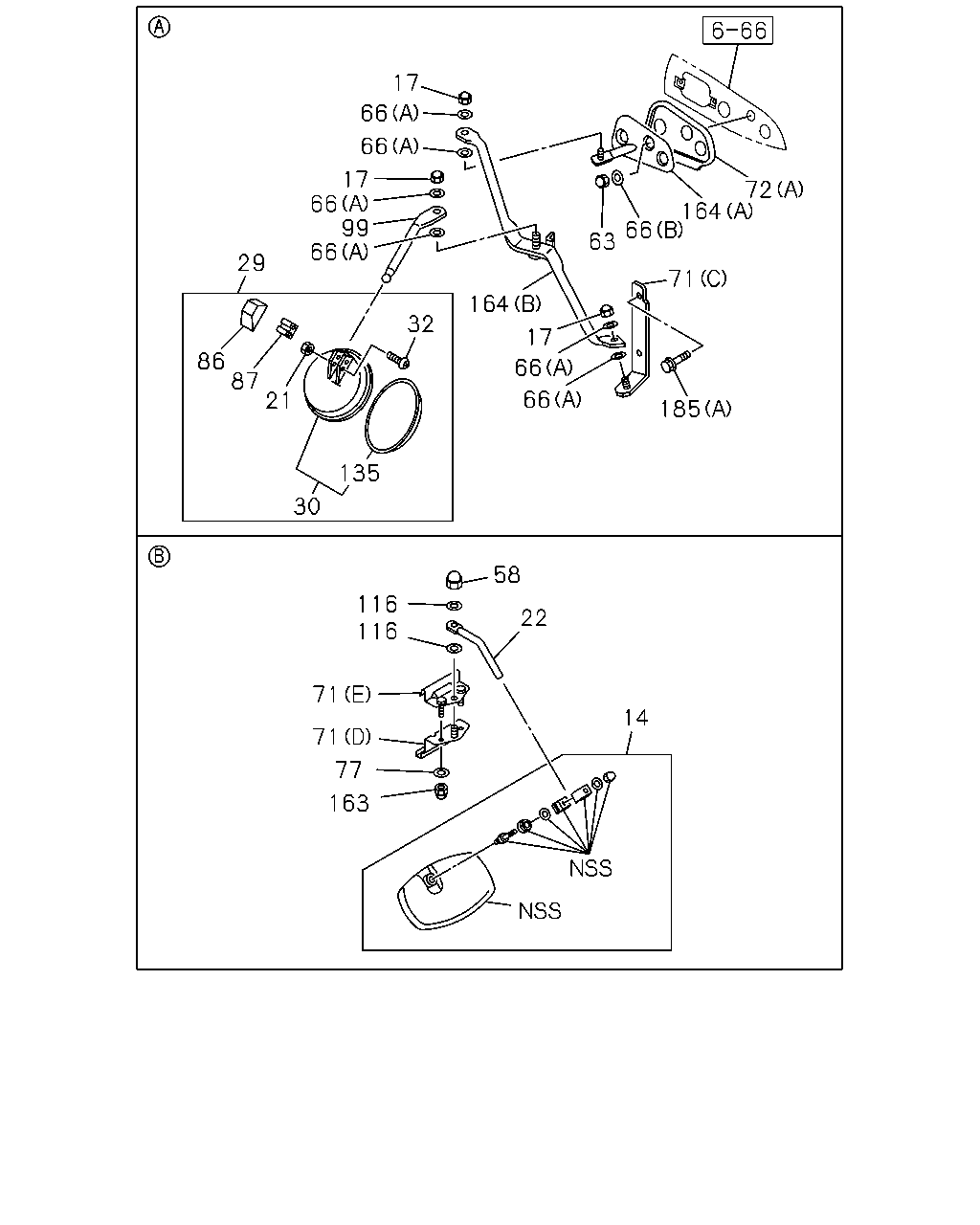

[720A] NO.3 (34 parça)
▶
17
66
66
49
72
71
151
69
17
66
185
316
66
72
71
185
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73117-033-1
01
1
0904-
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
0904-
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
07
1
0904-
49
STAY; MIRROR SIDE
1-71798-491-3
01
1
0904-1309
49
STAY; MIRROR SIDE
1-71798-490-3
01
1
0904-1309
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
14
1
0904-
66
WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0904-
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
04
1
0904-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-484-1
02
1
0904-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-486-2
02
1
0904-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71707-255-2
01
1
0904-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98099-810-0
01
1
0904-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98099-811-0
01
1
0904-1007
71
BRACKET; OUTSIDE MIRROR
(D)
8-98167-111-0
01
1
1008-
72
SHEET
(B)
1-71798-487-3
02
1
0904-
72
SHEET
(C)
1-71798-488-1
02
1
0904-
72
SHEET
HIGH ROOF<S2F> (A)
1-71797-799-1
01
1
0904-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
0904-
185
BOLT; BRKT
(A) M5X16
1-71707-259-0
02
1
0904-
185
BOLT; BRKT
(B) M8X35 FLANGE
8-98046-876-0
04
1
0904-
185
BOLT; BRKT
(C) M6X16 FLANGE
0-28660-616-0
01
1
0904-
316
BRACKET; CONNECTOR
1-71798-896-1
01
1
0904-
17
66
66
181
72
71
151
69
49
17
90
66
66
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
07
1
0904-
49
STAY; MIRROR SIDE
1-71798-491-3
01
1
0904-1309
49
STAY; MIRROR SIDE
1-71798-490-3
01
1
0904-1309
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
14
1
0904-
66
WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0904-
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
04
1
0904-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-484-1
02
1
0904-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-486-2
02
1
0904-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71707-255-2
01
1
0904-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98099-810-0
01
1
0904-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98099-811-0
01
1
0904-1007
71
BRACKET; OUTSIDE MIRROR
(D)
8-98167-111-0
01
1
1008-
72
SHEET
(B)
1-71798-487-3
02
1
0904-
72
SHEET
(C)
1-71798-488-1
02
1
0904-
72
SHEET
HIGH ROOF<S2F> (A)
1-71797-799-1
01
1
0904-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0904-
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0904-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
0904-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0904-
185
BOLT; BRKT
(A) M5X16
1-71707-259-0
02
1
0904-
185
BOLT; BRKT
(B) M8X35 FLANGE
8-98046-876-0
04
1
0904-
185
BOLT; BRKT
(C) M6X16 FLANGE
0-28660-616-0
01
1
0904-
17
66
66
17
66
99
66
72
164
66
63
29
71
164
32
17
86
87
21
66
66
185
135
30
58
116
116
22
71
14
71
77
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
MIRROR ASM; OUTSIDE
1-71798-861-1
01
1
0904-1103
14
MIRROR ASM; OUTSIDE
1-71798-895-0
01
1
1104-
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
07
1
0904-
21
NUT; MIRROR
M5
1-09984-124-0
02
1
0904-
22
STAY; OUTSIDE MIRROR
1-71798-663-1
01
1
0904-
29
MIRROR ASM; UNDER
1-71798-422-0
01
1
0904-
30
MIRROR; UNDER
1-71798-591-1
01
1
0904-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
02
1
0904-
58
NUT; MIRROR STAY
M10
1-09984-183-0
01
1
0904-
63
NUT; STAY
M8
1-09984-187-0
03
1
0904-
66
WASHER; PL
(A) ID=10.5 OD=26 T=2.6
1-09985-184-0
14
1
0904-
66
WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0904-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-484-1
02
1
0904-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-486-2
02
1
0904-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71707-255-2
01
1
0904-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98099-810-0
01
1
0904-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98099-811-0
01
1
0904-1007
71
BRACKET; OUTSIDE MIRROR
(D)
8-98167-111-0
01
1
1008-
72
SHEET
(B)
1-71798-487-3
02
1
0904-
72
SHEET
(C)
1-71798-488-1
02
1
0904-
72
SHEET
HIGH ROOF<S2F> (A)
1-71797-799-1
01
1
0904-
77
WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
0904-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-649-1
01
1
0904-
87
SPACER
1-71737-646-2
01
1
0904-
99
STAY; MAIN UNDER MIRROR
1-71707-265-1
01
1
0904-
116
WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6
1-09985-204-0
02
1
0904-
135
LENS; MIRROR,SIDE UNDER
1-71798-838-0
01
1
0904-
163
NUT; MIRROR BRKT
M8
1-09984-187-0
02
1
0904-0910
163
NUT; MIRROR BRKT
M8 CAP NUT
8-98059-914-0
02
1
0911-
164
STAY; ROOF
(A)
1-71707-248-2
01
1
0904-
164
STAY; ROOF
(B)
1-71707-266-1
01
1
0904-
185
BOLT; BRKT
(A) M5X16
1-71707-259-0
02
1
0904-
185
BOLT; BRKT
(B) M8X35 FLANGE
8-98046-876-0
04
1
0904-
185
BOLT; BRKT
(C) M6X16 FLANGE
0-28660-616-0
01
1
0904-
