◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#165307) — 52 parça

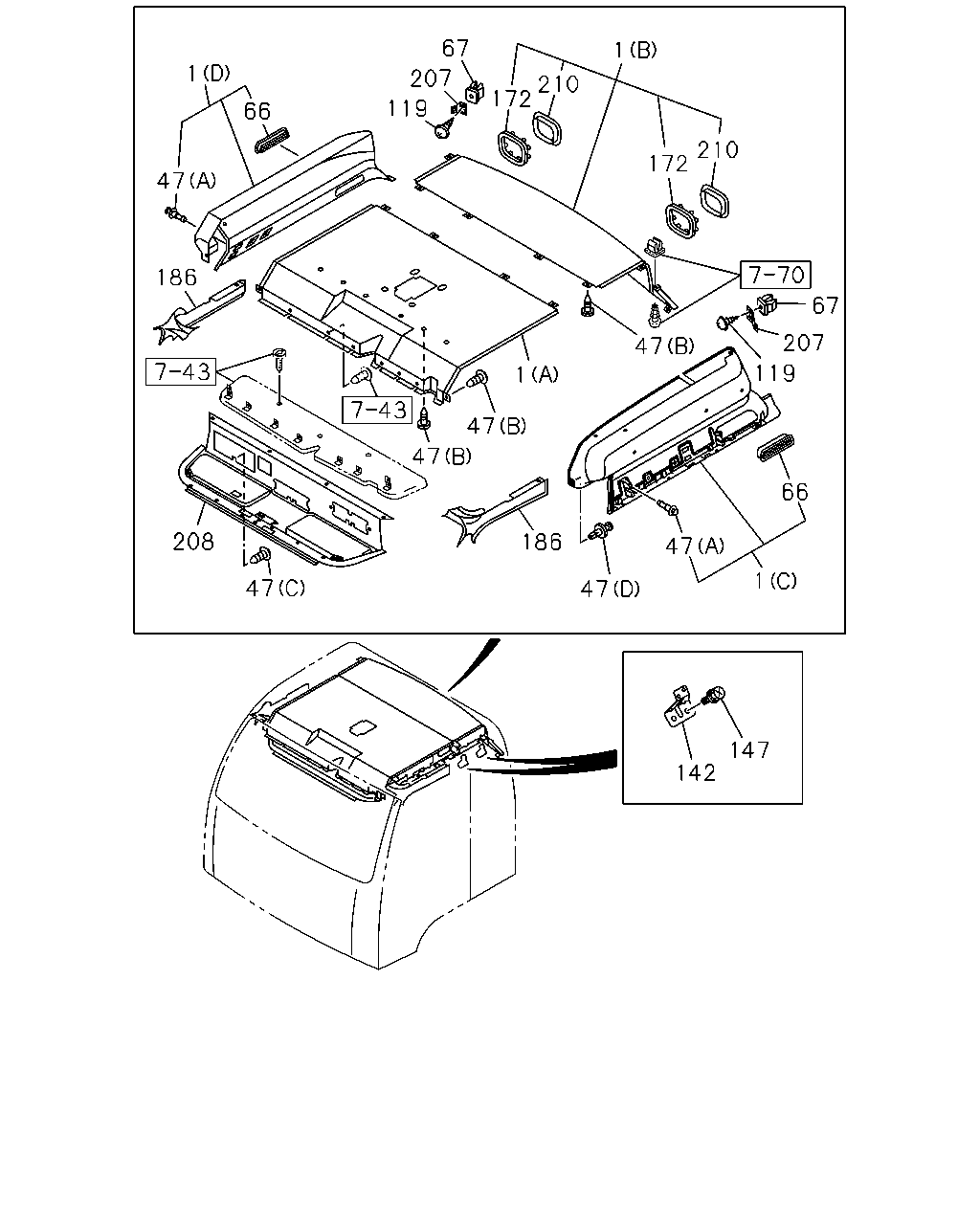

çizim 488391
1 66 47 186 208 47 47 47 1 47 186 47 47 1 66 119 207 67 172 210 1 210 172 119 207 67 142 147
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (D) 		1-73317-509-1 01 1 1508-
1 LINING; HD
HIGH ROOF<S2F> (C) 		1-73317-508-1 01 1 1508-
1 LINING; HD
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (A) 		1-73317-500-2 01 1 1508-
1 LINING; HD
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) 		1-73317-560-0 01 1 1508-
1 LINING; HD
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (D) 		1-73317-507-1 01 1 1508-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (A) 		8-94313-458-0 04 1 1508-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (A) 		8-94313-458-0 04 1 1508-
47 CLIP; HEADLINING
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (D) D8X13.5 		1-09987-276-0 02 1 1508-
47 CLIP; HEADLINING
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 36 1 1508-
47 CLIP; HEADLINING
ROOM LAMP FLUORESCENT<NGG> (C) D5X14.7 		1-09983-183-0 05 1 1508-
47 CLIP; HEADLINING
ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> (B) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 1508-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-367-1 01 1 1508-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-366-1 01 1 1508-
67 GROMMET; SCREW
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1508-
119 SCREW; BRKT
HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 1508-
142 BRACKET ASM; ROOF COVER
HIGH ROOF<S2F> 		1-61170-747-3 04 1 1508-
147 BOLT; SUPPORT BRKT
HIGH ROOF<S2F> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 16 1 1508-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73317-450-0 02 1 1508-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73317-449-0 01 1 1508-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73317-448-0 01 1 1508-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 1508-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 1508-
207 BRACKET; HEADLINING
HIGH ROOF<S2F> 		1-61170-835-0 01 1 1508-
207 BRACKET; HEADLINING
HIGH ROOF<S2F> 		1-61170-834-0 01 1 1508-
208 COVER; HEADER SHELF
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> 		1-73317-510-2 01 1 1508-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73996-208-1 02 1 1508-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73347-886-1 01 1 1508-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73347-885-1 01 1 1508-

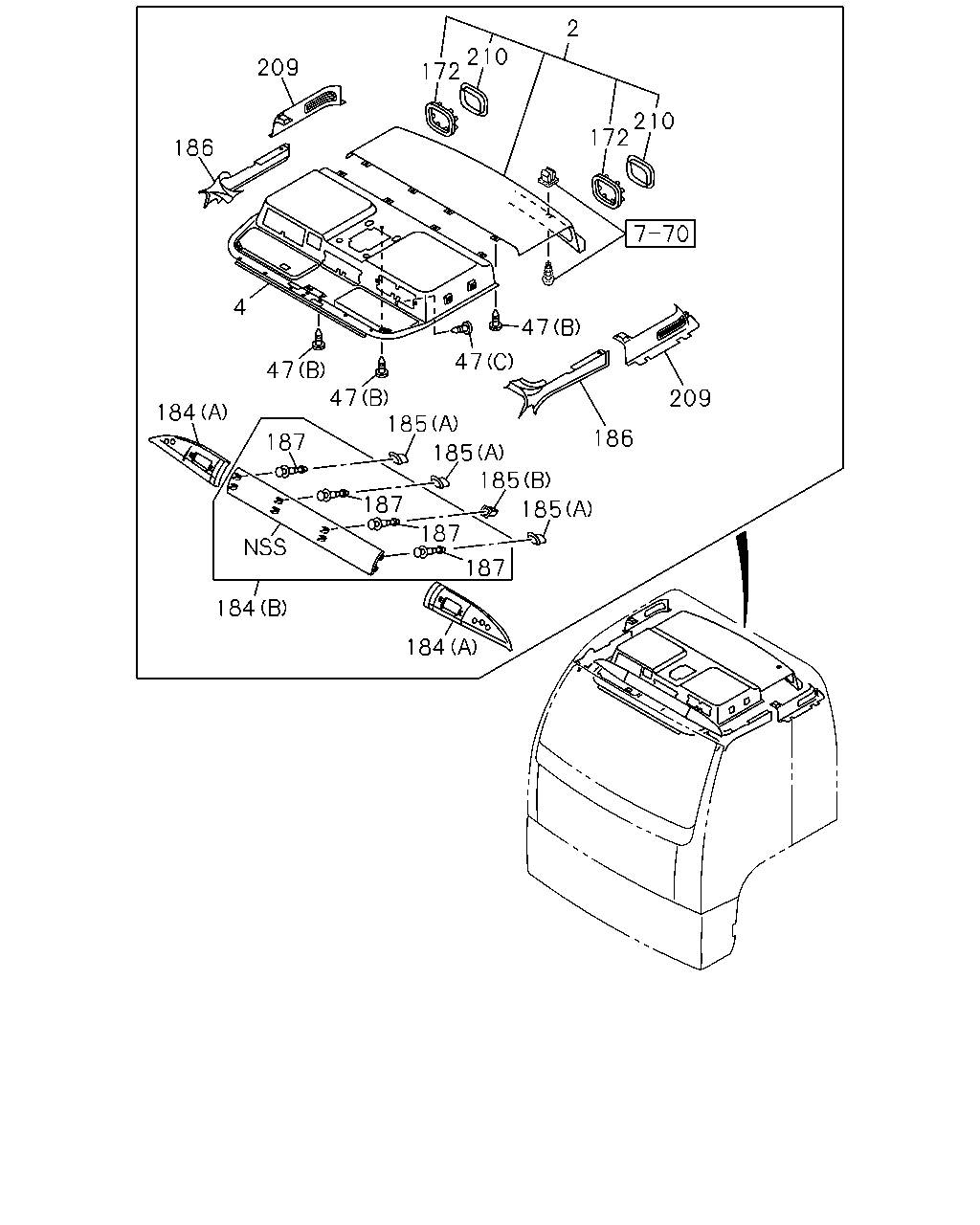

çizim 488529
210 2 210 172 172 209 186 4 47 47 47 47 185 185 185 185 186 209 187 187 187 187 184 184 184
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73317-503-2 01 1 1508-
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> 		1-73317-482-2 01 1 1508-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (A) 		8-94313-458-0 04 1 1508-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (A) 		8-94313-458-0 04 1 1508-
47 CLIP; HEADLINING
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (D) D8X13.5 		1-09987-276-0 02 1 1508-
47 CLIP; HEADLINING
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 36 1 1508-
47 CLIP; HEADLINING
ROOM LAMP FLUORESCENT<NGG> (C) D5X14.7 		1-09983-183-0 05 1 1508-
47 CLIP; HEADLINING
ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> (B) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 1508-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73317-450-0 02 1 1508-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73317-449-0 01 1 1508-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73317-448-0 01 1 1508-
184 ORNAMENT; ROOF
LOW ROOF<6XQ> (B) 		1-73318-660-3 01 1 1508-
184 ORNAMENT; ROOF
LOW ROOF<6XQ> (A) 		1-73317-409-2 01 1 1508-
184 ORNAMENT; ROOF
LOW ROOF<6XQ> (A) 		1-73317-408-2 01 1 1508-
185 GROMMET; ORNAMENT
LOW ROOF<6XQ> (A) 		1-79198-012-0 06 1 1508-
185 GROMMET; ORNAMENT
LOW ROOF<6XQ> (B) 		1-79198-013-0 02 1 1508-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 1508-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 1508-
187 PIN; ORNAMENT
LOW ROOF<6XQ> D4.2X13 		1-09983-161-0 08 1 1508-
209 COVER; GRILLE
LOW ROOF<6XQ> 		1-73347-866-3 01 1 1508-
209 COVER; GRILLE
LOW ROOF<6XQ> 		1-73347-865-3 01 1 1508-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73996-208-1 02 1 1508-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73347-886-1 01 1 1508-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> 		1-73347-885-1 01 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
