◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11199 - CYZ NEW ZEALAND EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#16530) — 19 parça

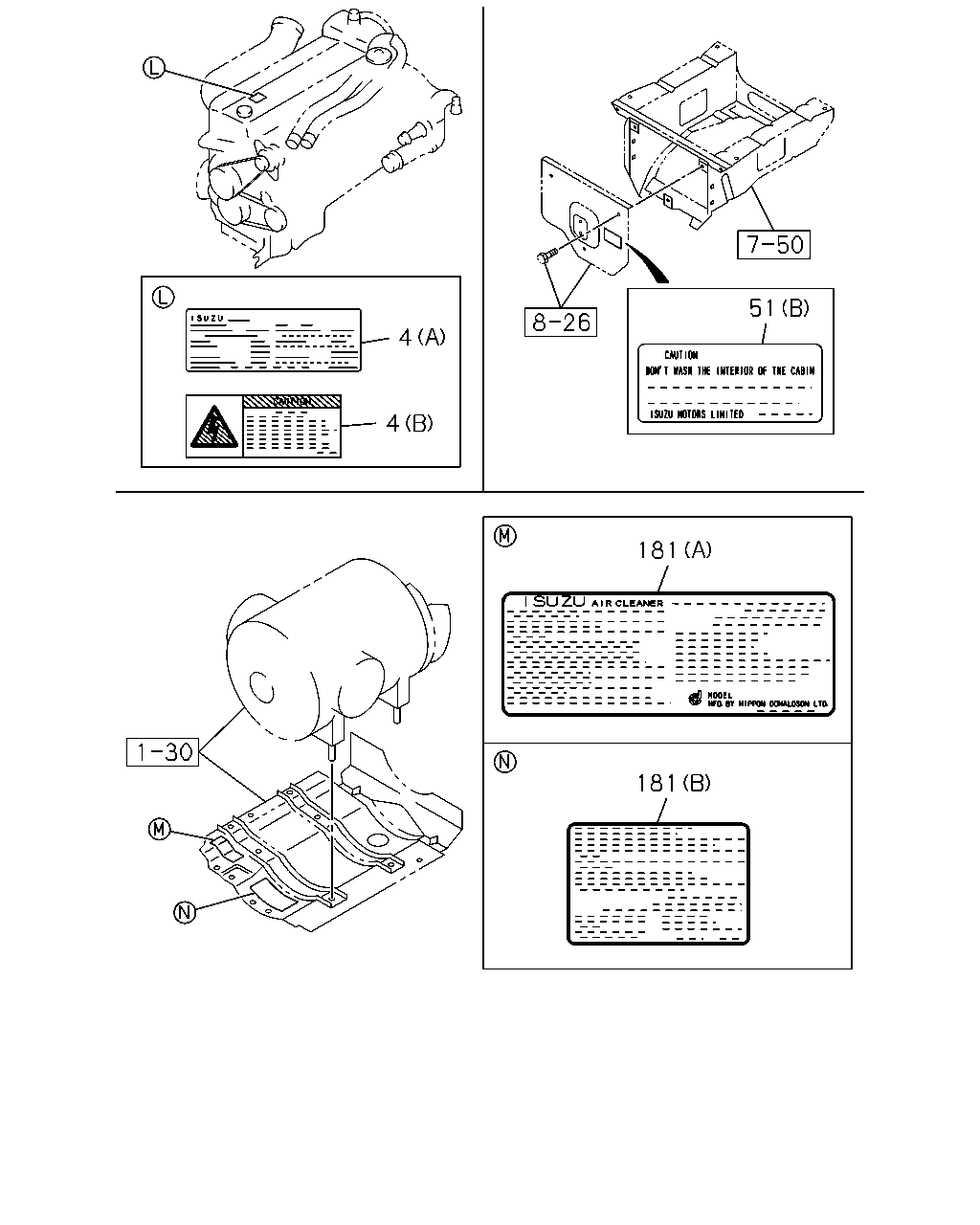

çizim 62323
51 4 4 181 181
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0904-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0904-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0904-
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0904-
çizim 102284
175 260 163 60
BalonParca AdiParca NoAdetTipApplied Date
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 0904-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0904-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0904-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0904-

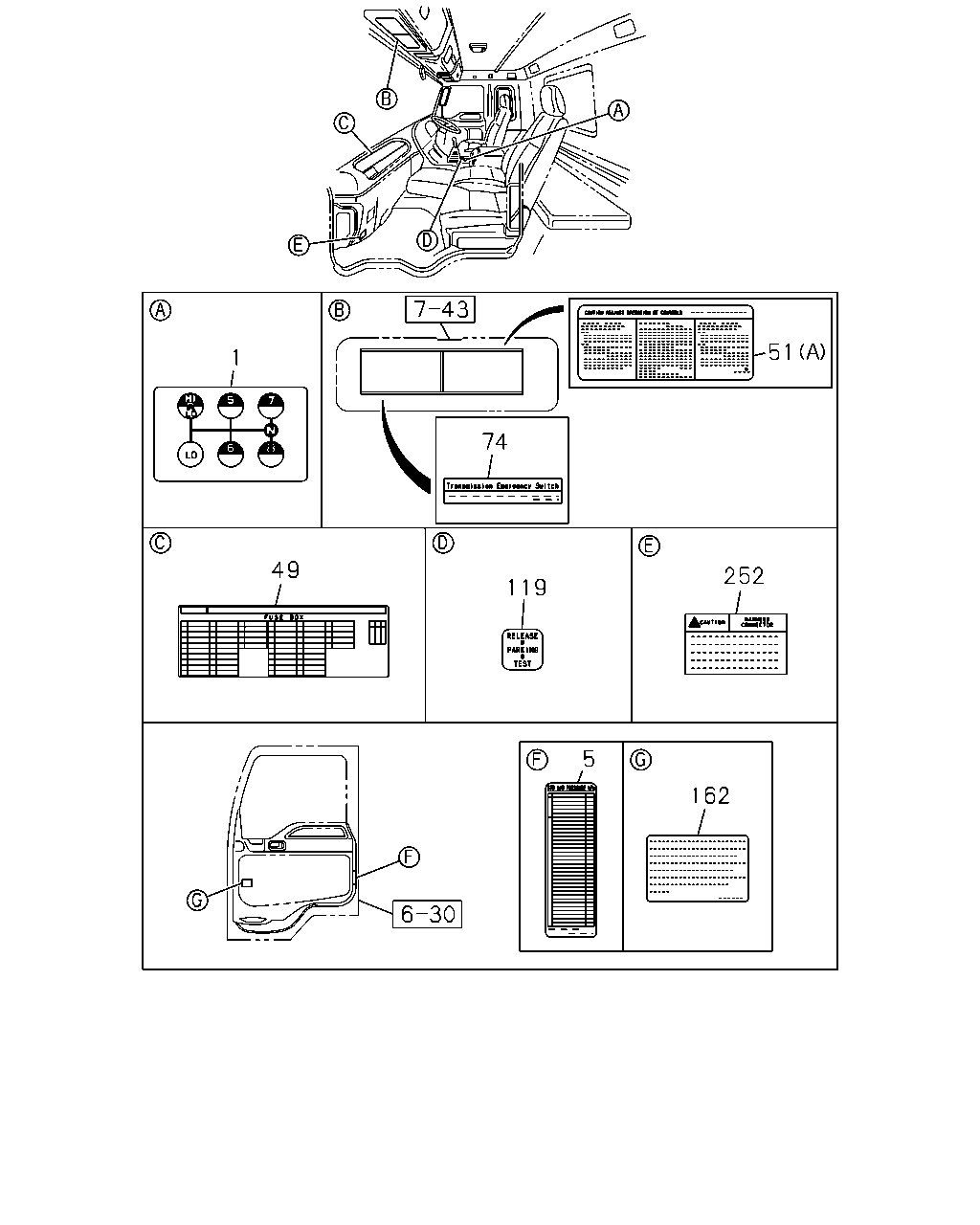

çizim 102286
51 1 74 49 252 119 5 162
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN 1-85881-519-0 01 1 0904-
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0904-
49 PLATE; CAUTION,FUSE BOX 8-97632-148-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0904-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0904-
74 PLATE; CAUTION,CHANGE LEV 1-85881-786-0 01 1 0904-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0904-
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 0910-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
