◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#165278) — 58 parça

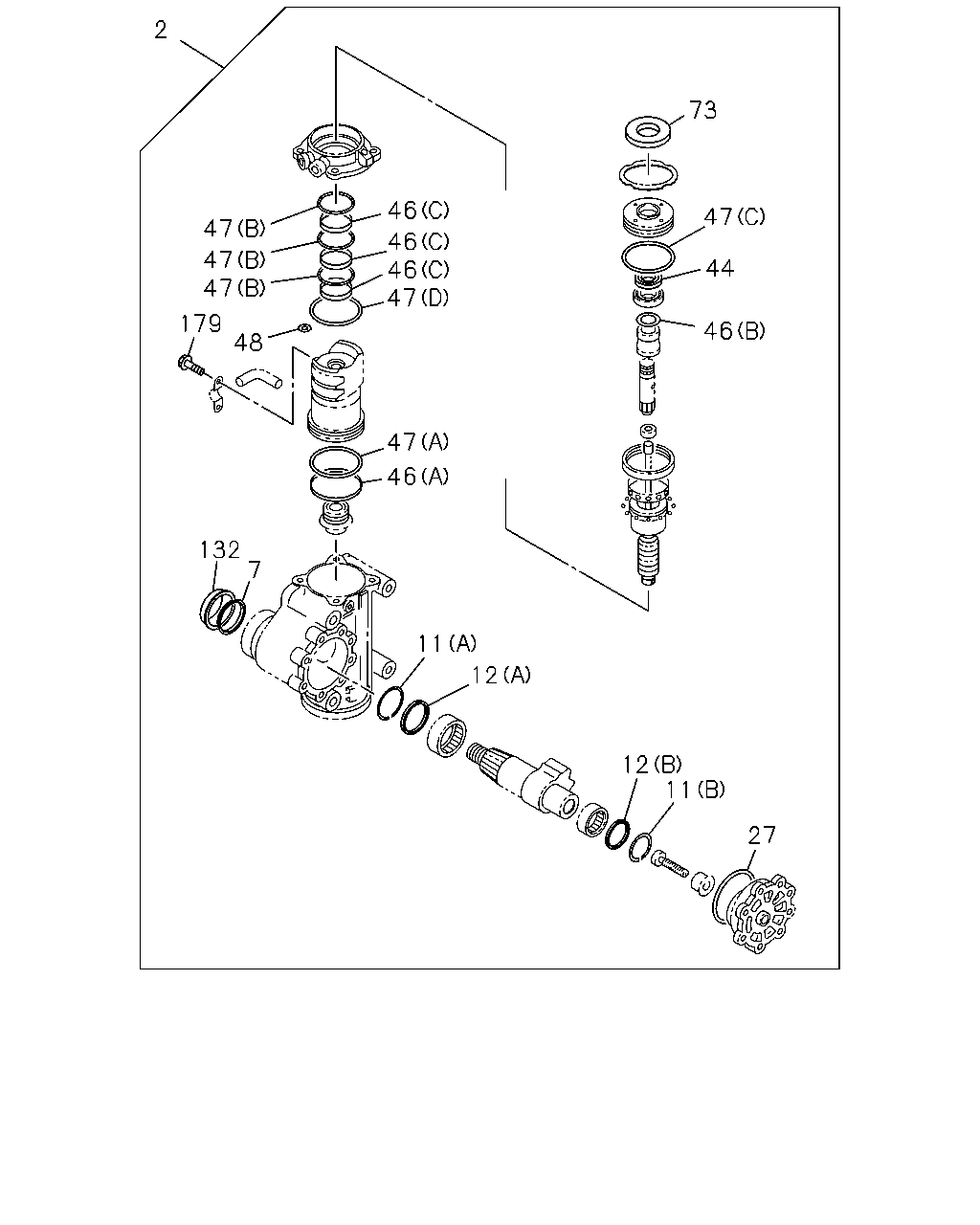

çizim 488317
2 47 47 47 179 48 46 46 46 47 73 47 44 46 47 46 132 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-943-2 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-943-2 		8-98159-116-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-943-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-943-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-943-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-227-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 1-44000-943-2 		1-09000-610-0 02 1 -

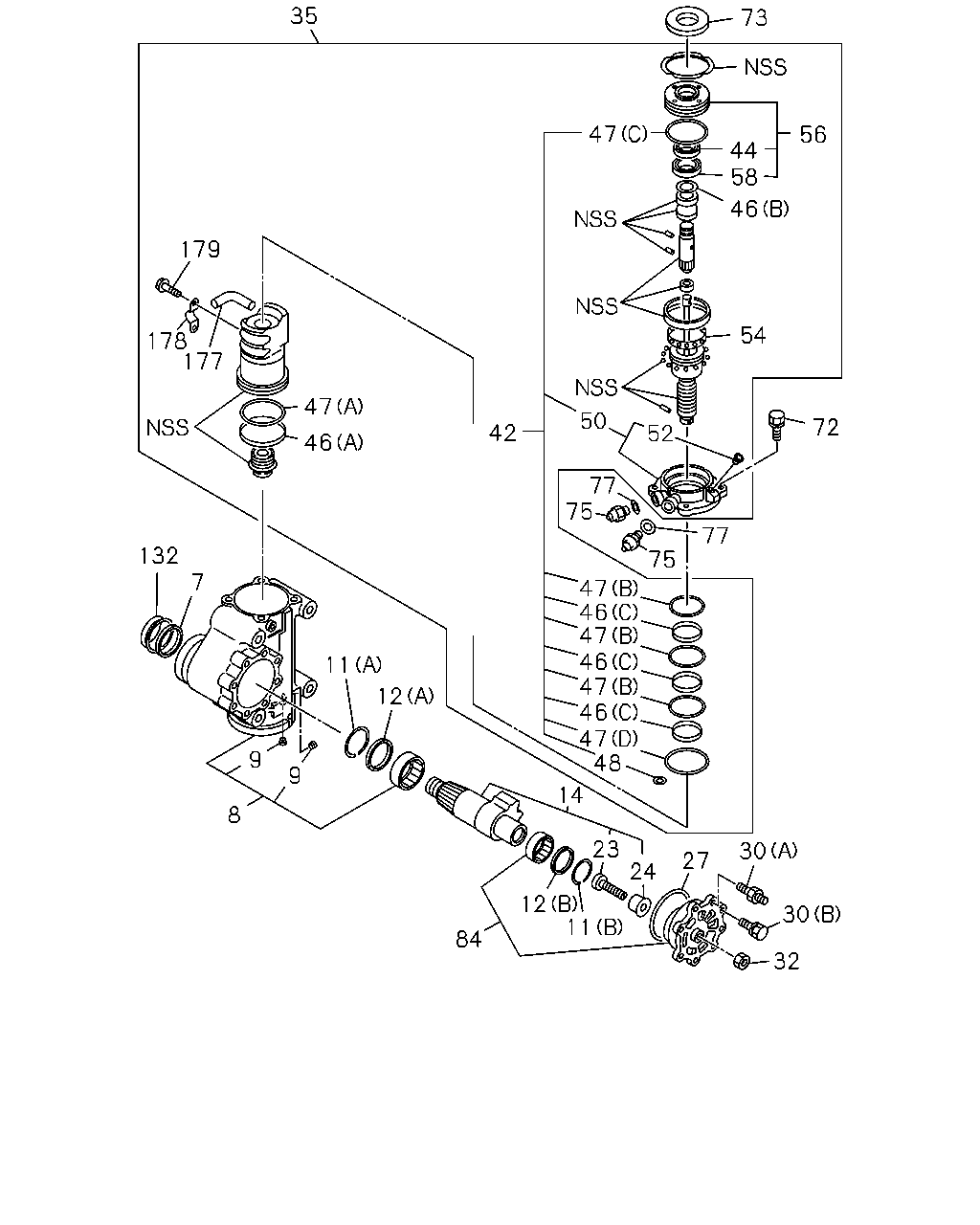

çizim 488834
35 73 56 44 58 46 47 50 52 77 75 75 77 42 54 72 47 46 47 46 47 46 47 48 14 23 24 27 30 30 12 84 11 32 12 11 9 9 179 178 177 47 46 132 7 8
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-943-2 		8-98159-116-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44240-148-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44320-016-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44150-130-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44560-098-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-943-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-943-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-943-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-943-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-943-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44560-099-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-943-2 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-943-2 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44519-227-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44159-167-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-943-2 		1-44159-034-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 1-44000-943-2 		1-09000-610-0 02 1 -
