◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#165269) — 89 parça

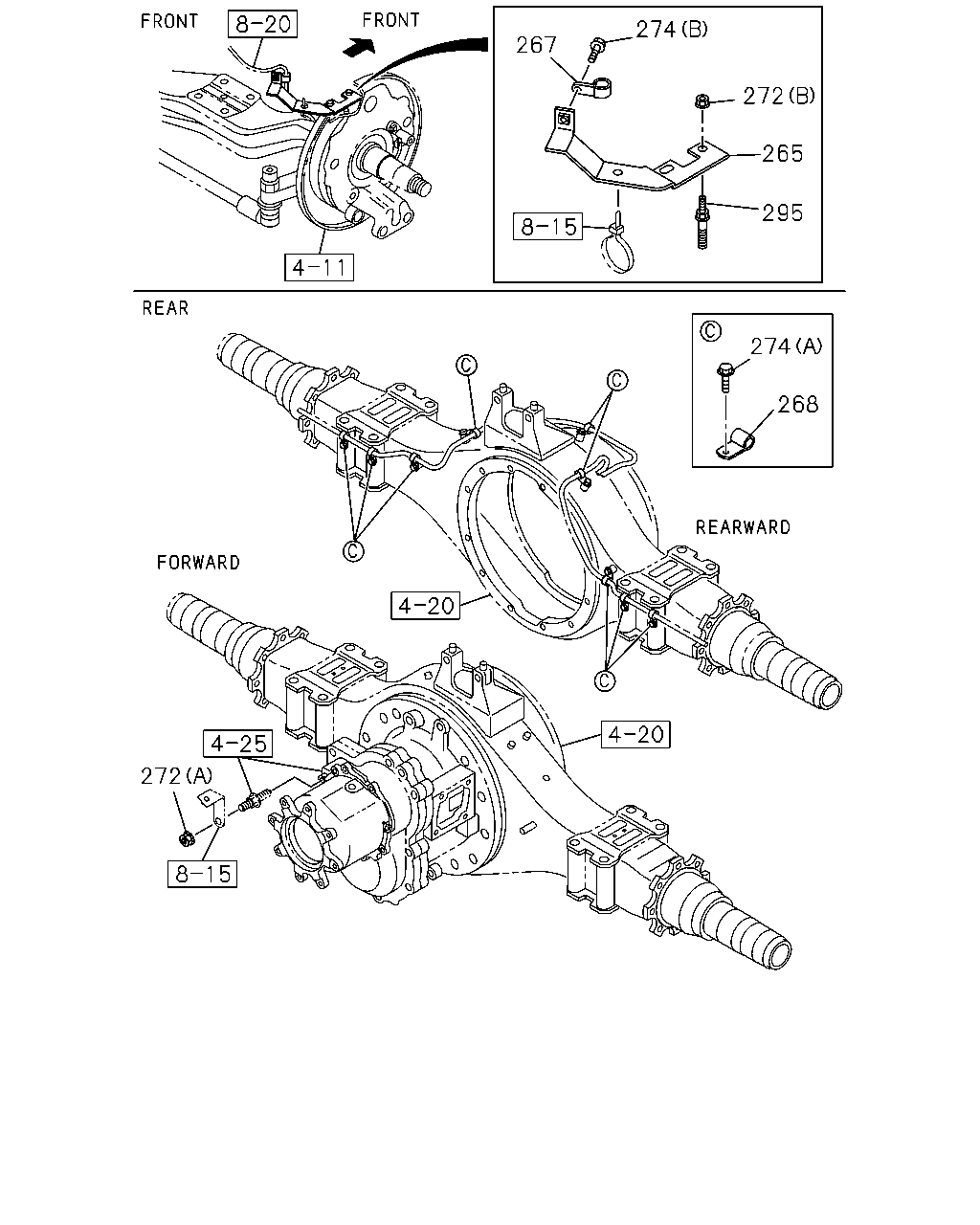

çizim 488021
274 268 265 295 272 274 267 272
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-427-0 01 1 1508-
265 BRACKET; CLIP I BEAM 1-82698-426-0 01 1 1508-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1508-
268 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 09 1 1508-
272 NUT; CLIP
(B) M10 FLANGE 		0-91180-110-0 04 1 1508-
272 NUT; CLIP
(A) M12 FLANGE 		0-91180-212-0 01 1 1508-
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1508-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1508-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1508-

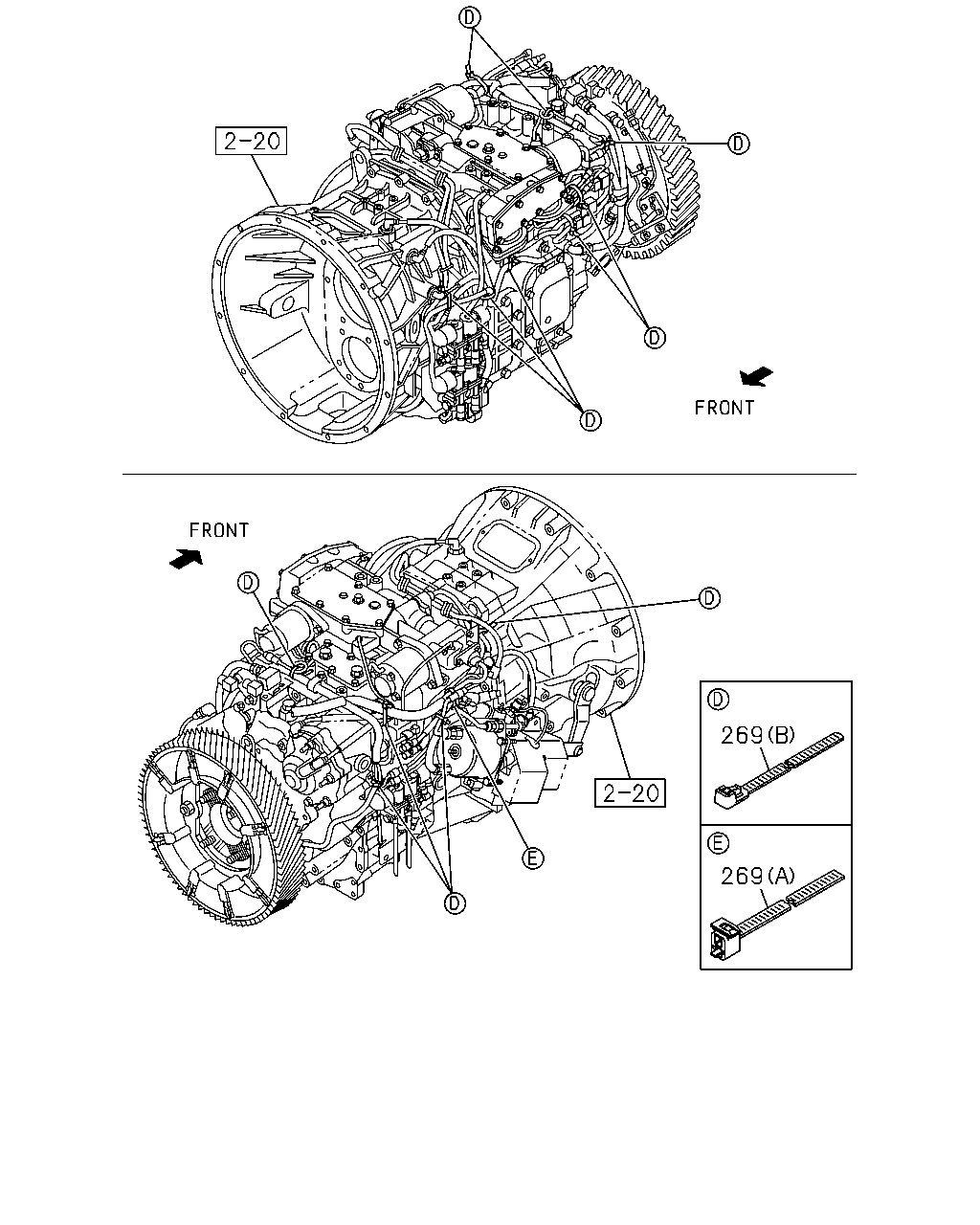

çizim 488228
269 269
BalonParca AdiParca NoAdetTipApplied Date
269 CLIP; BAND
MJX16P M/T(Y3Z) (A) L=180 		1-09707-162-1 01 1 1508-
269 CLIP; BAND
MJX16P M/T(Y3Z) (B) L=250 		5-09707-030-1 12 1 1508-

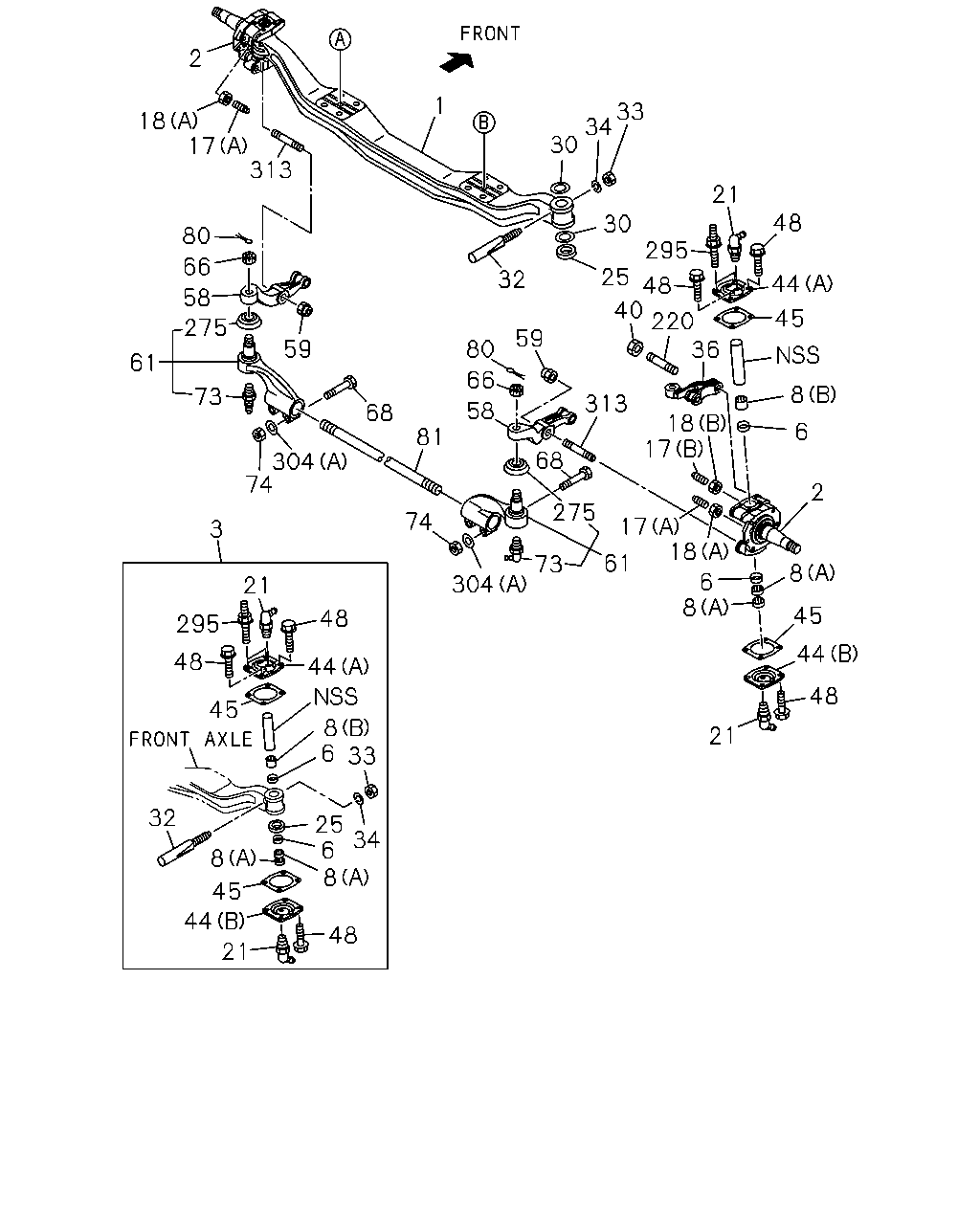

çizim 488812
34 33 30 30 25 32 295 21 48 40 45 44 48 220 17 18 36 6 8 2 8 45 44 48 21 8 18 6 61 17 275 73 304 74 81 58 66 80 59 313 68 304 74 3 73 275 58 66 80 61 17 18 2 313 59 1 68 6 33 8 44 48 21 295 48 45 32 8 8 48 21 44 45 25 34 6
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-178-3 01 1 1508-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1508-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1508-
3 KING PIN SET 1-87831-349-3 02 1 1508-
6 SEAL; KING PIN 9-09926-024-0 04 1 1508-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1508-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1508-
17 BOLT; STOPPER KNUCKLE
(B) M18X53 		1-09009-066-0 01 1 1508-
17 BOLT; STOPPER KNUCKLE
(A) M18X38 		1-09009-164-0 02 1 1508-
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1508-
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1508-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1508-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1508-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1508-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1508-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1508-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1508-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1508-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1508-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1508-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1508-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1508-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1508-
58 ARM; TIE ROD 1-43135-049-4 01 1 1508-
58 ARM; TIE ROD 1-43134-049-4 01 1 1508-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1508-
61 ROD END; TIE ROD 8-98228-107-0 01 1 1508-
61 ROD END; TIE ROD 8-98228-106-0 01 1 1508-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1508-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1508-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1508-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1508-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1508-
81 ROD; TIE 8-98105-064-0 01 1 1508-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1508-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1508-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1508-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1508-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1508-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1508-

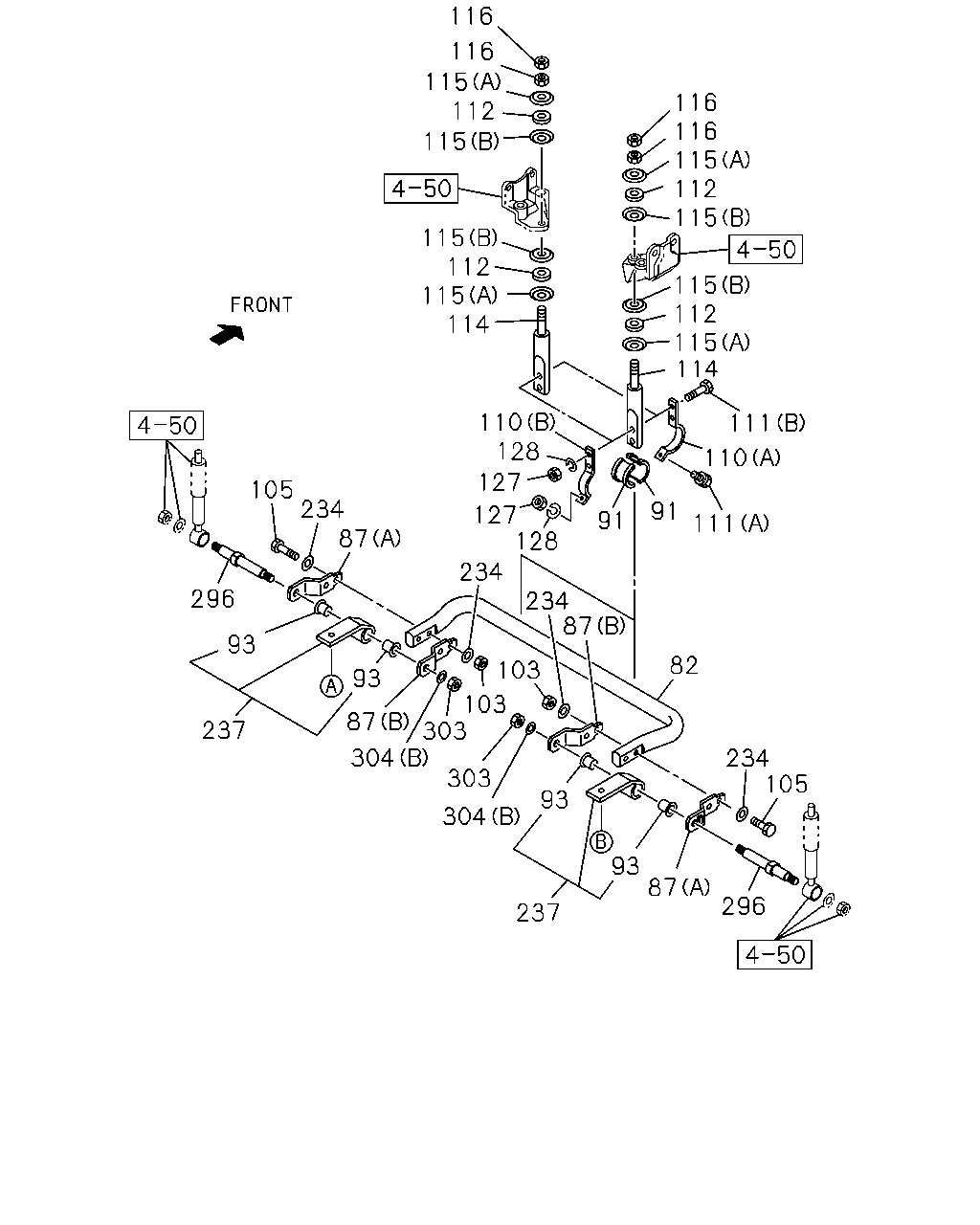

çizim 488835
116 112 115 116 115 116 115 116 112 115 115 115 112 114 111 115 115 112 114 110 127 128 127 91 91 110 111 128 234 87 234 105 296 93 93 87 304 303 303 103 103 237 93 234 87 82 234 105 296 87 93 237 304
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51771-136-1 01 1 1508-
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1508-
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1508-
91 BUSHING; RUBBER,STAB BAR 1-51779-087-1 04 1 1508-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1508-
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1508-
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1508-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1508-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1508-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1508-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1508-
112 BUSHING; ROD 9-51631-039-0 04 1 1508-
114 ROD; STAB BAR 1-51773-083-2 02 1 1508-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 1508-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 1508-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1508-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1508-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1508-
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1508-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1508-
296 PIN; STAB 8-98022-874-1 02 1 1508-
303 NUT; PIN
M20 		0-91110-520-0 02 1 1508-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1508-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1508-
