Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#165266) — 32 parça
◀

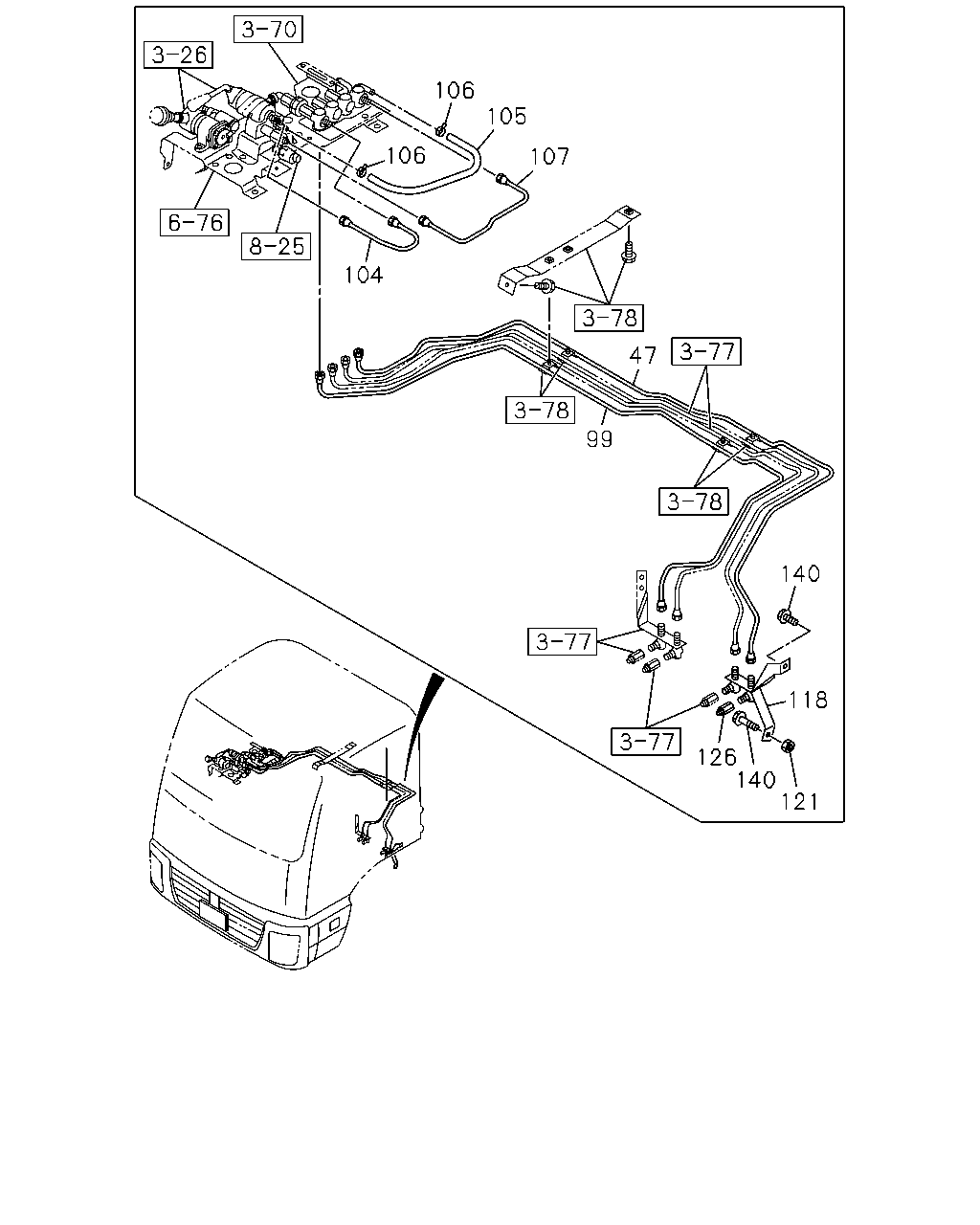

[380A] CAB SIDE (10 parça)
[380A] SPIRAL TUBE (22 parça)
▶
106
105
107
47
99
140
118
121
140
126
104
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
1-49121-763-2
01
1
1508-
99
PIPE; AIR,JOINT TO JOINT
1-49122-058-1
01
1
1508-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
1508-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
1508-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
1508-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
1508-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
1508-
121
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1508-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1508-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1508-
16
157
148
13
75
72
33
42
91
91
91
91
125
91
91
91
91
157
91
17
18
17
18
148
16
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
SPIRAL TUBE BRK SEA TRAILER<NBD>
1-49222-064-0
01
1
1508-
16
UNION; AIR PIPE
(A) M16 & PT1/2 STRAIGHT
1-09650-222-1
01
1
1508-
16
UNION; AIR PIPE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1508-
17
WASHER; LK,UNION
ID=16.2
0-91510-516-0
02
1
1508-
18
NUT; UNION
M16
0-91111-516-0
02
1
1508-
33
BRACKET
1-34656-009-0
01
1
1508-
42
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1508-
72
PLUG
EXC. SPIRAL TUBE BRK SEA TRAILER<NBD> PT1/2
9-09204-521-0
01
1
1508-
75
HOSE; FLEX,TRAILER EMERGENCY
SPIRAL TUBE BRK SEA TRAILER<NBD>
1-49222-064-0
01
1
1508-
91
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1508-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1508-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1508-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1508-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1508-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
1-87411-016-0
AR
1
1508-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1508-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1508-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1508-
148
ADAPTER; NYLON TUBE
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1508-
148
ADAPTER; NYLON TUBE
SPIRAL TUBE BRK SEA TRAILER<NBD> (A) M16 & PT1/2 STRAIGHT
1-09660-078-0
01
1
1508-
157
ADAPTER
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1508-
157
ADAPTER
SPIRAL TUBE BRK SEA TRAILER<NBD> (A) M16 & PT1/2 STRAIGHT
1-09660-078-0
01
1
1508-
