Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#165260) — 39 parça
◀

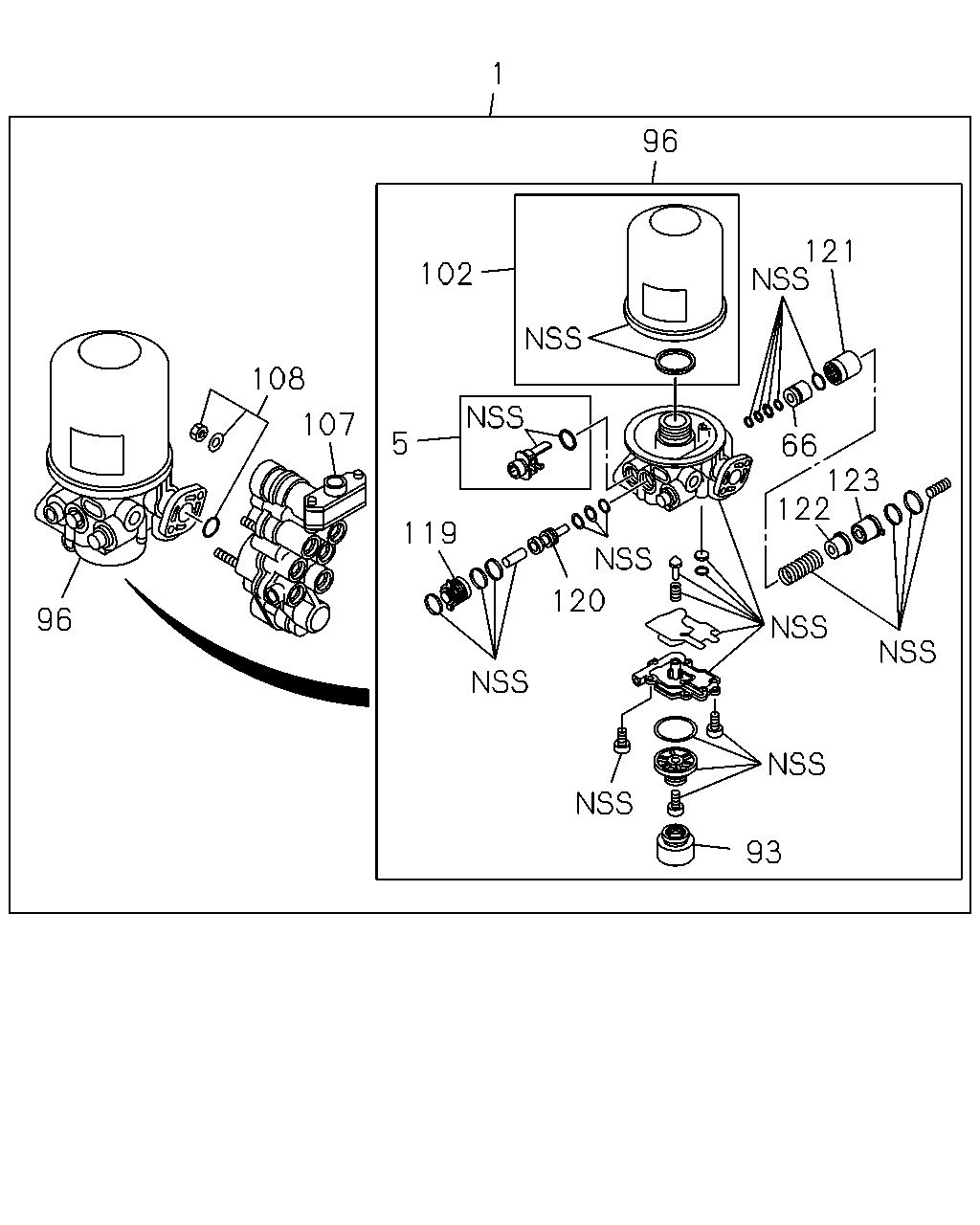

[346A] COMPONENT (13 parça)

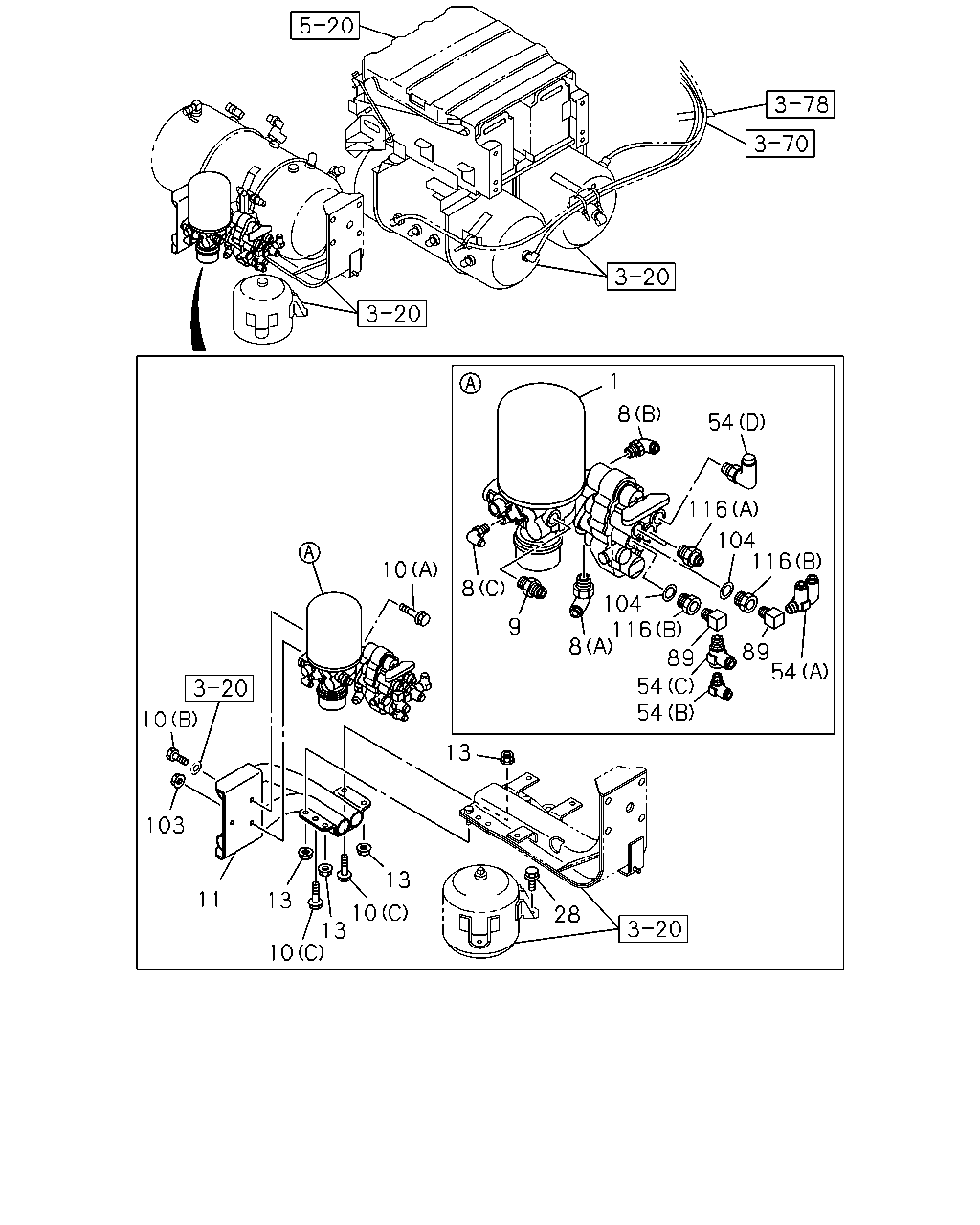

[346A] FIXING (22 parça)

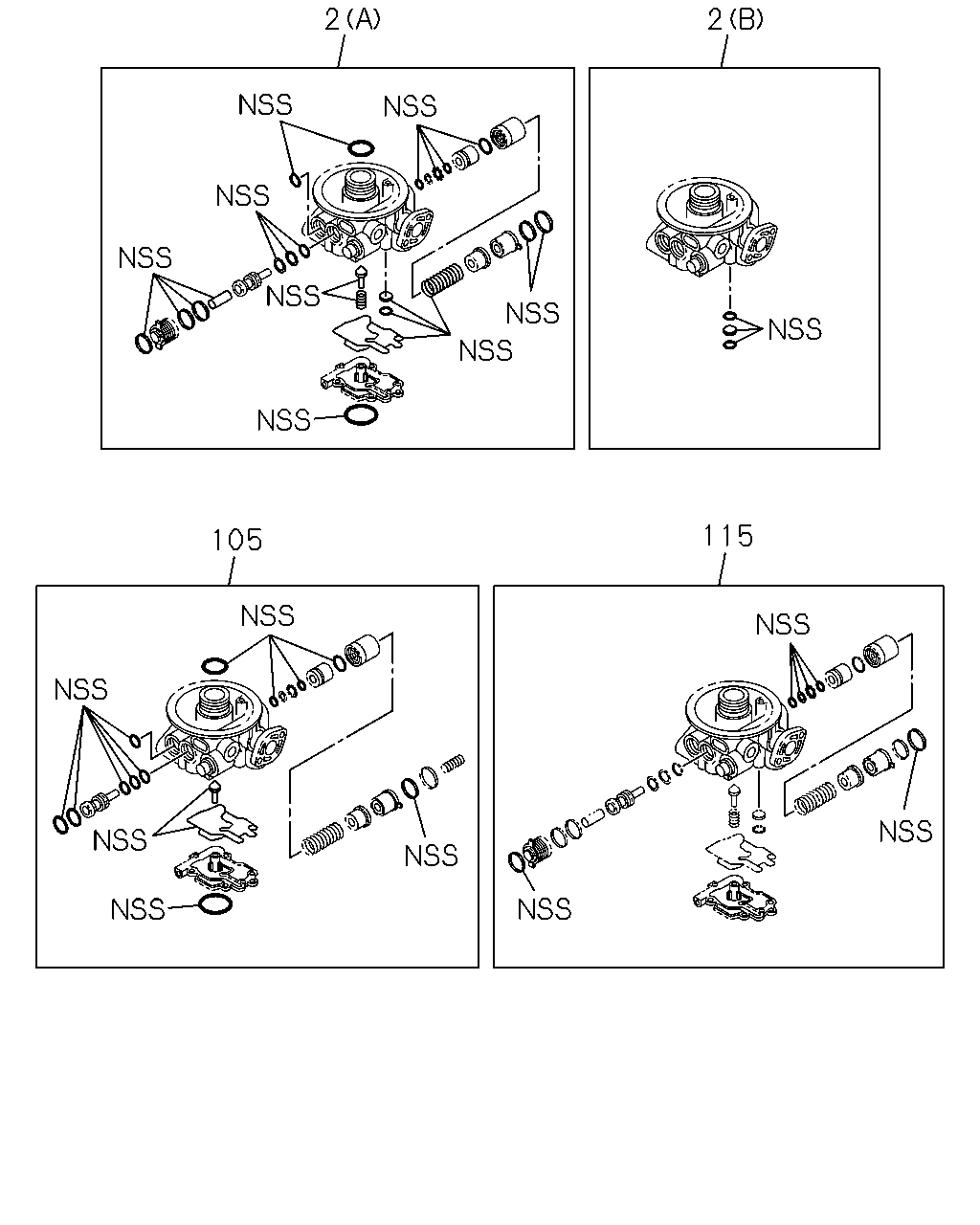

[346A] REPAIR KIT AND SEAL KIT (4 parça)
▶
93
120
119
5
107
108
1
96
96
121
123
122
66
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98219-852-1
01
1
1508-
5
HEATER ASM; AIR DRYER
1-85576-363-0
01
1
1508-
66
PISTON; AIR DRYER
1-85576-475-0
01
1
1508-
93
SILENCER; AIR DRYER
8-98219-823-0
01
1
1508-
96
DRYER KIT; AIR
8-98219-822-1
01
1
1508-
102
CARTRIDGE; AIR DRYER
1-85576-450-2
01
1
1508-
107
VALVE ASM; PROTECTION,AIR DRYER
1-85576-369-3
01
1
1508-
108
FIXING KIT; PROTECTION,AIR DRYER
1-85576-371-0
01
1
1508-
119
COVER; PURGE VALVE
1-85576-473-0
01
1
1508-
120
TAPPET
8-98185-666-0
01
1
1508-
121
HOLDER; SPRING
1-85576-476-0
01
1
1508-
122
SEAT; SPRING
1-85576-477-0
01
1
1508-
123
COVER; GOVERNER
1-85576-478-0
01
1
1508-
1
54
8
116
104
116
89
54
54
89
54
116
104
8
9
8
10
13
28
13
10
13
10
13
11
103
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98219-852-1
01
1
1508-
8
CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW
1-09661-520-0
01
1
1508-
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 ELBOW
1-09661-521-0
01
1
1508-
8
CONNECTOR; OUT,AIR DRYER
(C) DIN6 & M10 ELBOW
1-09661-574-0
01
1
1508-
9
CONNECTOR; PIPE,AIR DRYER
M22X2 STRAIGHT
8-98107-103-0
01
1
1508-
10
BOLT; AIR DRYER
(A) M12X50 FLANGE
0-28051-250-0
01
1
1508-
10
BOLT; AIR DRYER
(C) M12X35 FLANGE
0-28651-235-0
02
1
1508-
10
BOLT; AIR DRYER
(B) M12X25
1-09009-081-0
02
1
1508-
11
BRACKET; AIR DRYER
8-98319-104-0
01
1
1508-1508
11
BRACKET; AIR DRYER
8-98329-775-0
01
1
1508-
13
NUT; AIR DRYER
M12 FLANGE
0-91180-212-0
01
1
1508-
13
NUT; AIR DRYER
M12 FLANGE
0-91180-212-0
04
1
1508-
28
BOLT; PURGE TANK
M10X25 FLANGE
0-28651-025-0
02
1
1508-
54
CONNECTOR
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1508-
54
CONNECTOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1508-
54
CONNECTOR
(D) DIN12 & M22 ELBOW
1-09661-521-0
01
1
1508-
54
CONNECTOR
(C) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
01
1
1508-
89
ADAPTER
PT3/8 ELBOW
1-09660-696-0
02
1
1508-
103
NUT; PURGE TANK
M10 FLANGE
0-91180-210-0
02
1
1508-
104
GASKET
ID=22.5
9-09571-422-0
02
1
1508-
116
CONNECTOR; STRAIGHT
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
02
1
1508-
116
CONNECTOR; STRAIGHT
(B) INNER PT3/8,OUTER M22
1-09650-494-1
02
1
1508-
115
2
2
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
(A)
8-98185-664-0
01
1
1508-
2
REPAIR KIT; AIR DRYER
(B)
8-98302-391-0
01
1
1508-
105
SEAL KIT; AIR DRYER
8-98185-665-0
01
1
1508-
115
REPAIR KIT; GOVERNOR,AIR DRYER
1-85576-400-0
01
1
1508-
