3-26 — TRAILER CONTROL (#165256) — 154 parça

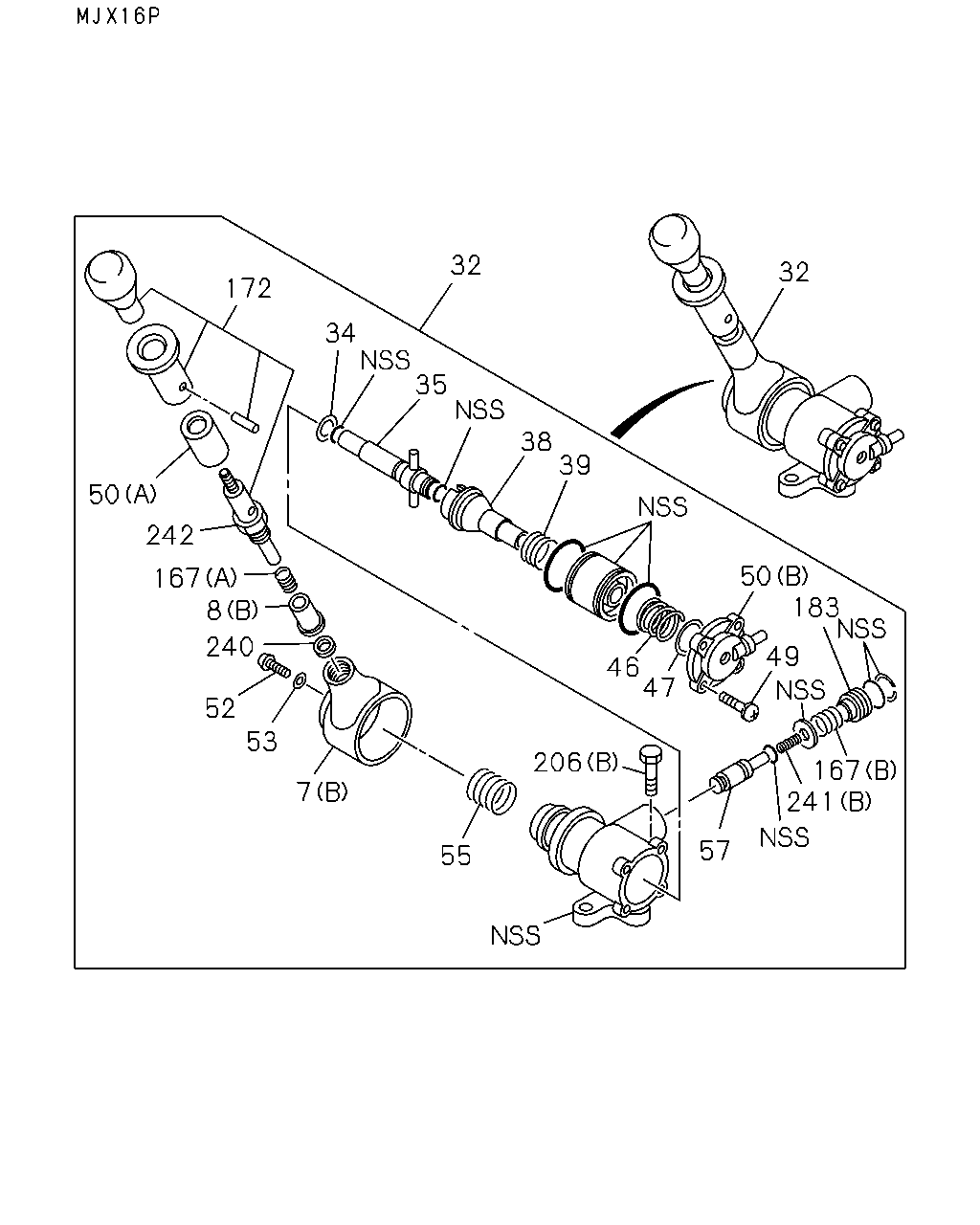

32 32 172 34 35 38 39 50 183 49 47 46 167 241 57 206 55 7 53 52 240 8 167 242 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	1508-
7	HEAD; BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-201-0	01	1	1508-
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	1508-
8	STOPPER; BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-200-0	01	1	1508-
32	VALVE; BRK,HAND CONT MJX16P M/T(Y3Z)	1-48460-339-1	01	1	1508-
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48460-316-0	01	1	1508-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1508-
35	HOLDER; CAM MJX16P M/T(Y3Z)	1-48469-171-0	01	1	1508-
35	HOLDER; CAM TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-054-0	01	1	1508-
38	SEAT; EXH VLV MJX16P M/T(Y3Z)	1-48469-172-0	01	1	1508-
38	SEAT; EXH VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-057-0	01	1	1508-
39	SPRING; RETURN,CAM RING MJX16P M/T(Y3Z)	1-48469-150-0	01	1	1508-
39	SPRING; RETURN,CAM RING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-063-0	01	1	1508-
46	SPRING; MAIN,PISTON MJX16P M/T(Y3Z)	1-48469-173-0	01	1	1508-
46	SPRING; MAIN,PISTON TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-119-0	01	1	1508-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1508-
49	SCREW; COVER MJX16P M/T(Y3Z)	1-48469-169-0	04	1	1508-
49	SCREW; COVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-120-0	04	1	1508-
50	COVER; HAND BRK VLV MJX16P M/T(Y3Z) (A)	1-48469-153-0	01	1	1508-
50	COVER; HAND BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-196-0	01	1	1508-
50	COVER; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-48469-073-0	01	1	1508-
52	SCREW; HANDLE	1-48469-062-0	01	1	1508-
53	WASHER; HANDLE	1-48469-061-0	01	1	1508-
55	SPRING; RETURN,HANDLE MJX16P M/T(Y3Z)	1-48469-155-0	01	1	1508-
55	SPRING; RETURN,HANDLE TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-059-0	01	1	1508-
57	PLUNGER; HAND BRK VLV MJX16P M/T(Y3Z)	1-48469-180-0	01	1	1508-
57	PLUNGER; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-076-0	01	1	1508-
167	SPRING; VALVE MJX16P M/T(Y3Z) (A)	1-48469-177-0	01	1	1508-
167	SPRING; VALVE MJX16P M/T(Y3Z) (B)	1-48469-184-0	01	1	1508-
172	KNOB; VALVE MJX16P M/T(Y3Z)	1-48469-203-0	01	1	1508-
183	RETAINER; VALVE MJX16P M/T(Y3Z)	1-48469-185-0	01	1	1508-
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1508-
206	BOLT; HAND BRK VALVE MJX16P M/T(Y3Z) (B)	1-48469-160-0	01	1	1508-
240	RING; STOPPER MJX16P M/T(Y3Z)	1-48469-199-0	01	1	1508-
241	SPRING; RETURN (A)	1-48119-576-0	01	1	1508-
241	SPRING; RETURN MJX16P M/T(Y3Z) (B)	1-48469-182-0	01	1	1508-
242	NUT; LK MJX16P M/T(Y3Z)	1-48469-179-0	01	1	1508-

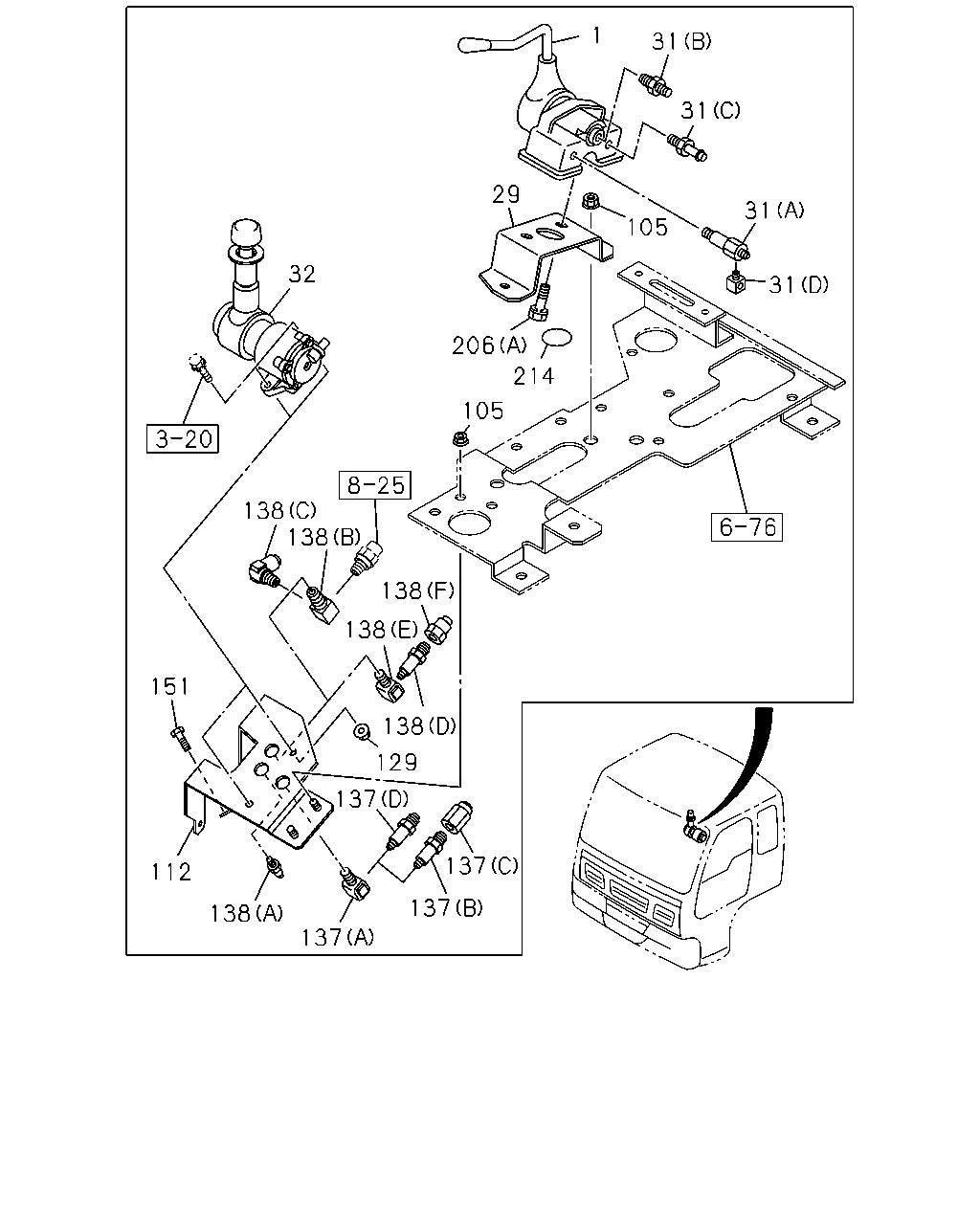

1 31 31 31 105 31 29 206 214 105 32 138 138 138 138 138 129 151 137 137 137 137 138 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	1508-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	1508-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1508-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	1508-
31	CONNECTOR; HAND BRK VLV (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1508-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	1508-
32	VALVE; BRK,HAND CONT MJX16P M/T(Y3Z)	1-48460-339-1	01	1	1508-
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48460-316-0	01	1	1508-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1508-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1508-
112	BRACKET; CONT VLV MJX16P M/T(Y3Z)	1-79996-387-0	01	1	1508-
112	BRACKET; CONT VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-79996-336-1	01	1	1508-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1508-
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1508-
137	CONNECTOR; SUPPLY (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1508-
137	CONNECTOR; SUPPLY MJX16P M/T(Y3Z) (B) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1508-
137	CONNECTOR; SUPPLY MJX16P M/T(Y3Z) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1508-
137	CONNECTOR; SUPPLY TRANSMISSION-FULLER RTLO189 18(Y4W) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1508-
138	CONNECTOR; DELIVERY (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
138	CONNECTOR; DELIVERY MJX16P M/T(Y3Z) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
138	CONNECTOR; DELIVERY MJX16P M/T(Y3Z) (B) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1508-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO189 18(Y4W) (D) M14	1-09656-391-2	01	1	1508-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO189 18(Y4W) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1508-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO189 18(Y4W) (F) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1508-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1508-
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1508-
206	BOLT; HAND BRK VALVE MJX16P M/T(Y3Z) (B)	1-48469-160-0	01	1	1508-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	1508-

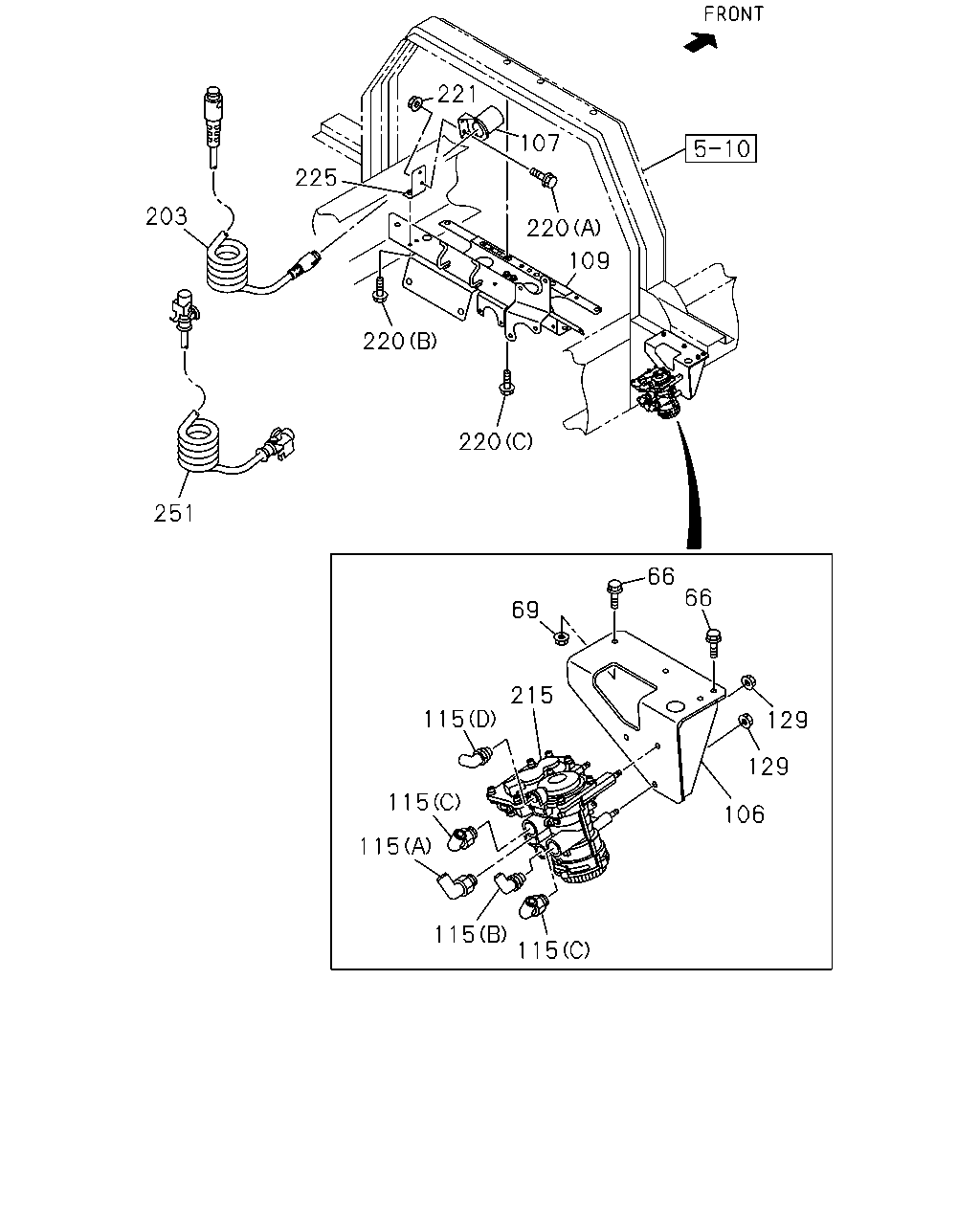

221 107 220 109 220 220 225 203 251 69 66 66 129 129 106 215 115 115 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BOLT; VLV BRKT M8X25 FLANGE	0-28650-825-0	04	1	1508-
69	NUT; VLV BRKT M8 FLANGE	0-91180-108-0	01	1	1508-
106	BRACKET; VLV	1-48495-281-0	01	1	1508-
107	HANGER; JUMPER HOSE	1-57550-022-2	01	1	1508-
109	BRACKET; HOSE HANGER	8-98293-789-0	01	1	1508-
115	CONNECTOR; DUAL RELAY VLV (A)	1-09661-499-0	01	1	1508-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	1508-
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & M22 ELBOW	1-09661-521-0	02	1	1508-
115	CONNECTOR; DUAL RELAY VLV (D) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1508-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1508-
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1508-
203	CABLE; JUMPER L=5500	8-98107-178-0	01	1	1508-
215	VALVE; TRAILER CONT	1-48240-191-1	01	1	1508-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28650-616-0	02	1	1508-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28650-825-0	02	1	1508-
220	BOLT; HANGER (C) M10X30 FLANGE	0-28651-030-0	06	1	1508-
221	NUT; HANGER M6 FLANGE	0-91180-106-0	02	1	1508-
225	BRACKET; HANGER	1-82698-002-0	01	1	1508-
251	CABLE; JUMPER,EBS	1-82659-210-2	01	1	1508-

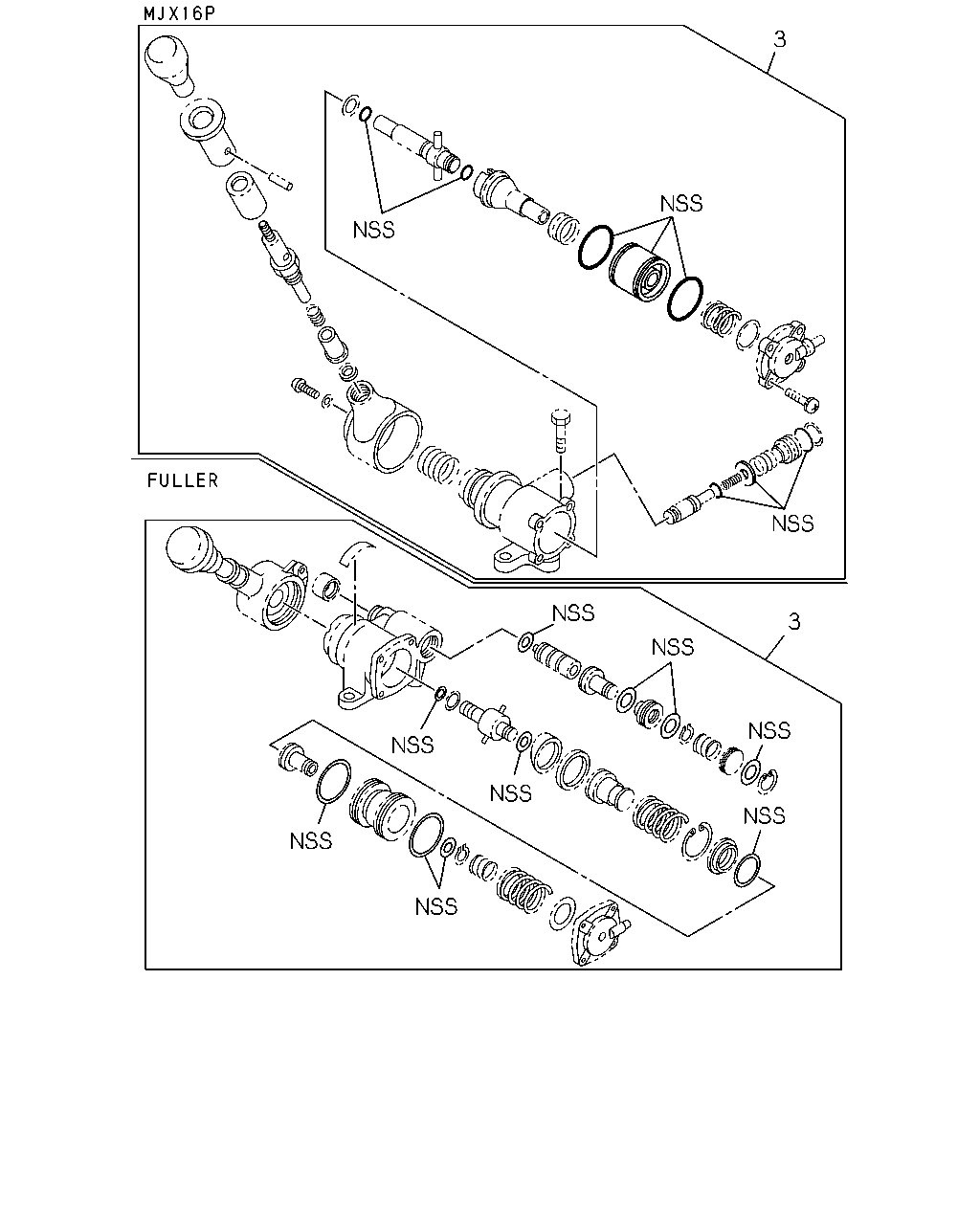

3 3

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV MJX16P M/T(Y3Z)	1-85576-376-0	01	1	1508-
	3	REPAIR KIT; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W) W/GREASE	1-48469-083-0	01	1	1508-

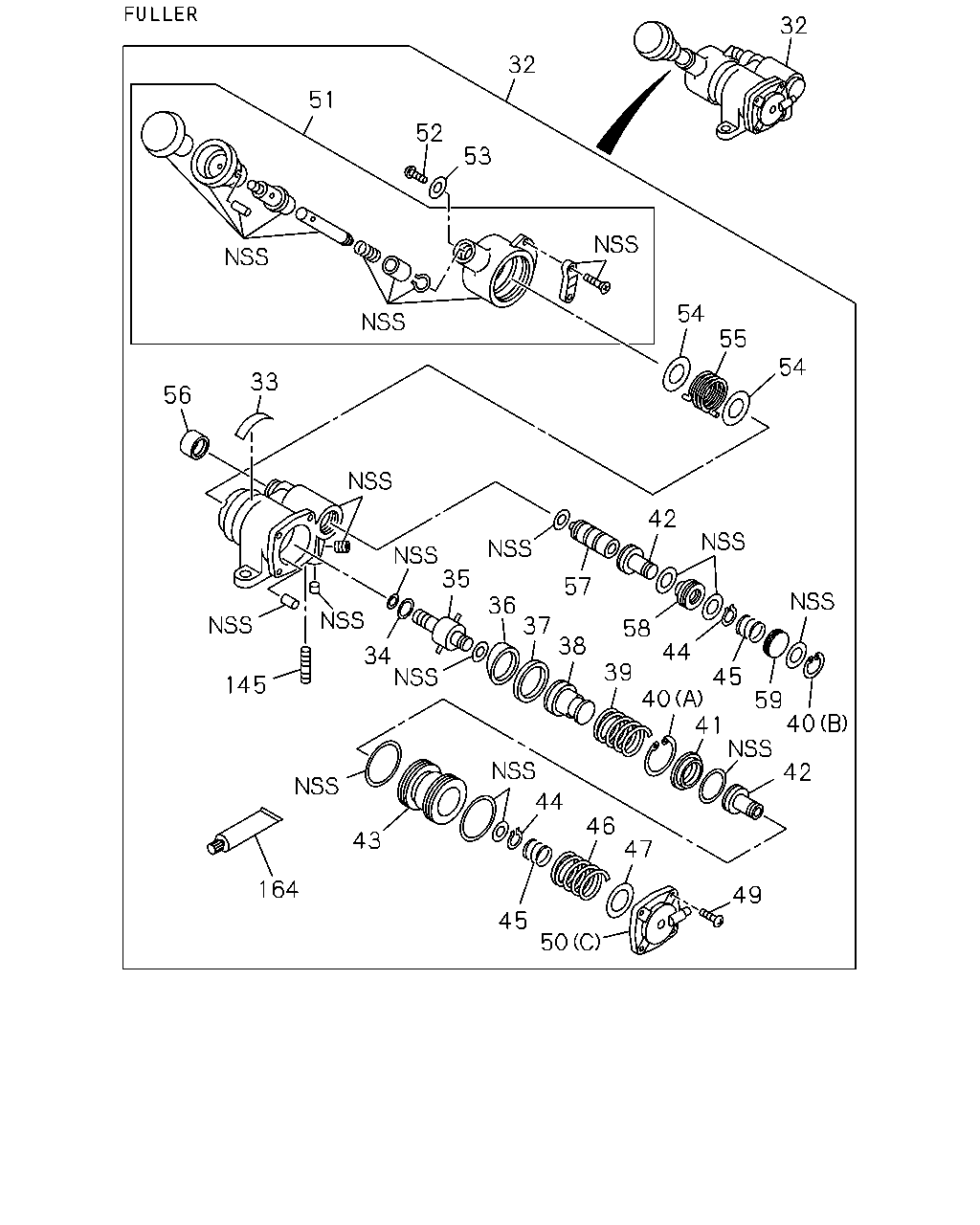

51 52 53 32 32 54 55 54 42 33 56 145 34 35 36 37 57 58 44 45 59 40 42 41 40 39 38 164 43 44 46 47 49 50 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT MJX16P M/T(Y3Z)	1-48460-339-1	01	1	1508-
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48460-316-0	01	1	1508-
33	PLATE; CAUTION TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-121-0	01	1	1508-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1508-
35	HOLDER; CAM MJX16P M/T(Y3Z)	1-48469-171-0	01	1	1508-
35	HOLDER; CAM TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-054-0	01	1	1508-
36	RING; CAM TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-056-0	01	1	1508-
37	GUIDE; CAM RING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-058-0	01	1	1508-
38	SEAT; EXH VLV MJX16P M/T(Y3Z)	1-48469-172-0	01	1	1508-
38	SEAT; EXH VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-057-0	01	1	1508-
39	SPRING; RETURN,CAM RING MJX16P M/T(Y3Z)	1-48469-150-0	01	1	1508-
39	SPRING; RETURN,CAM RING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-063-0	01	1	1508-
40	RING; SNAP TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-48469-067-0	01	1	1508-
40	RING; SNAP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-48469-079-0	01	1	1508-
41	SEAT; FEED VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-066-0	01	1	1508-
42	VALVE; FEED TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-065-0	02	1	1508-
43	PISTON; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-064-0	01	1	1508-
44	RING; SNAP,FEED VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-068-0	02	1	1508-
45	SPRING; FEED VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-070-0	02	1	1508-
46	SPRING; MAIN,PISTON MJX16P M/T(Y3Z)	1-48469-173-0	01	1	1508-
46	SPRING; MAIN,PISTON TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-119-0	01	1	1508-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1508-
49	SCREW; COVER MJX16P M/T(Y3Z)	1-48469-169-0	04	1	1508-
49	SCREW; COVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-120-0	04	1	1508-
50	COVER; HAND BRK VLV MJX16P M/T(Y3Z) (A)	1-48469-153-0	01	1	1508-
50	COVER; HAND BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-196-0	01	1	1508-
50	COVER; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-48469-073-0	01	1	1508-
51	HANDLE ASM; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-060-0	01	1	1508-
52	SCREW; HANDLE	1-48469-062-0	01	1	1508-
53	WASHER; HANDLE	1-48469-061-0	01	1	1508-
54	SEAT; SPRING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-082-0	02	1	1508-
55	SPRING; RETURN,HANDLE MJX16P M/T(Y3Z)	1-48469-155-0	01	1	1508-
55	SPRING; RETURN,HANDLE TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-059-0	01	1	1508-
56	BOOT; PLUNGER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-080-0	01	1	1508-
57	PLUNGER; HAND BRK VLV MJX16P M/T(Y3Z)	1-48469-180-0	01	1	1508-
57	PLUNGER; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-076-0	01	1	1508-
58	HOLDER; FEED VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-077-0	01	1	1508-
59	HOLDER; SPRING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-078-0	01	1	1508-
145	STUD; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-069-0	01	1	1508-
164	GREASE; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-084-0	01	1	1508-

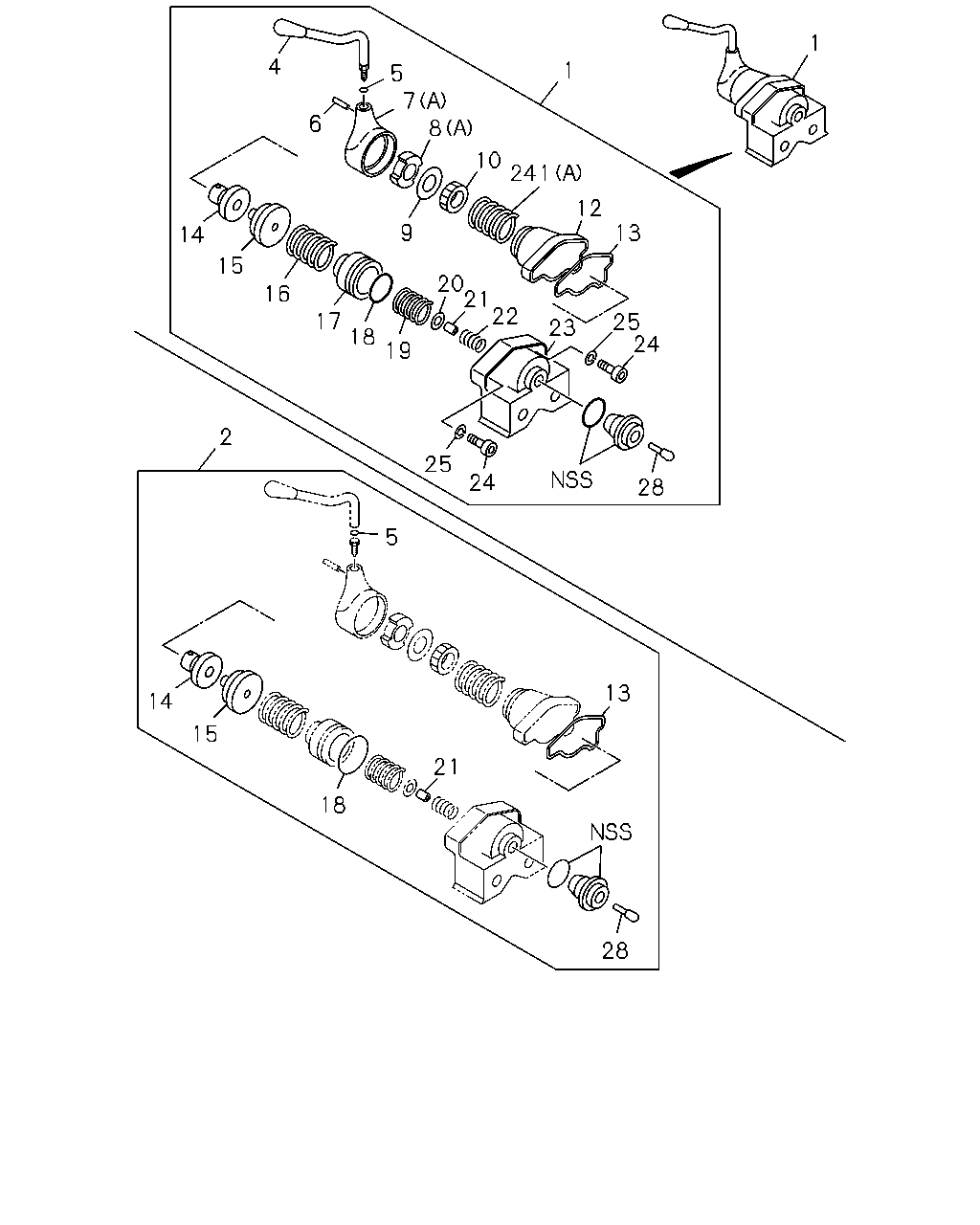

1 1 5 7 4 6 8 9 10 241 12 13 25 24 28 23 22 21 20 19 18 17 16 15 14 25 24 13 2 5 14 15 18 21 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	1508-
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	1508-
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	1508-
5	GASKET; HANDLE	1-48119-128-0	01	1	1508-
6	PIN; SPR	1-48119-143-0	01	1	1508-
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	1508-
7	HEAD; BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-201-0	01	1	1508-
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	1508-
8	STOPPER; BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-200-0	01	1	1508-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	1508-
10	RING; ADJ	1-48119-122-0	01	1	1508-
12	COVER; BRK VLV	1-48129-319-1	01	1	1508-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	1508-
14	FOLLOWER; CAM	1-48129-135-0	01	1	1508-
15	CAM; FOLLOWER	1-48129-134-0	01	1	1508-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	1508-
17	PISTON; SPR	1-48129-095-0	01	1	1508-
18	GASKET; BODY	1-48129-096-0	01	1	1508-
19	SPRING; PISTON	1-48129-094-0	01	1	1508-
20	GUIDE; VLV	1-48129-090-0	01	1	1508-
21	VALVE; IN & EXH	1-48121-017-0	01	1	1508-
22	SPRING; VLV	1-48123-024-0	01	1	1508-
23	BODY; BRK VLV	1-48111-060-1	01	1	1508-
24	BOLT; EXH VLV	1-48129-092-0	02	1	1508-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	1508-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	1508-
241	SPRING; RETURN (A)	1-48119-576-0	01	1	1508-
241	SPRING; RETURN MJX16P M/T(Y3Z) (B)	1-48469-182-0	01	1	1508-
