3-20 — AIR TANK (#165254) — 189 parça

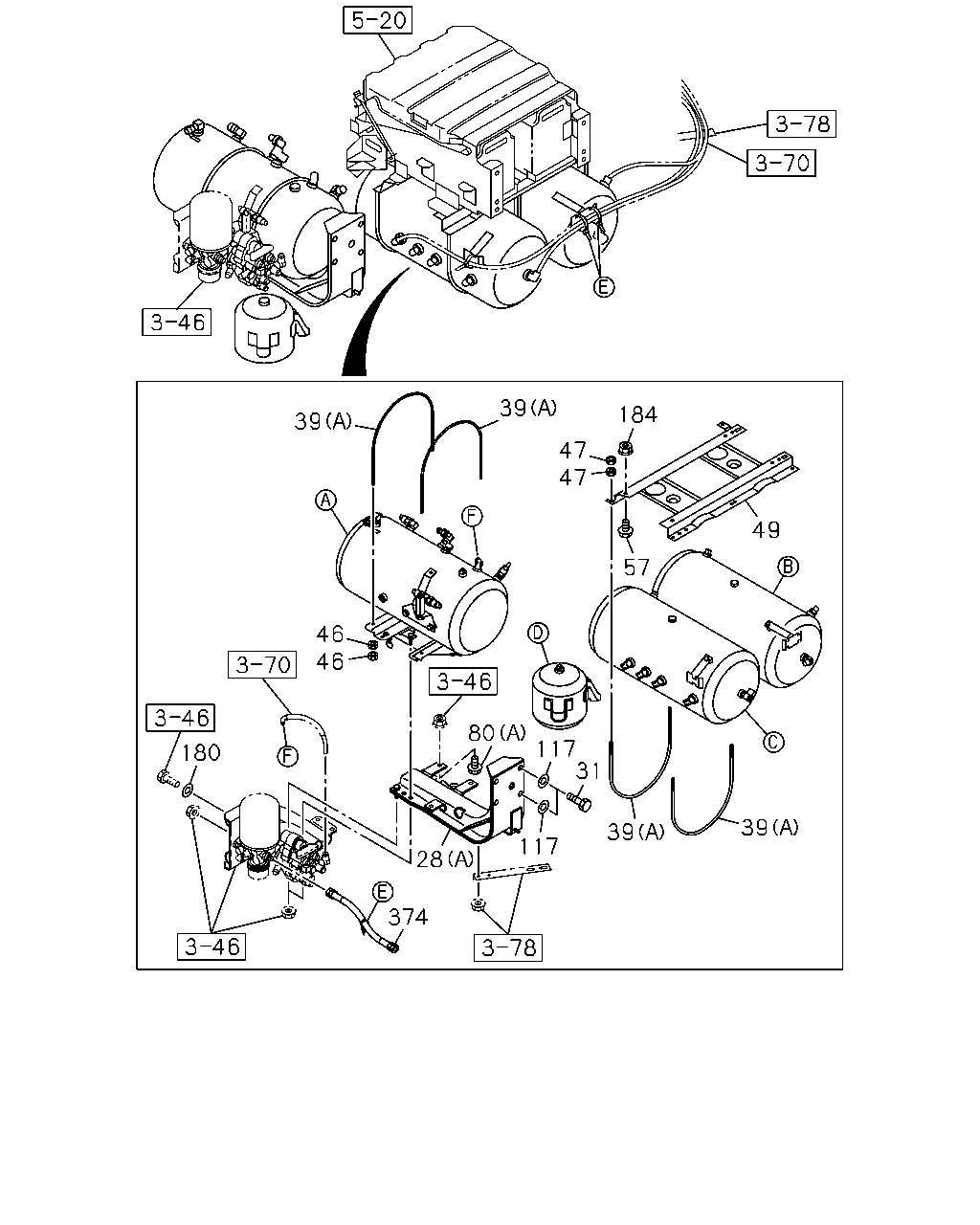

çizim 488223
39 39 184 47 47 57 49 39 39 31 117 80 46 46 180 374 28 117
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		8-98319-127-0 01 1 1508-1508
28 BRACKET; AIR TANK
(A) 		8-98329-776-0 01 1 1508-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1508-
28 BRACKET; AIR TANK
(C) 		8-98302-066-0 01 1 1508-
31 BOLT; BRKT TO FRAME
M14X45 		1-09000-764-0 04 1 1508-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1508-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1508-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1508-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1508-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1508-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1508-
49 BRACKET; AIR TANK 8-98293-598-0 01 1 1508-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1508-
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1508-
80 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 03 1 1508-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1508-
180 WASHER; LK
ID=12.5 OD=22 		0-91610-512-0 02 1 1508-
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1508-
374 HOSE; RUBBER 8-98319-126-0 01 1 1508-
çizim 488225
103 136 26 26 27 27 7 6 27 164 164 2 207 10 2 126 26
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
(C) 		8-98319-896-0 01 1 1508-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1508-
2 TANK; AIR
(B) 		8-98294-884-0 01 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 02 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 03 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1508-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1508-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1508-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1508-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1508-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 03 1 1508-
27 UNION; ELBOW,AIR TANK
(D) 		8-98313-295-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 05 1 1508-1508
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1508-
27 UNION; ELBOW,AIR TANK
(C) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1508-
27 UNION; ELBOW,AIR TANK
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1508-1508
27 UNION; ELBOW,AIR TANK
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1508-1508
27 UNION; ELBOW,AIR TANK
(A) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1508-
27 UNION; ELBOW,AIR TANK
(A) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1508-
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 03 1 1508-1508
27 UNION; ELBOW,AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 1508-
103 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
103 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1508-
126 CONNECTOR; ELBOW
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1508-
126 CONNECTOR; ELBOW
(D) DIN12 & M22 ELBOW 		1-09661-521-0 02 1 1508-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1508-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1508-
136 BRACKET; CLIP
(C) 		8-98319-720-0 01 1 1508-
136 BRACKET; CLIP
(A) 		8-98293-617-0 01 1 1508-
136 BRACKET; CLIP
(B) 		8-98293-630-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 03 1 1508-
164 CONNECTOR; SUB AIR TANK
(D) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(C) PT3/8 		1-48319-058-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(C) PT3/8 		1-48319-058-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1508-
207 CLIP; AIR PIPE
L=350 		1-09707-183-0 09 1 1508-

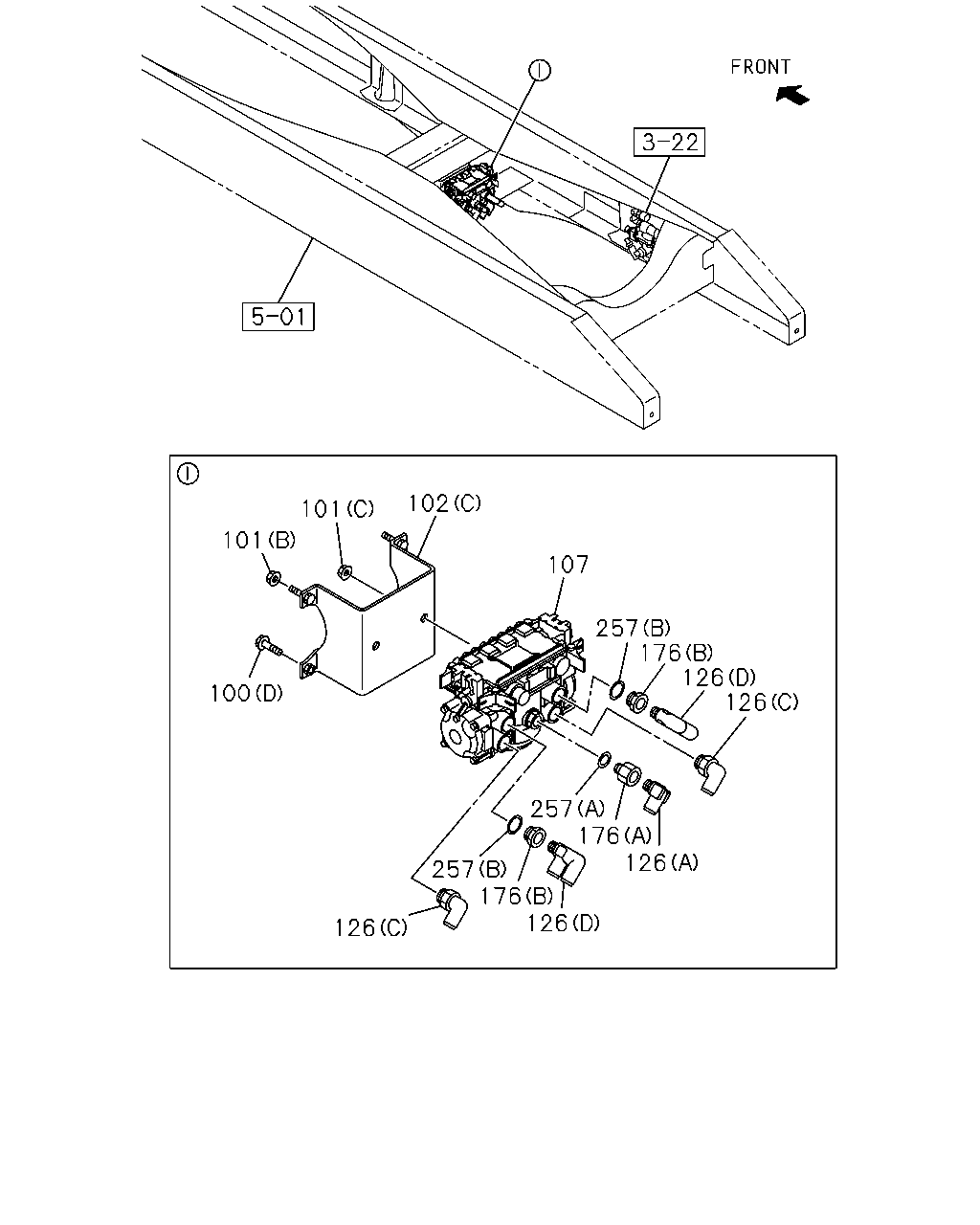

çizim 488226
101 102 107 257 176 126 126 126 176 257 257 176 126 126 100 101
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1508-
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1508-
100 BOLT; MODULATOR
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
100 BOLT; MODULATOR
(D) M10X35 FLANGE 		0-28651-035-0 02 1 1508-
101 NUT; MODULATOR
(A) M8 FLANGE 		0-91180-108-0 05 1 1508-
101 NUT; MODULATOR
(B) M10 FLANGE 		0-91180-210-0 02 1 1508-
101 NUT; MODULATOR
(C) M12 FLANGE 		0-91180-212-0 02 1 1508-
102 BRACKET; MODULATOR
(C) 		1-47471-186-0 01 1 1508-
102 BRACKET; MODULATOR
(A) 		1-47479-550-0 02 1 1508-
102 BRACKET; MODULATOR
(B) 		1-47479-787-0 01 1 1508-
107 MODULATOR; RR 1-48240-124-1 01 1 1508-
126 CONNECTOR; ELBOW
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1508-
126 CONNECTOR; ELBOW
(D) DIN12 & M22 ELBOW 		1-09661-521-0 02 1 1508-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1508-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1508-
176 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1508-
176 ADAPTER
(A) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 1508-
257 GASKET; PLUG
(A) ID=16.2 OD=24 		9-09571-416-0 01 1 1508-
257 GASKET; PLUG
(B) ID=22.5 		9-09571-422-0 02 1 1508-

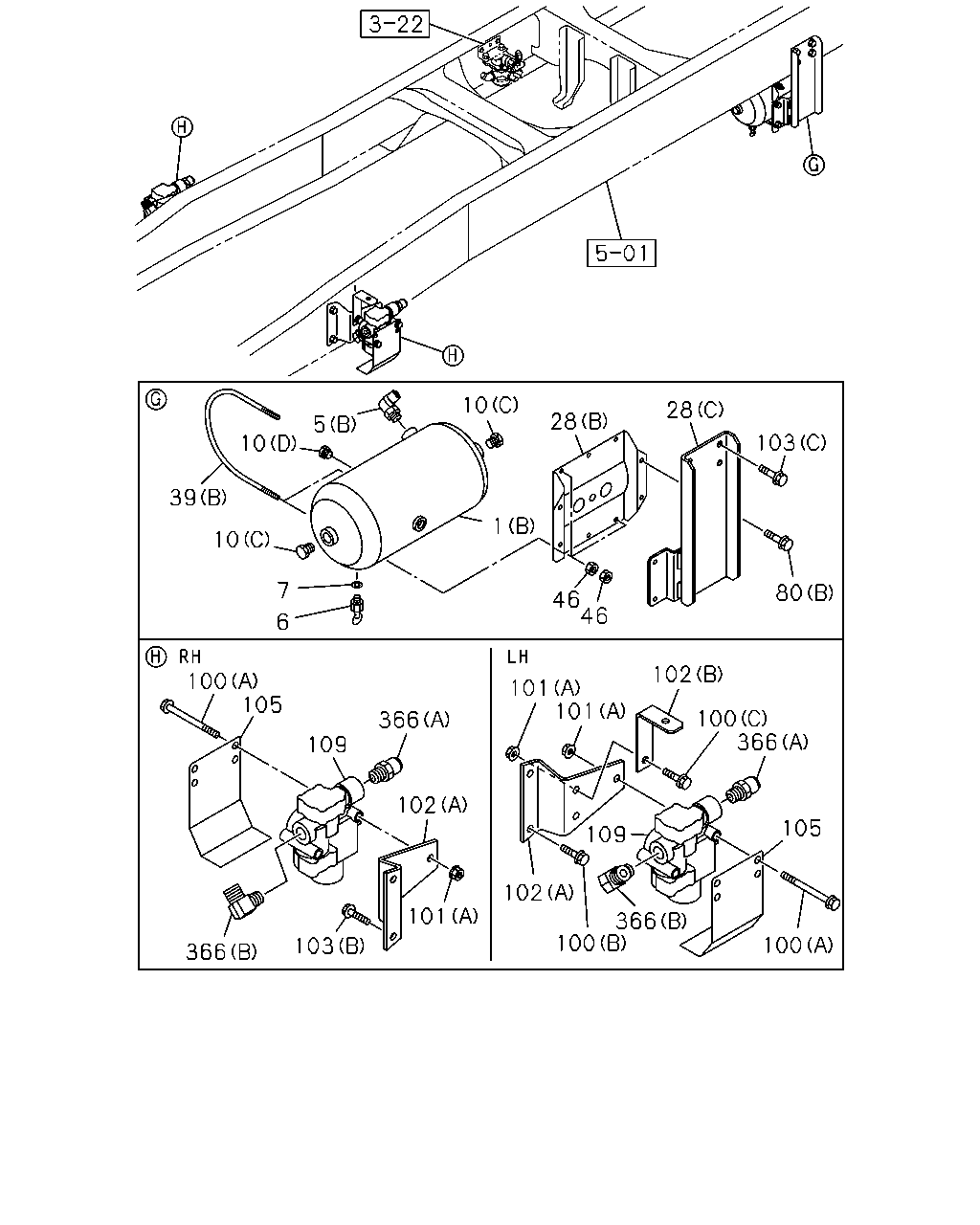

çizim 488600
10 5 10 28 28 103 80 46 46 1 6 7 10 39 100 105 109 366 102 101 103 366 101 101 102 100 366 105 100 366 100 102 109
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98319-899-1 01 1 1508-
1 TANK ASM; AIR
(B) 		8-97626-720-0 01 1 1508-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1508-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 02 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 03 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1508-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1508-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1508-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
28 BRACKET; AIR TANK
(A) 		8-98319-127-0 01 1 1508-1508
28 BRACKET; AIR TANK
(A) 		8-98329-776-0 01 1 1508-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1508-
28 BRACKET; AIR TANK
(C) 		8-98302-066-0 01 1 1508-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1508-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1508-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1508-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1508-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1508-
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1508-
80 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 03 1 1508-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1508-
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1508-
100 BOLT; MODULATOR
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
100 BOLT; MODULATOR
(D) M10X35 FLANGE 		0-28651-035-0 02 1 1508-
101 NUT; MODULATOR
(A) M8 FLANGE 		0-91180-108-0 05 1 1508-
101 NUT; MODULATOR
(B) M10 FLANGE 		0-91180-210-0 02 1 1508-
101 NUT; MODULATOR
(C) M12 FLANGE 		0-91180-212-0 02 1 1508-
102 BRACKET; MODULATOR
(C) 		1-47471-186-0 01 1 1508-
102 BRACKET; MODULATOR
(A) 		1-47479-550-0 02 1 1508-
102 BRACKET; MODULATOR
(B) 		1-47479-787-0 01 1 1508-
103 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
103 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1508-
105 COVER; MODULATOR 1-47479-434-1 02 1 1508-
109 MODULATOR; FRT 1-48240-083-1 02 1 1508-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1508-
366 CONNECTOR; NYLON TUBE
(B) 		1-09661-575-0 02 1 1508-
çizim 488683
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1508-

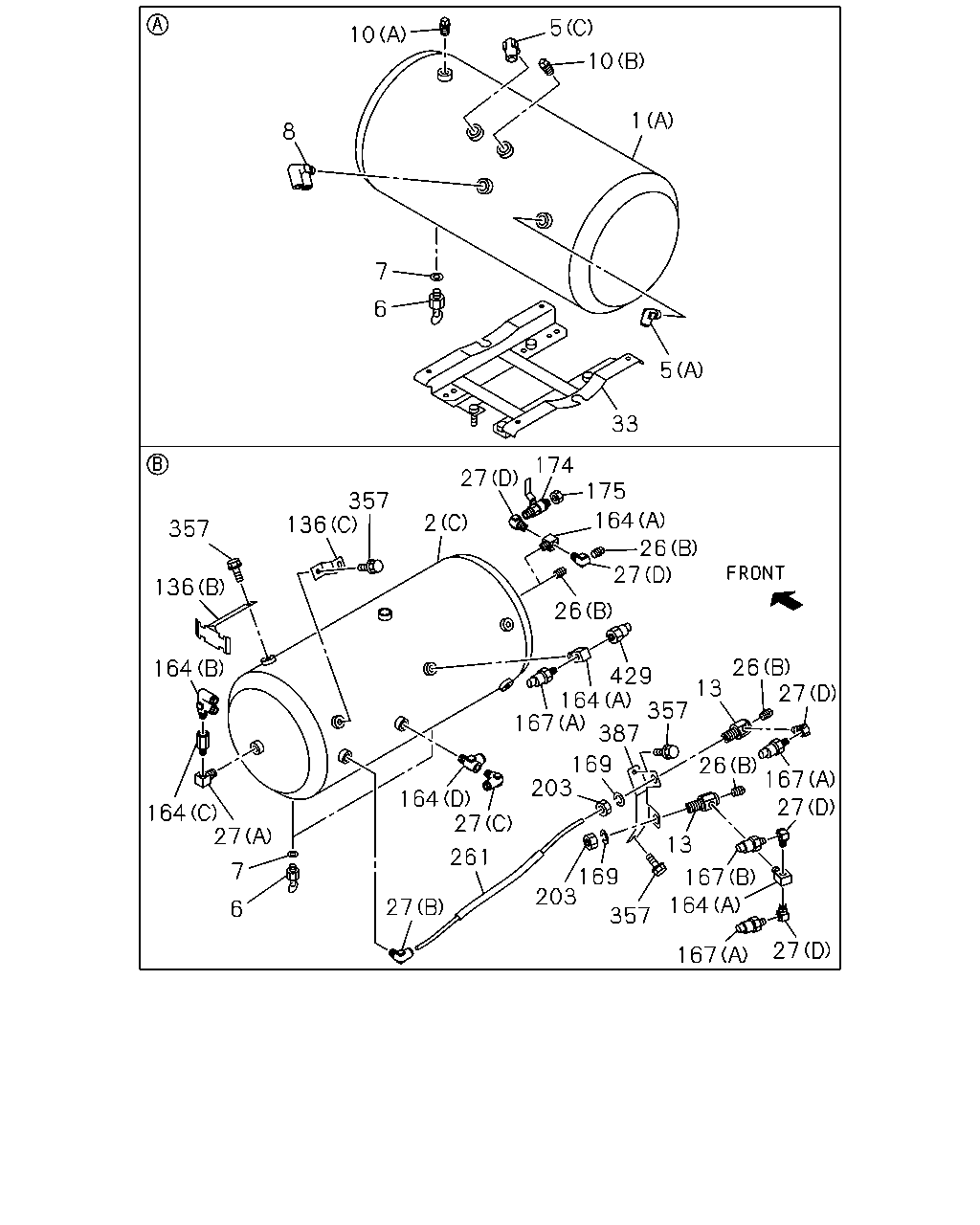

çizim 488787
10 5 1 10 5 33 7 6 8 357 357 27 174 175 164 26 27 26 136 136 164 164 27 7 6 2 429 26 13 27 167 27 167 164 167 27 357 203 13 169 26 387 167 169 164 261 27 164 27 203 357
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98319-899-1 01 1 1508-
1 TANK ASM; AIR
(B) 		8-97626-720-0 01 1 1508-
2 TANK; AIR
(C) 		8-98319-896-0 01 1 1508-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1508-
2 TANK; AIR
(B) 		8-98294-884-0 01 1 1508-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1508-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 02 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 03 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1508-
8 CONNECTOR; AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1508-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1508-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1508-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
13 ADAPTER; NYLON TUBE 1-09661-092-0 02 1 1508-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1508-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1508-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 03 1 1508-
27 UNION; ELBOW,AIR TANK
(D) 		8-98313-295-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 05 1 1508-1508
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1508-
27 UNION; ELBOW,AIR TANK
(C) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1508-
27 UNION; ELBOW,AIR TANK
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1508-1508
27 UNION; ELBOW,AIR TANK
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1508-1508
27 UNION; ELBOW,AIR TANK
(A) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1508-
27 UNION; ELBOW,AIR TANK
(A) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1508-
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 03 1 1508-1508
27 UNION; ELBOW,AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 1508-
33 BRACKET; BRKT,AIR TANK 8-98319-128-1 01 1 1508-
136 BRACKET; CLIP
(C) 		8-98319-720-0 01 1 1508-
136 BRACKET; CLIP
(A) 		8-98293-617-0 01 1 1508-
136 BRACKET; CLIP
(B) 		8-98293-630-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 03 1 1508-
164 CONNECTOR; SUB AIR TANK
(D) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(C) PT3/8 		1-48319-058-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(C) PT3/8 		1-48319-058-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1508-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
(A) STAMP 5.5 		8-97609-249-0 03 1 1508-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
(B) STAMP 6.5 		8-97609-252-0 01 1 1508-
169 WASHER; LK,U-BOLT
ID=18.2 		0-91510-518-0 02 1 1508-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1508-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1508-
203 NUT
M18 		0-91110-518-0 02 1 1508-
261 TUBE; NYLON 8-98319-073-0 01 1 1508-
357 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1508-
387 BRACKET; UNION 8-98293-653-0 01 1 1508-
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
