Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

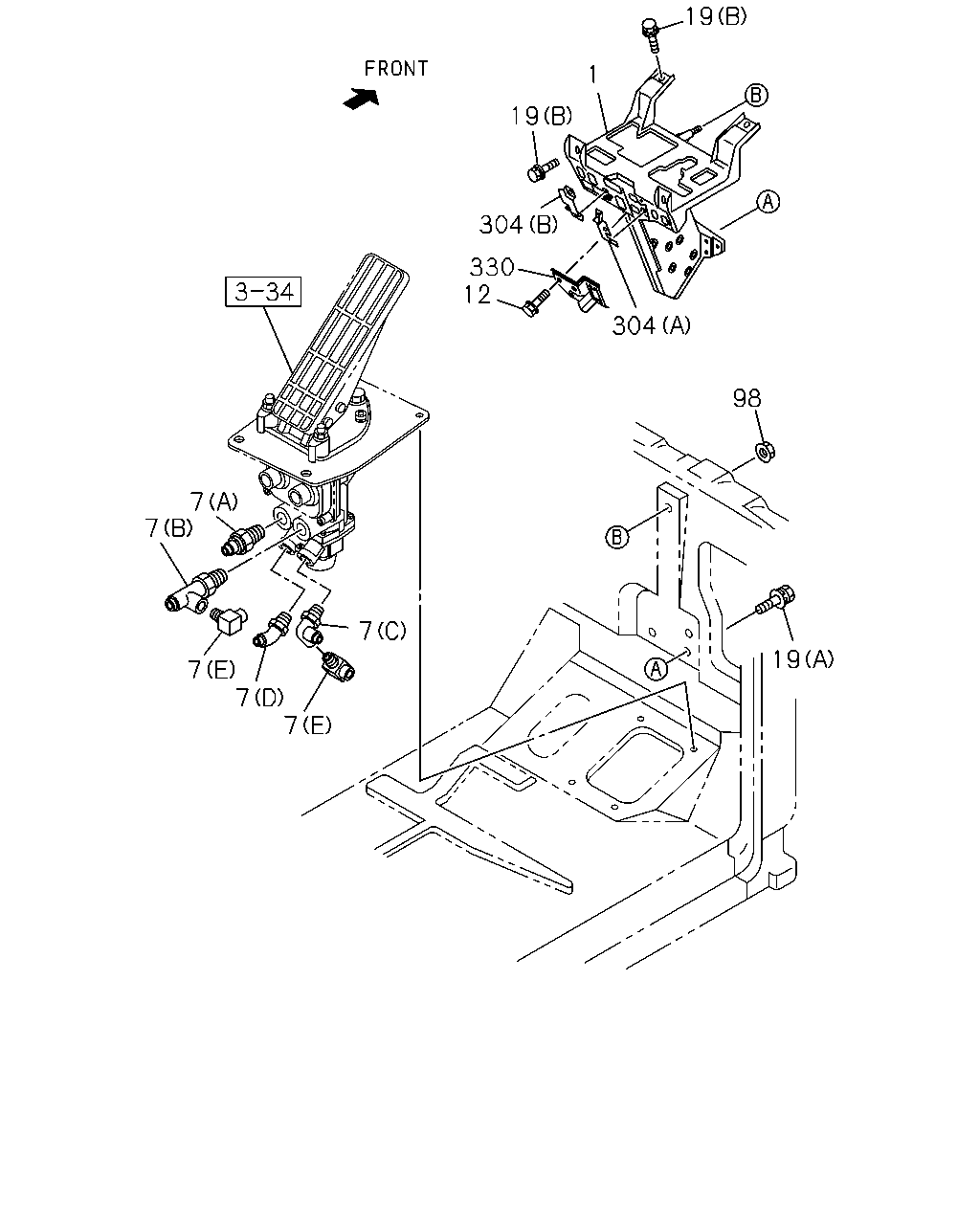

3-10 — BRAKE PEDAL AND CONTROL
(#165252) — 13 parça
304
330
12
19
19
304
7
7
7
7
7
7
19
98
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
1-73908-191-7
01
1
1508-
7
CONNECTOR; BRK VALVE
(A) DIN8,R3/8 STRAIGHT
1-09660-651-1
01
1
1508-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 & RC1/4 3WAY
1-09661-687-0
01
1
1508-
7
CONNECTOR; BRK VALVE
(C)
8-98155-325-1
01
1
1508-
7
CONNECTOR; BRK VALVE
(D) DIN8 & M22 ELBOW
8-98204-959-0
01
1
1508-
7
CONNECTOR; BRK VALVE
(E)
8-98313-295-0
02
1
1508-
12
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1508-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
1508-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1508-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1508-
304
SUPPORT ASM; PEDAL BRKT
(A)
1-73996-341-1
01
1
1508-
304
SUPPORT ASM; PEDAL BRKT
(B)
1-73996-342-1
01
1
1508-
330
BRACKET; CONNECTOR
8-97616-564-1
01
1
1508-
