3-08A — PARKING BRAKE (#165250) — 67 parça

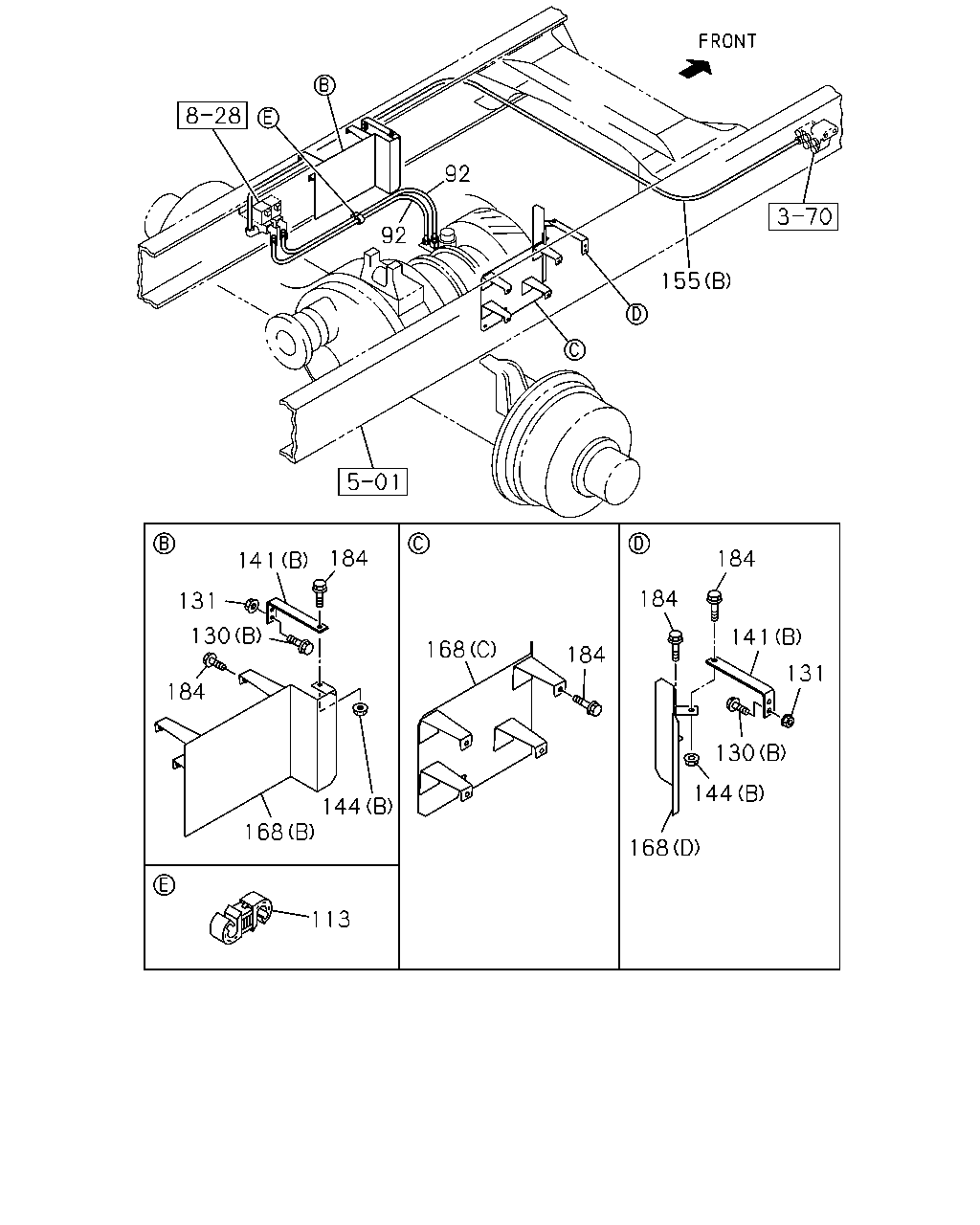

çizim 488218
92 92 141 131 130 184 168 113 144 184 168 184 184 184 141 131 130 144 168 155
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
L=390 		1-09363-616-0 02 1 1508-
113 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 01 1 1508-
130 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1508-
130 BOLT; BRKT
(A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1508-
131 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1508-
141 BRACKET
(B) 		1-47479-803-0 02 1 1508-
141 BRACKET
(A) 		1-48629-111-2 01 1 1508-
144 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 1508-
144 NUT
(A) M12 		9-09840-280-0 03 1 1508-
155 TUBE
(A) 		1-48629-092-0 01 1 1508-
155 TUBE
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1508-
168 PROTECTOR; HEAT
(D) 		8-98318-506-0 01 1 1508-
168 PROTECTOR; HEAT
(C) 		8-98318-507-0 01 1 1508-
168 PROTECTOR; HEAT
(B) 		1-22119-594-0 01 1 1508-
168 PROTECTOR; HEAT
(A) 		1-48629-190-0 02 1 1508-
184 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 11 1 1508-

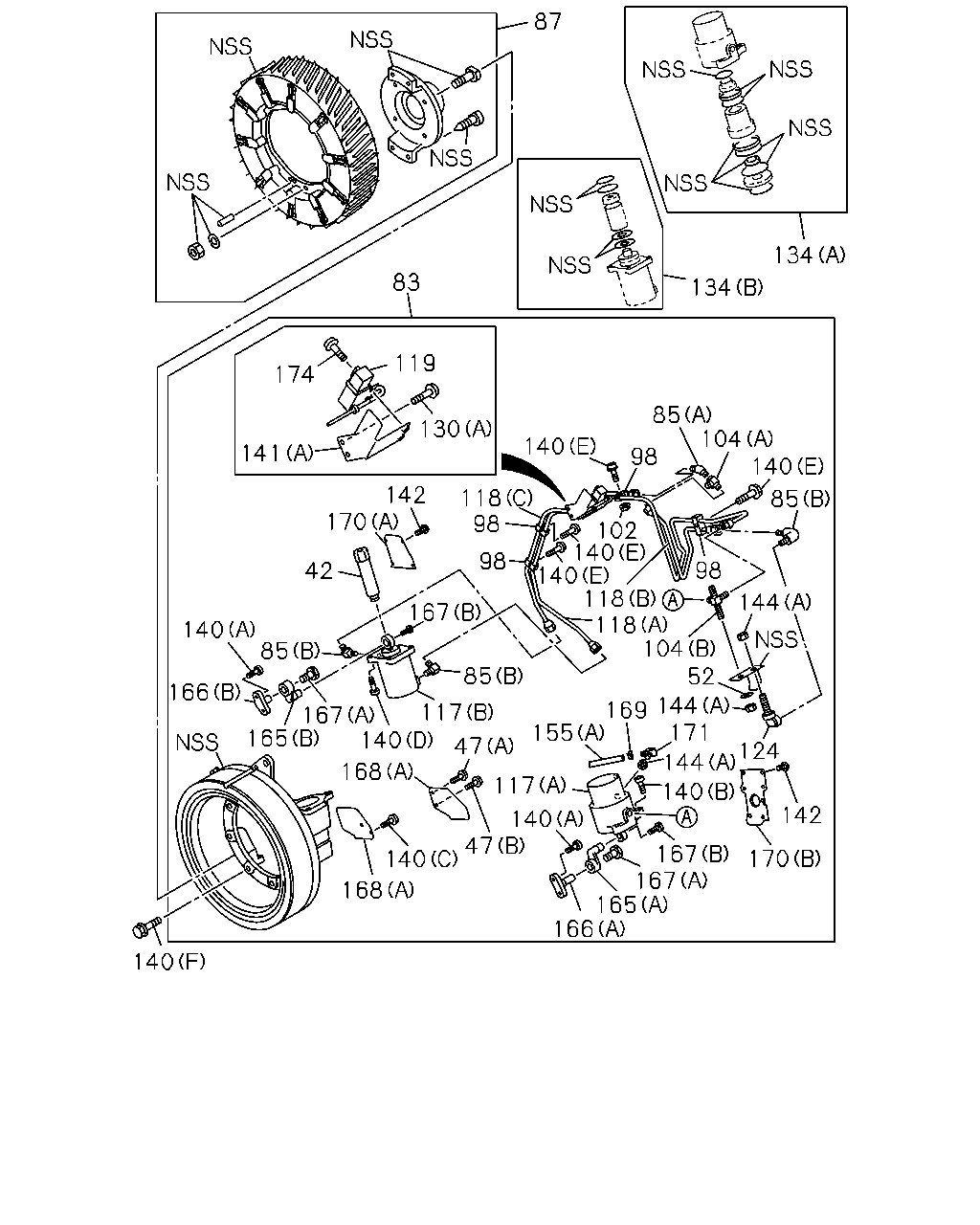

çizim 488829
85 140 104 85 134 134 87 83 174 119 141 130 142 170 42 85 140 166 165 167 140 168 47 117 47 140 168 117 140 155 85 167 118 98 98 169 118 118 102 140 140 104 52 144 171 144 140 167 167 165 166 170 142 124 144 98 140 98 140
BalonParca AdiParca NoAdetTipApplied Date
42 SPRING; RETURN,LEVER 1-48629-071-1 01 1 1508-
47 BOLT; SUPPORT PLATE
(B) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1508-
47 BOLT; SUPPORT PLATE
(A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1508-
52 WASHER; PL
ID=12.5 OD=26 		0-91610-612-0 01 1 1508-
83 RETARDER ASM; PARKING BRK 1-48610-466-3 01 1 1508-
85 CONNECTOR; RETARDER
(B) M12 & PT1/8 		0-92124-306-0 03 1 1508-
85 CONNECTOR; RETARDER
(A) 		1-48629-150-0 01 1 1508-
87 DRUM; RETARDER,PARKING BRK 1-48610-460-2 01 1 1508-
98 CLIP; AIR PIPE 1-48629-131-0 10 1 1508-
102 NUT; CLIP,AIR PIPE
M6 FLANGE 		5-09440-004-0 01 1 1508-
104 CONNECTOR
(A) 		1-48629-149-0 01 1 1508-
104 CONNECTOR
(B) 		1-48629-394-0 01 1 1508-
117 CYLINDER ASM; AIR
(A) 		1-48629-142-0 01 1 1508-
117 CYLINDER ASM; AIR
(B) 		1-48629-146-0 01 1 1508-
118 PIPE ASM; AIR CYL
(B) 		1-48629-391-0 01 1 1508-
118 PIPE ASM; AIR CYL
(C) 		1-48629-392-0 01 1 1508-
118 PIPE ASM; AIR CYL
(A) 		1-49115-875-0 01 1 1508-
119 SWITCH; THERMO 1-82450-054-0 01 1 1508-
124 CONNECTOR; FLEX HOSE 1-48629-393-0 01 1 1508-
130 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1508-
130 BOLT; BRKT
(A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1508-
134 REPAIR KIT; AIR CYL
(A) 		1-48629-137-0 01 1 1508-
134 REPAIR KIT; AIR CYL
(B) 		1-48629-138-0 01 1 1508-
140 BOLT
(F) M12X35 FLANGE 		0-28761-235-0 08 1 1508-
140 BOLT
(A) M10X20 		1-48629-070-0 04 1 1508-
140 BOLT
(B) 		1-48629-104-0 03 1 1508-
140 BOLT
(C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1508-
140 BOLT
(E) M6X18 		1-48629-134-0 05 1 1508-
140 BOLT
(D) 		1-48629-148-0 04 1 1508-
141 BRACKET
(B) 		1-47479-803-0 02 1 1508-
141 BRACKET
(A) 		1-48629-111-2 01 1 1508-
142 SCREW
M5X10 PAN-HD 		9-93490-510-0 11 1 1508-
144 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 1508-
144 NUT
(A) M12 		9-09840-280-0 03 1 1508-
155 TUBE
(A) 		1-48629-092-0 01 1 1508-
155 TUBE
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1508-
165 LINK; RETARDER
(A) 		1-48629-140-0 01 1 1508-
165 LINK; RETARDER
(B) 		1-48629-141-0 01 1 1508-
166 ATTACHMENT; YOKE
(A) 		1-48629-066-0 01 1 1508-
166 ATTACHMENT; YOKE
(B) 		1-48629-067-0 01 1 1508-
167 STOPPER; LINKAGE
(A) 		1-48629-069-0 02 1 1508-
167 STOPPER; LINKAGE
(B) 		1-48629-217-0 02 1 1508-
168 PROTECTOR; HEAT
(D) 		8-98318-506-0 01 1 1508-
168 PROTECTOR; HEAT
(C) 		8-98318-507-0 01 1 1508-
168 PROTECTOR; HEAT
(B) 		1-22119-594-0 01 1 1508-
168 PROTECTOR; HEAT
(A) 		1-48629-190-0 02 1 1508-
169 CLAMP 1-48629-126-0 01 1 1508-
170 COVER; CASE
(A) 		1-48629-063-0 01 1 1508-
170 COVER; CASE
(B) 		1-48629-240-0 01 1 1508-
171 BREATHER 1-48629-144-0 01 1 1508-
174 BOLT; SWITCH
M6X10 HEX SOCKET 		1-48629-133-0 02 1 1508-
