Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53A - TRANSMISSION OIL COOLER SYSTEM
▶

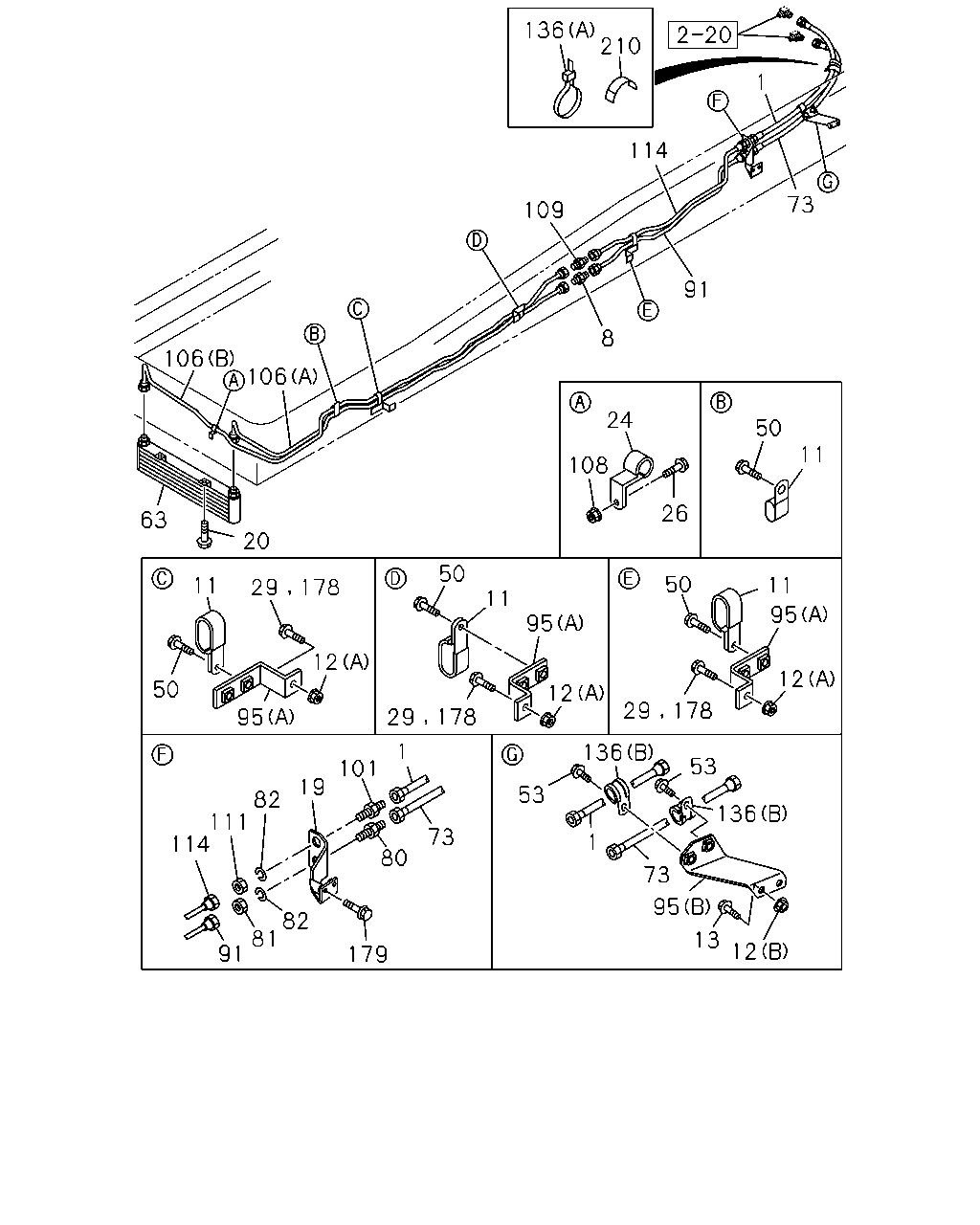

2-53A — TRANSMISSION OIL COOLER SYSTEM
(#165244) — 33 parça
20
63
106
106
109
114
1
73
91
8
210
136
26
108
24
50
11
11
50
29
178
12
95
50
11
95
12
178
29
50
11
95
12
178
29
73
1
101
19
82
111
114
91
81
82
179
80
12
13
95
73
1
53
136
53
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
8-98293-732-0
01
1
1508-
8
UNION
M22 L=51
0-92123-015-0
01
1
1508-
11
CLIP; PIPE
ID=16X2 L=20
0-95325-535-0
04
1
1508-
12
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
1508-
12
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
03
1
1508-
13
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1508-
19
BRACKET; FLEX HOSE
8-98296-849-0
01
1
1508-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
1508-
24
CLIP; OIL PIPE
ID=15 H=24 L=20
1-09700-606-0
01
1
1508-
26
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1508-
29
BOLT; FILTER TO BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1508-
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
1508-
53
BOLT; CLIP,FLEX HOSE,A/T
M8X20 FLANGE
0-28650-820-0
02
1
1508-
63
COOLER; OIL
8-98240-507-0
01
1
1508-
73
HOSE; FLEX,TRANS
8-98293-741-0
01
1
1508-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1508-
81
NUT; UNION
M22
0-91111-522-0
01
1
1508-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
1508-
91
PIPE; OIL,FLEX HOSE TO UNION
L=914
8-98293-734-0
01
1
1508-
95
BRACKET; CLIP
(A)
1-47479-482-0
03
1
1508-
95
BRACKET; CLIP
(B)
8-98293-740-0
01
1
1508-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1508-
106
PIPE ASM; OIL,COOLER TO UNION
(A)
8-98310-087-0
01
1
1508-
106
PIPE ASM; OIL,COOLER TO UNION
(B)
8-98310-088-0
01
1
1508-
108
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1508-
109
UNION
M22 L=51
0-92123-015-0
01
1
1508-
111
NUT; UNION
M22
0-91111-522-0
01
1
1508-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849
1-49167-146-0
01
1
1508-
136
CLIP; FLEX HOSE
(A) L=350
1-09707-183-0
01
1
1508-
136
CLIP; FLEX HOSE
(B) ID=21 L=24
8-98019-191-0
02
1
1508-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
01
1
1508-
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1508-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
1508-
