2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#165240) — 89 parça

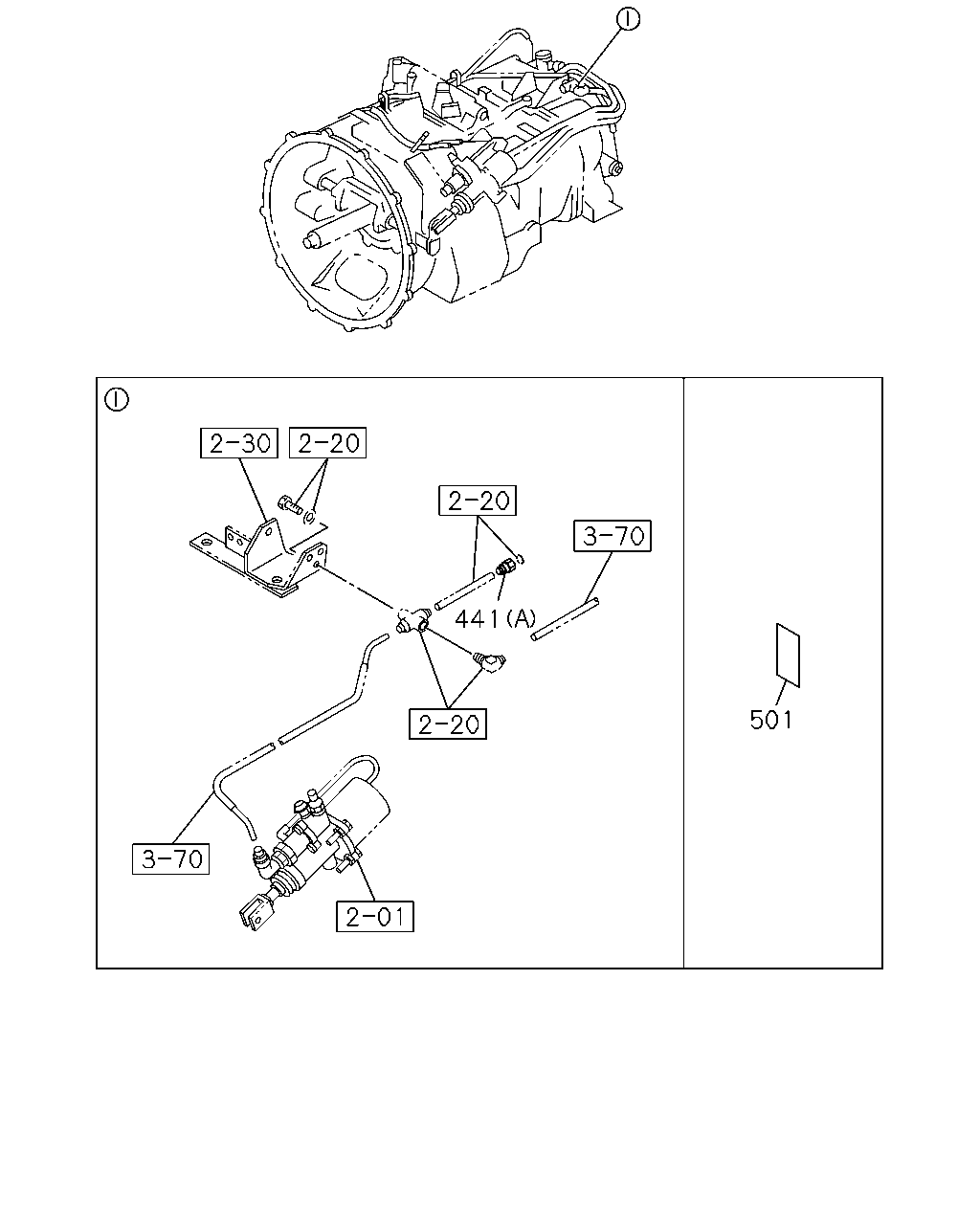

çizim 488148
1 501 441
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTLO189 18(Y4W) L=2801 		8-98222-461-1 01 1 1508-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 1508-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98120-561-0 06 1 1508-
501 SEAL; HARNESS PROTECTOR
TRANSMISSION-FULLER RTLO189 18(Y4W) 180X40 		1-72498-019-1 04 1 1508-

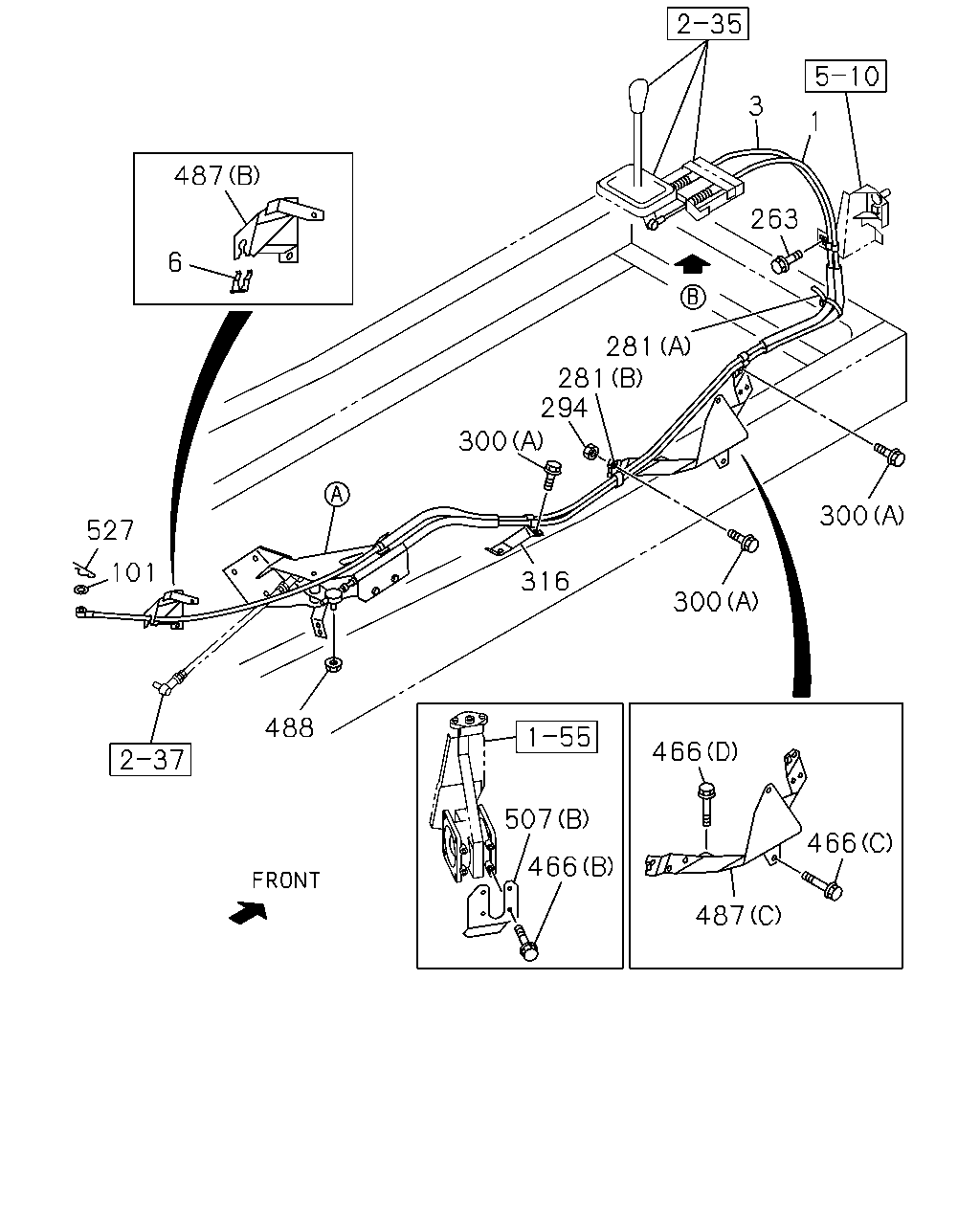

çizim 488198
3 263 1 300 281 281 300 316 300 527 487 6 488 507 466 466 466 487 294 101
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTLO189 18(Y4W) L=2801 		8-98222-461-1 01 1 1508-
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTLO189 18(Y4W) L=3420 		8-98222-470-1 01 1 1508-
6 CLIP; CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) ID=22.2 		1-09701-209-1 02 1 1508-
101 WASHER; PL
TRANSMISSION-FULLER RTLO189 18(Y4W) ID=8.4 OD=16 		0-91610-508-0 01 1 1508-
263 BOLT; CLIP,TRANS CONT WIRE
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X16 FLANGE 		0-28050-816-0 02 1 1508-
281 CLIP; BAND
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=350 		1-09707-183-0 01 1 1508-
281 CLIP; BAND
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1508-
294 NUT; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 1508-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE 		0-28050-820-0 03 1 1508-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1508-
316 BRACKET; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98150-331-0 01 1 1508-
466 BOLT; FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M6X16 FLANGE 		0-28050-616-0 04 1 1508-
466 BOLT; FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1508-
466 BOLT; FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) M10X35 FLANGE 		0-28651-035-0 01 1 1508-
466 BOLT; FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (D) M14X45 FLANGE 		0-28851-445-0 01 1 1508-
487 BRACKET; CONT CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98049-854-0 01 1 1508-
487 BRACKET; CONT CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98216-294-1 01 1 1508-
487 BRACKET; CONT CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) 		8-98256-853-0 01 1 1508-
488 NUT; CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) M10 FLANGE 		1-09440-056-0 01 1 1508-
507 PROTECTOR; HEAT
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98151-604-0 01 1 1508-
507 PROTECTOR; HEAT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98171-722-0 01 1 1508-
527 PIN; SNAP
TRANSMISSION-FULLER RTLO189 18(Y4W) L=23 		8-94170-378-0 01 1 1508-

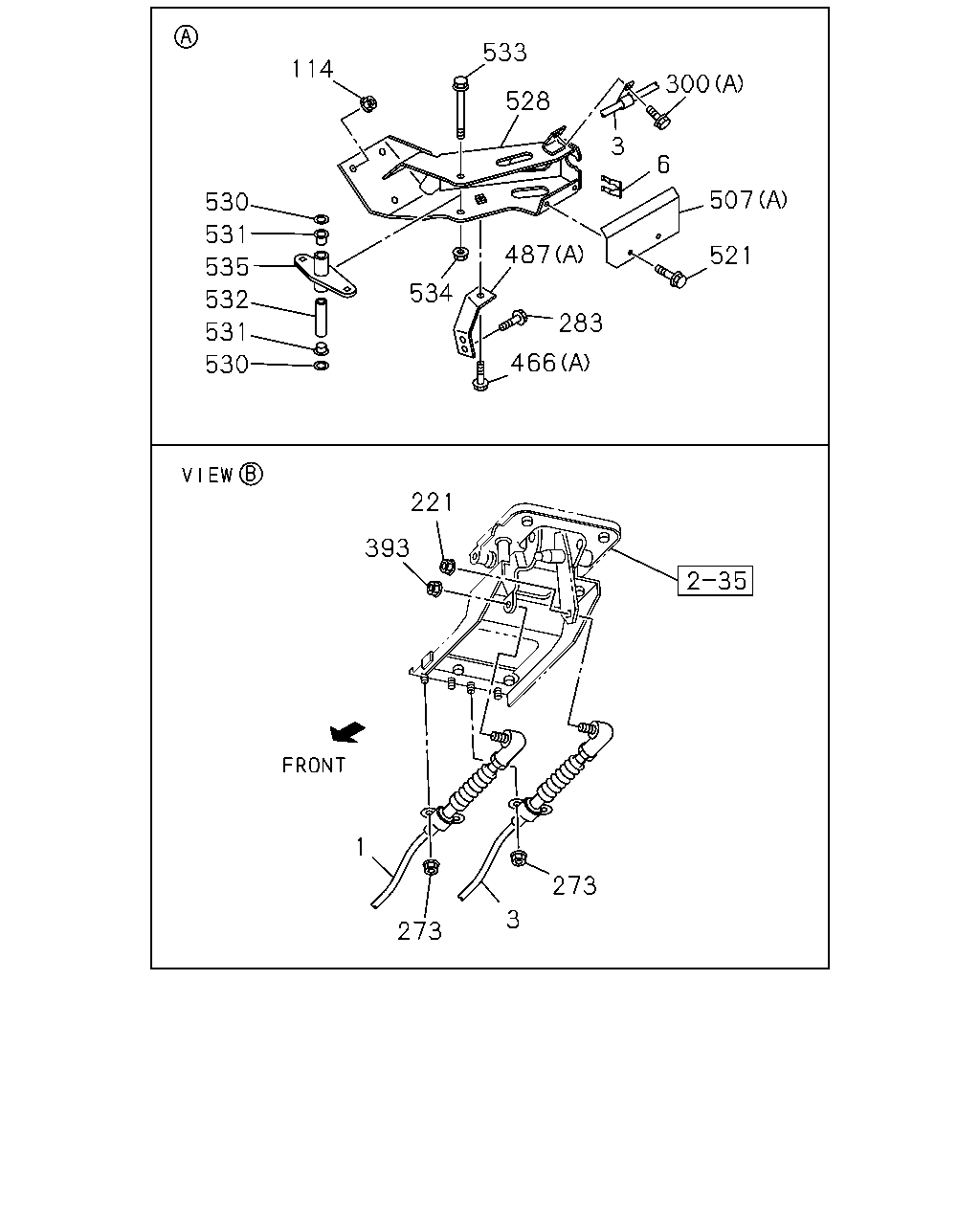

çizim 488201
114 533 530 531 532 535 531 528 300 507 487 534 283 466 521 530 6 3 221 393 273 1 3 273
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTLO189 18(Y4W) L=2801 		8-98222-461-1 01 1 1508-
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTLO189 18(Y4W) L=3420 		8-98222-470-1 01 1 1508-
6 CLIP; CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) ID=22.2 		1-09701-209-1 02 1 1508-
114 NUT; RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) M12 FLANGE 		0-91180-212-0 03 1 1508-
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) M10 FLANGE 		1-09440-061-0 01 1 1508-
273 NUT; CONT CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) M10 FLANGE 		0-91180-110-0 04 1 1508-
283 BOLT; RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) M10X20 FLANGE 		0-28151-020-0 02 1 1508-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE 		0-28050-820-0 03 1 1508-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1508-
393 NUT; SELECT CABLE,CAB
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		1-09440-062-1 01 1 1508-
466 BOLT; FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M6X16 FLANGE 		0-28050-616-0 04 1 1508-
466 BOLT; FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1508-
466 BOLT; FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) M10X35 FLANGE 		0-28651-035-0 01 1 1508-
466 BOLT; FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (D) M14X45 FLANGE 		0-28851-445-0 01 1 1508-
487 BRACKET; CONT CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98049-854-0 01 1 1508-
487 BRACKET; CONT CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98216-294-1 01 1 1508-
487 BRACKET; CONT CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) 		8-98256-853-0 01 1 1508-
507 PROTECTOR; HEAT
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98151-604-0 01 1 1508-
507 PROTECTOR; HEAT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98171-722-0 01 1 1508-
521 BOLT; PROTECTOR
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE 		0-28050-820-0 02 1 1508-
528 BRACKET; LOWER,RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98049-809-1 01 1 1508-
530 RING; RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09623-636-0 02 1 1508-
531 BUSHING; RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09330-119-0 02 1 1508-
532 COLLAR; RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98049-429-0 01 1 1508-
533 BOLT; RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) M10X100 FLANGE 		0-28051-000-0 01 1 1508-
534 NUT; RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) M10 FLANGE 		1-09440-056-0 01 1 1508-
535 LEVER; RELAY,SHIFT
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98049-430-0 01 1 1508-

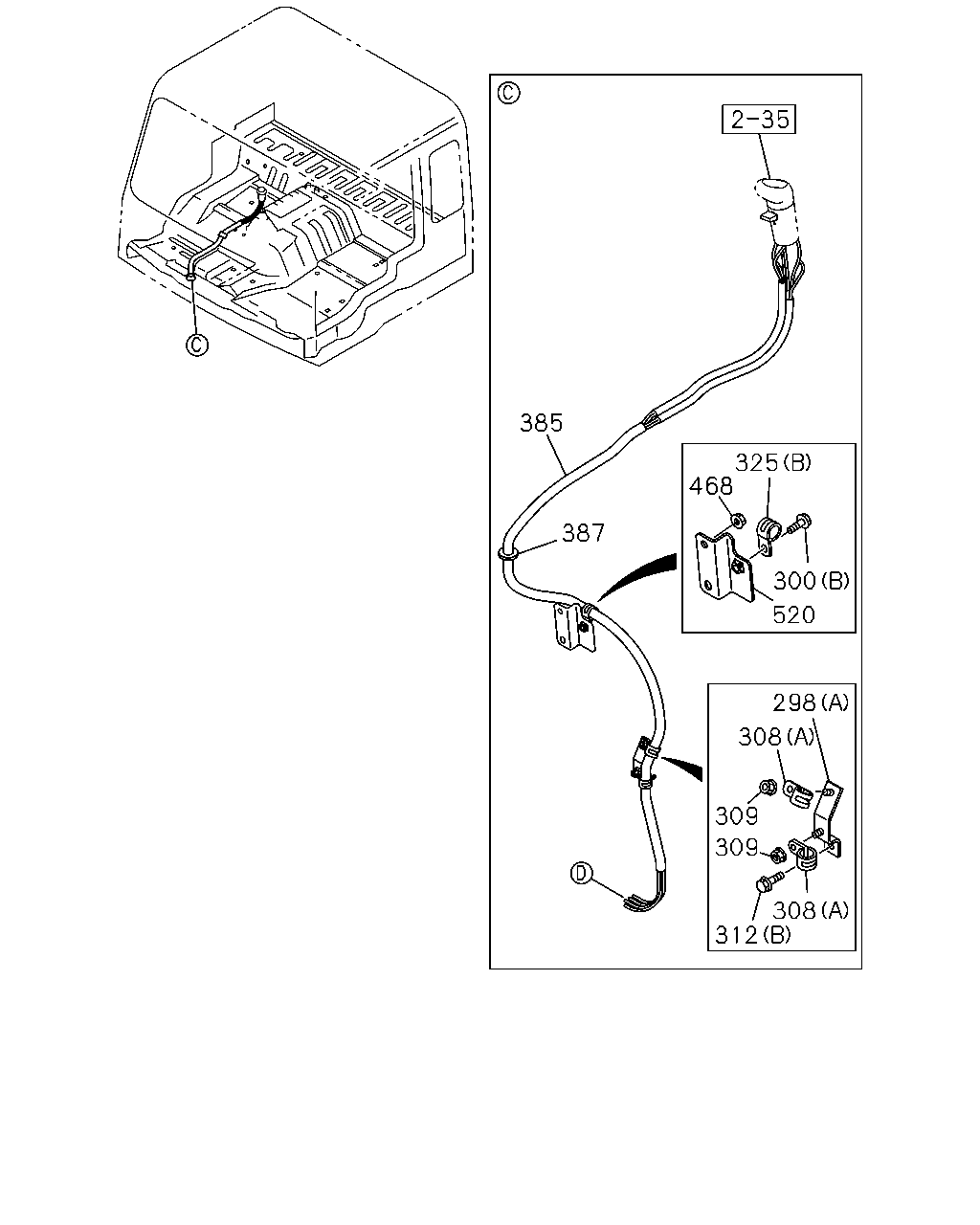

çizim 488203
385 387 325 468 300 520 298 308 309 309 308 312
BalonParca AdiParca NoAdetTipApplied Date
298 BRACKET
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) 		1-47477-514-3 01 1 1508-
298 BRACKET
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=75 		1-47478-323-0 01 1 1508-
298 BRACKET
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98293-675-1 01 1 1508-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE 		0-28050-820-0 03 1 1508-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1508-
308 CLIP; PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=19 L=28 		0-95235-856-0 02 1 1508-
308 CLIP; PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1508-
308 CLIP; PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=21 L=24 		8-98019-191-0 01 1 1508-
309 NUT; PIPE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 1508-
312 BOLT; CLIP BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1508-
312 BOLT; CLIP BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28 		0-95235-856-0 01 1 1508-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3 		1-09987-182-0 01 1 1508-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98299-412-0 01 1 1508-
387 GROMMET; CONT TUBE,FULLER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09332-135-0 01 1 1508-
468 NUT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) M10 FLANGE 		0-91180-110-0 02 1 1508-
520 BRACKET; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98235-633-0 01 1 1508-

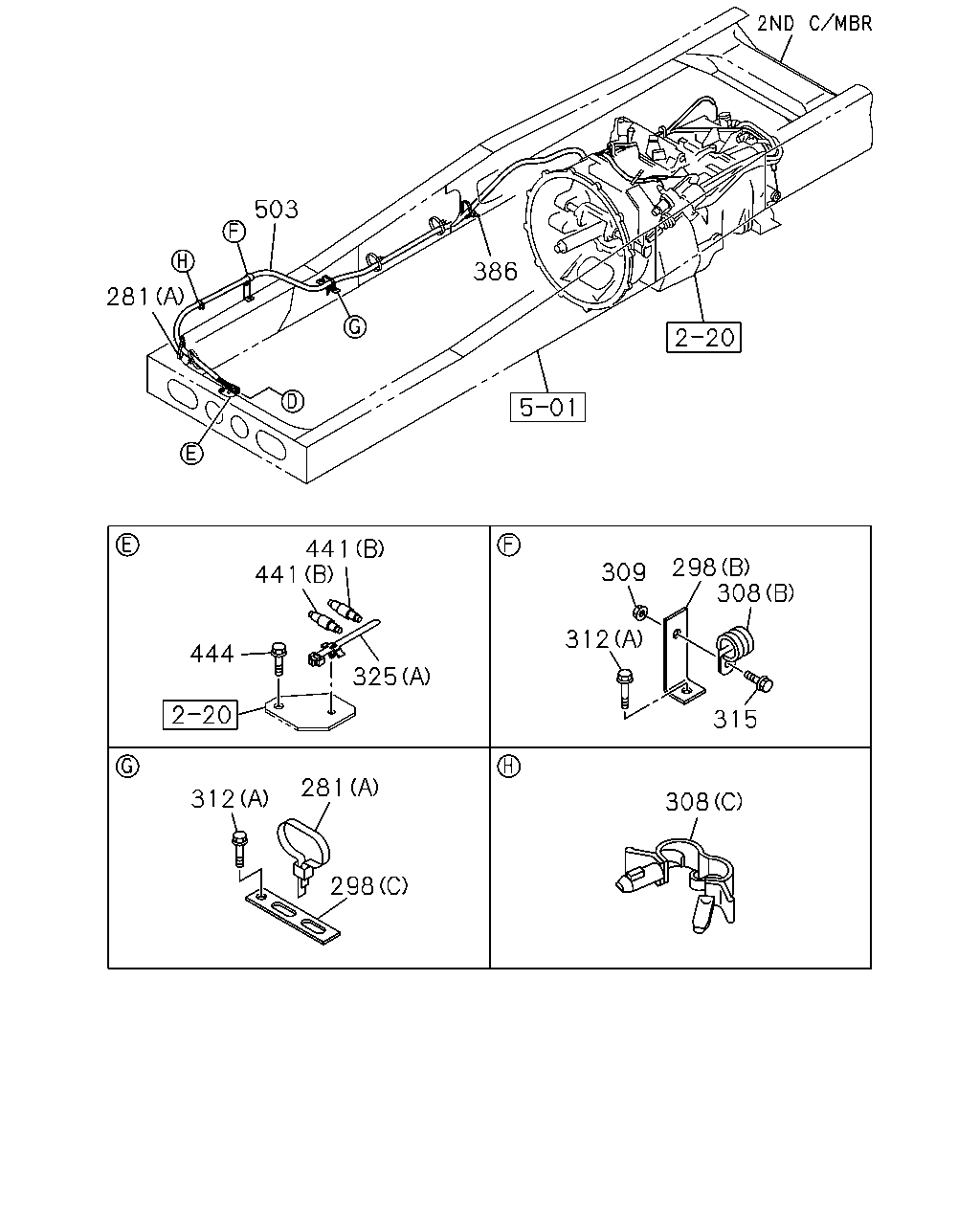

çizim 488205
503 281 386 441 441 444 325 309 308 298 312 315 308 298 281 312
BalonParca AdiParca NoAdetTipApplied Date
281 CLIP; BAND
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=350 		1-09707-183-0 01 1 1508-
281 CLIP; BAND
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1508-
298 BRACKET
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) 		1-47477-514-3 01 1 1508-
298 BRACKET
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=75 		1-47478-323-0 01 1 1508-
298 BRACKET
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98293-675-1 01 1 1508-
308 CLIP; PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=19 L=28 		0-95235-856-0 02 1 1508-
308 CLIP; PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) (C) ID=13-18 L=18 		1-09709-291-0 01 1 1508-
308 CLIP; PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=21 L=24 		8-98019-191-0 01 1 1508-
309 NUT; PIPE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 1508-
312 BOLT; CLIP BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1508-
312 BOLT; CLIP BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
315 BOLT; PIPE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE 		0-28650-820-0 03 1 1508-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28 		0-95235-856-0 01 1 1508-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3 		1-09987-182-0 01 1 1508-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) L=350 		1-09707-183-0 03 1 1508-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 1508-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98120-561-0 06 1 1508-
444 BOLT; BRKT,NIPPLE
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE 		0-28050-820-0 01 1 1508-
503 TUBE; NYLON
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98293-666-1 01 1 1508-
