Sayfa 2-35 - Isuzu EPC

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#165239) — 51 parça

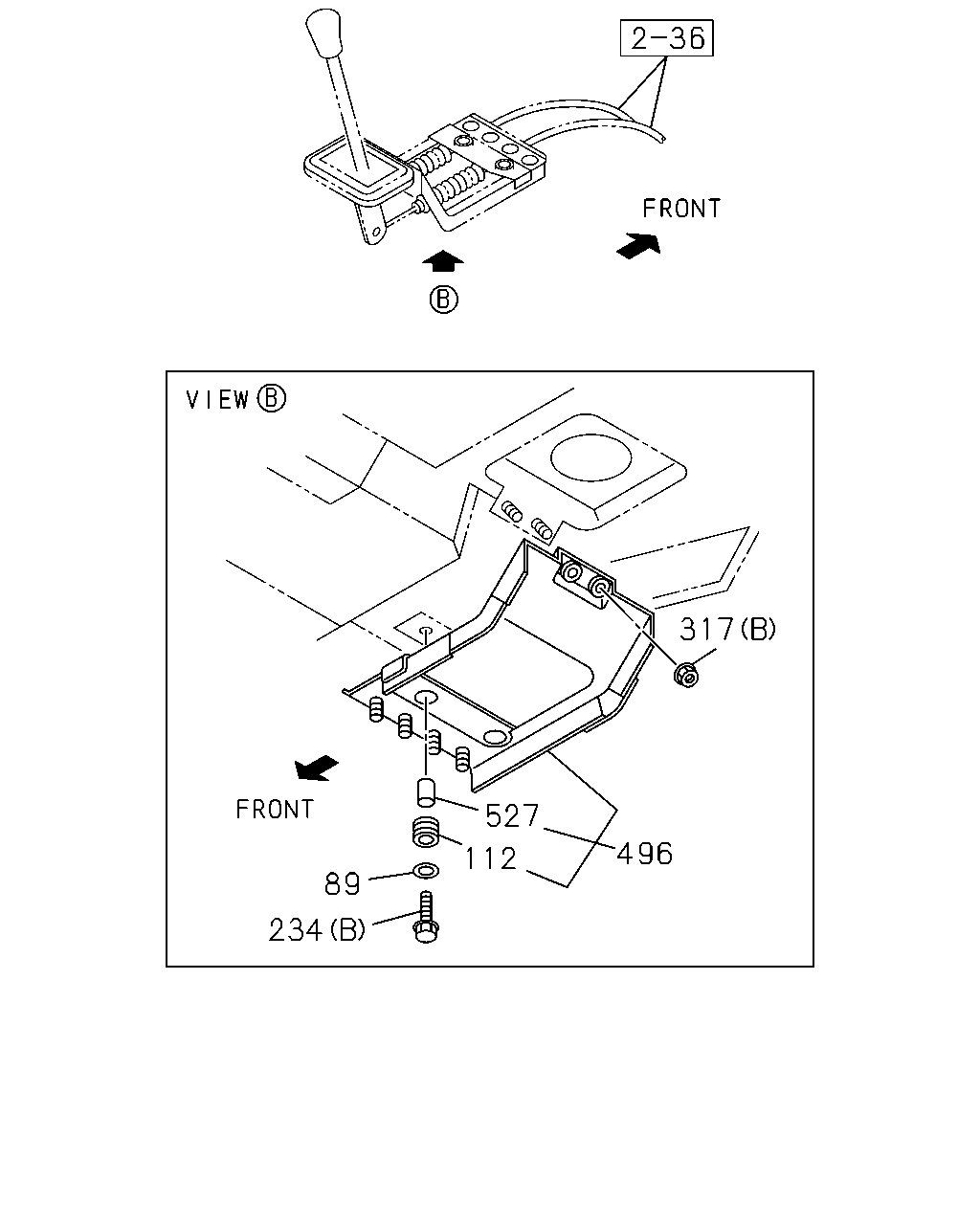

317 496 527 112 89 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	WASHER; PL,LWR SUPPORT BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=8.4 OD=22	0-91610-708-0	02	1	1508-
112	RUBBER; CUSHION TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33619-442-0	04	1	1508-
234	BOLT; BRKT SMOOTHER-G(C1W) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1508-
234	BOLT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X25 FLANGE	0-28650-825-0	02	1	1508-
317	NUT; BRKT SMOOTHER-G(C1W) (A) M8 FLANGE	0-91180-108-0	01	1	1508-
317	NUT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1508-
496	BRACKET ASM; T/M CABLE TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33657-852-2	01	1	1508-
527	COLLAR; DIST,T/M CABLE BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33619-443-0	04	1	1508-

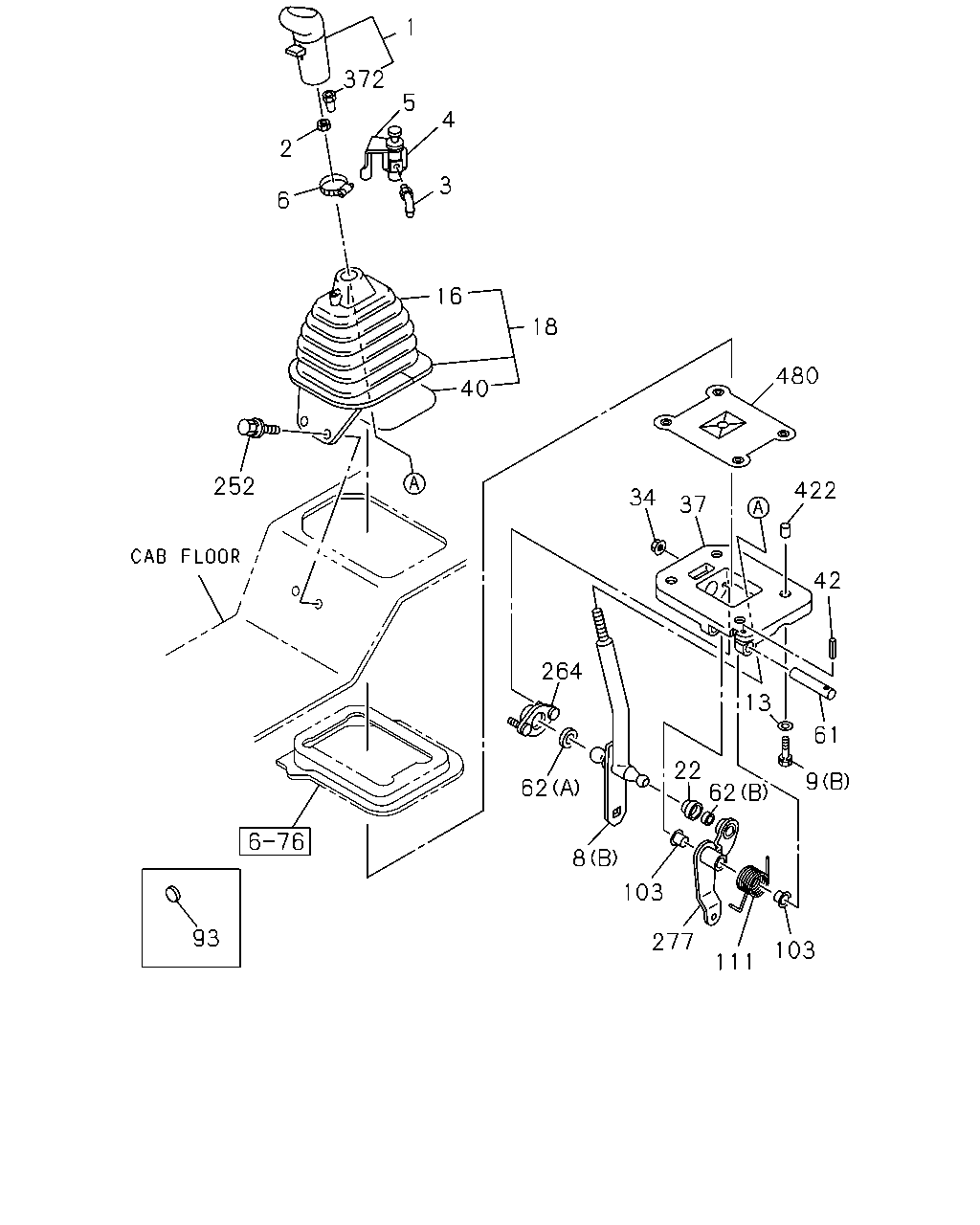

1 372 4 2 6 3 5 16 18 40 252 93 480 34 422 37 42 61 13 264 9 22 62 8 103 277 111 62 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W)	8-98224-285-0	01	1	1508-
2	NUT; KNOB TRANSMISSION-FULLER RTLO189 18(Y4W) 1/2-13UNC	1-33619-033-0	01	1	1508-
3	CONNECTOR; CONT TUBE TRANSMISSION-FULLER RTLO189 18(Y4W)	8-98114-398-0	02	1	1508-
4	VALVE; ACTUATOR TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33712-003-0	01	1	1508-
5	BRACKET; ACTUATOR VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33719-078-0	01	1	1508-
6	CLAMP; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33719-079-0	01	1	1508-
8	LEVER; CHANGE MJX16P M/T(Y3Z) (A)	8-98149-127-1	01	1	1508-
8	LEVER; CHANGE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-33613-349-0	01	1	1508-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	1508-
9	BOLT; CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X25 FLANGE	0-28650-825-0	04	1	1508-
13	WASHER; PL,SUPER SHIFT LEVER TRANSMISSION-FULLER RTLO189 18(Y4W) ID=8.4 OD=22	0-91610-708-0	04	1	1508-
16	BOOT; CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-79996-367-1	01	1	1508-
18	BOOT; CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W)	8-98239-342-0	01	1	1508-
22	COVER; DUST,CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33619-573-0	01	1	1508-
34	NUT TRANSMISSION-FULLER RTLO189 18(Y4W) M6 FLANGE	0-91180-106-0	02	1	1508-
37	BRACKET; CHANGE LEVER SUPPORT TRANSMISSION-FULLER RTLO189 18(Y4W)	8-98100-876-1	01	1	1508-
40	SEAL; BOOT HOLDER CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-79996-345-0	01	1	1508-
42	PIN; SPRING,SELECT LEVER PIN TRANSMISSION-FULLER RTLO189 18(Y4W) D=5 L=28	8-94252-581-0	01	1	1508-
61	PIN; SELECT LEVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33619-470-0	01	1	1508-
62	SEAT; BALL,CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-33619-427-0	01	1	1508-
62	SEAT; BALL,CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-97011-900-0	01	1	1508-
93	SEAL; HOLE COVER,GEAR CONT OD=25 BLACK	1-76798-019-0	02	1	1508-
93	SEAL; HOLE COVER,GEAR CONT MJX16P M/T(Y3Z) OD=25 BLACK	1-76798-019-0	01	1	1508-
103	BUSHING; RELAY LEVER TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14 OD=16	8-94252-671-0	02	1	1508-
111	SPRING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09585-142-1	01	1	1508-
252	BOLT; COVER,CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1508-
264	PLATE; COVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33619-469-0	01	1	1508-
277	LEVER; RELAY TRANSMISSION-FULLER RTLO189 18(Y4W)	1-33651-636-1	01	1	1508-
372	CONNECTOR; CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W)	8-98114-396-0	04	1	1508-
422	BUSHING; CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W)	8-97091-427-0	04	1	1508-
480	RUBBER; COVER TRANSMISSION-FULLER RTLO189 18(Y4W)	8-98119-365-0	01	1	1508-

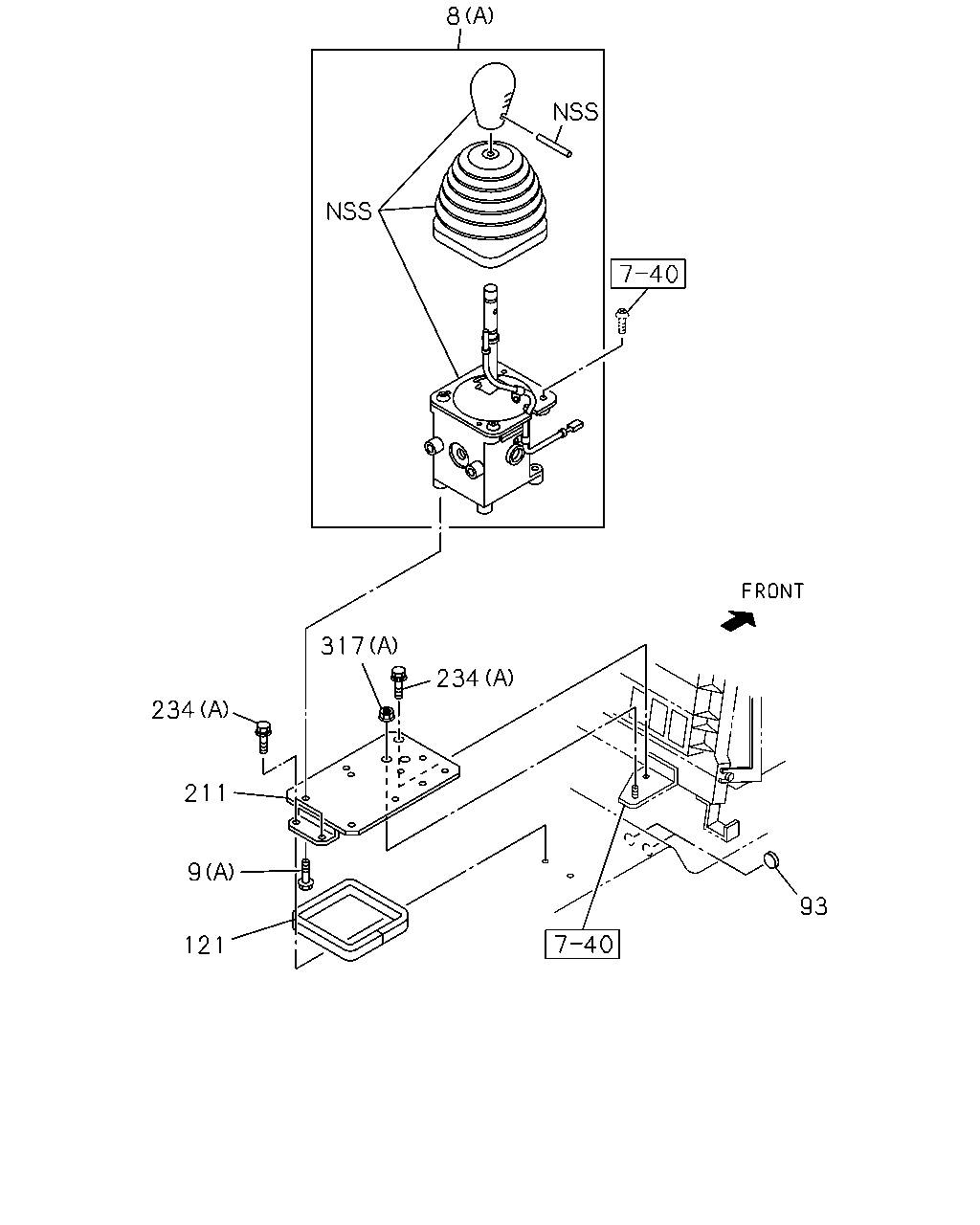

8 317 234 234 211 9 121 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LEVER; CHANGE MJX16P M/T(Y3Z) (A)	8-98149-127-1	01	1	1508-
8	LEVER; CHANGE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-33613-349-0	01	1	1508-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	1508-
9	BOLT; CHANGE LEVER TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X25 FLANGE	0-28650-825-0	04	1	1508-
93	SEAL; HOLE COVER,GEAR CONT OD=25 BLACK	1-76798-019-0	02	1	1508-
93	SEAL; HOLE COVER,GEAR CONT MJX16P M/T(Y3Z) OD=25 BLACK	1-76798-019-0	01	1	1508-
121	SEAL; CHANGE LEVER SMOOTHER-G(C1W)	1-79997-354-0	01	1	1508-
211	BRACKET; CHANGE LEVER SMOOTHER-G(C1W)	1-79907-115-1	01	1	1508-
234	BOLT; BRKT SMOOTHER-G(C1W) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1508-
234	BOLT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X25 FLANGE	0-28650-825-0	02	1	1508-
317	NUT; BRKT SMOOTHER-G(C1W) (A) M8 FLANGE	0-91180-108-0	01	1	1508-
317	NUT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1508-
