2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#165238) — 65 parça

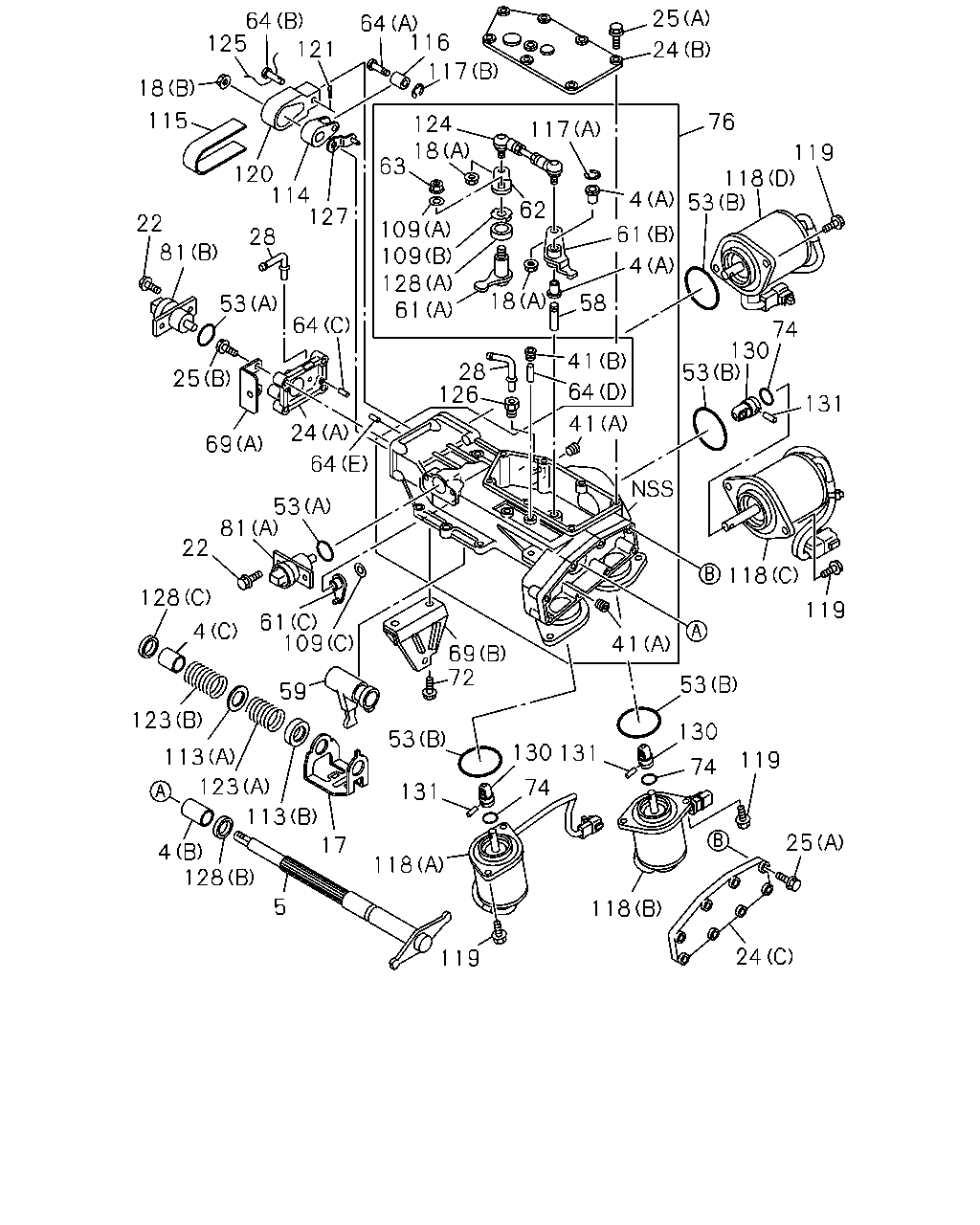

çizim 488770
64 64 121 125 18 115 120 114 127 22 28 81 53 64 25 69 24 53 81 22 128 4 123 113 123 4 128 5 113 59 61 53 17 109 64 116 124 63 109 109 128 61 117 18 62 25 76 4 61 58 18 28 126 41 64 41 53 118 119 130 74 53 131 118 119 41 53 130 119 74 25 118 24 74 131 130 131 118 119 72 69 117 24 4
BalonParca AdiParca NoAdetTipApplied Date
4 BUSHING; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		1-09330-144-0 02 1 -
4 BUSHING; SHIFT UNIT
(C), ID=20 OD=23 ASM PART: A = 8-98302-712-0 		1-33549-016-0 01 1 -
4 BUSHING; SHIFT UNIT
(B), ID=28 OD=32 ASM PART: A = 8-98302-712-0 		1-33549-104-0 01 1 -
5 ROD; SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-98046-922-0 01 1 -
17 YOKE; SHIFT UNIT
ASM PART: A = 8-98302-712-0 		1-33529-126-0 01 1 -
18 NUT; ROD
(B), M10 FLANGE ASM PART: A = 8-98302-712-0 		0-91180-110-0 01 1 -
18 NUT; ROD
(A), M8 FLANGE ASM PART: A = 8-98302-712-0 		1-09440-062-1 02 1 -
22 BOLT; SW
M6X12 FLANGE ASM PART: A = 8-98302-712-0 		0-28050-612-0 04 1 -
24 COVER; SHIFT UNIT
(C) ASM PART: A = 8-98302-712-0 		1-34141-023-1 01 1 -
24 COVER; SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		1-34141-028-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		8-98047-742-0 01 1 -
25 BOLT; COVER
(A), M8X16 FLANGE ASM PART: A = 8-98302-712-0 		0-28050-816-0 15 1 -
25 BOLT; COVER
(B), M6X25 FLANGE ASM PART: A = 8-98302-712-0 		0-28650-625-0 04 1 -
28 PIPE; SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-97358-318-0 02 1 -
41 PLUG; SHIFT UNIT
(B), PT3/8 ASM PART: A = 8-98302-712-0 		1-09605-056-0 01 1 -
41 PLUG; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		8-94403-163-0 02 1 -
53 GASKET
(A), ID=26.8 ASM PART: A = 8-98302-712-0 		1-09623-058-0 02 1 -
53 GASKET
(B) ASM PART: A = 8-98302-712-0 		9-09561-360-0 04 1 -
58 SHAFT; GEAR SHIFT UNIT
ASM PART: A = 8-98302-712-0 		1-33659-240-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
ASM PART: A = 8-98302-712-0 		1-33521-188-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		1-33522-194-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: A = 8-98302-712-0 		8-98186-070-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		8-98302-746-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-98302-744-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
M10 FLANGE ASM PART: A = 8-98302-712-0 		0-91180-110-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		0-82353-827-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		1-31424-011-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(D), OD=6 L=40 ASM PART: A = 8-98302-712-0 		8-98036-471-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(E), OD=3 L=6.36 ASM PART: A = 8-98302-712-0 		8-98046-977-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(C), OD=5 L=10 ASM PART: A = 8-98302-712-0 		9-08150-510-0 02 1 -
69 BRACKET; SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		1-82569-396-2 01 1 -
69 BRACKET; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		1-82698-527-0 01 1 -
72 BOLT; BRKT
M12X30 FLANGE ASM PART: A = 8-98302-712-0 		0-28151-230-0 02 1 -
74 RING; RETAINING
ASM PART: A = 8-98302-712-0 		8-98147-139-0 03 1 -
76 CASE; SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-98302-738-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		8-98107-824-0 01 1 -
81 SENSOR; SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		8-98123-907-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: A = 8-98302-712-0 		0-91610-612-0 01 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: A = 8-98302-712-0 		0-91614-610-0 01 1 -
109 WASHER; PL
(B), OD=40 ASM PART: A = 8-98302-712-0 		1-09532-008-0 01 1 -
113 SEAT; SPRING
(B) ASM PART: A = 8-98302-712-0 		1-33537-024-0 01 1 -
113 SEAT; SPRING
(A) ASM PART: A = 8-98302-712-0 		1-33549-404-0 01 1 -
114 CAM; GEAR SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-98046-921-0 01 1 -
115 GUIDE; PLATE,CAM
ASM PART: A = 8-98302-712-0 		1-33549-401-0 01 1 -
116 ROLLER; SHAFT
ASM PART: A = 8-98302-712-0 		1-33529-121-0 01 1 -
117 RING; SNAP
(B), ID=4 ASM PART: A = 8-98302-712-0 		0-91805-504-0 01 1 -
117 RING; SNAP
(A), ID=10 ASM PART: A = 8-98302-712-0 		0-91805-510-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		8-98283-991-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		8-98283-992-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(C) ASM PART: A = 8-98302-712-0 		8-98283-994-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(D) ASM PART: A = 8-98302-712-0 		8-98283-995-0 01 1 -
119 BOLT; SOLENOID
M10X25 FLANGE ASM PART: A = 8-98302-712-0 		0-28751-025-0 08 1 -
120 PLATE; CAM
ASM PART: A = 8-98302-712-0 		1-33529-125-0 01 1 -
121 PIN; SPRIT
L=27.7 ASM PART: A = 8-98302-712-0 		1-09747-005-0 01 1 -
123 SPRING; SELECT
(A) ASM PART: A = 8-98302-712-0 		1-09580-593-0 01 1 -
123 SPRING; SELECT
(B) ASM PART: A = 8-98302-712-0 		1-09580-594-0 01 1 -
124 ROD ASM; LINK
ASM PART: A = 8-98302-712-0 		8-98302-741-0 01 1 -
125 WIRE
L=200 ASM PART: A = 8-98302-712-0 		9-08351-020-0 01 1 -
126 PLUG; BREATHER
ASM PART: A = 8-98302-712-0 		1-33149-023-0 01 1 -
127 PLATE; PIN,CAM TO SHIFT SENSOR
ASM PART: A = 8-98302-712-0 		8-98046-924-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(A), OD=30 ASM PART: A = 8-98302-712-0 		1-09625-386-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(C) ASM PART: A = 8-98302-712-0 		1-09625-612-1 01 1 -
128 SEAL; OIL,SHIFT UNIT
(B), OD=41 ASM PART: A = 8-98302-712-0 		1-09625-647-0 01 1 -
130 JOINT; SOLENOID
ASM PART: A = 8-98302-712-0 		8-98147-138-1 03 1 -
131 PIN; STRAIGHT
ASM PART: A = 8-98302-712-0 		8-98147-341-0 03 1 -
