2-26A — MANUAL TRANSMISSION GEAR (#165234) — 106 parça

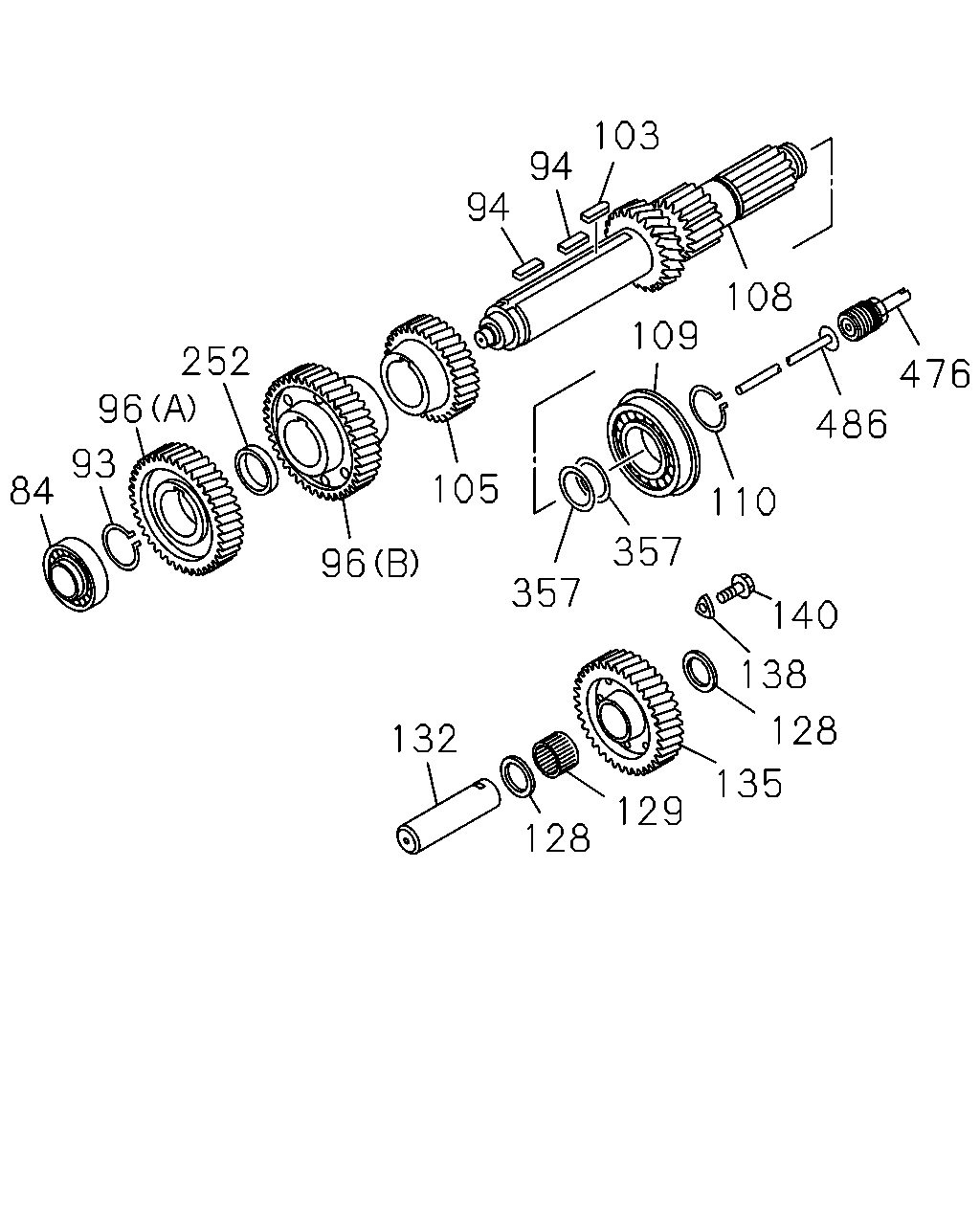

çizim 488191
103 94 94 252 96 93 84 109 108 105 96 476 486 110 357 357 140 138 128 135 129 128 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-221-0 01 1 1508-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-222-0 01 1 1508-
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 1508-
94 KEY; FEATHER,COUNTER SHAFT
L=70 		1-09735-046-0 02 1 1508-
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 1508-
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 1508-
103 KEY; COUNTER GEAR
L=75.3 		1-09735-042-0 01 1 1508-
105 GEAR; 3RD,COUNTER
Z=36 		1-33338-373-1 01 1 1508-
108 SHAFT; COUNTER
Z=26-21 		8-98202-384-0 01 1 1508-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-186-0 01 1 1508-
109 BEARING; COUNTER SHAFT,RR
NTN 		1-09810-207-0 01 1 1508-
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 1508-
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 1508-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 1508-
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 1508-
132 SHAFT; REV 1-33351-035-1 01 1 1508-
135 GEAR; REV IDLER
Z=30 		1-33361-081-1 01 1 1508-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 1508-
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 1508-
252 SPACER 8-98202-499-1 01 1 1508-
357 RING 1-31349-044-0 04 1 1508-
476 ADAPTER; PUMP DRIVE 1-33339-091-1 01 1 1508-
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 1508-

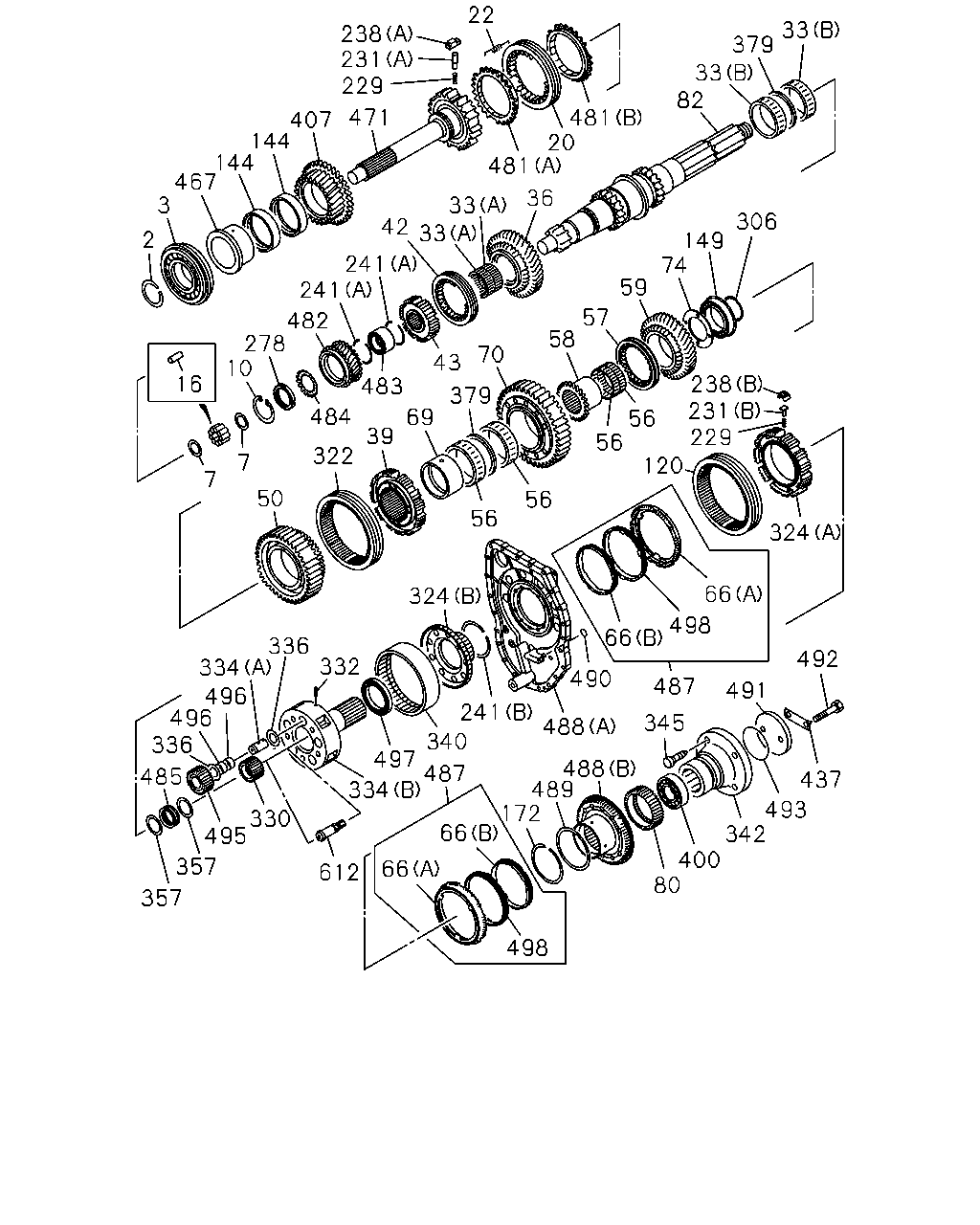

çizim 488719
498 80 66 66 612 330 495 357 357 485 496 336 334 496 336 332 324 241 340 487 497 334 488 489 172 400 345 342 491 493 492 437 487 498 66 490 488 324 229 120 56 56 59 74 149 306 82 33 379 33 481 36 20 481 22 238 471 229 231 407 144 144 467 3 2 16 7 7 10 322 484 50 278 482 241 241 42 33 33 43 483 39 379 70 58 57 238 231 56 56 69 66
BalonParca AdiParca NoAdetTipApplied Date
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 1508-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 1508-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 1508-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 1508-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-278-0 01 1 1508-
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 1508-
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 1508-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09810-260-0 16 1 1508-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09810-261-0 16 1 1508-
20 SLEEVE 1-33262-222-0 01 1 1508-
22 SPRING; BLOCK,INSERT 1-09583-171-0 03 1 1508-
33 BEARING; NEEDLE,3RD GEAR
(A) NTN 		1-09811-379-0 02 1 1508-
33 BEARING; NEEDLE,3RD GEAR
(B) NTN 		1-09811-423-0 02 1 1508-
36 GEAR; 3RD,MAINSHAFT
Z=41 		1-33253-680-1 01 1 1508-
39 HUB; CLU,LOW & 2ND 1-33261-279-1 01 1 1508-
42 SLEEVE 1-33262-222-0 01 1 1508-
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-278-1 01 1 1508-
50 GEAR; 2ND,MAINSHAFT
Z=43 		1-33251-393-1 01 1 1508-
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-423-0 04 1 1508-
57 SLEEVE; REV 1-33262-209-1 01 1 1508-
58 HUB; CLU,REV 1-33261-286-1 01 1 1508-
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-081-2 01 1 1508-
66 RING; BLOCK,SYN
(A) 		8-98239-909-1 02 1 1508-
66 RING; BLOCK,SYN
(B) 		8-98239-911-1 02 1 1508-
69 COLLAR; 1ST GEAR MAIN 1-33234-099-0 01 1 1508-
70 GEAR; 1ST,MAINSHAFT
Z=49 		1-33255-071-1 01 1 1508-
74 WASHER; THRUST,REV GEAR 1-33239-308-0 01 1 1508-
80 GEAR; SPD DRIVE
Z=11 		1-33371-069-0 01 1 1508-
82 SHAFT; MAIN,TRANS
Z=37-40-28-19 		1-33231-327-2 01 1 1508-
120 SLEEVE 1-33262-229-0 01 1 1508-
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-423-0 02 1 1508-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-256-0 01 1 1508-
149 BEARING; NEEDLE,MAINSHAFT,RR
NTN 		1-09810-257-0 01 1 1508-
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 1508-
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 15 1 1508-
231 PLUNGER
(A) 		1-33263-020-0 06 1 1508-
231 PLUNGER
(B) 		1-33263-038-1 09 1 1508-
238 INSERT
(A) 		1-33263-025-2 06 1 1508-
238 INSERT
(B) 		1-33263-039-0 09 1 1508-
241 RING; SNAP
(A) 		1-09587-023-0 02 1 1508-
241 RING; SNAP
(B) 		1-09587-104-0 01 1 1508-
278 NUT; BRG 1-09449-080-0 01 1 1508-
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 1508-
322 SLEEVE; SYN,LOW & 2ND 1-33262-222-0 01 1 1508-
324 HUB; CLU
(A) 		1-34231-015-0 01 1 1508-
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1508-
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 1508-
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 1508-
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 1508-
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1508-
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 1508-
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 1508-
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 1508-
340 GEAR; RING
Z=86 ISUZU GEAR 		1-34371-019-0 01 1 1508-
342 FLANGE; OUTPUT 1-37243-370-0 01 1 1508-
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 1508-
357 RING 1-31349-044-0 04 1 1508-
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 02 1 1508-
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 1508-
407 GEAR; PRIMARY MAIN
Z=33 		8-98303-531-0 01 1 1508-
437 PLATE; LOCK 1-34252-032-0 01 1 1508-
467 COLLAR; SHAFT 1-33234-091-1 01 1 1508-
471 SHAFT; INPUT 8-98303-549-0 01 1 1508-
481 RING; BLOCK
(A) 		8-98303-317-0 01 1 1508-
481 RING; BLOCK
(B) 		8-98303-318-0 01 1 1508-
482 GEAR; PRIMARY 8-98303-533-0 01 1 1508-
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1508-
484 PLATE; SETTING 1-33313-023-0 01 1 1508-
485 PIECE; GUIDE 1-33363-040-1 01 1 1508-
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1508-
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1508-
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1508-
489 WASHER; THRUST 1-09503-308-0 01 1 1508-
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 1508-
491 PLATE; OUTPUT SHAFT 1-34252-026-0 01 1 1508-
492 BOLT; PLATE 1-09000-740-0 02 1 1508-
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 1508-
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 1508-
496 BEARING; PLANETARY
NSK 		1-09811-424-0 10 1 1508-
496 BEARING; PLANETARY
NTN 		1-09811-425-0 10 1 1508-
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1508-
498 CONE; SYN 8-98239-910-0 02 1 1508-
612 GALLERY; OIL 8-98239-463-0 01 1 1508-
