Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#165230) — 114 parça

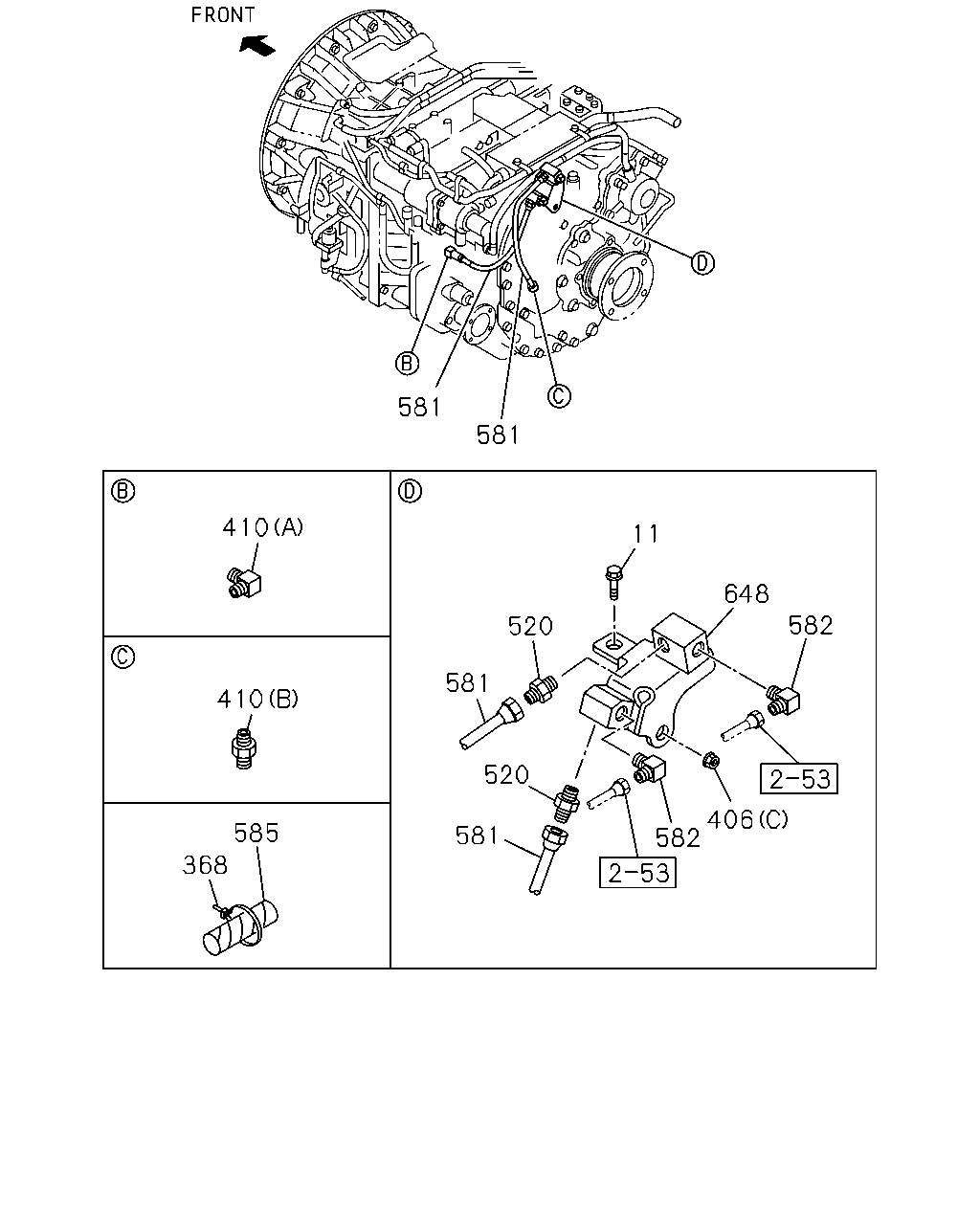

581 581 410 410 585 368 11 648 582 406 582 581 520 581 520

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1508-
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1508-
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1508-
406	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1508-
406	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1508-
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1508-
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1508-
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1508-
581	HOSE; OIL COOLER L=360	1-09365-234-0	02	1	1508-
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1508-
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1508-
648	UNION ASM	8-98131-605-2	01	1	1508-

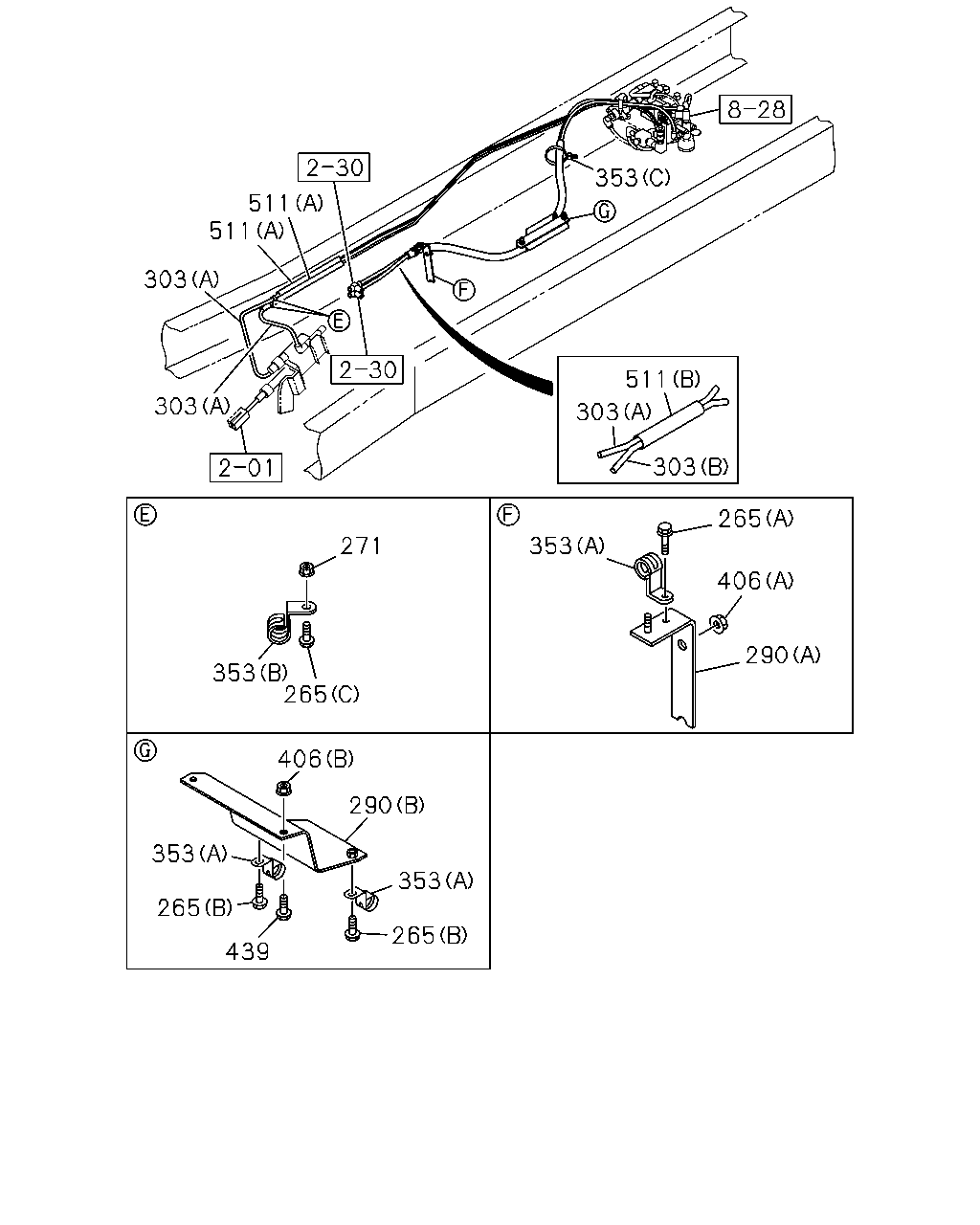

511 511 303 303 353 511 303 303 353 271 265 406 290 353 265 439 353 265 353 265 406 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1508-
265	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	02	1	1508-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1508-
290	BRACKET; CLIP (A)	8-97609-042-0	01	1	1508-
290	BRACKET; CLIP (B)	8-98312-636-0	01	1	1508-1509
290	BRACKET; CLIP (B)	8-98334-401-0	01	1	1510-
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1508-
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	1508-
353	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	02	1	1508-
353	CLIP; NYLON TUBE (B) ID=16 L=50 H=25	1-09700-838-0	02	1	1508-
353	CLIP; NYLON TUBE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	1508-
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1508-
406	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1508-
406	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1508-
439	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1508-
511	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1508-
511	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1508-

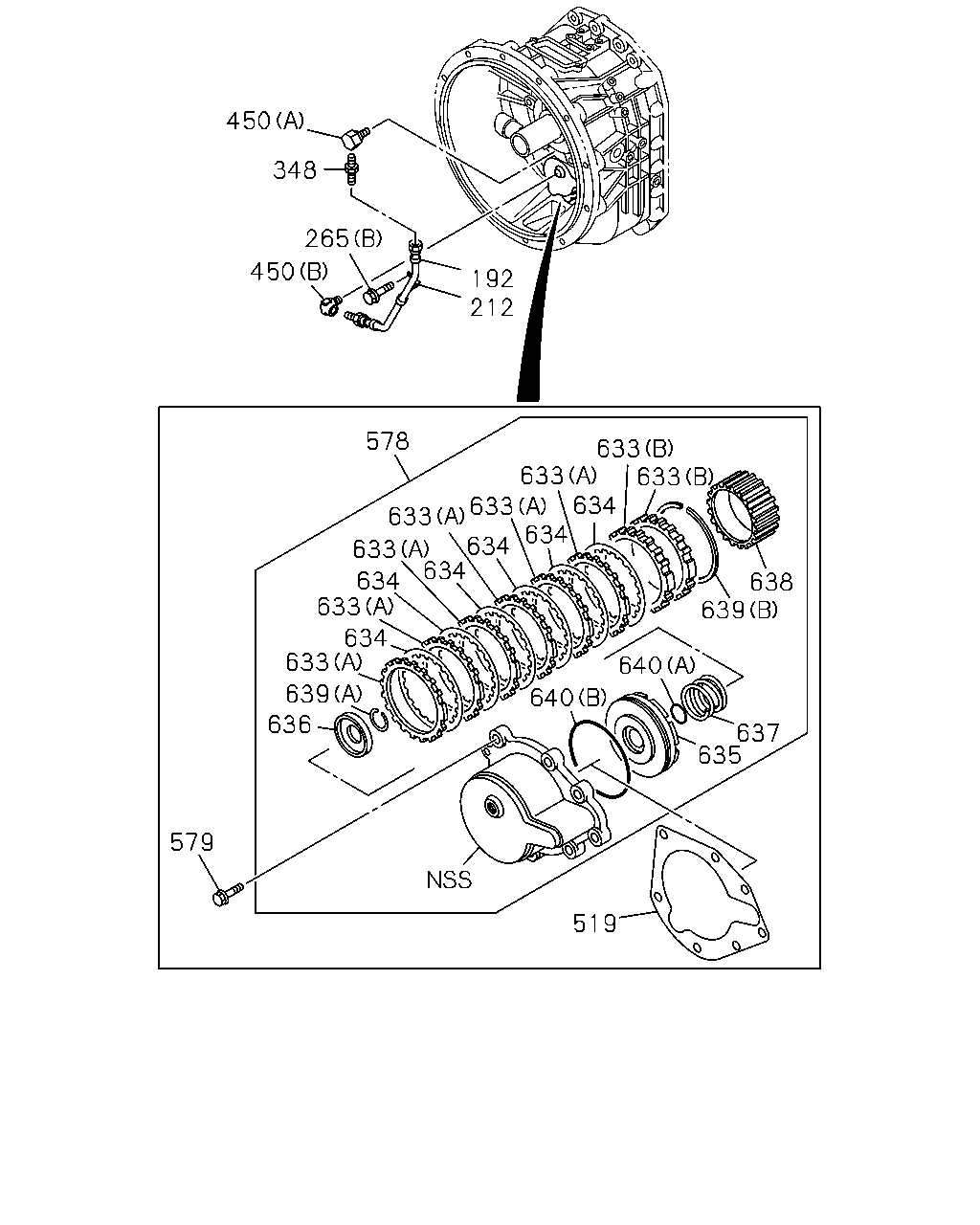

450 348 265 450 192 212 636 639 633 634 633 634 634 633 633 633 634 634 633 633 634 633 638 639 640 640 635 637 519 579 578

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	HOSE; FLEX,TRANS L=252	1-09365-062-0	01	1	1508-
212	CLIP; FLEX HOSE ID=9 H=20 L=25	1-09701-073-0	01	1	1508-
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1508-
265	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	02	1	1508-
348	NIPPLE; GREASE,SHAFT	9-09902-299-0	01	1	1508-
450	ADAPTER; OIL (A)	1-09660-012-0	01	1	1508-
450	ADAPTER; OIL (B) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
519	GASKET; SHAFT	1-34142-034-0	01	1	1508-
578	BRAKE; COUNTER SHAFT	1-33316-005-1	01	1	1508-
579	BOLT; COUNTER SHAFT M10X30 FLANGE	0-28151-030-0	07	1	1508-
633	PLATE; SEPARATE,BRAKE (A)	1-33319-208-0	06	1	1508-
633	PLATE; SEPARATE,BRAKE (B) T=3.6	1-33319-209-0	02	1	1508-
633	PLATE; SEPARATE,BRAKE (B) T=3.8	1-33319-210-0	02	1	1508-
633	PLATE; SEPARATE,BRAKE (B) T=4.0	1-33319-211-0	02	1	1508-
633	PLATE; SEPARATE,BRAKE (B) T=4.2	1-33319-212-0	02	1	1508-
634	PLATE; FRICTION,BRAKE	1-33319-207-0	06	1	1508-
635	PISTON; BRAKE T=4.90	1-33319-230-0	01	1	1508-
636	PLATE; PRESSURE,BRAKE	1-33319-213-1	01	1	1508-
637	SPRING; BRAKE	1-33319-215-0	01	1	1508-
638	HUB; BRAKE	1-33319-220-0	01	1	1508-
639	RING; BRAKE (A)	1-33319-216-0	01	1	1508-
639	RING; BRAKE (B)	1-33319-217-0	01	1	1508-
640	GASKET; BRAKE (A)	1-33319-218-0	01	1	1508-
640	GASKET; BRAKE (B)	1-33319-219-0	01	1	1508-

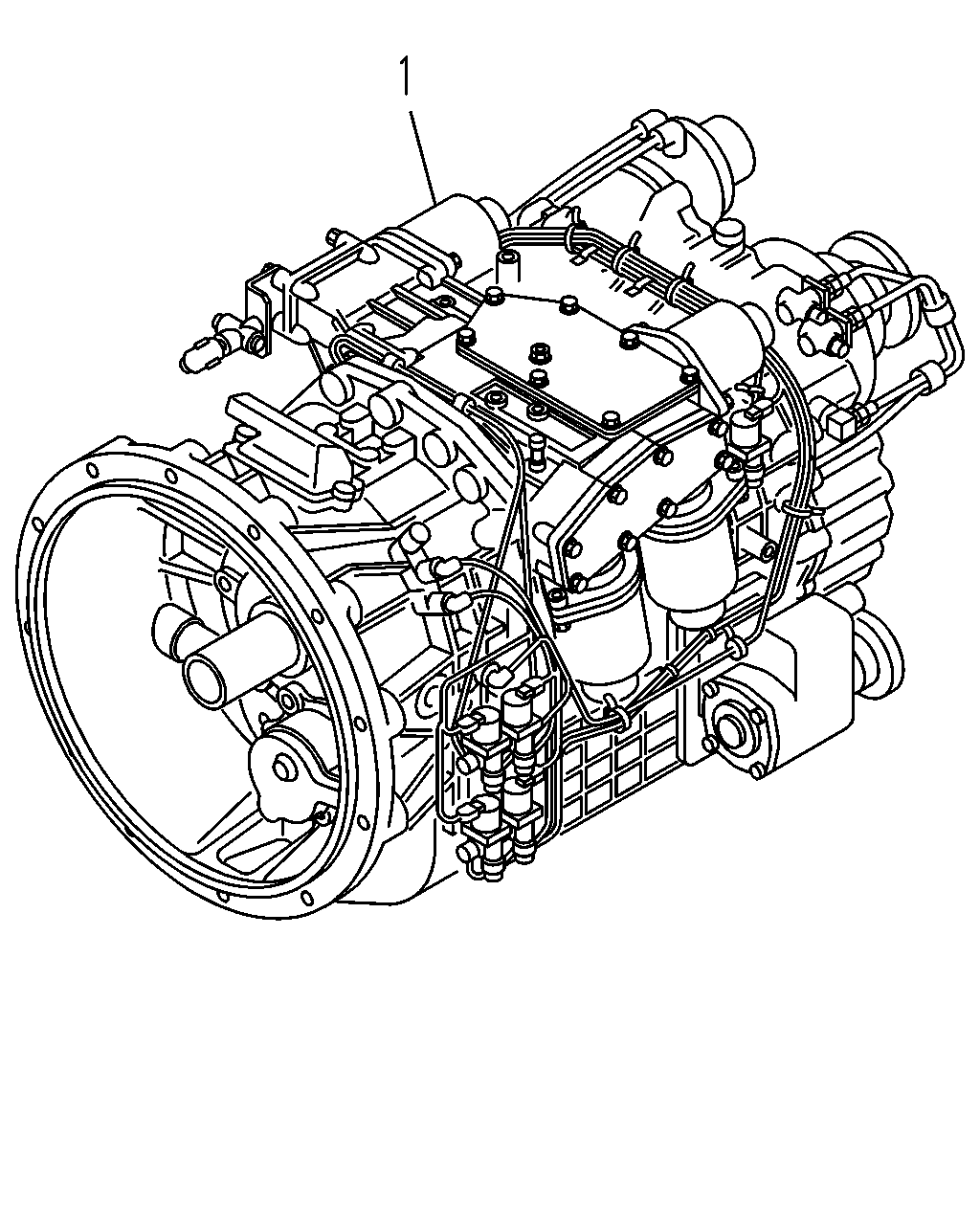

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-715-0	01	1	1508-
	1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-715-0	01	1	1508-

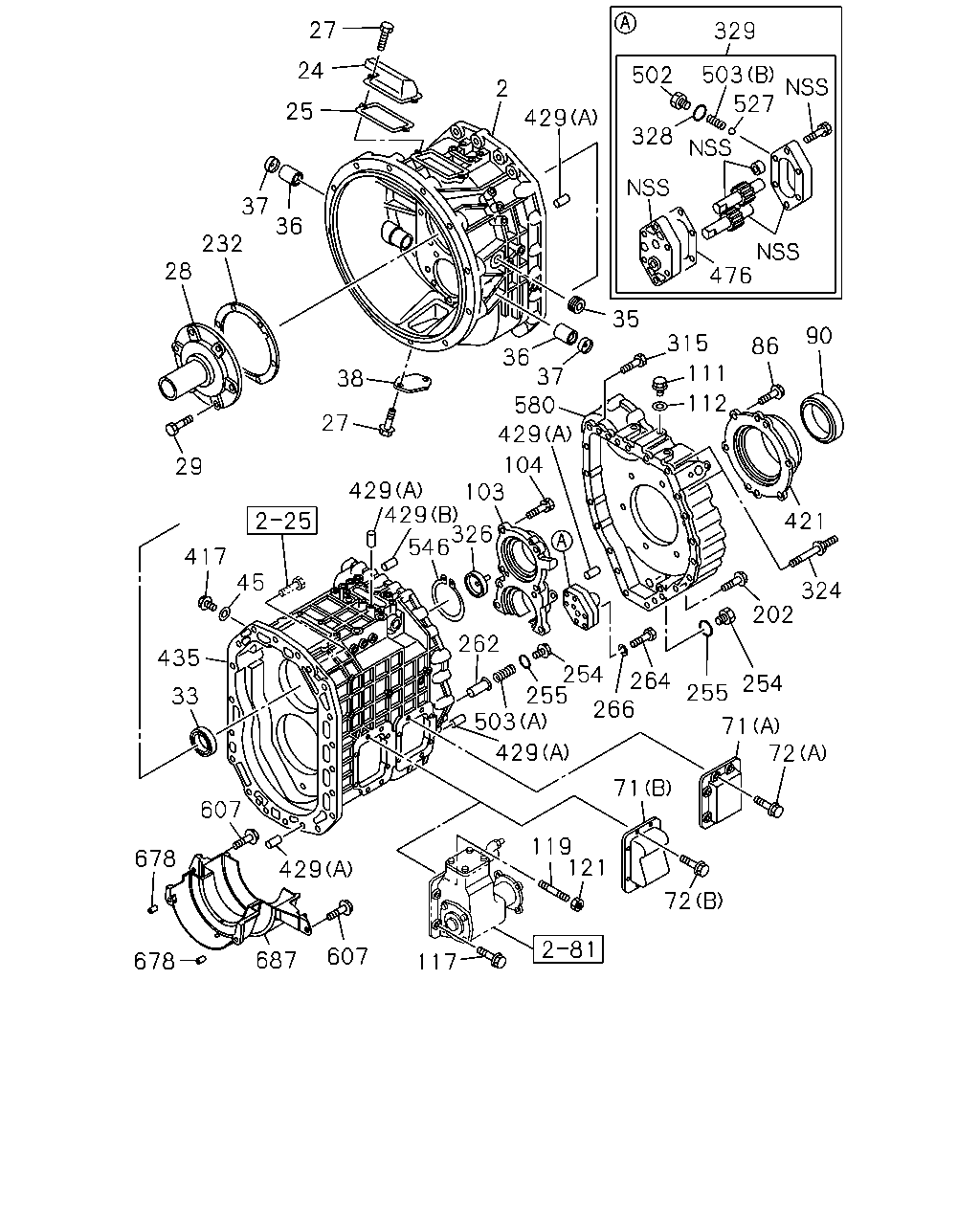

329 503 502 328 527 476 90 86 315 111 112 421 324 202 254 255 71 72 72 121 119 71 117 607 687 678 429 678 607 429 503 255 254 264 266 262 546 326 429 429 103 104 429 580 37 36 35 429 2 38 27 29 417 45 435 33 28 232 37 36 25 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	8-98186-687-1	01	1	1508-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1508-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1508-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1508-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1508-
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1508-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1508-
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1508-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1508-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1508-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1508-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1508-
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	1508-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	1508-
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	1508-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	1508-
86	BOLT; RR COVER M17X35	1-09044-076-0	06	1	1508-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1508-
103	RETAINER; BRG	1-33151-060-1	01	1	1508-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1508-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	02	1	1508-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1508-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1508-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1508-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1508-
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1508-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1508-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1508-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1508-
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1508-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	1508-
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	1508-
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1508-
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1508-
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1508-
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1508-
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1508-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1508-
328	GASKET; PLUG	1-34159-100-0	01	1	1508-
329	PUMP ASM; OIL	8-98283-996-0	01	1	1508-
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1508-
421	COVER; RR,TRANS	1-33131-238-0	01	1	1508-
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	1508-
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	1508-
435	CASE; TRANS	8-98049-690-1	01	1	1508-
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1508-
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1508-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1508-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1508-
527	BALL; OIL PUMP	9-00097-531-0	01	1	1508-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1508-
580	CASE; RANGE	1-33115-052-0	01	1	1508-
607	BOLT; COVER M10X25 FLANGE	0-28151-025-0	02	1	1508-
678	PIN OD=10 L=18	9-08151-018-0	02	1	1508-
687	COVER; GEAR	8-98200-758-1	01	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
