2-05 — CLUTCH PIPING (#165225) — 140 parça

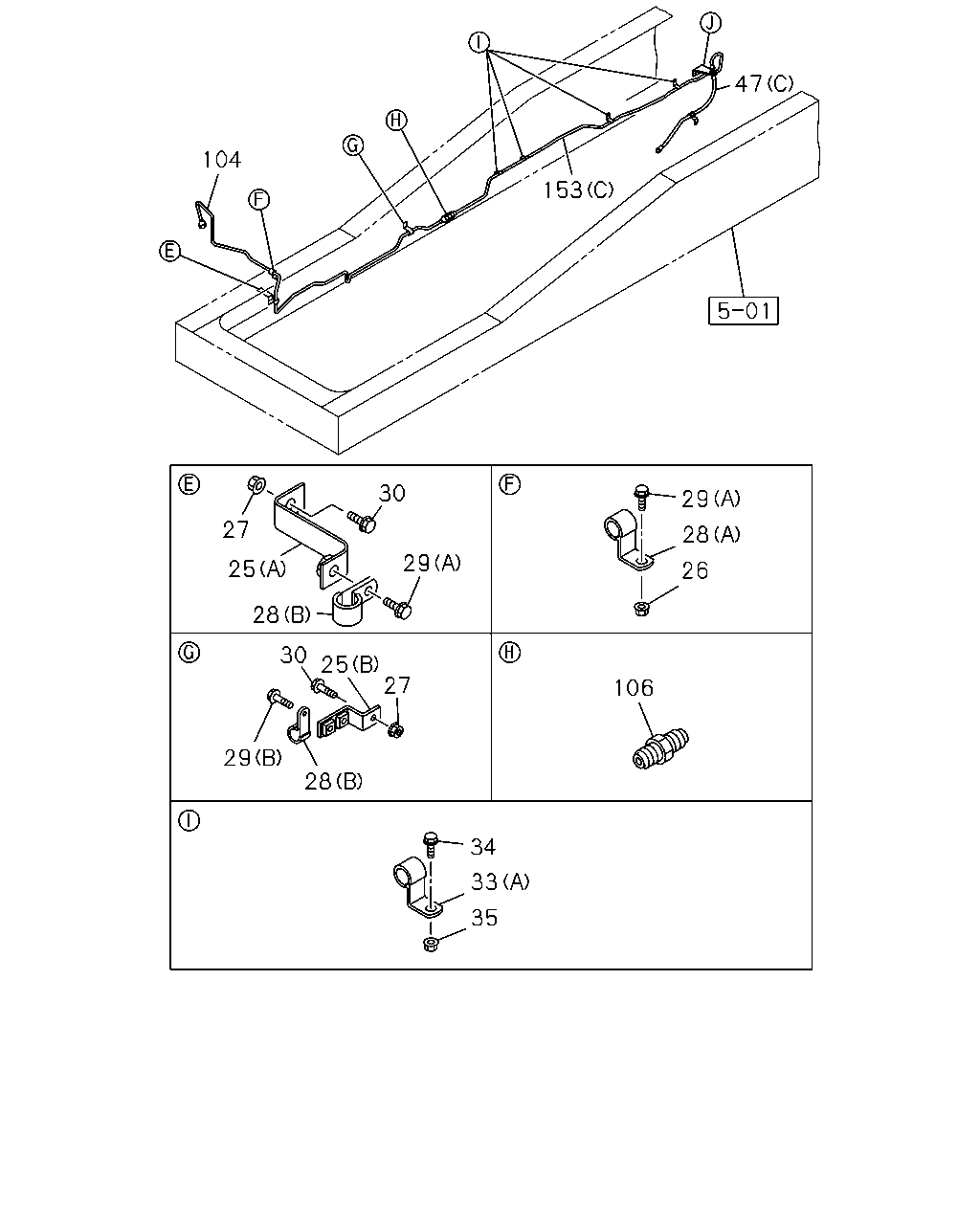

47 153 104 27 25 28 29 30 26 28 29 106 27 25 30 29 28 34 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-46147-101-0	01	1	1508-
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1508-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1508-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1508-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1508-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1508-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1508-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1508-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1508-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	1508-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1508-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1508-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	1508-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28050-820-0	02	1	1508-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	1508-
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	1508-
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	1508-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=580	1-09365-349-0	01	1	1508-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	1508-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=550	1-09365-377-1	01	1	1508-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1389 SERVICED BY L=1400	1-47428-765-0	01	1	1508-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2120 SERVICED BY L=2150	1-47428-770-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1571 SERVICED BY L=1700	1-47428-767-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98299-402-0	01	1	1508-

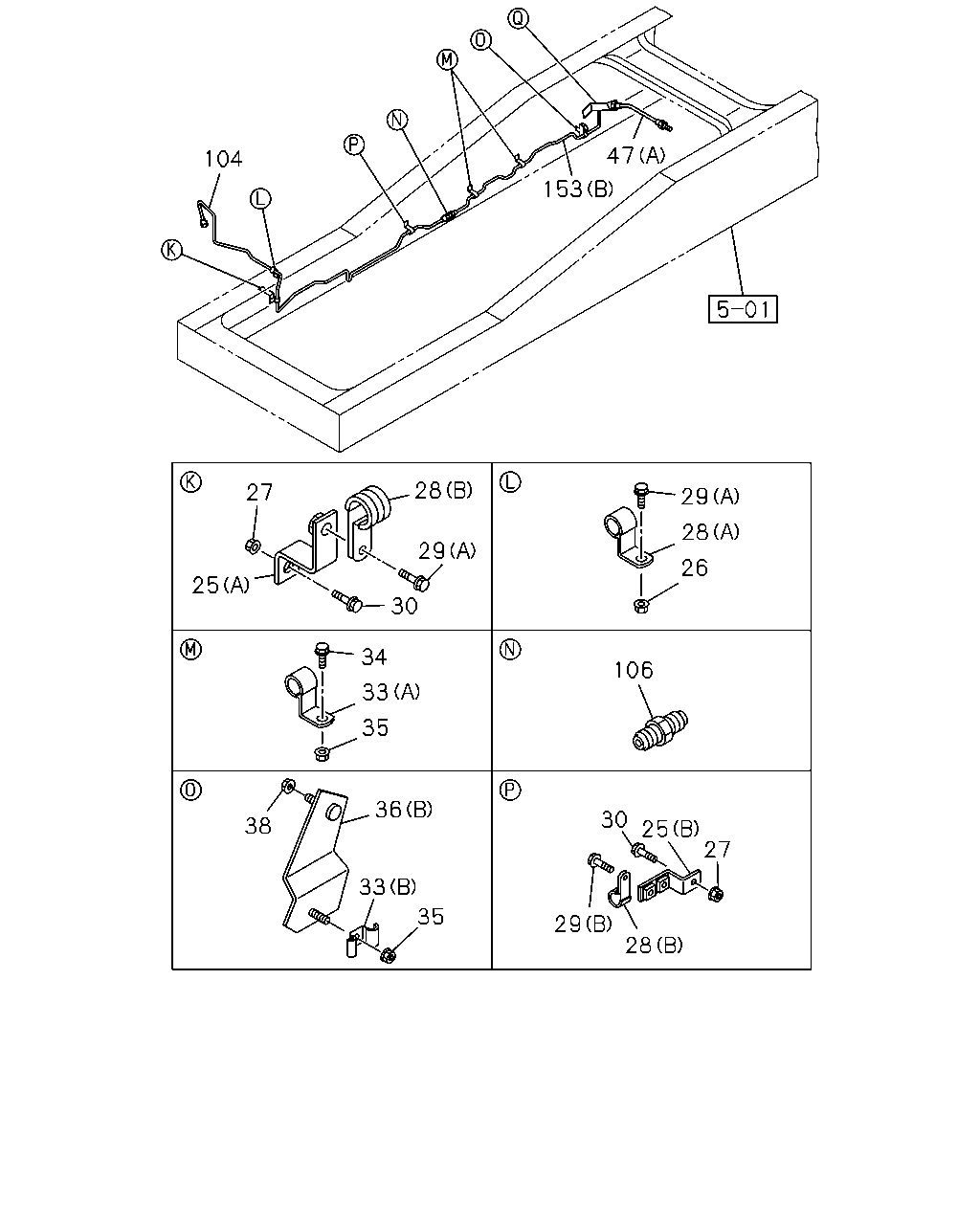

104 153 47 27 28 29 30 25 34 33 35 38 36 33 35 28 29 30 25 27 106 26 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-46147-101-0	01	1	1508-
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1508-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1508-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1508-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1508-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1508-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1508-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1508-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1508-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	1508-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1508-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1508-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	1508-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28050-820-0	02	1	1508-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	1508-
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	1508-
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	1508-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98060-696-0	01	1	1508-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1508-
38	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	1508-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=580	1-09365-349-0	01	1	1508-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	1508-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=550	1-09365-377-1	01	1	1508-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1389 SERVICED BY L=1400	1-47428-765-0	01	1	1508-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2120 SERVICED BY L=2150	1-47428-770-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1571 SERVICED BY L=1700	1-47428-767-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98299-402-0	01	1	1508-

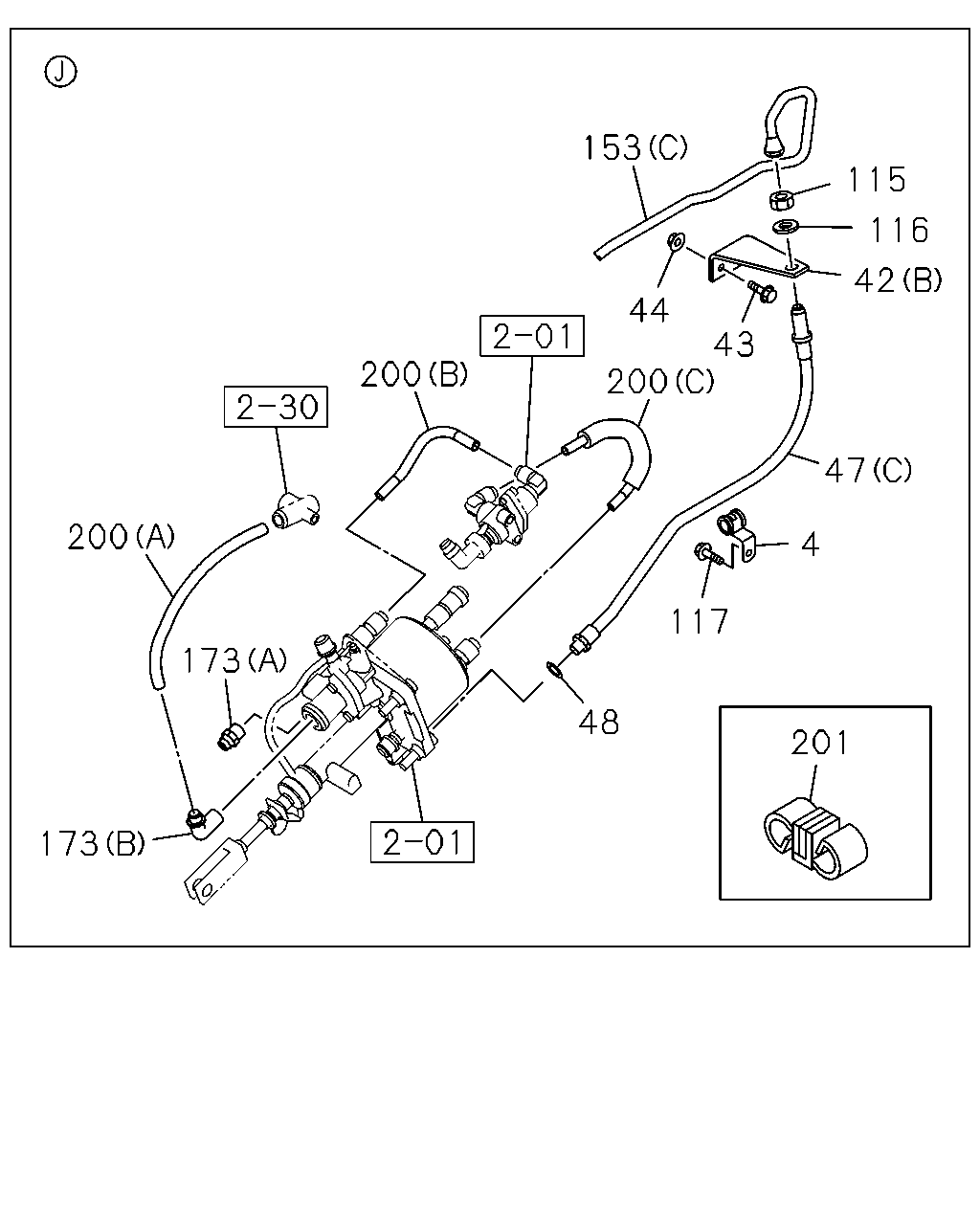

201 173 173 200 48 117 4 47 42 116 115 153 44 43 200 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=16 H=25 L=25	1-09701-162-0	01	1	1508-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	8-98293-729-0	01	1	1508-
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	8-98293-728-1	01	1	1508-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1508-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1508-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=580	1-09365-349-0	01	1	1508-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	1508-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=550	1-09365-377-1	01	1	1508-
48	GASKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=10.2 OD=16.0	9-09571-410-0	01	1	1508-
115	NUT; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) M14	0-91111-514-0	01	1	1508-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) M14	0-91111-514-0	02	1	1508-
116	WASHER; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=14.2	0-91510-514-0	01	1	1508-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14.2	0-91510-514-0	02	1	1508-
117	BOLT; CLIP,FLEX HOSE MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2120 SERVICED BY L=2150	1-47428-770-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1571 SERVICED BY L=1700	1-47428-767-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98299-402-0	01	1	1508-
173	CONNECTOR MJX16P M/T(Y3Z) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	1508-
173	CONNECTOR MJX16P M/T(Y3Z) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	1508-
200	TUBE; NYLON MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1508-
200	TUBE; NYLON MJX16P M/T(Y3Z) (B)	8-98241-307-0	01	1	1508-
200	TUBE; NYLON MJX16P M/T(Y3Z) (C)	8-98241-308-0	01	1	1508-
201	CLIP; NYLON TUBE MJX16P M/T(Y3Z) ID=6.35 & 12	1-09709-275-1	01	1	1508-

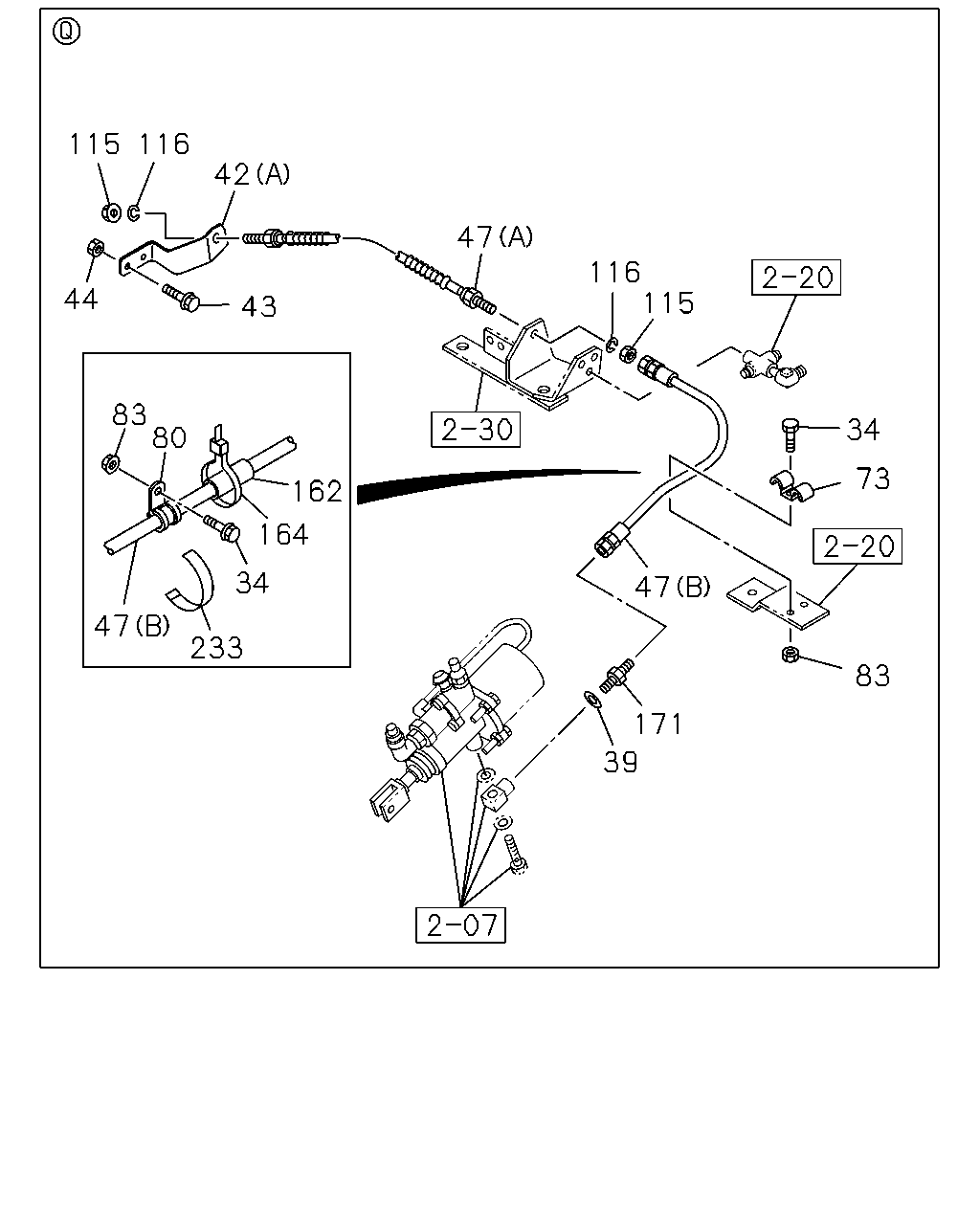

115 116 42 44 43 47 116 115 34 73 47 83 171 39 83 80 47 233 34 164 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	1508-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28050-820-0	02	1	1508-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	1508-
39	GASKET; CONNECTOR TRANSMISSION-FULLER RTLO189 18(Y4W) ID=10.2 OD=16.0	9-09571-410-0	01	1	1508-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	8-98293-729-0	01	1	1508-
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	8-98293-728-1	01	1	1508-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1508-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1508-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=580	1-09365-349-0	01	1	1508-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	1508-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=550	1-09365-377-1	01	1	1508-
73	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1508-
80	CLIP; HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) ID=16 L=50	1-09701-158-0	01	1	1508-
83	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8	0-91110-508-0	02	1	1508-
115	NUT; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) M14	0-91111-514-0	01	1	1508-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) M14	0-91111-514-0	02	1	1508-
116	WASHER; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=14.2	0-91510-514-0	01	1	1508-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14.2	0-91510-514-0	02	1	1508-
162	COVER; RUBBER,FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14 OD=18 L=60	1-09337-030-0	01	1	1508-
164	CLIP; BAND,FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) L=250	5-09707-030-1	01	1	1508-
171	CONNECTOR; CLU BOOSTER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09650-256-2	01	1	1508-
233	BAND; FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) L=175	1-09707-178-0	01	1	1508-

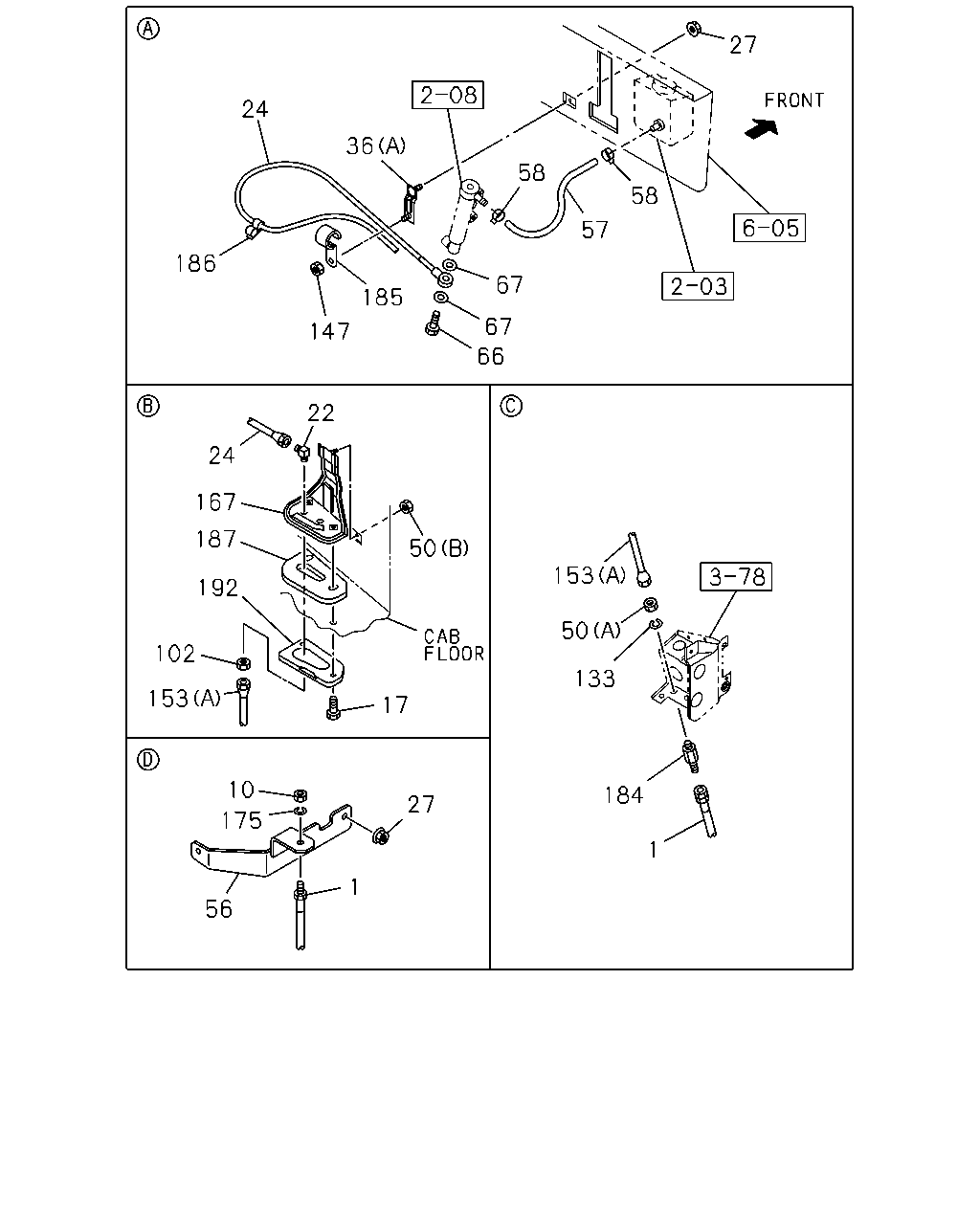

27 58 57 67 67 66 185 147 186 24 36 58 50 22 24 167 187 192 102 153 17 27 10 175 56 1 1 184 133 50 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1508-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1508-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	1508-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	1508-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1508-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1508-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1508-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1508-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98060-696-0	01	1	1508-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1508-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	1508-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1508-
56	BRACKET; FLEX HOSE	8-98287-691-1	01	1	1508-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	1508-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1508-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1508-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1508-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1508-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1508-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2120 SERVICED BY L=2150	1-47428-770-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1571 SERVICED BY L=1700	1-47428-767-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98299-402-0	01	1	1508-
167	BRACKET; UNION	1-71117-183-3	01	1	1508-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1508-
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	1508-
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	1508-
186	HOLDER; CLIP	8-94107-710-0	02	1	1508-
187	SEAL; BRKT	1-71117-222-0	01	1	1508-
192	PLATE	1-71117-221-0	01	1	1508-

24 153 167 1 56 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1508-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1508-
56	BRACKET; FLEX HOSE	8-98287-691-1	01	1	1508-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1389 SERVICED BY L=1400	1-47428-765-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2120 SERVICED BY L=2150	1-47428-770-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1571 SERVICED BY L=1700	1-47428-767-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98299-402-0	01	1	1508-
167	BRACKET; UNION	1-71117-183-3	01	1	1508-
