◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-46 - DEF TANK AND PIPING ▶
1-46 — DEF TANK AND PIPING (#165219) — 146 parça

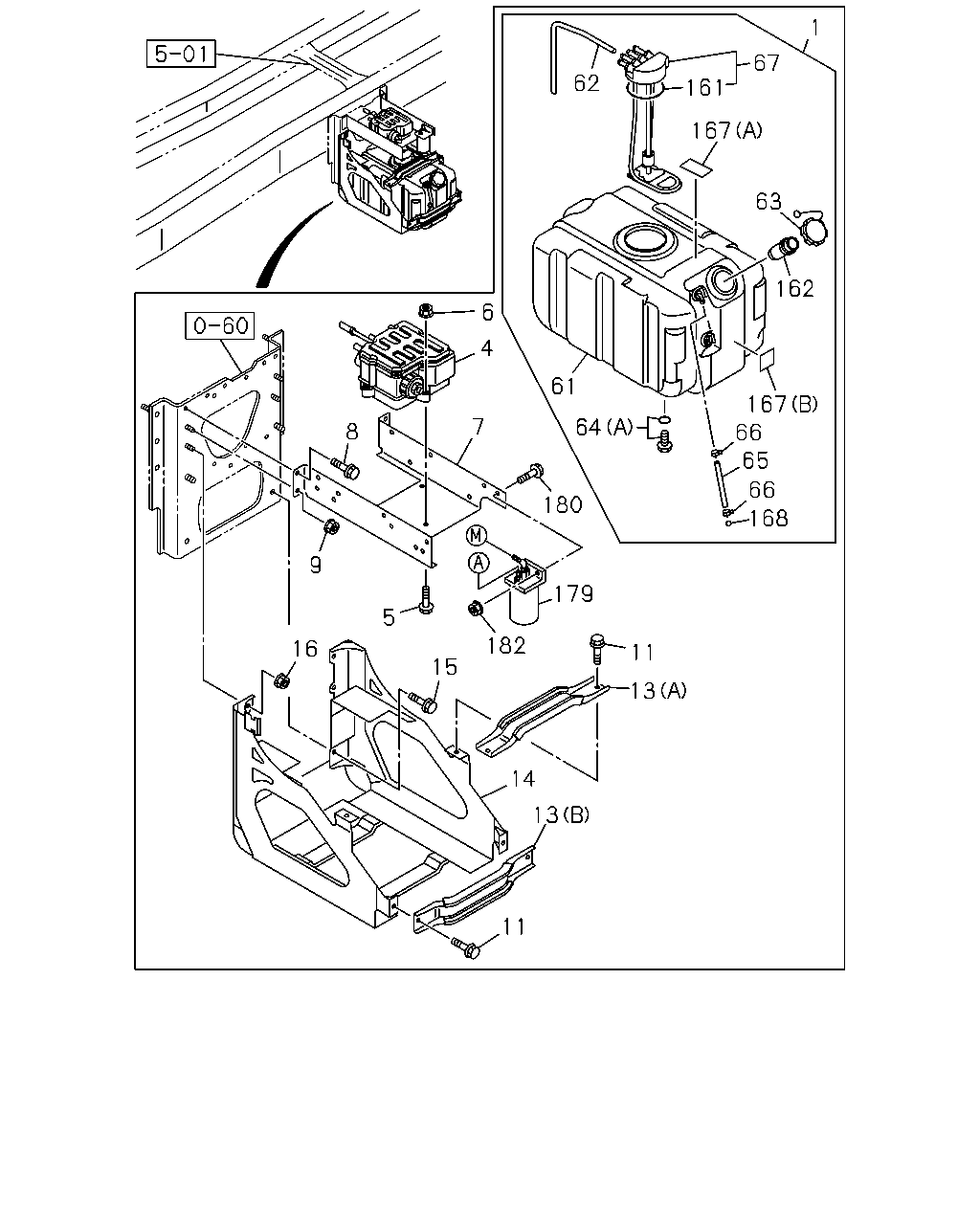

çizim 488137
62 161 67 167 63 162 167 66 65 66 168 61 64 6 4 7 8 9 180 179 182 11 13 5 15 14 13 11 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; DEF 8-98295-877-1 01 1 1508-
4 PUMP ASM; DEF,DCM SPLY 8-98221-257-0 01 1 1508-
5 BOLT; PUMP ASM,DEF DCM SPLY
M8X45 FLANGE 		0-28050-845-0 03 1 1508-
6 NUT; DEF DCM SPLY
M8 FLANGE 		0-91180-108-0 03 1 1508-
7 BRACKET; DEF DCM SPLY 8-98295-876-1 01 1 1508-
8 BOLT; BRKT,DEF DCM SPLY
M10X30 FLANGE 		0-28051-030-0 02 1 1508-
9 NUT; BRKT,DEF DCM SPLY
M10 FLANGE 		0-91180-210-0 02 1 1508-
11 BOLT; DEF TANK
M10X25 FLANGE 		0-28051-025-0 04 1 1508-
13 RETAINER; DEF TANK
(A) 		8-98295-878-1 01 1 1508-
13 RETAINER; DEF TANK
(B) 		8-98295-879-0 01 1 1508-
14 BRACKET ASM; DEF TANK 8-98295-880-2 01 1 1508-
15 BOLT; BRKT,DEF TANK
M14X35 FLANGE 		0-28851-435-0 02 1 1508-
16 NUT; BRKT,DEF TANK
M14 FLANGE 		0-91180-214-0 04 1 1508-
61 BODY ASM; DEF TANK 8-98296-972-1 01 1 1508-
62 HOSE; VENT,DEF TANK 8-98296-533-0 01 1 1508-
63 CAP ASM; FILLER,DEF TANK 8-98147-581-1 01 1 1508-
64 PLUG; DRAIN,DEF TANK
(A) 		8-98120-263-0 01 1 1508-
64 PLUG; DRAIN,DEF TANK
(B) 		8-98307-371-0 01 1 1508-
65 HOSE; WATER LEVEL 8-98120-264-1 01 1 1508-
66 CLAMP; WATER LEVEL HOSE 8-98120-265-1 02 1 1508-
67 SENSOR ASM; DEF TANK 8-98294-465-0 01 1 1508-
161 GASKET; SENSOR ASM,DEF TANK 8-98170-383-0 01 1 1508-
162 ADAPTER; DEF TANK 8-98131-158-0 01 1 1508-
167 PLATE; CAUTION,DEF
(A) 		8-98231-935-0 01 1 1508-
167 PLATE; CAUTION,DEF
(B) 		8-98296-524-0 01 1 1508-
168 INDICATOR; WATER LEVEL 8-98204-163-0 01 1 1508-
179 SEPARATOR ASM 8-98261-587-1 01 1 1508-
180 BOLT; SEPARATOR ASM
M8X30 FLANGE 		0-28650-830-0 02 1 1508-
182 NUT; SEPARATOR ASM
M8 FLANGE 		0-91180-108-0 02 1 1508-

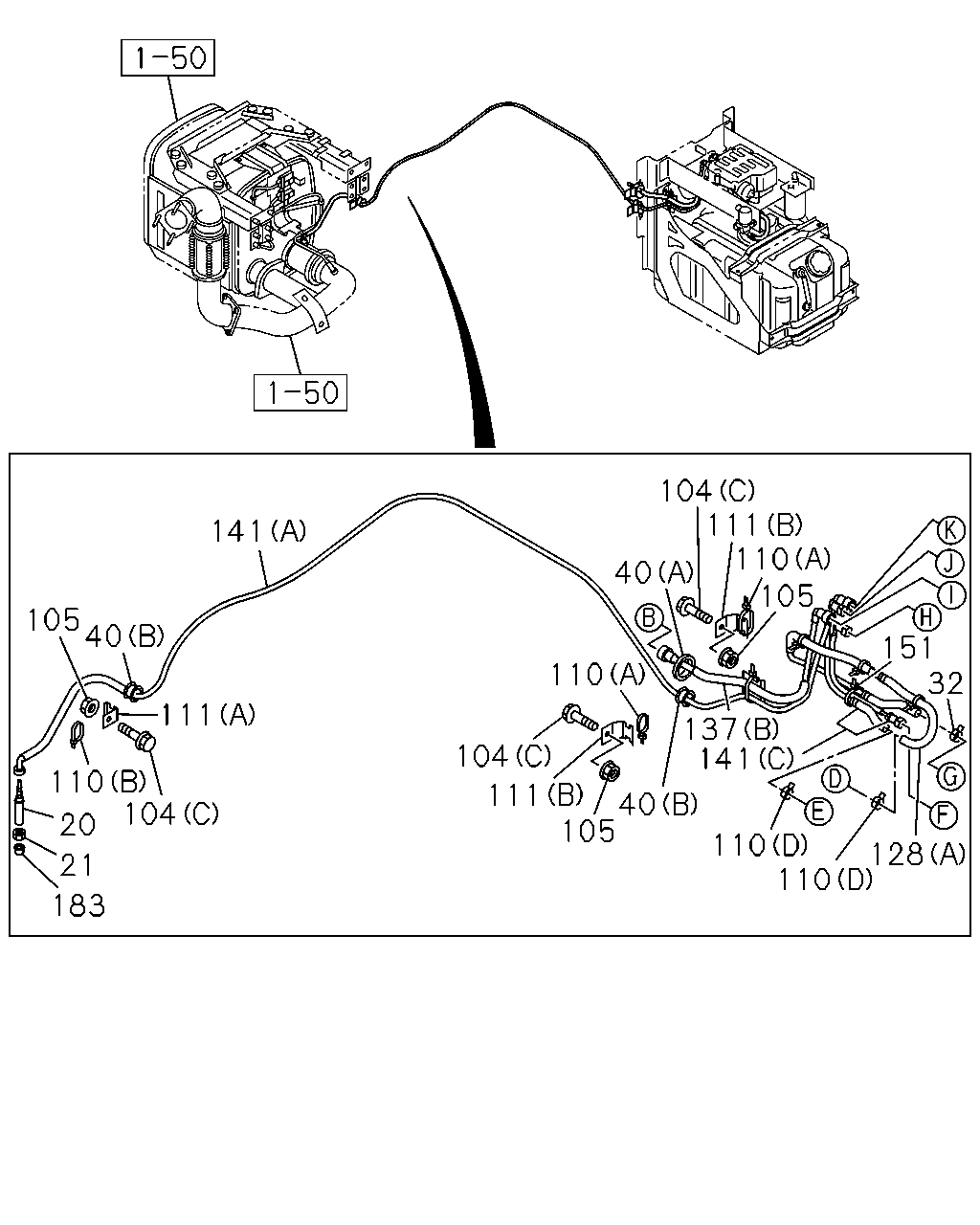

çizim 488144
104 111 40 110 110 104 111 40 105 110 110 128 32 151 141 137 105 141 105 40 111 110 20 104 21 183
BalonParca AdiParca NoAdetTipApplied Date
20 INJECTOR ASM; DEF DCM 8-98221-258-0 01 1 1508-
21 NUT; INJECTOR ASM,DEF DCM 8-98221-270-0 01 1 1508-
32 CLAMP; DEF SPLY HOSE
ID=16 		8-97329-628-0 02 1 1508-
40 GROMMET
(A) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1508-
40 GROMMET
(B) ID=24 OD=30 T=22 		1-09332-126-0 02 1 1508-
40 GROMMET
(C) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1508-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1508-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1508-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1508-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1508-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1508-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1508-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1508-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1508-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98320-718-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97645-073-0 02 1 1508-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1508-
128 TUBE ASM; DEF TANK HTR DLVY
(B) 		8-98323-145-0 01 1 1508-
128 TUBE ASM; DEF TANK HTR DLVY
(A) 		8-98309-896-0 01 1 1508-
137 TUBE ASM; DEF TANK HTR RTN
(B) 		8-98323-147-0 01 1 1508-
137 TUBE ASM; DEF TANK HTR RTN
(A) 		8-98294-815-1 01 1 1508-
141 TUBE ASM; DEF DCM
(A) 		8-98309-915-0 01 1 1508-
141 TUBE ASM; DEF DCM
(E) 		8-98321-025-0 01 1 1508-
141 TUBE ASM; DEF DCM
(F) 		8-98321-029-0 01 1 1508-
141 TUBE ASM; DEF DCM
(B) 		8-98321-062-0 01 1 1508-
141 TUBE ASM; DEF DCM
(G) 		8-98321-231-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1508-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1508-
151 CLIP; COVER
L=350 		1-09707-183-0 01 1 1508-
183 SPACER 8-98221-271-0 01 1 1508-

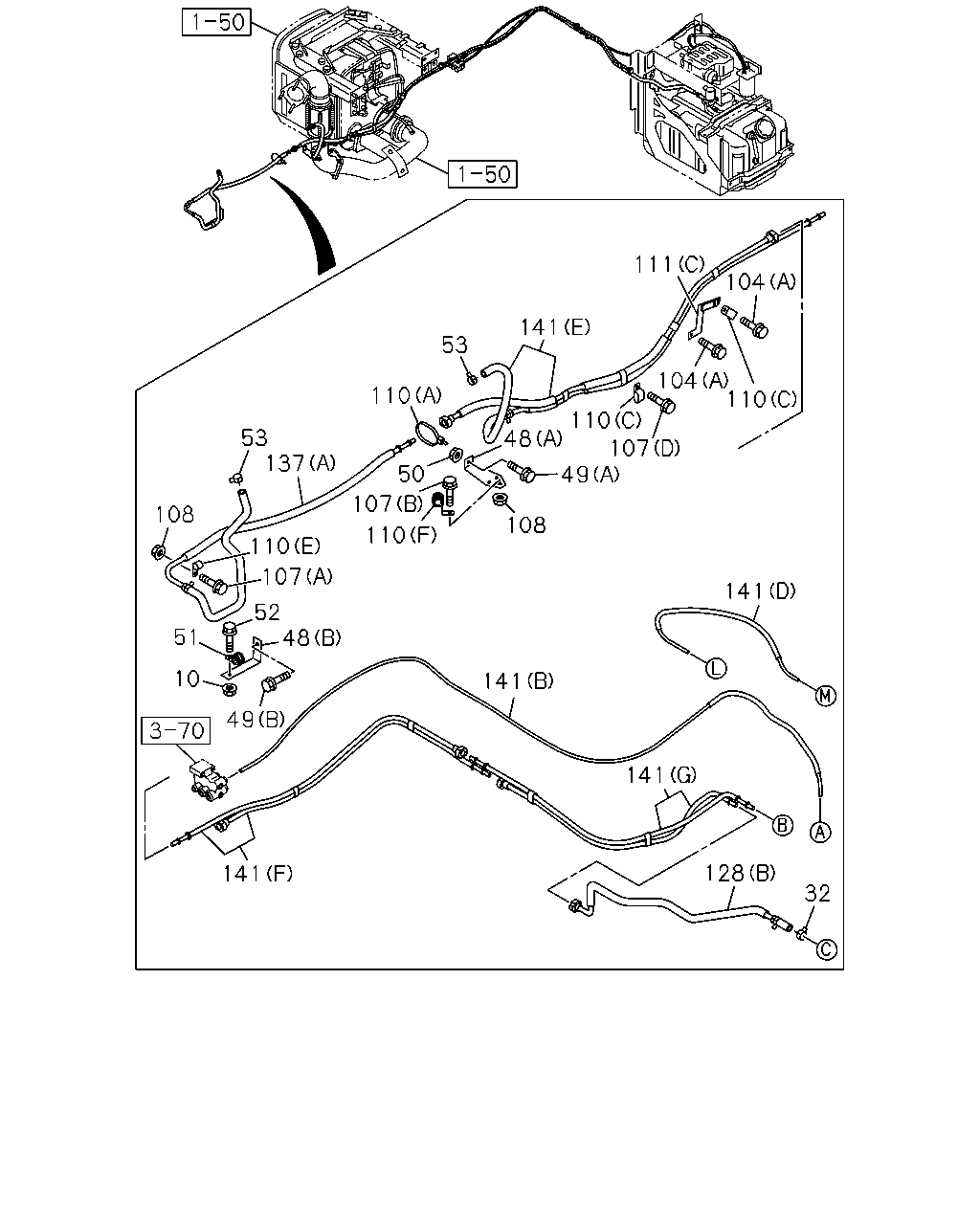

çizim 488145
111 104 110 104 110 107 48 49 50 108 107 110 141 53 110 137 53 108 110 107 52 51 48 10 49 141 141 141 141 128 32
BalonParca AdiParca NoAdetTipApplied Date
10 NUT; DEF DCM MDL COOL DLVY HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1508-
32 CLAMP; DEF SPLY HOSE
ID=16 		8-97329-628-0 02 1 1508-
48 BRACKET; DEF DCM MDL COOL DLVY HOSE CL
(A) 		1-47479-779-0 01 1 1508-
48 BRACKET; DEF DCM MDL COOL DLVY HOSE CL
(B) 		8-97631-637-1 01 1 1508-
49 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1508-
49 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1508-
50 NUT; DEF DCM MDL COOL DLVY HOSE CLIP B
M8 FLANGE 		0-91180-108-0 01 1 1508-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
ID=21 L=24 		8-98019-191-0 01 1 1508-
52 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1508-
53 CLAMP; DEF DCM MDL COOL DLVY HOSE
ID=18.9 		8-94478-875-0 02 1 1508-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1508-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1508-
107 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1508-
107 BOLT; CLIP
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1508-
107 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
107 BOLT; CLIP
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
108 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1508-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1508-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1508-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1508-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1508-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1508-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98320-718-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97645-073-0 02 1 1508-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1508-
128 TUBE ASM; DEF TANK HTR DLVY
(B) 		8-98323-145-0 01 1 1508-
128 TUBE ASM; DEF TANK HTR DLVY
(A) 		8-98309-896-0 01 1 1508-
137 TUBE ASM; DEF TANK HTR RTN
(B) 		8-98323-147-0 01 1 1508-
137 TUBE ASM; DEF TANK HTR RTN
(A) 		8-98294-815-1 01 1 1508-
141 TUBE ASM; DEF DCM
(A) 		8-98309-915-0 01 1 1508-
141 TUBE ASM; DEF DCM
(E) 		8-98321-025-0 01 1 1508-
141 TUBE ASM; DEF DCM
(F) 		8-98321-029-0 01 1 1508-
141 TUBE ASM; DEF DCM
(B) 		8-98321-062-0 01 1 1508-
141 TUBE ASM; DEF DCM
(G) 		8-98321-231-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1508-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1508-

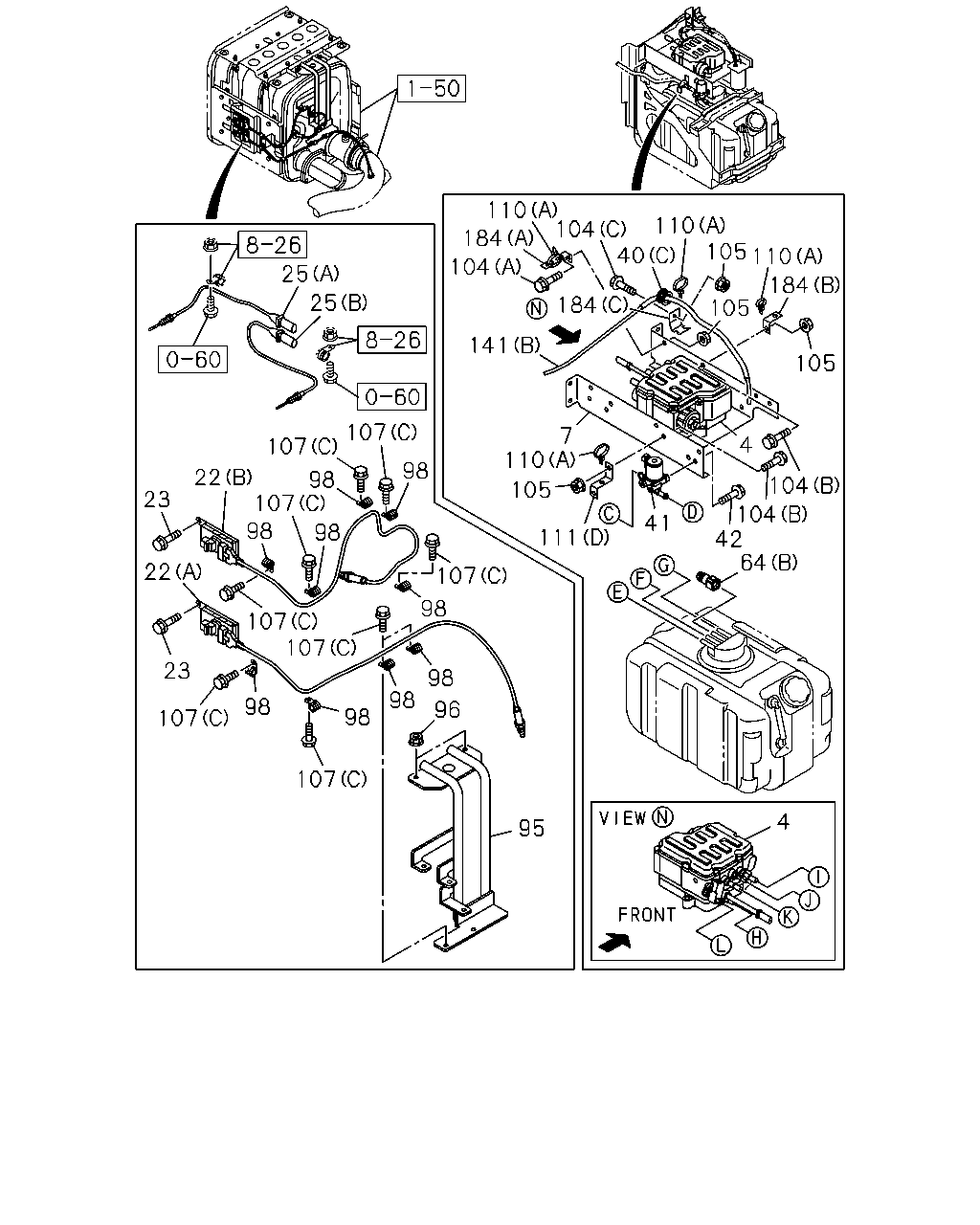

çizim 488844
110 104 110 40 105 110 184 105 105 184 104 184 141 4 104 104 42 64 41 7 110 105 111 25 25 107 107 98 98 107 22 98 98 107 98 23 22 23 107 107 98 98 98 107 98 107 96 95 4
BalonParca AdiParca NoAdetTipApplied Date
4 PUMP ASM; DEF,DCM SPLY 8-98221-257-0 01 1 1508-
7 BRACKET; DEF DCM SPLY 8-98295-876-1 01 1 1508-
22 SENSOR; DEF DCM EXH NOX
(A) 		8-98257-391-0 01 1 1508-
22 SENSOR; DEF DCM EXH NOX
(B) 		8-98257-392-1 01 1 1508-
23 BOLT; SENSOR,DEF DCM EXH NOX 8-98155-181-0 04 1 1508-
25 SENSOR; DEF DCM EXH TEMP
(A) 		8-98221-262-0 01 1 1508-
25 SENSOR; DEF DCM EXH TEMP
(B) 		8-98221-263-0 01 1 1508-
40 GROMMET
(A) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1508-
40 GROMMET
(B) ID=24 OD=30 T=22 		1-09332-126-0 02 1 1508-
40 GROMMET
(C) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1508-
41 VALVE ASM; DEF TANK HTR DLVY 8-97628-956-1 01 1 1508-
42 BOLT; DEF RSVR HTR DLVY VLV
M8X16 FLANGE 		0-28050-816-0 02 1 1508-
64 PLUG; DRAIN,DEF TANK
(A) 		8-98120-263-0 01 1 1508-
64 PLUG; DRAIN,DEF TANK
(B) 		8-98307-371-0 01 1 1508-
95 BRACKET; HARN,DEF DCM EXH NOX SEN 8-98319-143-1 01 1 1508-
96 NUT; BRACKET,DEF DCM EXH NOX SEN HARN
M10 FLANGE 		0-91180-210-0 02 1 1508-
98 CLIP; DEF DCM EXH NOX SEN HARN
ID=10 L=16.5 		8-98082-034-0 09 1 1508-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1508-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1508-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1508-
107 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1508-
107 BOLT; CLIP
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1508-
107 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
107 BOLT; CLIP
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1508-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1508-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1508-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1508-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1508-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98320-718-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97645-073-0 02 1 1508-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1508-
141 TUBE ASM; DEF DCM
(A) 		8-98309-915-0 01 1 1508-
141 TUBE ASM; DEF DCM
(E) 		8-98321-025-0 01 1 1508-
141 TUBE ASM; DEF DCM
(F) 		8-98321-029-0 01 1 1508-
141 TUBE ASM; DEF DCM
(B) 		8-98321-062-0 01 1 1508-
141 TUBE ASM; DEF DCM
(G) 		8-98321-231-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1508-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1508-
184 BRACKET; TUBE ASM
(A) L=100 H=30 		1-47477-645-2 01 1 1508-
184 BRACKET; TUBE ASM
(B) 		1-47477-694-0 01 1 1508-
184 BRACKET; TUBE ASM
(C) 		8-97645-073-0 01 1 1508-
