Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#165216) — 19 parça
◀

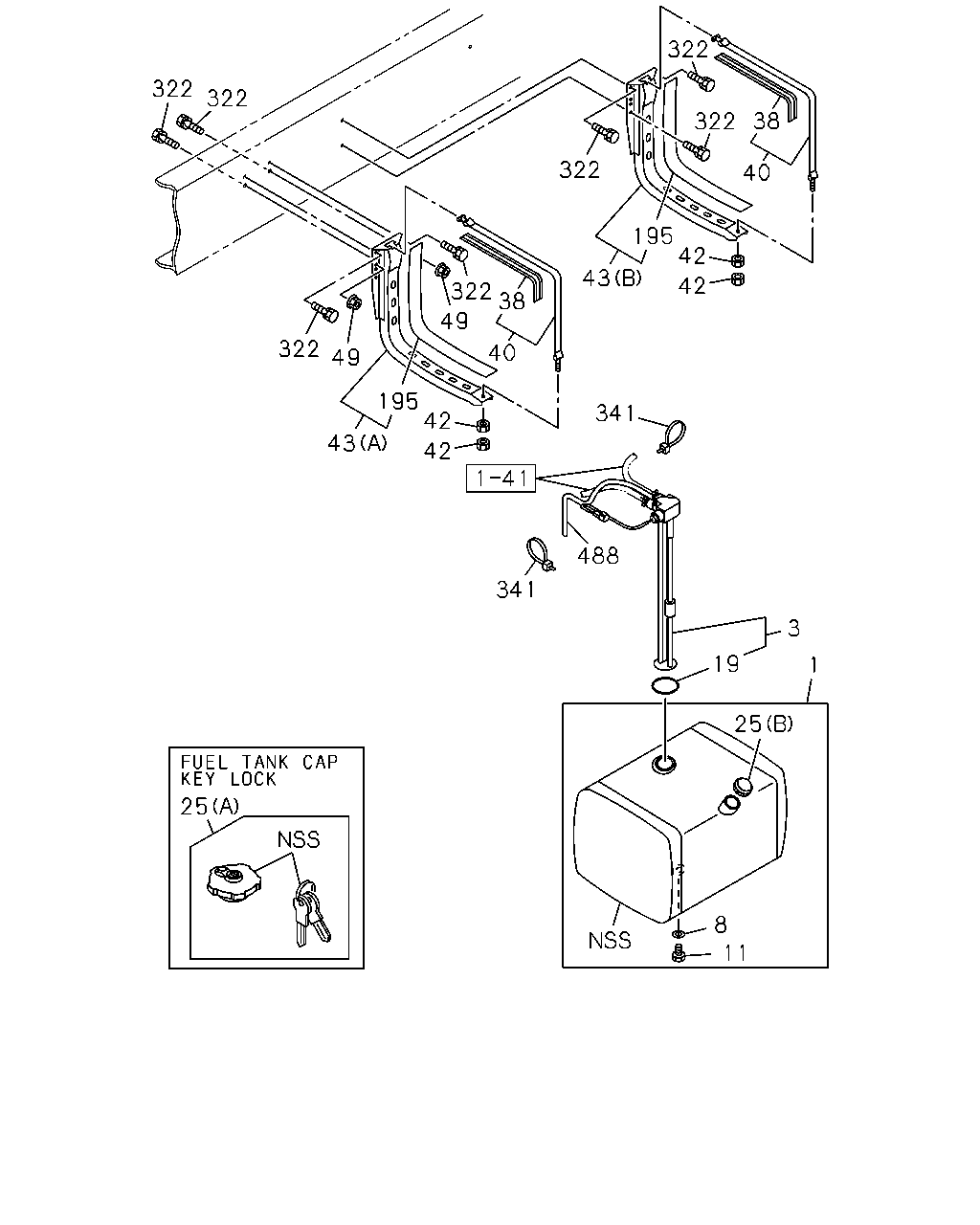

[140A] FUEL TANK (17 parça)

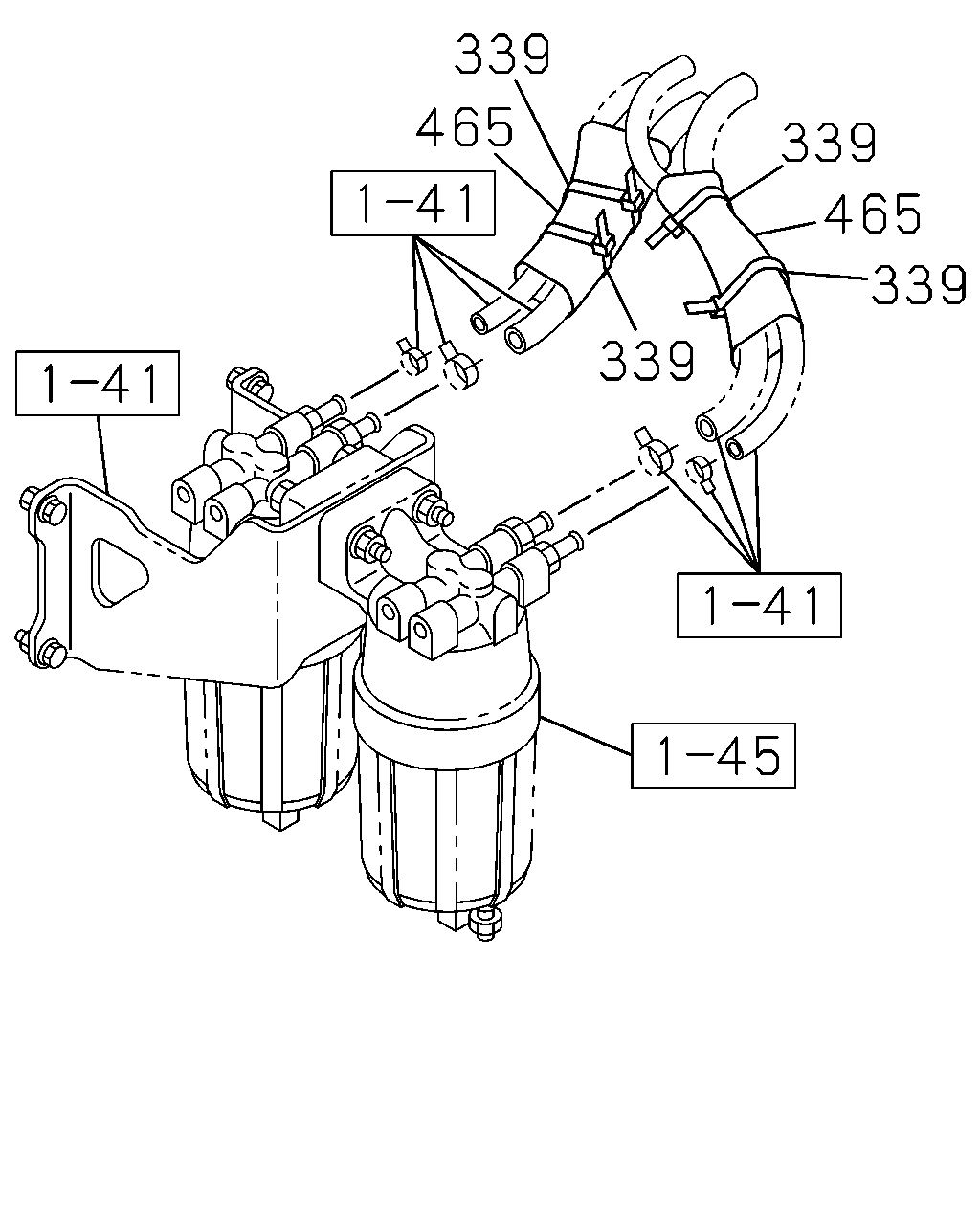

[140A] FUEL SEDIMENTER SIDE (2 parça)
▶
38
40
322
322
322
195
43
42
341
42
488
341
42
42
322
40
49
38
322
322
322
49
43
195
3
1
19
25
8
11
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1050X680X625 400L
1-87411-788-3
01
1
1508-
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1508-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1508-
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1508-
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1508-
25
CAP; FILLER,FUEL TANK
(B)
8-98182-306-0
01
1
1508-
25
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (A)
8-98108-595-0
01
1
1508-
38
INSULATION; SUPPORT BELT
8-98140-346-0
02
1
1508-
40
BELT; SUPPORT,FUEL TANK
8-98240-575-0
02
1
1508-
42
NUT; SUPPORT BELT
M14
0-91110-514-0
04
1
1508-
43
BRACKET; FUEL TANK
(A)
8-98130-738-4
01
1
1508-
43
BRACKET; FUEL TANK
(B)
8-98130-739-4
01
1
1508-
49
NUT; BRKT
M14
0-91110-514-0
04
1
1508-
195
RUBBER; CUSHION,TANK CARRIER
8-98139-927-1
02
1
1508-
322
BOLT; BRKT FIX
M14X40 FLANGE
0-28851-440-0
12
1
1508-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1508-
488
HOSE; RUBBER
8-98134-939-0
01
1
1508-
339
339
339
339
465
465
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
339
CLIP; BAND,FUEL HOSE
POOR QUALITY DIESEL FUEL<KF0> L=250
5-09707-030-1
04
1
1508-
465
SLEEVE; RUBBER
POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1508-
