Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#165212) — 43 parça
Tümü
A - 6WG1 TC-C
B - 6WG1 TC-S
◀

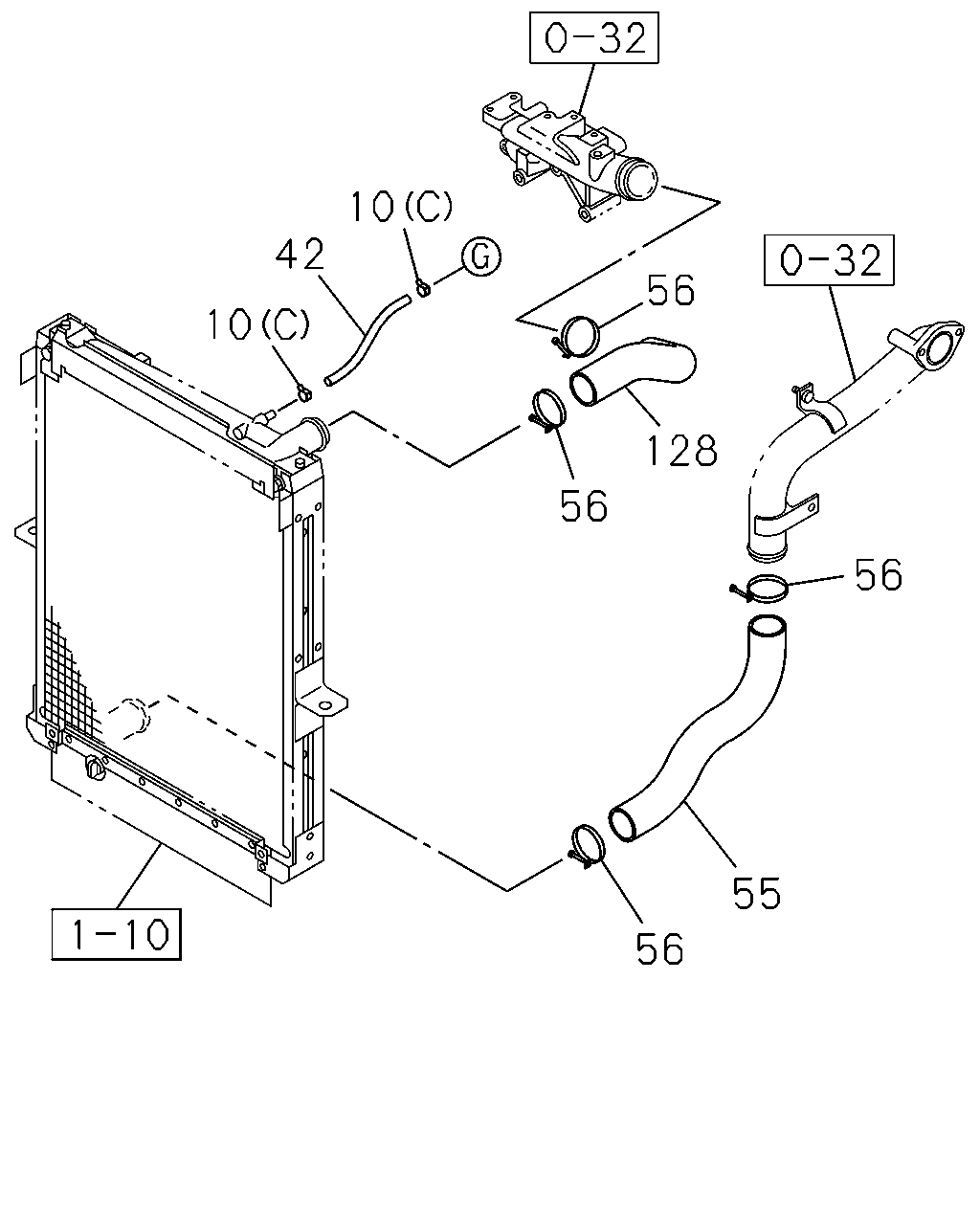

[111A] RADIATOR SIDE (9 parça)

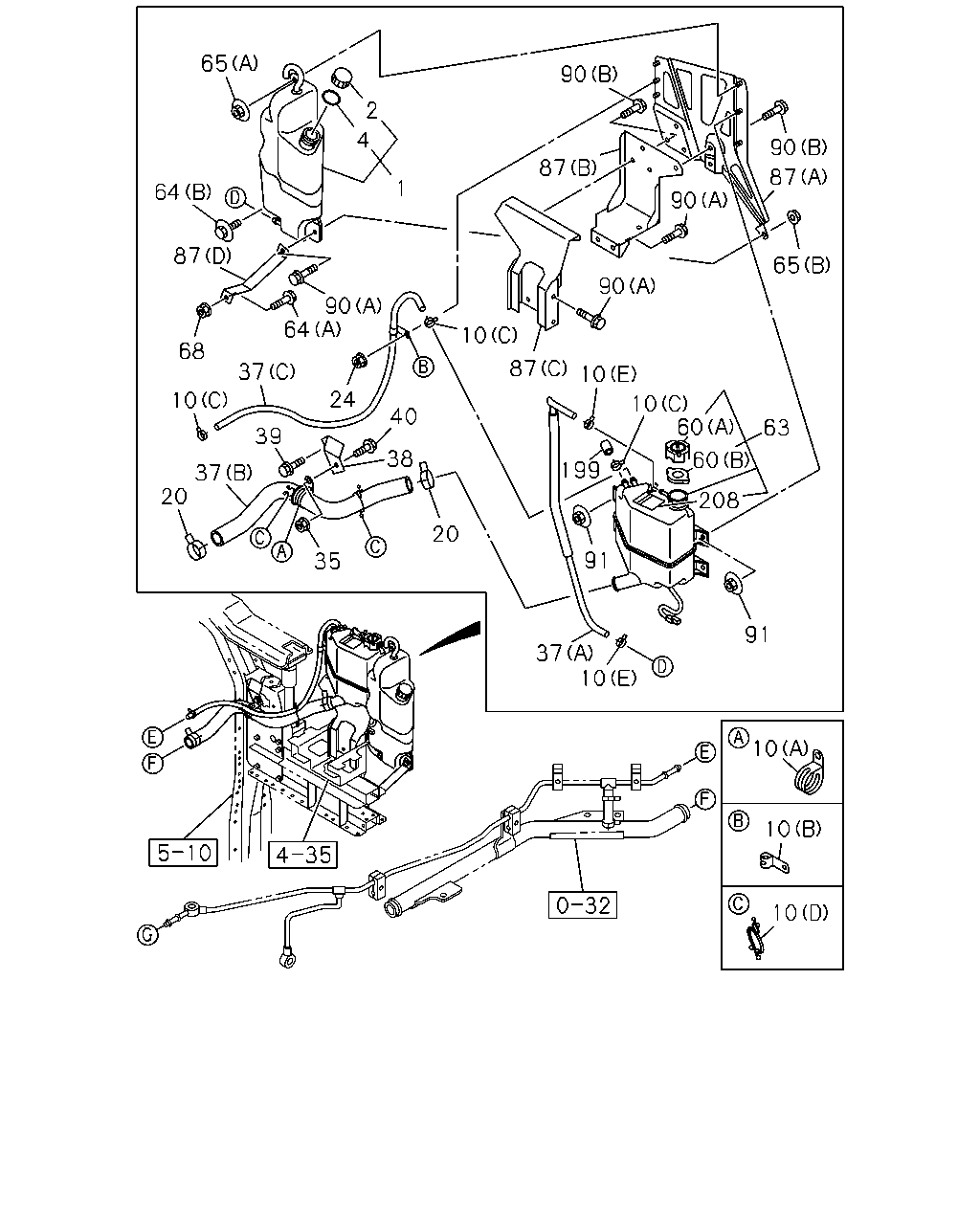

[111A] SUB TANK SIDE (34 parça)
▶
56
55
56
128
56
10
42
10
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
1508-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14.5 L=40
1-09701-014-0
01
1
1508-
●
●
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
05
1
1508-
●
●
10
CLIP; RUBBER HOSE
(D) ID=44 & 16
1-09709-125-0
03
1
1508-
●
●
10
CLIP; RUBBER HOSE
(E) ID=12
8-94238-610-0
02
1
1508-
●
●
42
HOSE; RUBBER
L=280 SERVICED BY L=3000
0-03559-300-0
01
1
1508-
●
●
55
HOSE; WATER,RAD OUTLET
8-98197-130-0
01
1
1508-
●
●
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
1508-
●
●
128
HOSE; WATER,RAD INL
8-98260-610-0
01
1
1508-
●
●
10
10
10
10
37
91
91
208
199
60
60
63
10
10
87
10
90
65
87
90
90
87
90
20
35
20
37
39
38
40
24
37
10
68
64
90
87
64
65
1
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-98194-195-0
01
1
1508-
●
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1508-
●
●
4
GASKET; SURGE TANK
8-98297-094-0
01
1
1508-
●
●
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
1508-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14.5 L=40
1-09701-014-0
01
1
1508-
●
●
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
05
1
1508-
●
●
10
CLIP; RUBBER HOSE
(D) ID=44 & 16
1-09709-125-0
03
1
1508-
●
●
10
CLIP; RUBBER HOSE
(E) ID=12
8-94238-610-0
02
1
1508-
●
●
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1508-
●
●
24
NUT
M8 FLANGE
0-91180-108-0
01
1
1508-
●
●
35
NUT
M10 FLANGE
0-91180-210-0
01
1
1508-
●
●
37
HOSE; RUBBER
(A)
8-98230-298-0
01
1
1508-
●
●
37
HOSE; RUBBER
(B)
8-98260-612-1
01
1
1508-
●
●
37
HOSE; RUBBER
(C)
8-98273-811-2
01
1
1508-
●
●
38
BRACKET; RUBBER HOSE
8-98260-590-0
01
1
1508-
●
●
39
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
1508-
●
●
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
1508-
●
●
60
CAP; SUB TANK
(A)
8-98206-526-0
01
1
1508-
●
●
60
CAP; SUB TANK
(B)
8-98241-535-0
01
1
1508-
●
●
63
TANK ASM; SUB
8-98194-191-0
01
1
1508-
●
●
64
BOLT; BRKT,SUB TANK
(A) M8X25 FLANGE
0-28650-825-0
01
1
1508-
●
●
64
BOLT; BRKT,SUB TANK
(B) M8X22 W/LK&PL WASHER
1-09030-042-0
01
1
1508-
●
●
65
NUT; BRKT,SUB TANK
(B) M8 FLANGE
0-91180-108-0
01
1
1508-
●
●
65
NUT; BRKT,SUB TANK
(A) M8 FLANGE
1-09464-018-1
01
1
1508-
●
●
68
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1508-
●
●
87
BRACKET; SUB TANK
(A)
8-98193-341-2
01
1
1508-
●
●
87
BRACKET; SUB TANK
(B)
8-98260-588-1
01
1
1508-
●
●
87
BRACKET; SUB TANK
(C)
8-98260-589-0
01
1
1508-
●
●
87
BRACKET; SUB TANK
(D)
8-98268-761-0
01
1
1508-
●
●
90
BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE
0-28650-825-0
07
1
1508-
●
●
90
BOLT; SUB TANK TO BRKT
(B) M10X25 FLANGE
0-28651-025-0
04
1
1508-
●
●
91
NUT; SUB TANK TO BRKT
M8 FLANGE
1-09464-018-1
04
1
1508-
●
●
199
CAP; RUBBER
ID=9.0
8-94207-303-0
01
1
1508-
●
●
208
PLATE; CAUTION
8-98245-306-0
01
1
1508-
●
●
