0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#165206) — 76 parça

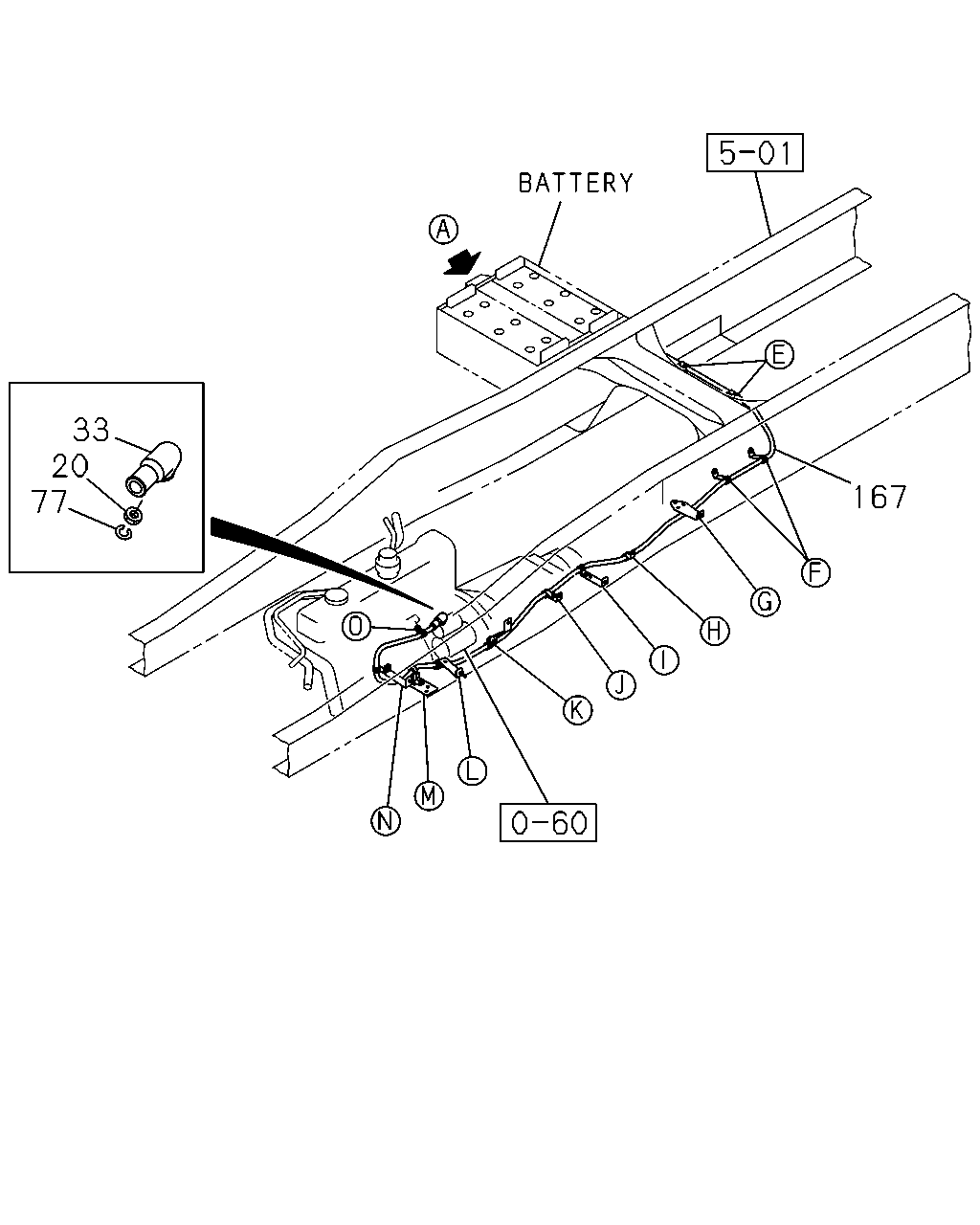

çizim 488090
167 33 20 77
BalonParca AdiParca NoAdetTipApplied Date
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1508-
33 CAP; INSULATOR 8-97181-965-0 01 1 1508-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1508-
167 CABLE; BATTERY RELAY TO STARTER 8-98318-308-0 01 1 1508-

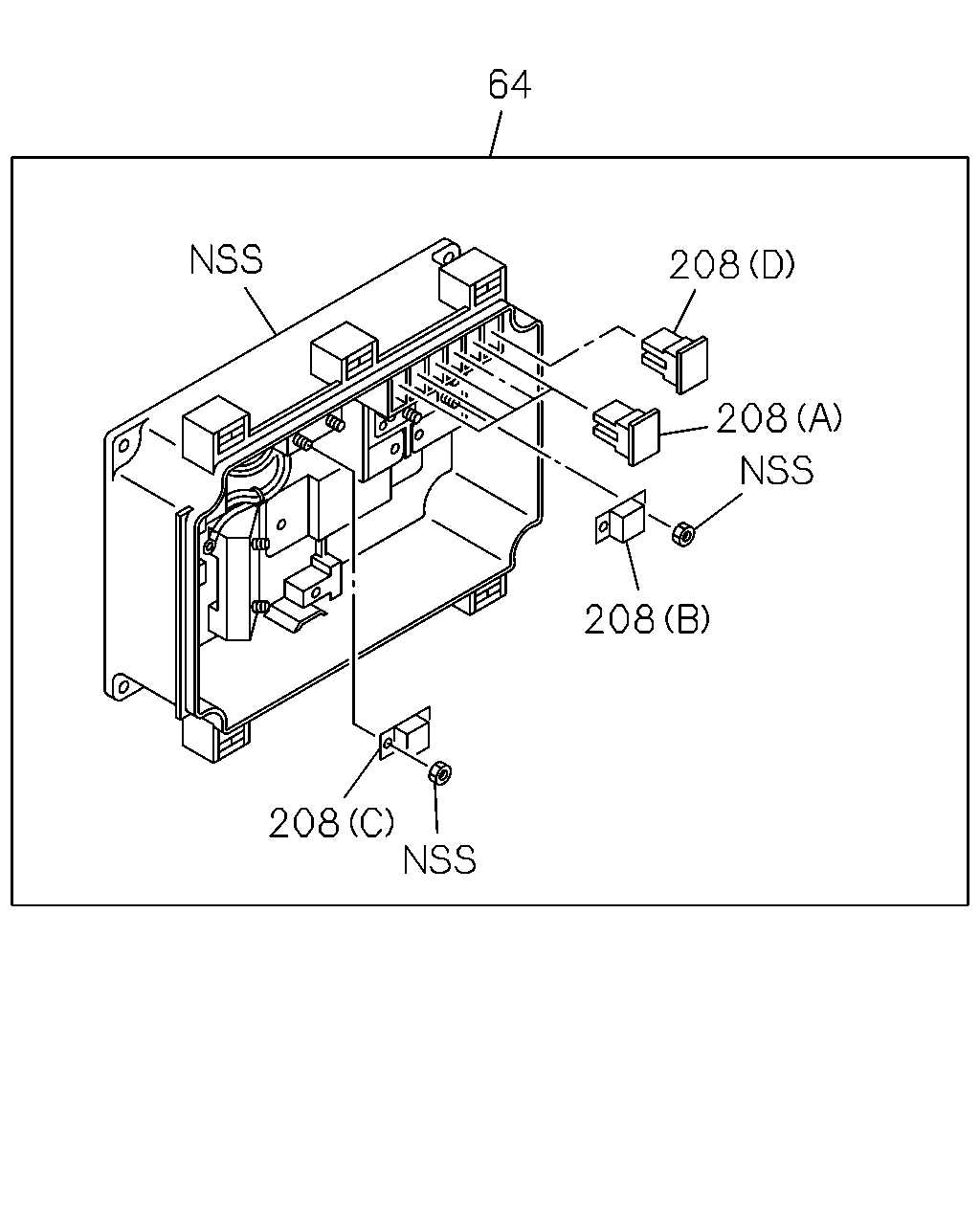

çizim 488091
64 208 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY
SMOOTHER-G(C1W) 		8-97628-723-0 01 1 1508-
64 BOX; BATTERY RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97628-721-0 01 1 1508-
208 FUSE
(C) 80A 		1-82516-031-0 01 1 1508-
208 FUSE
(B) 100A 		1-82516-032-0 01 1 1508-
208 FUSE
(D) 60A YELLOW 		8-94468-664-0 01 1 1508-
208 FUSE
SMOOTHER-G(C1W) (A) 40A GREEN 		8-94468-662-0 05 1 1508-
208 FUSE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 40A GREEN 		8-94468-662-0 04 1 1508-

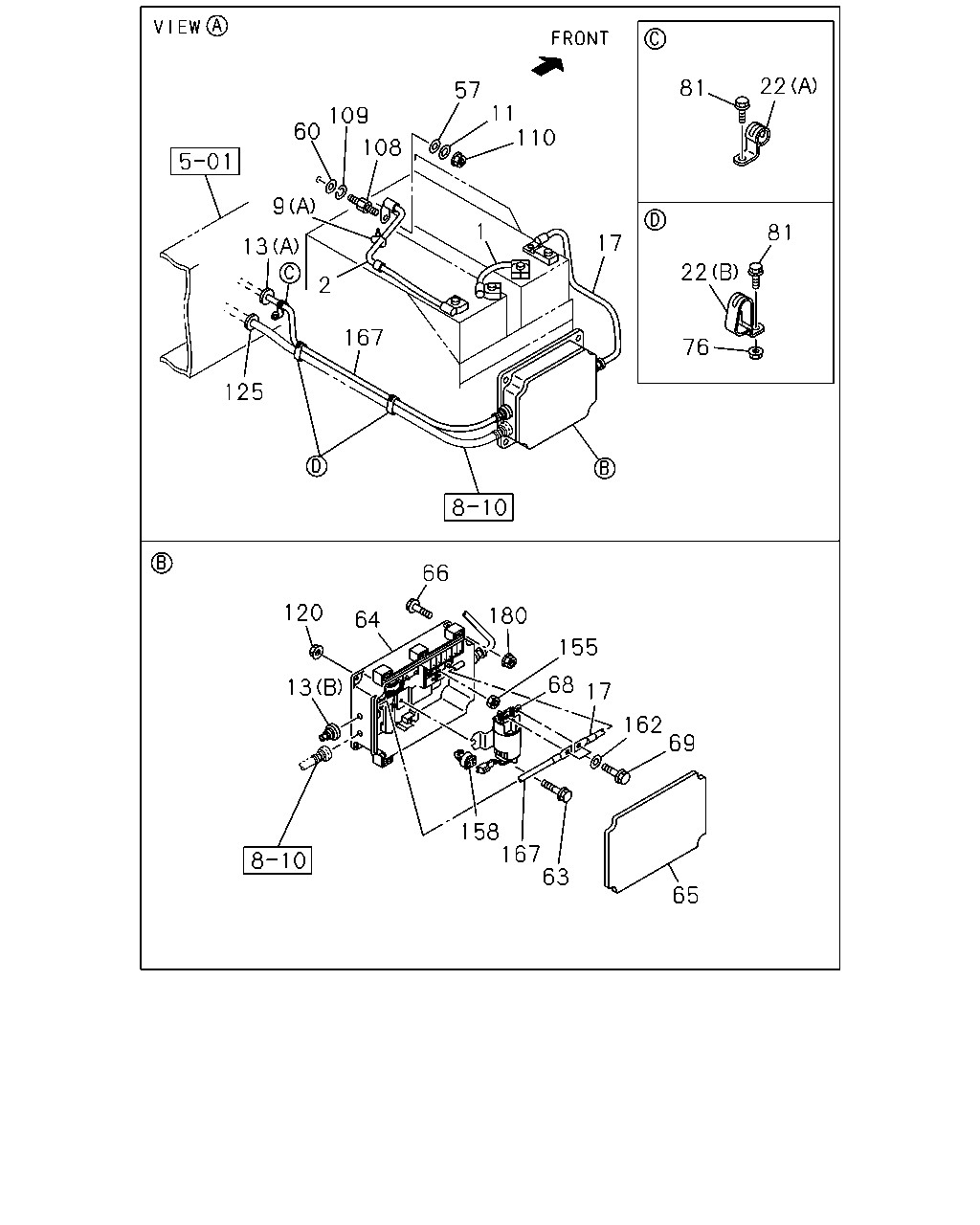

çizim 488103
60 109 57 11 110 108 9 13 2 167 125 1 17 22 81 22 81 76 64 66 180 155 17 162 69 68 158 167 63 65 120 13
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=265 		1-82650-390-1 01 1 1508-
2 CABLE; BATTERY
L=710 		8-98228-697-0 01 1 1508-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 1508-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1508-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 03 1 1508-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 1508-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 1508-
9 CLIP; BATTERY CABLE
(F) ID=21 L=24 		8-94176-807-1 02 1 1508-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1508-
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1508-
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 1508-
17 CABLE; BATTERY (+) TO RELAY
L=480 		8-98239-411-0 01 1 1508-
22 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1508-
22 CLIP; BATTERY CABLE
(B) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 1508-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		0-91614-506-0 01 1 1508-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1508-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1508-
64 BOX; BATTERY RELAY
SMOOTHER-G(C1W) 		8-97628-723-0 01 1 1508-
64 BOX; BATTERY RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97628-721-0 01 1 1508-
65 COVER; BATTERY RELAY 8-97628-726-0 01 1 1508-
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1508-1508
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1508-
68 RELAY; BATTERY 8-98104-749-0 01 1 1508-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1508-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 02 1 1508-1508
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 03 1 1508-
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28650-820-0 03 1 1508-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1508-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1508-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1508-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1508-
125 GROMMET; CABLE BATTERY
ID=39 OD=45 T=13 		1-09332-076-0 01 1 1508-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1508-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1508-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1508-
167 CABLE; BATTERY RELAY TO STARTER 8-98318-308-0 01 1 1508-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1508-1508
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1508-

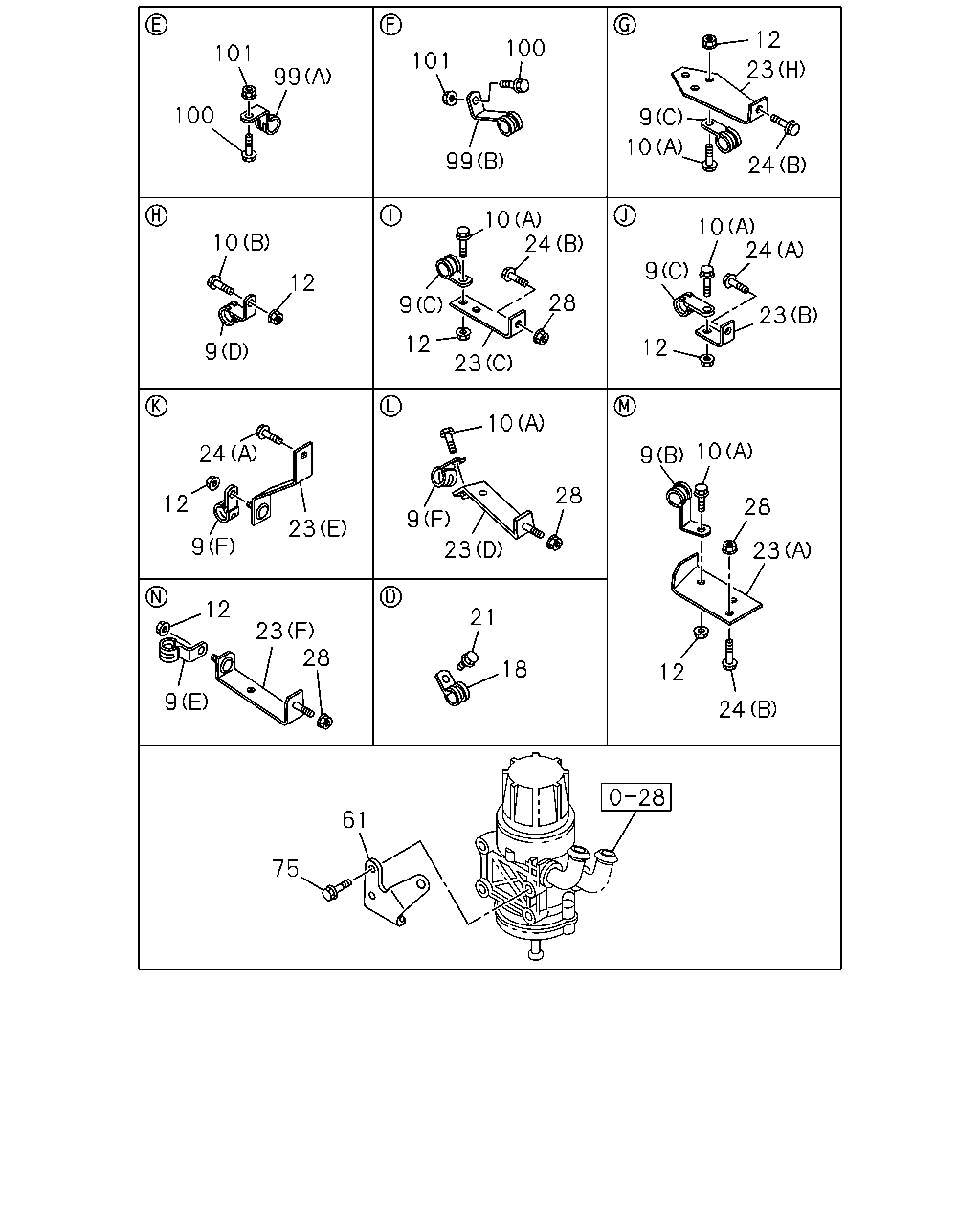

çizim 488684
101 99 100 10 9 12 101 100 99 9 12 23 10 24 10 9 12 23 28 24 9 10 24 23 12 24 12 9 23 10 9 23 28 9 10 28 23 12 24 21 18 12 9 23 28 75 61
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 1508-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1508-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 03 1 1508-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 1508-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 1508-
9 CLIP; BATTERY CABLE
(F) ID=21 L=24 		8-94176-807-1 02 1 1508-
10 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 1508-
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1508-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 07 1 1508-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 1508-
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28650-820-0 01 1 1508-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=40 		1-47478-410-0 01 1 1508-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82698-557-0 01 1 1508-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-574-0 01 1 1508-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		1-82698-575-1 01 1 1508-
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-589-0 01 1 1508-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98062-598-0 01 1 1508-
23 BRACKET; CABLE CLIP TO FRAME
(H) 		8-98171-604-0 01 1 1508-
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1508-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 1508-
61 BRACKET; BATTERY CABLE 8-98275-819-0 01 1 1508-
75 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 1508-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 1508-
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 04 1 1508-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 1508-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 06 1 1508-
