0-60 — ENGINE ELECTRICAL CONTROL PARTS (#165205) — 113 parça

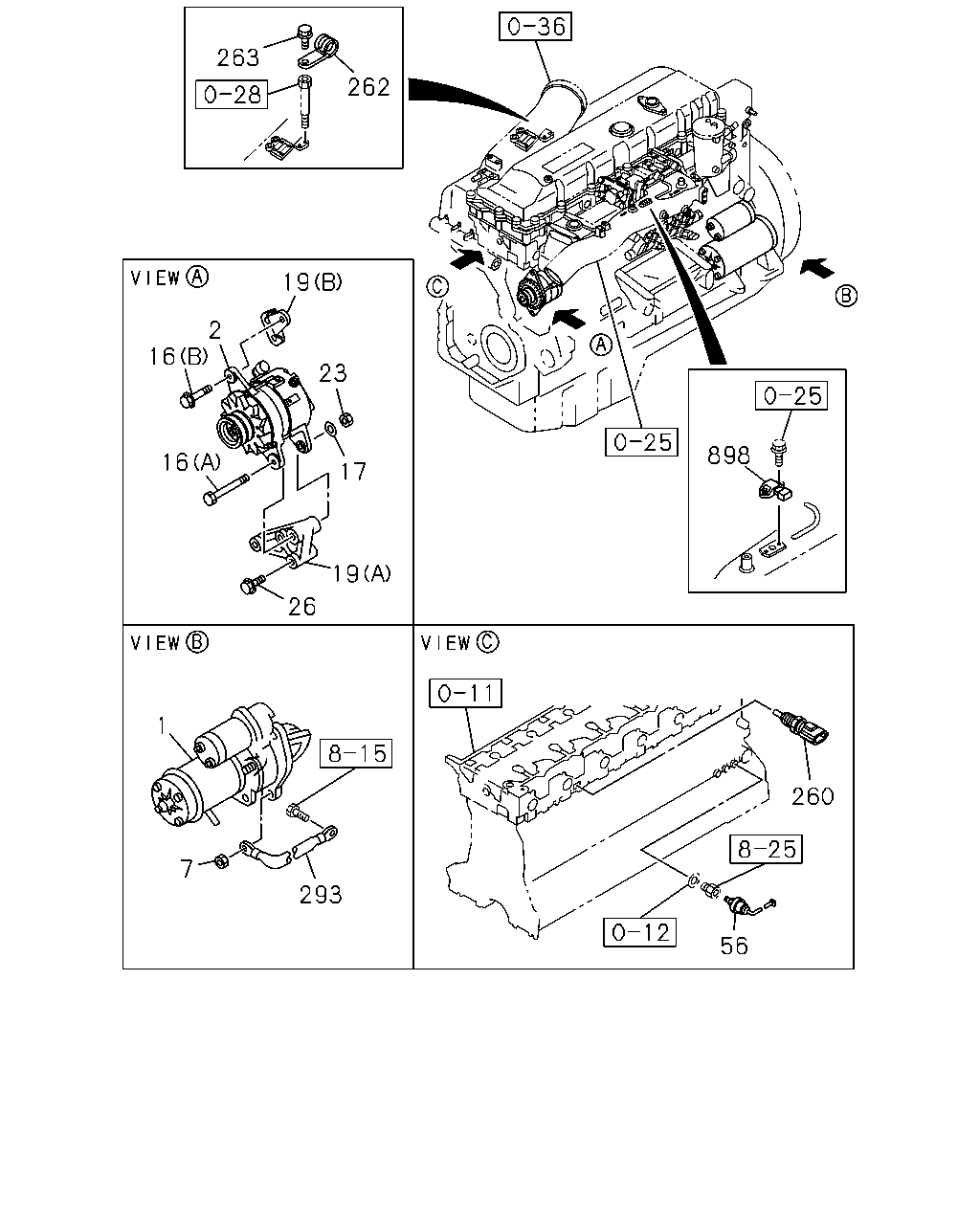

çizim 488083
263 262 19 16 23 16 17 19 26 1 7 293 260 56 898 2
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1508-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		8-98222-256-3 01 1 1508-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1508-
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 1508-
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 1508-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1508-
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1508-
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 1508-
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1508-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1508-
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 1508-
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1508-
262 CLIP; HARNESS
ID=10 L=16.5 		8-98082-034-0 02 1 1508-
263 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 1508-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1508-
898 SENSOR; BOOST 8-98009-418-0 01 1 1508-

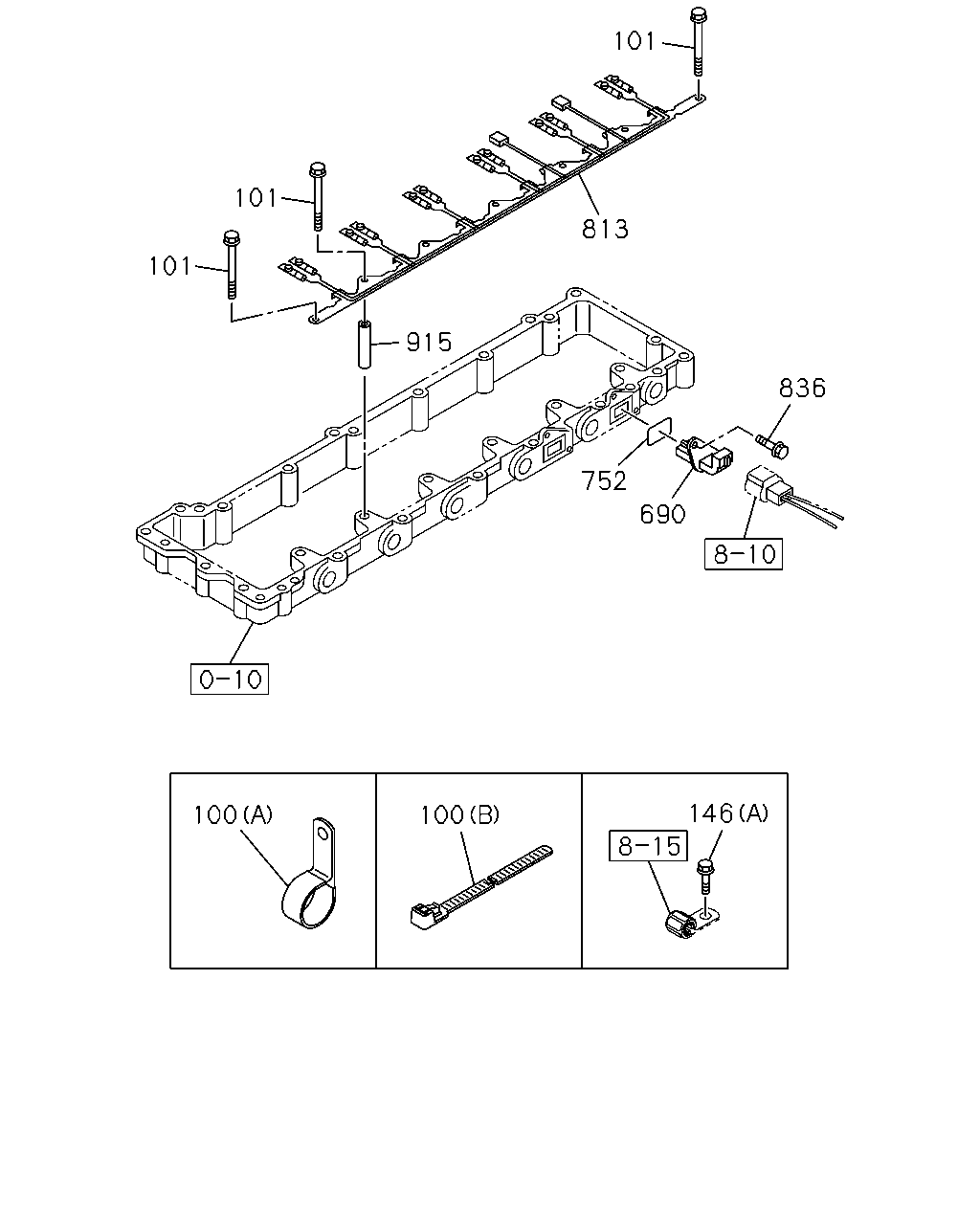

çizim 488084
101 101 101 813 915 836 752 690 100 100 146
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1508-
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1508-
100 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) ID=19 L=25 		1-09700-515-1 01 1 1508-
100 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1508-
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1508-
146 BOLT; CLIP
(A) M8X20 FLANGE 		0-28050-820-0 03 1 1508-
146 BOLT; CLIP
MJX16P M/T(Y3Z) (B) M10X25 FLANGE 		0-28751-025-0 01 1 1508-
690 CONNECTOR 8-94390-858-1 02 1 1508-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1508-
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1508-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1508-
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1508-

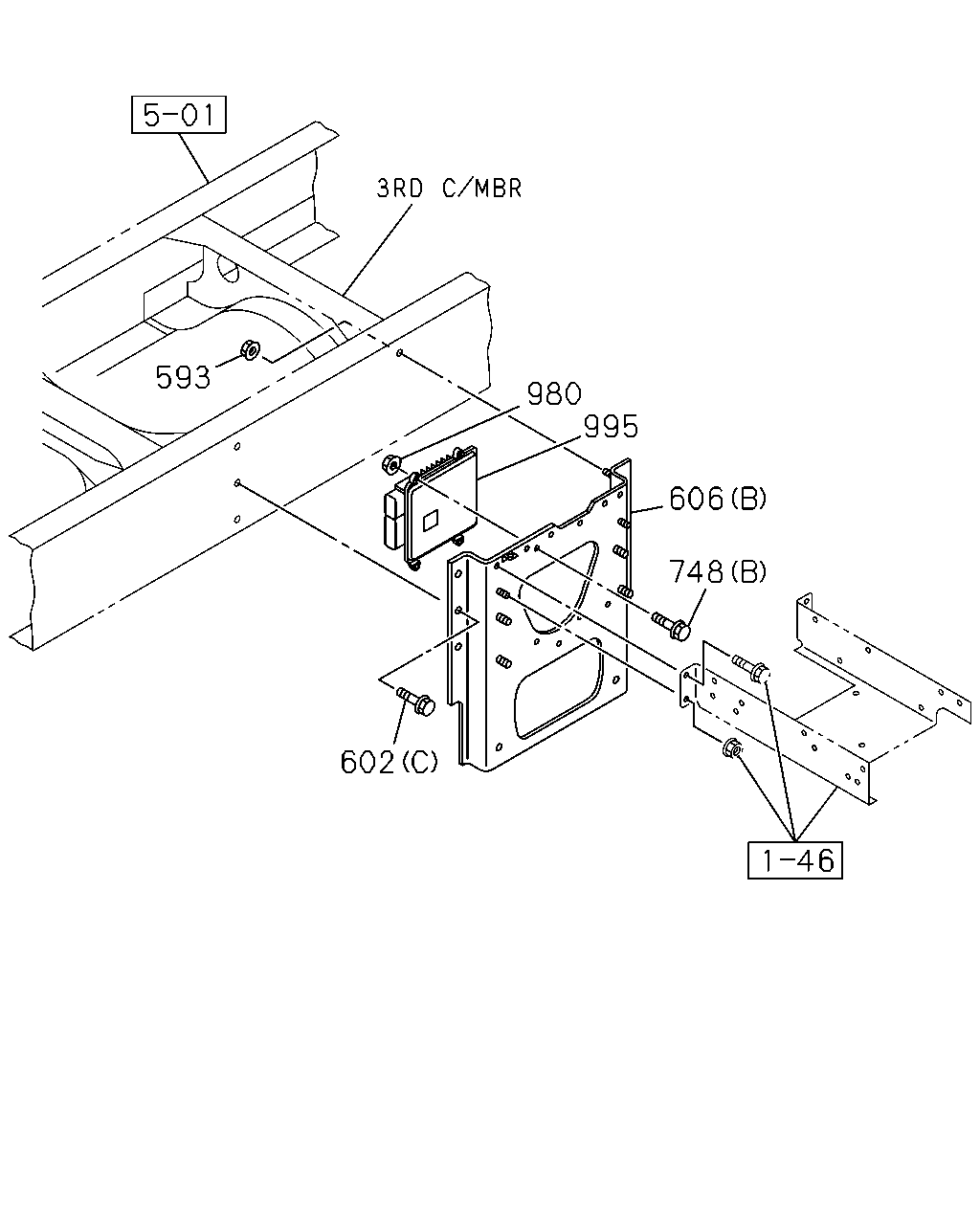

çizim 488088
593 980 995 606 748 602
BalonParca AdiParca NoAdetTipApplied Date
593 NUT; BRKT
M14 FLANGE 		0-91180-214-0 01 1 1508-1508
602 BOLT; BRKT
(C) M14X45 FLANGE 		0-28851-445-0 05 1 1508-1508
602 BOLT; BRKT
(C) M14X45 FLANGE 		0-28851-445-0 06 1 1508-
602 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1508-1511
602 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1512-
602 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1508-1511
602 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1512-
606 BRACKET; CONT UNIT
(B) 		8-98323-193-0 01 1 1508-1508
606 BRACKET; CONT UNIT
(B) 		8-98329-819-0 01 1 1508-
606 BRACKET; CONT UNIT
SMOOTHER-G(C1W) (C) 		8-98281-501-2 01 1 1508-
606 BRACKET; CONT UNIT
SMOOTHER-G(C1W) (D) 		8-98302-710-0 01 1 1508-1511
606 BRACKET; CONT UNIT
SMOOTHER-G(C1W) EXC. FRONT CONSOLE<D55> (D) 		8-98302-710-0 01 1 1512-
606 BRACKET; CONT UNIT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98182-921-0 01 1 1508-1511
606 BRACKET; CONT UNIT
EXC. SMOOTHER-G(C1W) (A) 		8-98182-921-0 01 1 1512-
748 BOLT; CONT UNIT
(B) M6X35 FLANGE 		0-28050-635-0 04 1 1508-
748 BOLT; CONT UNIT
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1508-
980 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1508-
995 CONTROL UNIT; DEF DCM
6WG1 TC-C(72L) 		8-98255-003-2 01 1 1508-
995 CONTROL UNIT; DEF DCM
6WG1 TC-S(97L) 		8-98255-005-2 01 1 1508-

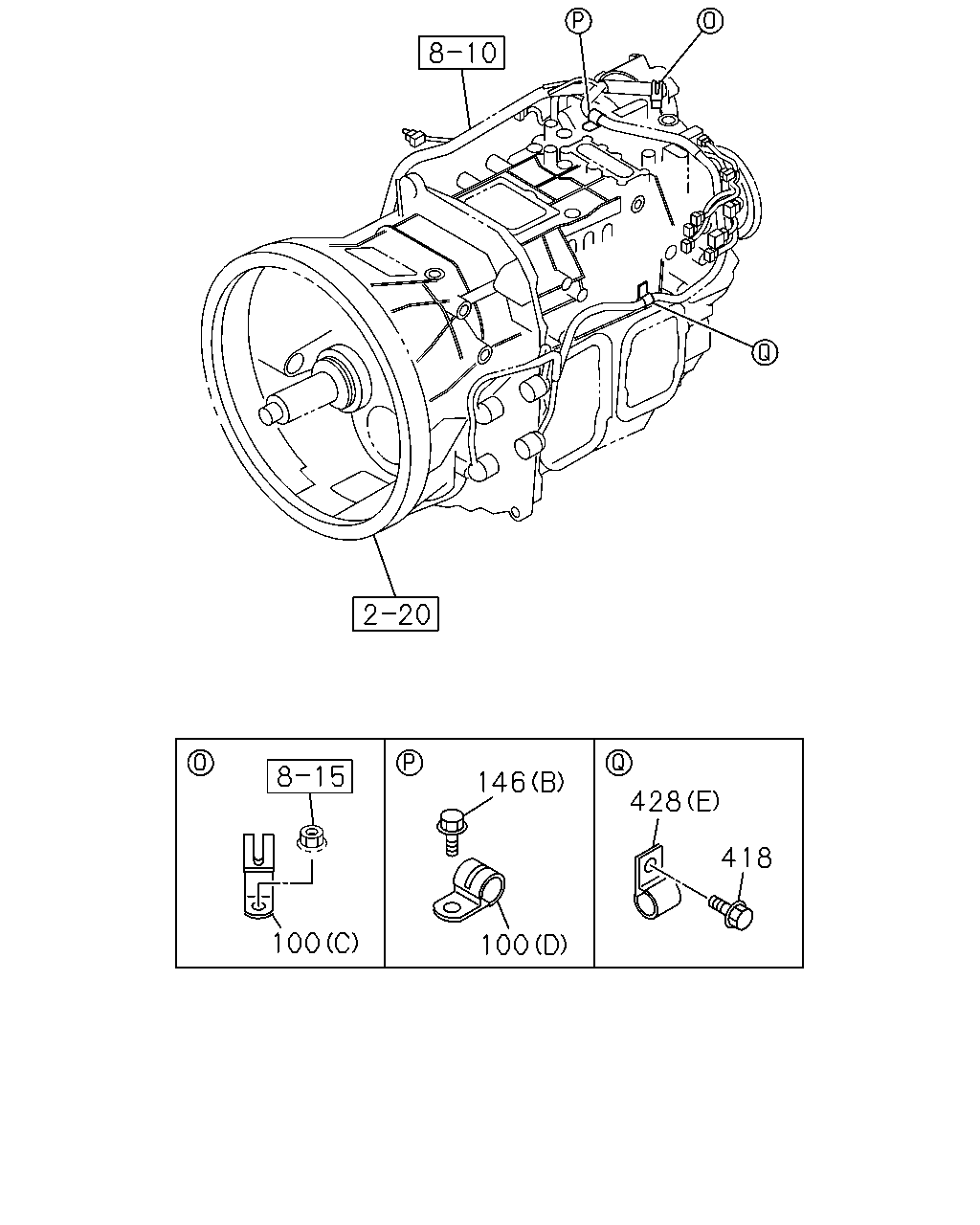

çizim 488089
100 146 100 428 418
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1508-
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1508-
100 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) ID=19 L=25 		1-09700-515-1 01 1 1508-
100 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1508-
146 BOLT; CLIP
(A) M8X20 FLANGE 		0-28050-820-0 03 1 1508-
146 BOLT; CLIP
MJX16P M/T(Y3Z) (B) M10X25 FLANGE 		0-28751-025-0 01 1 1508-
418 BOLT; CLIP
MJX16P M/T(Y3Z) M10X25 FLANGE 		0-28751-025-0 01 1 1508-
428 CLIP; HARNESS
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1508-
428 CLIP; HARNESS
(A) ID=35X2 L=32 		1-09701-314-0 02 1 1508-
428 CLIP; HARNESS
(D) 		1-82699-911-0 01 1 1508-
428 CLIP; HARNESS
(C) 		8-97636-270-0 01 1 1508-
428 CLIP; HARNESS
MJX16P M/T(Y3Z) (E) ID=15 		1-09700-647-0 01 1 1508-

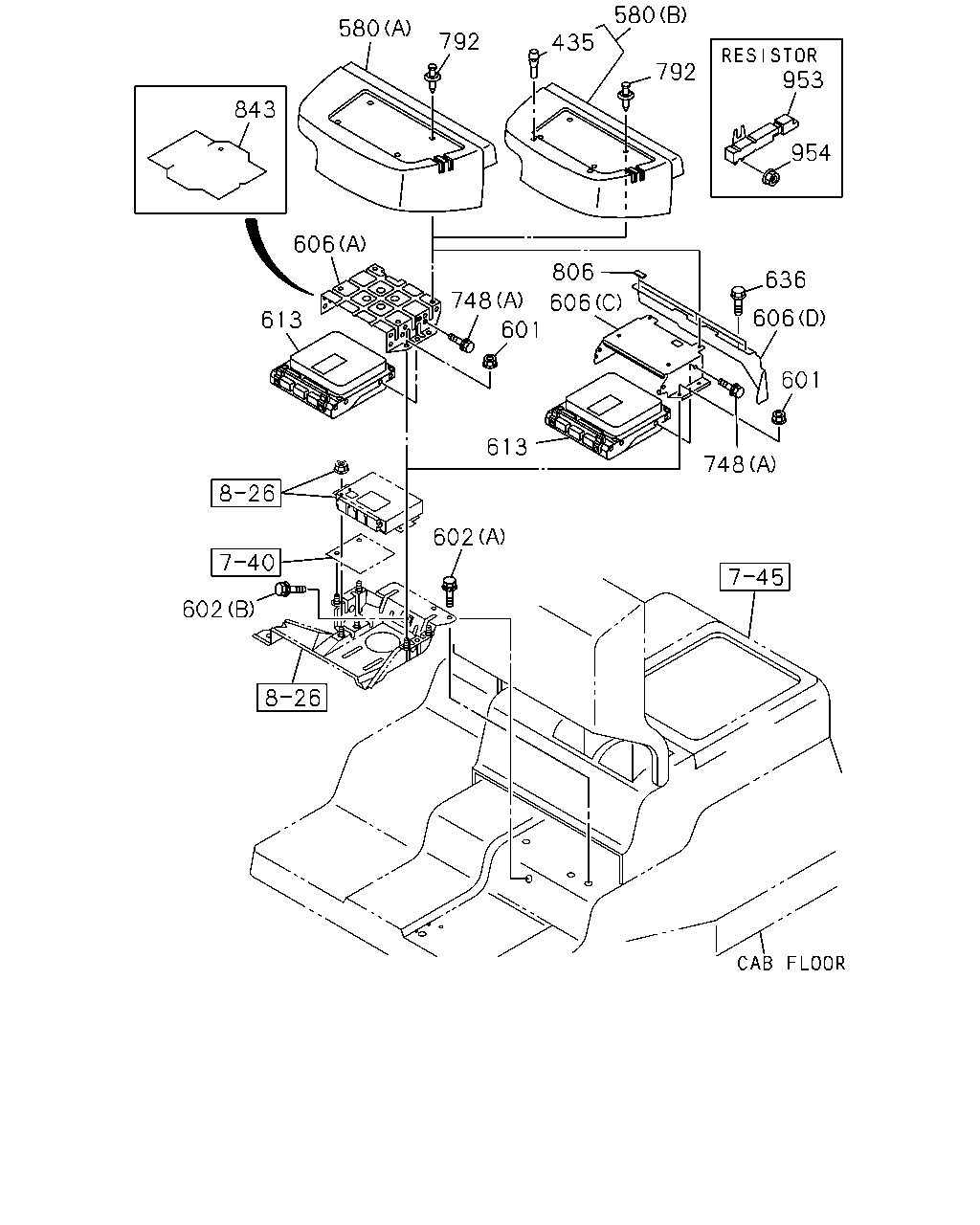

çizim 488093
580 843 792 435 580 792 953 954 636 606 601 748 602 613 748 806 601 606 606 613 602
BalonParca AdiParca NoAdetTipApplied Date
435 RUBBER; CUSHION
DELUXE CARPET<BF2>,VINYL CARPET<B30> FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) 		1-72537-138-0 02 1 1512-
580 COVER; CONT UNIT
DELUXE CARPET<BF2>,VINYL CARPET<B30> FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) (B) 		1-72537-279-2 01 1 1512-
580 COVER; CONT UNIT
(A) 		1-72537-273-1 01 1 1508-1511
580 COVER; CONT UNIT
DELUXE CARPET<BF2>,VINYL CARPET<B30> EXC. FRONT CONSOLE<D55> (A) 		1-72537-273-1 01 1 1512-
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 1508-1511
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 1512-
602 BOLT; BRKT
(C) M14X45 FLANGE 		0-28851-445-0 05 1 1508-1508
602 BOLT; BRKT
(C) M14X45 FLANGE 		0-28851-445-0 06 1 1508-
602 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1508-1511
602 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1512-
602 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1508-1511
602 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1512-
606 BRACKET; CONT UNIT
(B) 		8-98323-193-0 01 1 1508-1508
606 BRACKET; CONT UNIT
(B) 		8-98329-819-0 01 1 1508-
606 BRACKET; CONT UNIT
SMOOTHER-G(C1W) (C) 		8-98281-501-2 01 1 1508-
606 BRACKET; CONT UNIT
SMOOTHER-G(C1W) (D) 		8-98302-710-0 01 1 1508-1511
606 BRACKET; CONT UNIT
SMOOTHER-G(C1W) EXC. FRONT CONSOLE<D55> (D) 		8-98302-710-0 01 1 1512-
606 BRACKET; CONT UNIT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98182-921-0 01 1 1508-1511
606 BRACKET; CONT UNIT
EXC. SMOOTHER-G(C1W) (A) 		8-98182-921-0 01 1 1512-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-98303-415-1 01 1 1508-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98303-413-1 01 1 1508-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-98303-410-1 01 1 1508-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98303-409-1 01 1 1508-
636 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1508-1511
636 BOLT; BRKT
SMOOTHER-G(C1W) EXC. FRONT CONSOLE<D55> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1512-
748 BOLT; CONT UNIT
(B) M6X35 FLANGE 		0-28050-635-0 04 1 1508-
748 BOLT; CONT UNIT
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1508-
792 FASTENER
D8X13.5 		1-09987-270-0 04 1 1508-1511
792 FASTENER
DELUXE CARPET<BF2>,VINYL CARPET<B30> EXC. FRONT CONSOLE<D55> D8X13.5 		1-09987-270-0 04 1 1512-
792 FASTENER
DELUXE CARPET<BF2>,VINYL CARPET<B30> FRONT CONSOLE<D55> EXC. SMOOTHER-G(C1W) D8X13.5 		1-09987-270-0 04 1 1512-
806 CUSHION; COVER
SMOOTHER-G(C1W) 		8-98302-723-0 03 1 1508-1511
806 CUSHION; COVER
SMOOTHER-G(C1W) EXC. FRONT CONSOLE<D55> 		8-98302-723-0 03 1 1512-
843 SEAL; BRKT
SMOOTHER-G(C1W) 		8-98298-362-0 01 1 1508-
843 SEAL; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98119-974-0 01 1 1508-
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1508-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 1508-

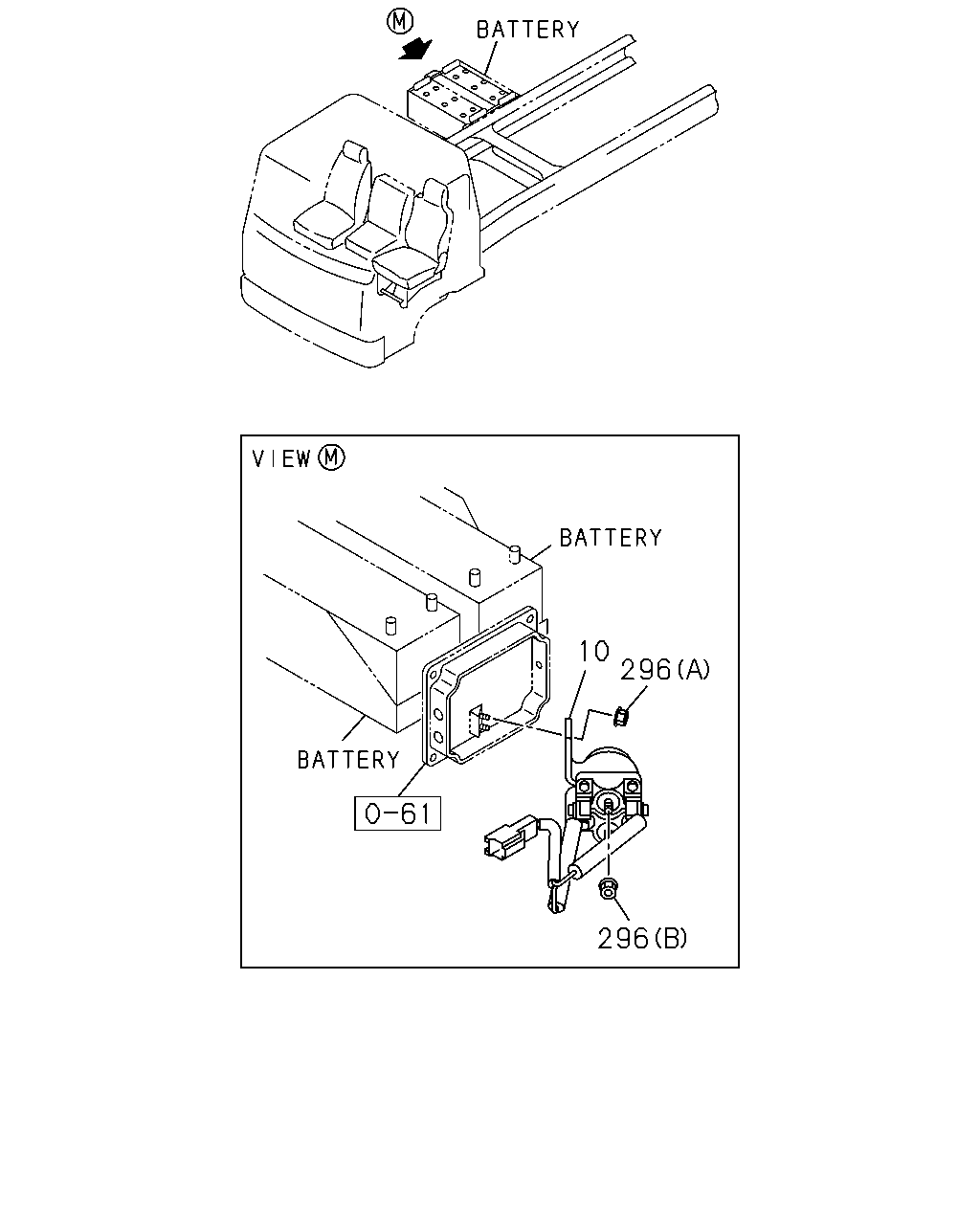

çizim 488575
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER 8-98104-680-0 01 1 1508-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1508-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1508-

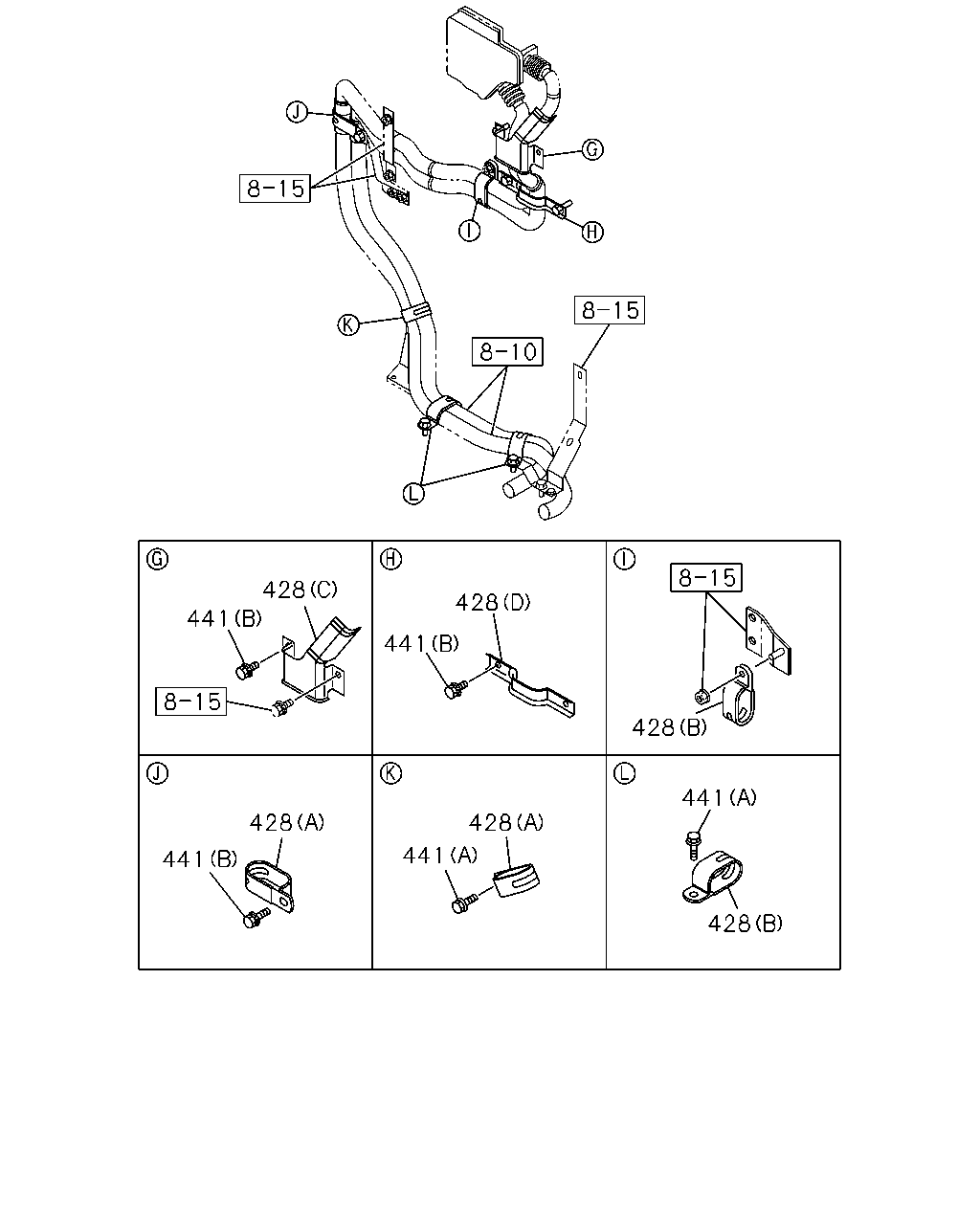

çizim 488741
428 441 428 441 428 441 428 441 428 441 428
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1508-
428 CLIP; HARNESS
(A) ID=35X2 L=32 		1-09701-314-0 02 1 1508-
428 CLIP; HARNESS
(D) 		1-82699-911-0 01 1 1508-
428 CLIP; HARNESS
(C) 		8-97636-270-0 01 1 1508-
428 CLIP; HARNESS
MJX16P M/T(Y3Z) (E) ID=15 		1-09700-647-0 01 1 1508-
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1508-
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1508-

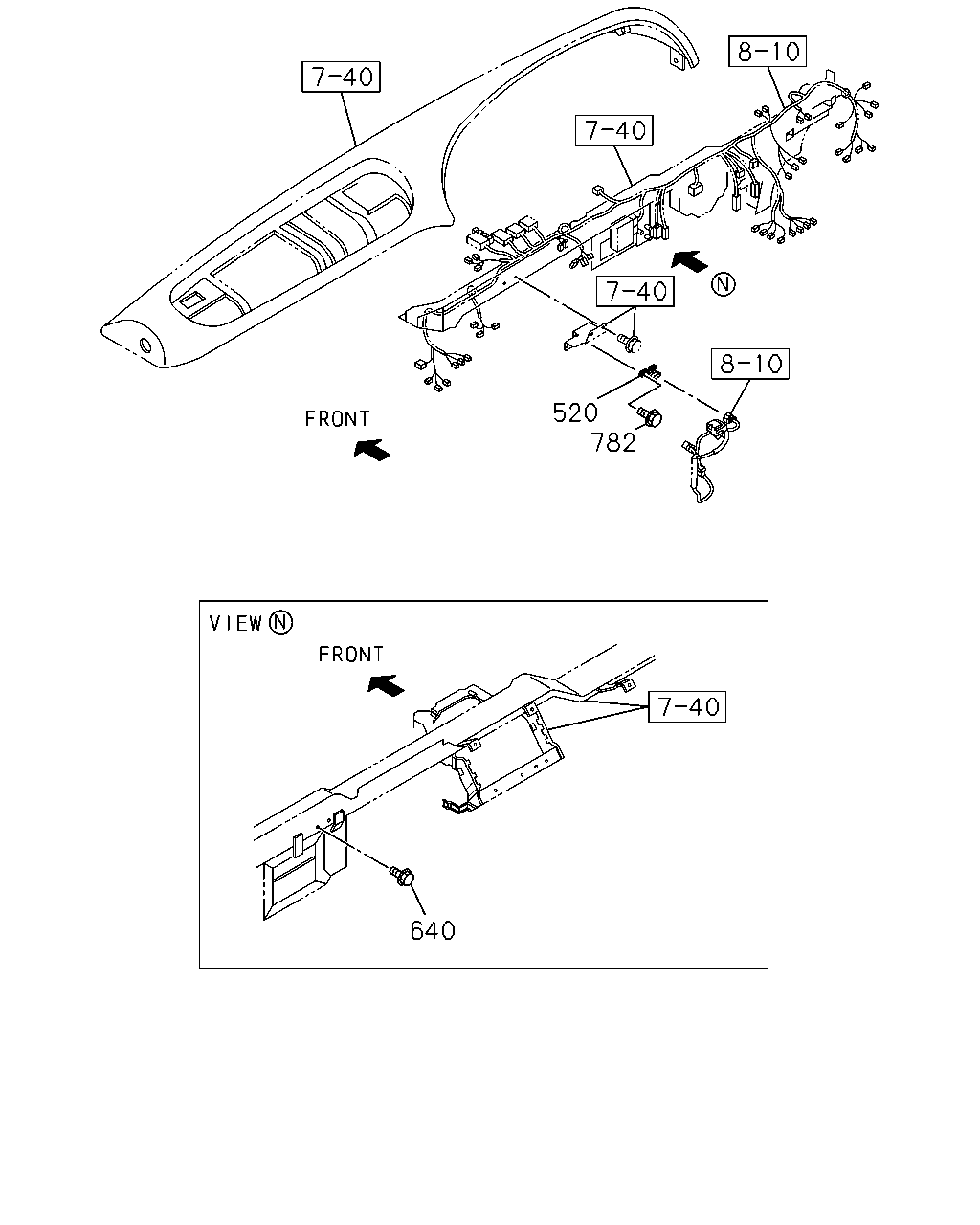

çizim 488811
520 782 640
BalonParca AdiParca NoAdetTipApplied Date
520 SENSOR; PRESSURE 8-98020-514-0 01 1 1508-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1508-
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1508-

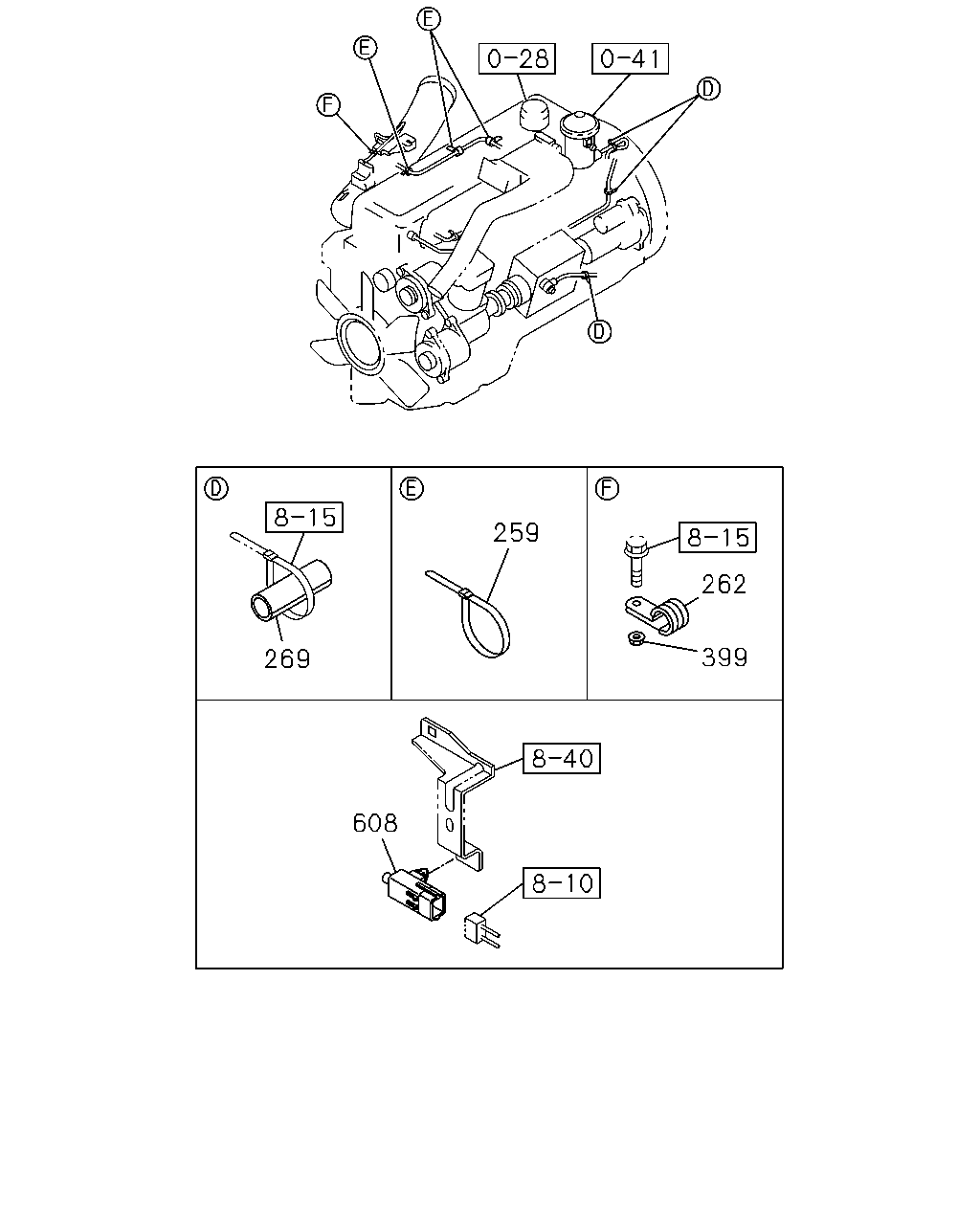

çizim 488837
269 259 262 399 608
BalonParca AdiParca NoAdetTipApplied Date
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 03 1 1508-
262 CLIP; HARNESS
ID=10 L=16.5 		8-98082-034-0 02 1 1508-
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 1508-
399 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1508-
608 SENSOR; AIR TEMP 8-98214-375-0 01 1 1508-
