Sayfa 0-51 - Isuzu EPC

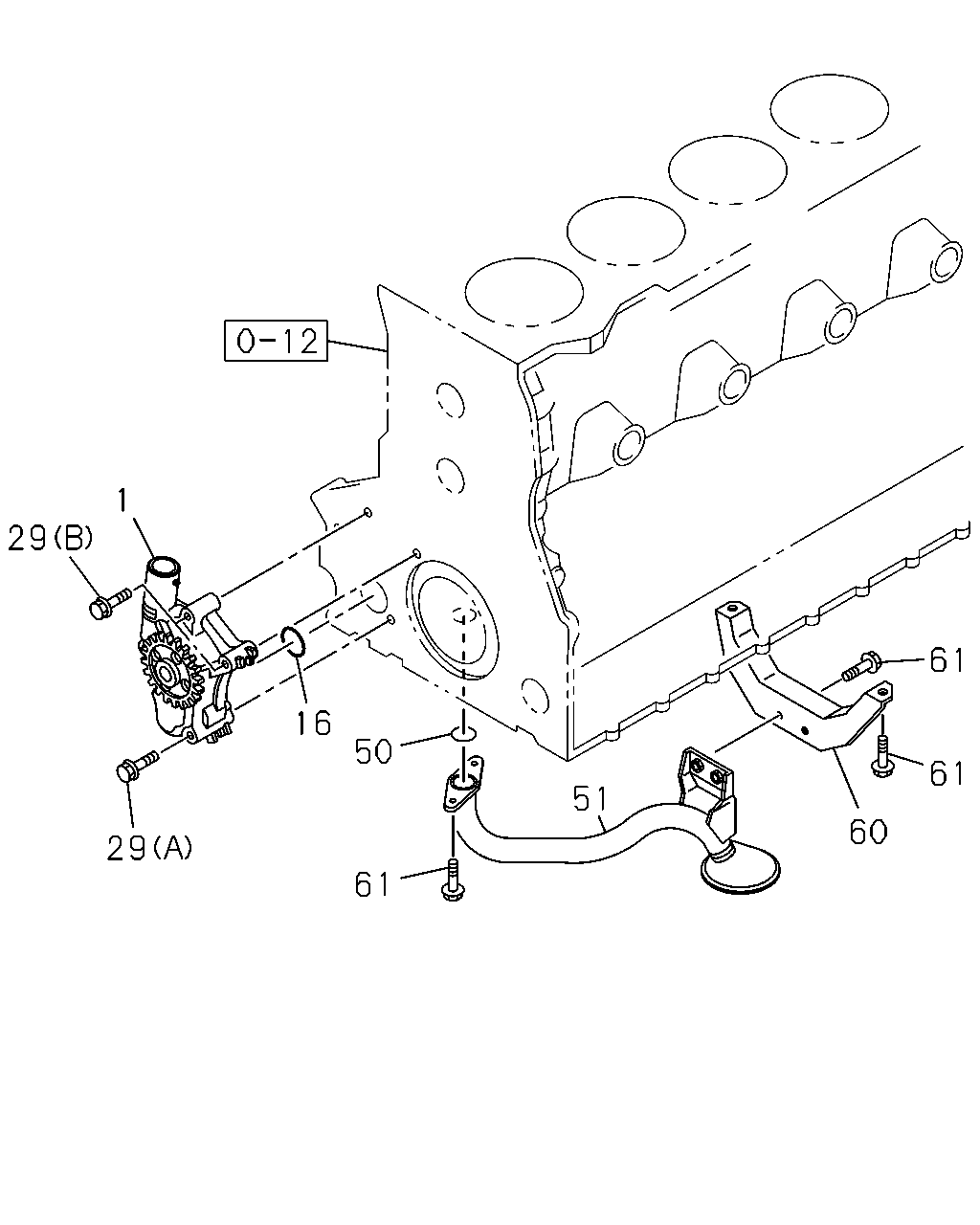

0-51 — OIL PUMP AND OIL STRAINER (#165203) — 8 parça

29 29 1 16 50 61 51 61 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL	8-98276-988-0	01	1	1508-	●	●
16	GASKET; OIL PUMP,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7	1-09623-529-0	01	1	1508-	●	●
29	BOLT; OIL PUMP (B) M10X60 FLANGE	0-28151-060-0	02	1	1508-	●	●
29	BOLT; OIL PUMP (A) M10X85 FLANGE	8-94397-359-1	02	1	1508-	●	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7	1-09623-529-0	01	1	1508-	●	●
51	STRAINER & PIPE ASM; OIL	8-98260-260-0	01	1	1508-	●	●
60	BRACKET; OIL STRAINER	1-13345-180-1	01	1	1508-	●	●
61	BOLT; OIL STRAINER M10X20 FLANGE	0-28151-020-0	06	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
