Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

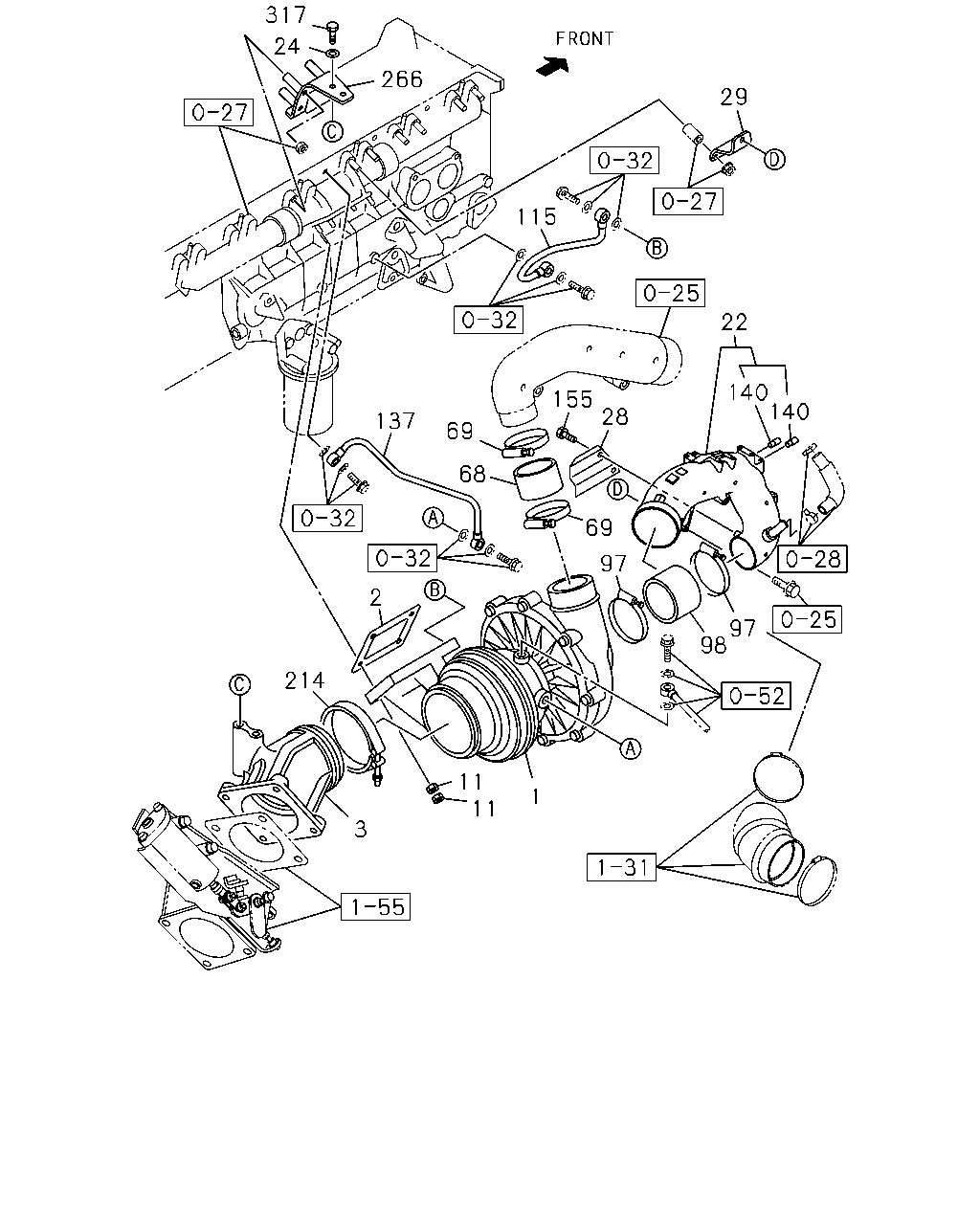

0-36 — TURBOCHARGER SYSTEM
(#165196) — 19 parça
Tümü
A - 6WG1 TC-C
B - 6WG1 TC-S
317
266
24
115
29
22
155
69
68
137
69
97
97
140
140
28
2
214
3
11
11
1
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
8-98299-187-0
01
1
1508-
●
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-187-0
01
1
1508-
●
●
3
PIPE; EXH,TURBOCHARGER
8-98255-364-2
01
1
1508-
●
●
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1508-
●
●
22
DUCT; INL,ACL TO TURBOCHARGER
8-98197-864-1
01
1
1508-
●
●
24
WASHER; PL,PIPE
ID=10.5 OD=22
1-09500-007-0
02
1
1508-
●
●
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-272-0
01
1
1508-
●
●
29
BRACKET; INL PIPE,ACL TO TURBOCHARGER
1-14119-473-0
01
1
1508-
●
●
68
HOSE; RUBBER,TURBOCHARGER TO INL COVER
8-98169-678-0
01
1
1508-
●
●
69
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
8-98096-592-0
02
1
1508-
●
●
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
1-09707-139-0
02
1
1508-
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-988-0
01
1
1508-
●
●
115
PIPE; WATER,TURBOCHARGER OUT
8-98226-418-1
01
1
1508-
●
●
137
PIPE; WATER,TURBOCHARGER IN
1-13721-968-0
01
1
1508-
●
●
140
PIPE; AIR PIPE
9-14119-228-1
02
1
1508-
●
●
155
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1508-
●
●
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98059-890-0
01
1
1508-
●
●
266
BRACKET; EXH PIPE
8-98261-147-1
01
1
1508-
●
●
317
BOLT; EXH PIPE
M10X20
1-09020-073-2
02
1
1508-
●
●
