Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#165193) — 63 parça

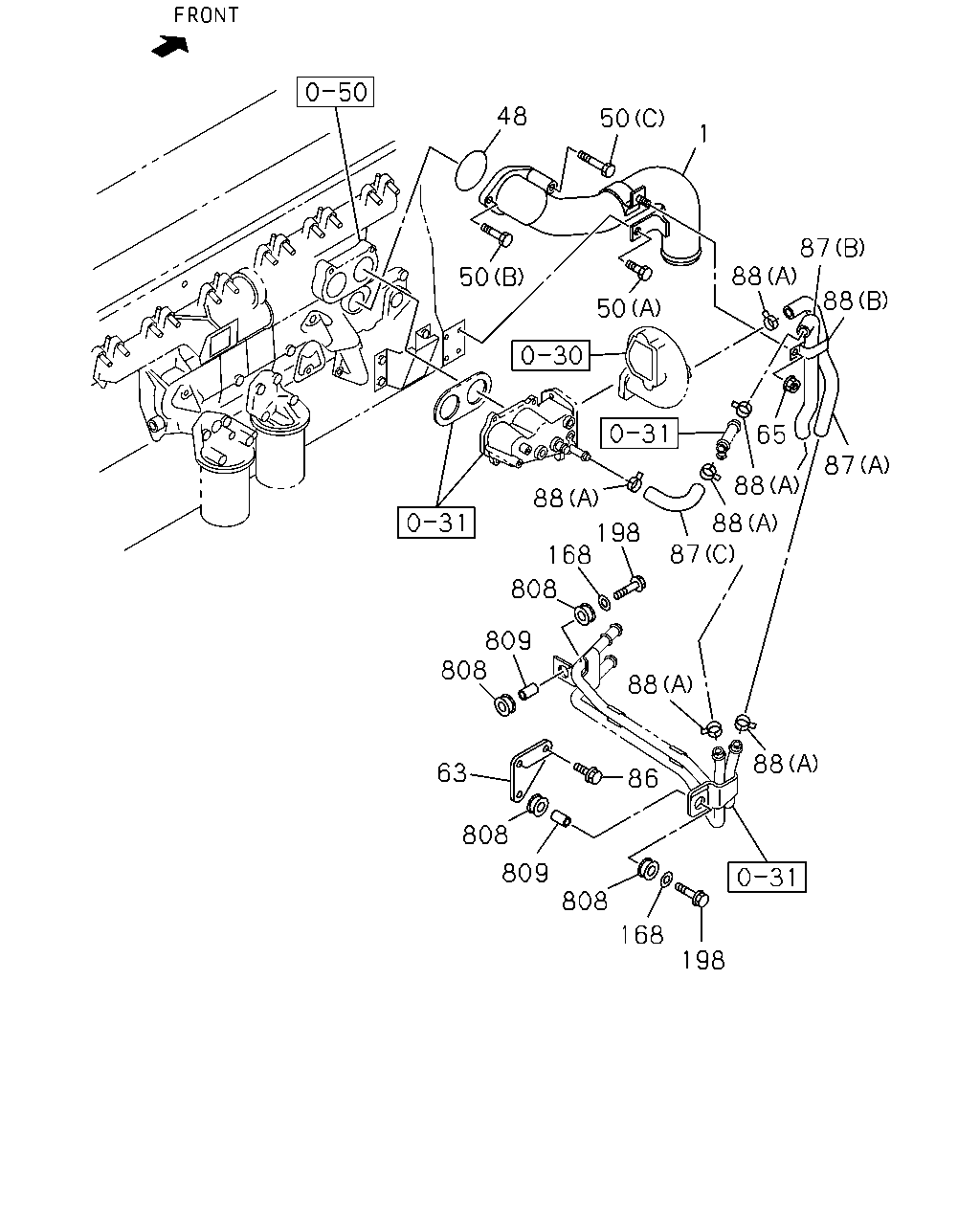

48 50 50 50 88 87 88 88 88 65 87 88 198 87 168 808 809 808 63 808 809 808 168 198 86 88 88 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	1508-	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1508-	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1508-	●	●
50	BOLT; WATER PIPE INL (C) M10X90 FLANGE	0-28151-090-0	01	1	1508-	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1508-	●	●
63	BRACKET; WATER PIPE	8-98202-988-1	01	1	1508-	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
86	BOLT; BRKT,HTR PIPE M14X25 FLANGE	0-28951-425-0	02	1	1508-	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	1508-	●	●
87	HOSE; RUBBER,HTR (C)	8-98134-207-0	01	1	1508-	●	●
87	HOSE; RUBBER,HTR (B)	8-98256-476-0	01	1	1508-	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	06	1	1508-	●	●
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1508-	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1508-	●	●
198	BOLT; PIPE M10X50 FLANGE	0-28051-050-0	02	1	1508-	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	1508-	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1508-	●	●

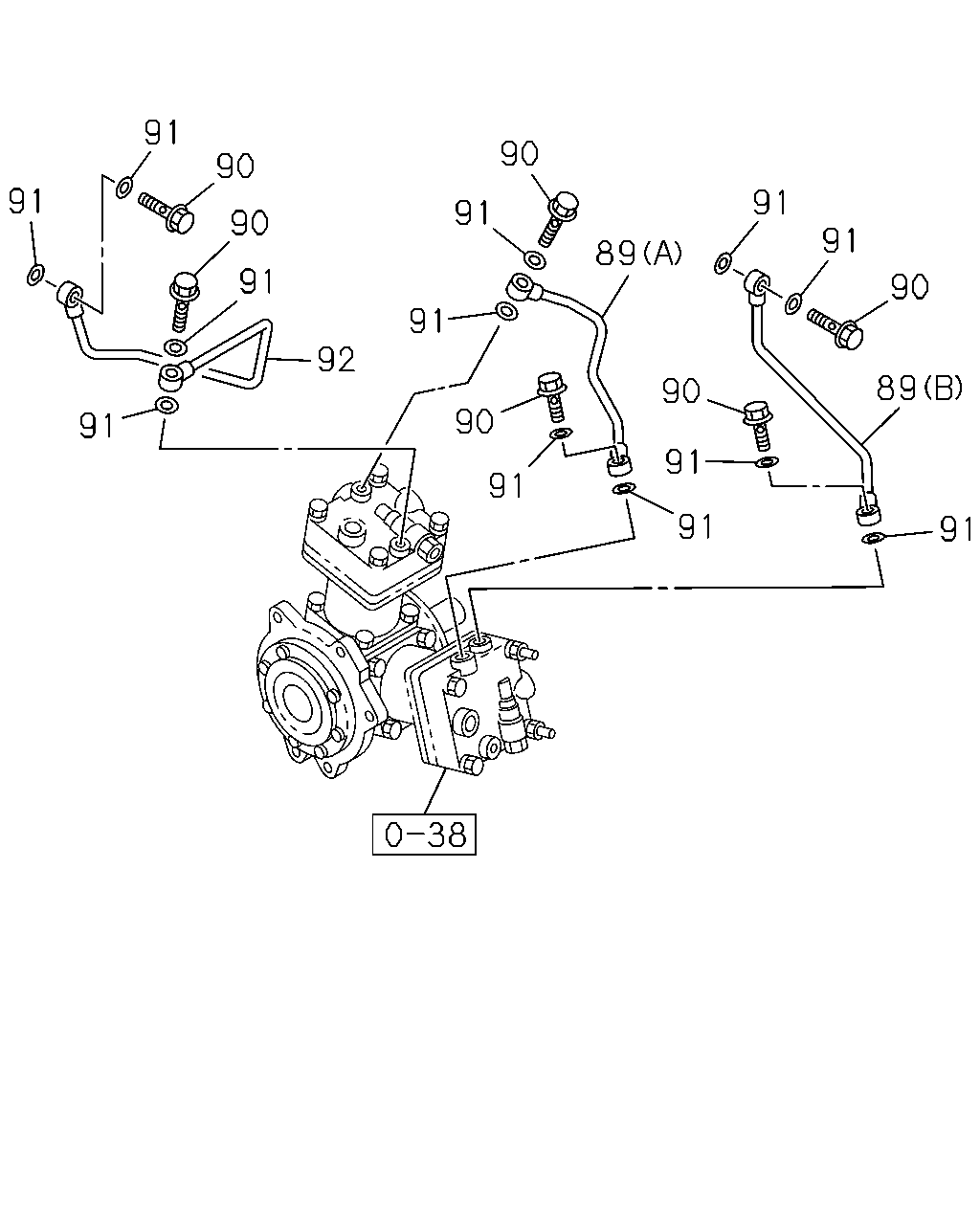

91 91 90 91 90 91 92 91 91 90 89 91 90 90 90 91 91 91 89 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1508-	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1508-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1508-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1508-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1508-	●	●

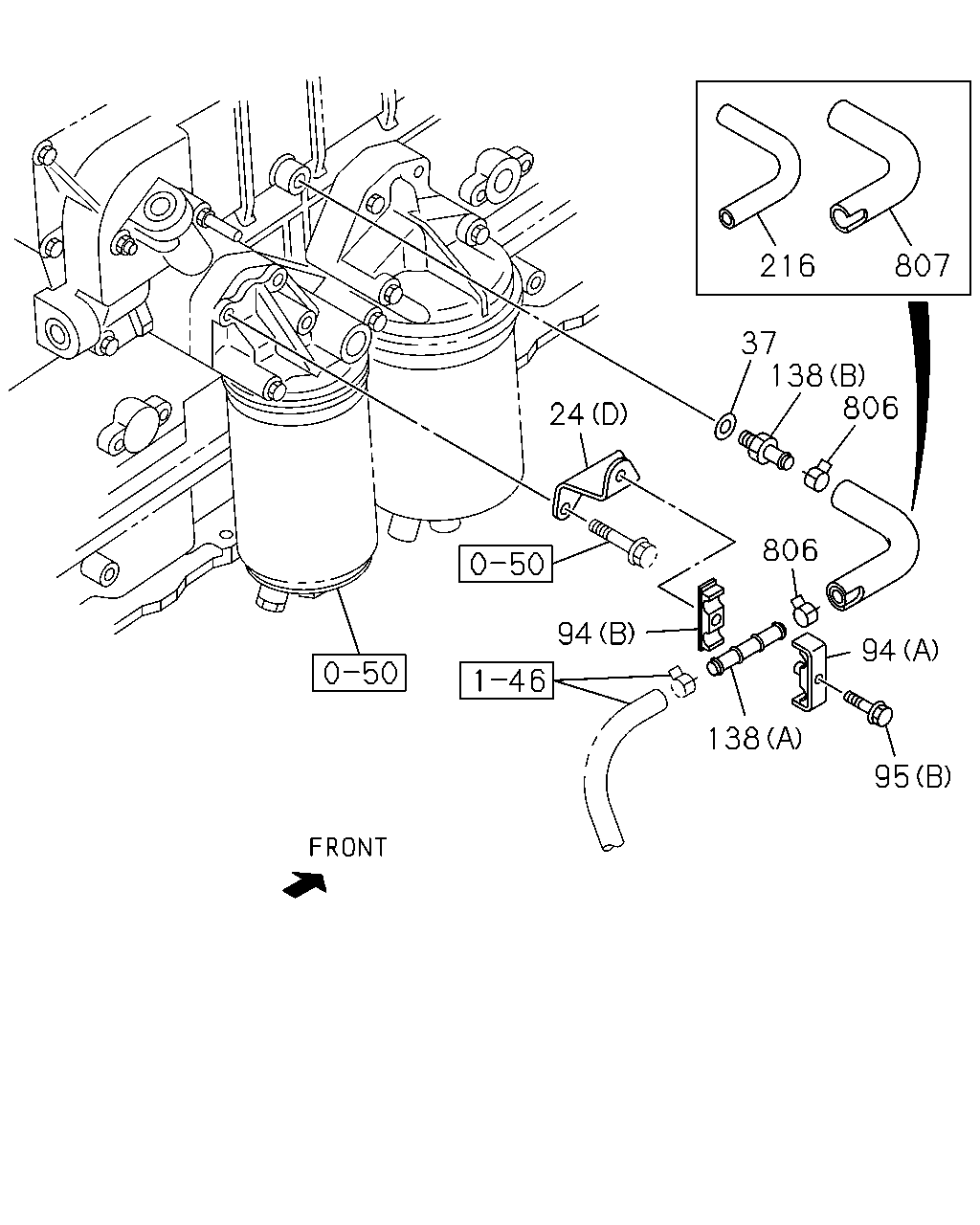

216 807 37 138 806 806 94 138 95 94 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (A)	8-97642-255-0	01	1	1508-	●	●
24	BRACKET; WATER PIPE (D)	8-97643-587-1	01	1	1508-	●	●
24	BRACKET; WATER PIPE (C)	8-97646-289-0	01	1	1508-	●	●
24	BRACKET; WATER PIPE (B)	8-97646-555-0	01	1	1508-	●	●
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1508-	●	●
94	CLIP; WATER PIPE (A)	8-97300-961-1	01	1	1508-	●	●
94	CLIP; WATER PIPE (B)	8-98132-677-0	01	1	1508-	●	●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	1508-	●	●
95	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	01	1	1508-	●	●
138	PIPE; WATER (A)	8-98134-082-0	01	1	1508-	●	●
138	PIPE; WATER (B)	8-98147-539-0	01	1	1508-	●	●
216	HOSE; WATER	8-98134-205-0	01	1	1508-	●	●
806	CLAMP; HOSE ID=16	8-94392-924-0	02	1	1508-	●	●
807	INSULATOR; HOSE	8-98134-184-1	01	1	1508-	●	●

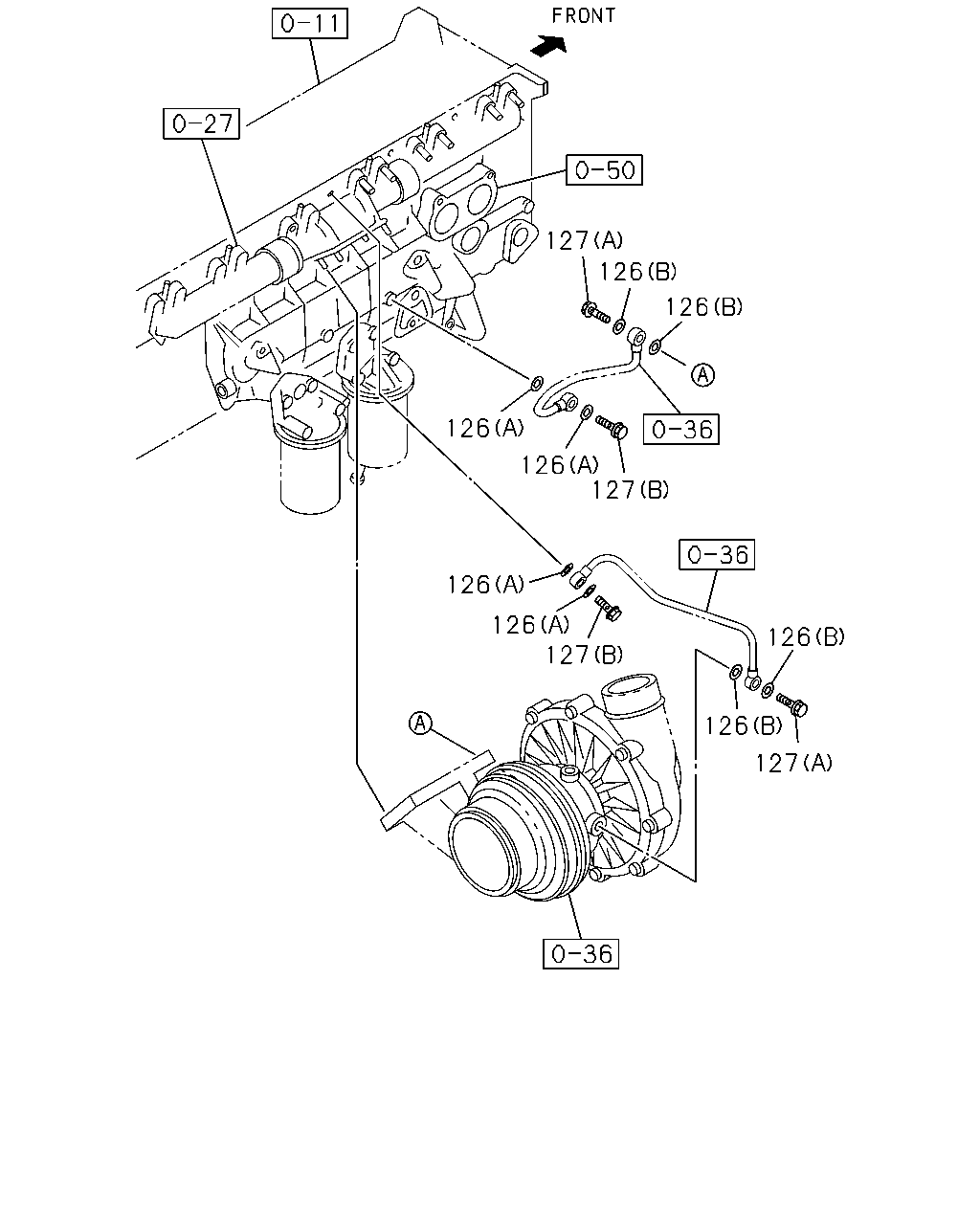

127 126 127 126 126 126 126 126 127 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1508-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	1508-	●	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1508-	●	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1508-	●	●

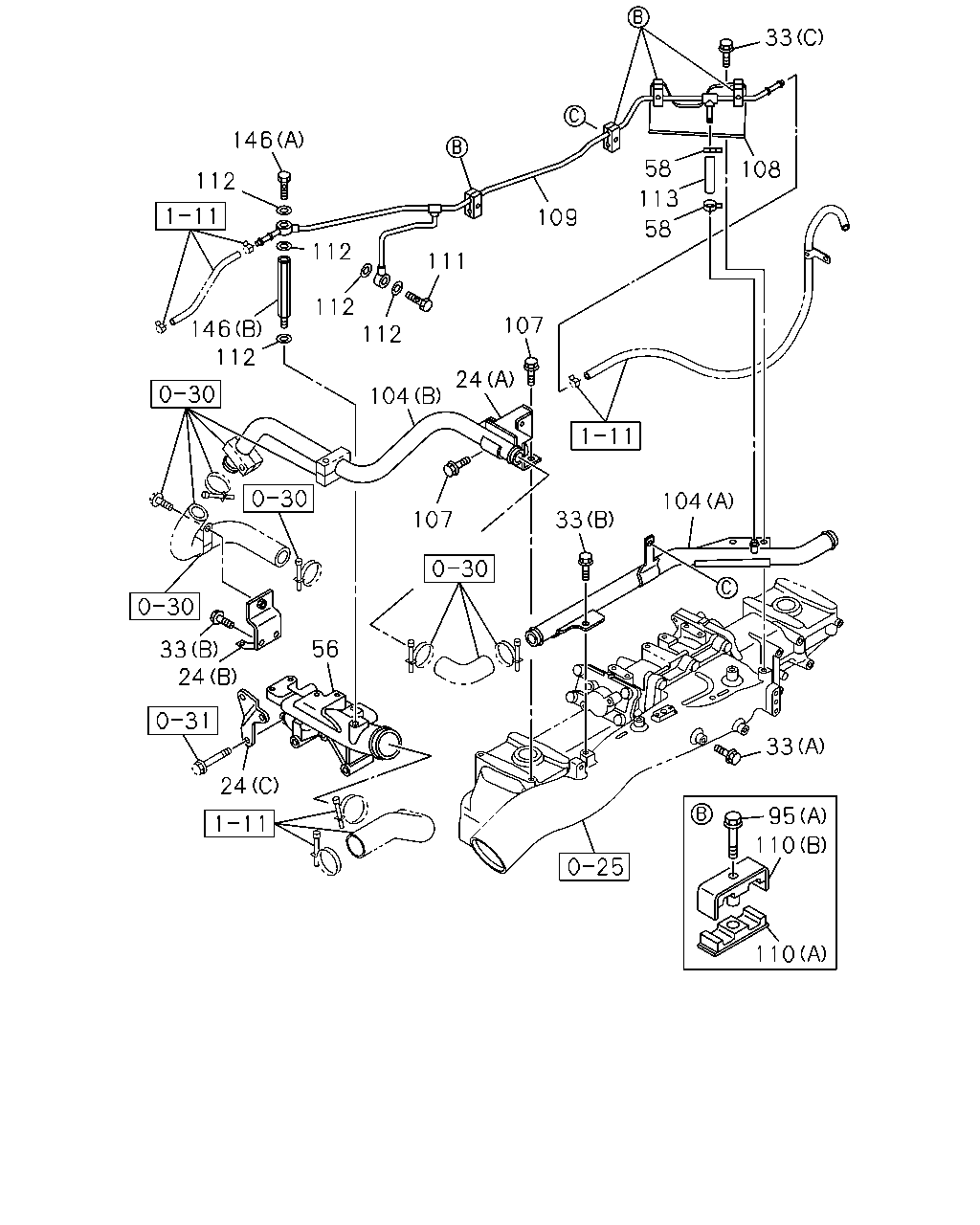

112 146 146 112 112 111 112 104 112 33 24 56 24 33 107 24 107 109 58 58 113 108 33 104 33 95 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (A)	8-97642-255-0	01	1	1508-	●	●
24	BRACKET; WATER PIPE (D)	8-97643-587-1	01	1	1508-	●	●
24	BRACKET; WATER PIPE (C)	8-97646-289-0	01	1	1508-	●	●
24	BRACKET; WATER PIPE (B)	8-97646-555-0	01	1	1508-	●	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1508-	●	●
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	03	1	1508-	●	●
33	BOLT; BRKT (C) M10X25 FLANGE	0-28151-025-0	02	1	1508-	●	●
56	PIPE; WATER OUTLET	8-97646-769-0	01	1	1508-	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1508-	●	●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	1508-	●	●
95	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	01	1	1508-	●	●
104	PIPE; WATER CHARGE (A)	8-97642-232-0	01	1	1508-	●	●
104	PIPE; WATER CHARGE (B)	8-97646-283-0	01	1	1508-	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	03	1	1508-	●	●
108	BRACKET; WATER CHARGE	8-97615-508-2	01	1	1508-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	8-97640-818-0	01	1	1508-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	1508-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	1508-	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1508-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	05	1	1508-	●	●
113	HOSE; RUBBER,AIR LEAK	8-98191-351-0	01	1	1508-	●	●
146	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1508-	●	●
146	BOLT; EYE (B)	8-97640-875-0	01	1	1508-	●	●
