Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#165186) — 51 parça
Tümü
A - 6WG1 TC-C
B - 6WG1 TC-S
◀

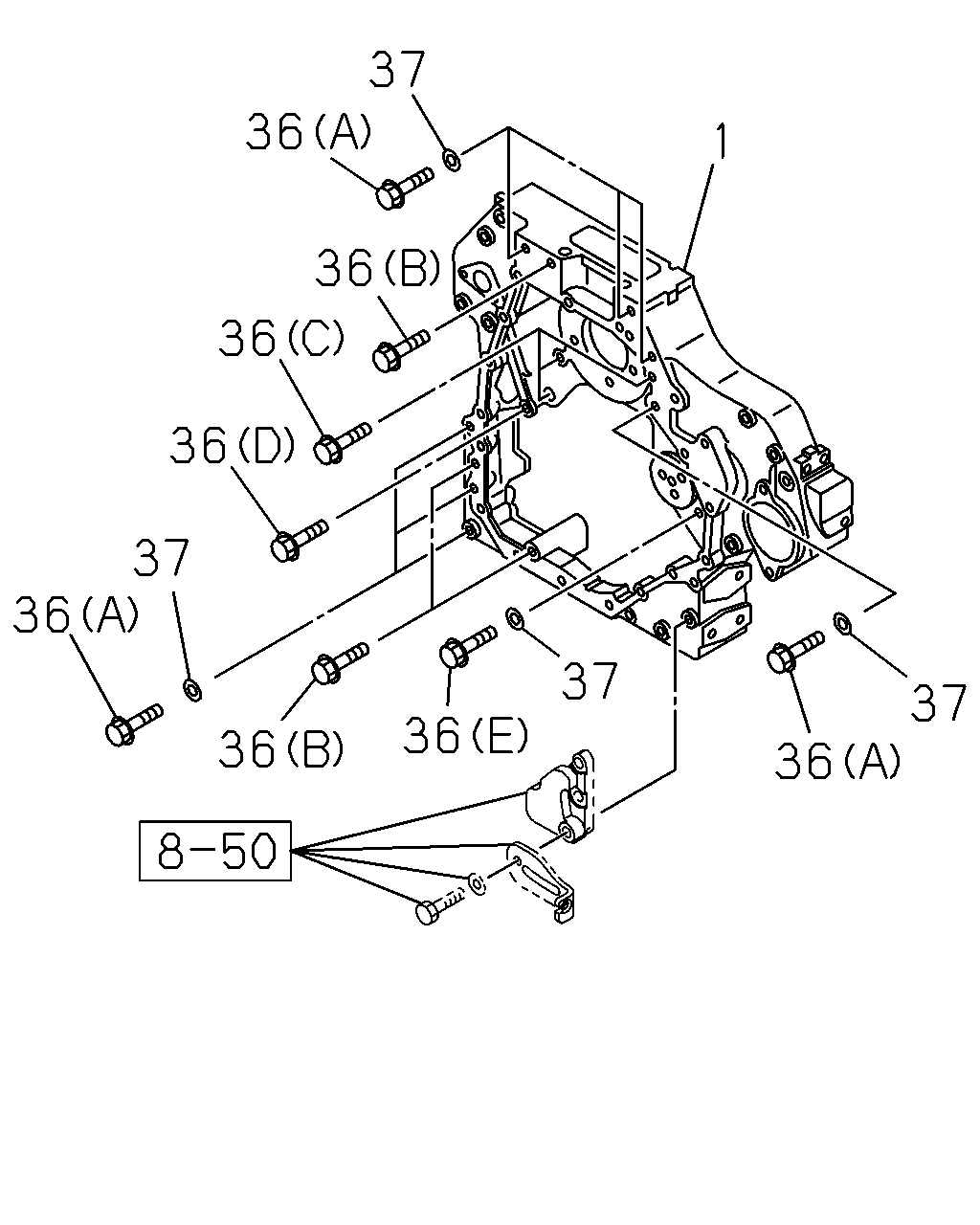

[020A] FIXING; TIMING GEAR CASE (7 parça)

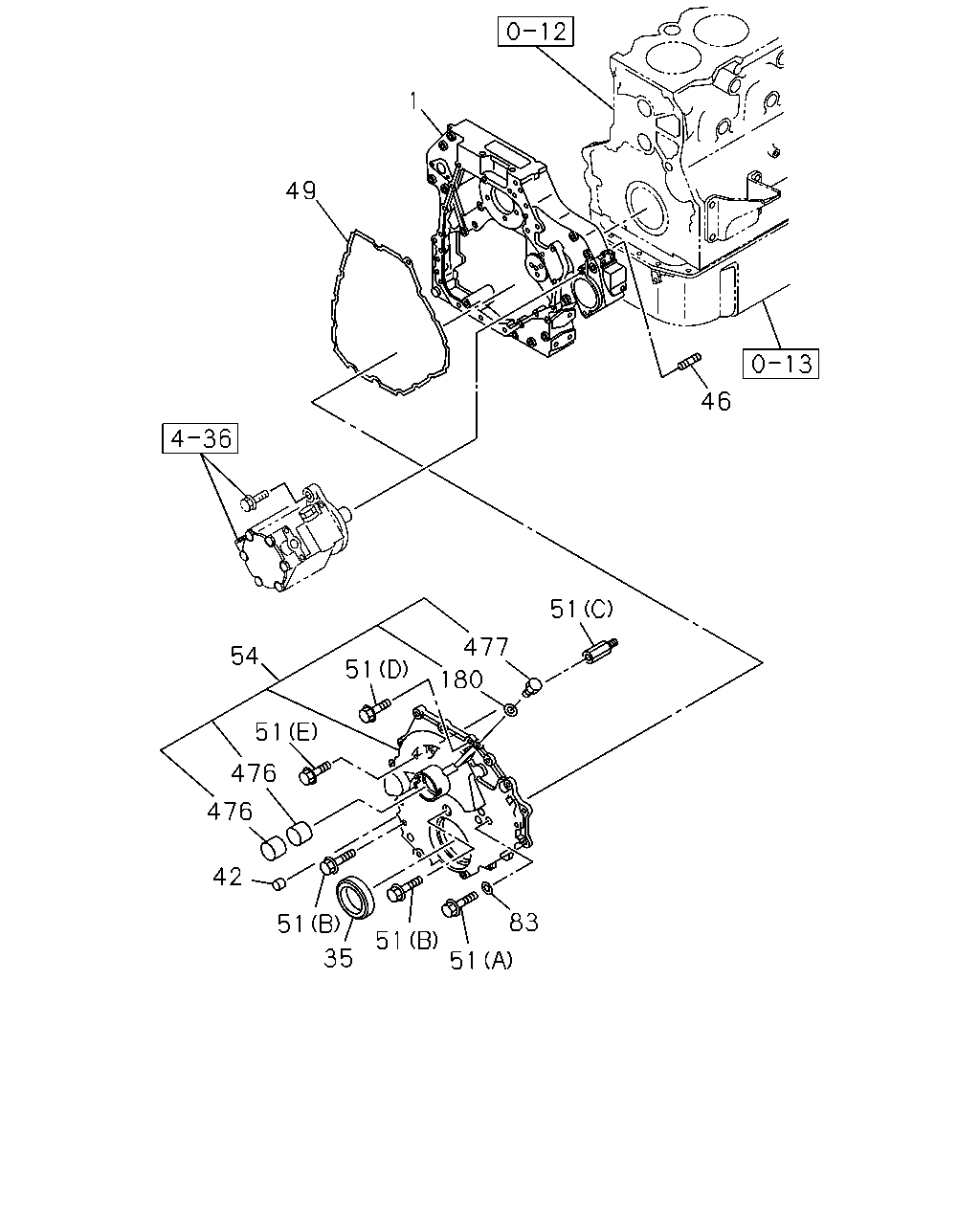

[020A] TIMING GEAR CASE AND COVER (15 parça)

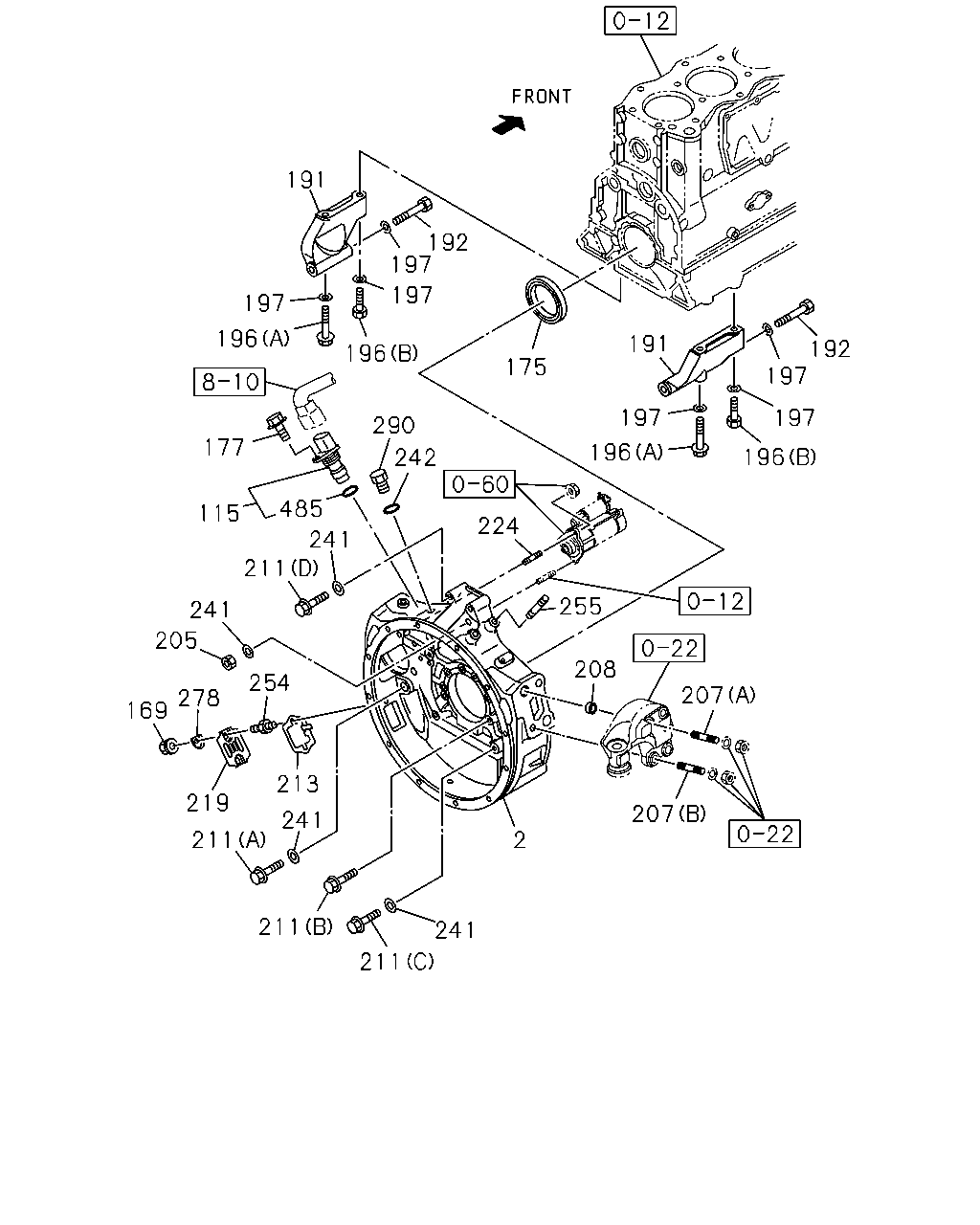

[020A] HSG,STAY AND SENSOR (29 parça)
▶
37
1
37
36
36
37
36
36
36
36
37
36
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CASE; TIMING GEAR
8-98249-369-0
01
1
1508-
●
●
36
BOLT; GEAR CASE
(B) M10X100 FLANGE
0-28151-000-0
03
1
1508-
●
●
36
BOLT; GEAR CASE
(C) M10X25 FLANGE
0-28151-025-0
04
1
1508-
●
●
36
BOLT; GEAR CASE
(D) M10X35 FLANGE
0-28151-035-0
01
1
1508-
●
●
36
BOLT; GEAR CASE
(A) M14X110
1-09020-007-0
15
1
1508-
●
●
36
BOLT; GEAR CASE
(E) M14X60
1-09020-146-0
01
1
1508-
●
●
37
WASHER; PL,GEAR CASE
ID=15 OD=26
0-91614-514-0
08
1
1508-
●
●
1
49
46
51
477
51
54
180
83
51
51
35
51
42
476
51
476
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CASE; TIMING GEAR
8-98249-369-0
01
1
1508-
●
●
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER
8-97617-308-0
01
1
1508-
●
●
42
DOWEL; GEAR CASE COVER
1-13119-004-0
01
1
1508-
●
●
46
STUD; BRG COVER,RR
M14X45 L=66
0-44011-445-0
01
1
1508-
●
●
49
GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98061-423-0
01
1
1508-
●
●
51
BOLT; GEAR CASE COVER
(A) M8X40
0-10955-840-0
03
1
1508-
●
●
51
BOLT; GEAR CASE COVER
(B) M10X30 FLANGE
0-28151-030-0
15
1
1508-
●
●
51
BOLT; GEAR CASE COVER
(D) M10X40 FLANGE
0-28151-040-0
01
1
1508-
●
●
51
BOLT; GEAR CASE COVER
(E) M10X50 FLANGE
0-28151-050-0
02
1
1508-
●
●
51
BOLT; GEAR CASE COVER
(C) M10X90
8-97603-482-0
02
1
1508-
●
●
54
COVER; GEAR CASE
8-98269-504-0
01
1
1508-
●
●
83
WASHER; PL,COVER
ID=8.5 OD=20
5-09503-111-0
03
1
1508-
●
●
180
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
1508-
●
●
476
BUSHING; COVER
1-09330-096-0
02
1
1508-
●
●
477
PLUG; OIL HOLE
M10X7
9-09202-310-0
01
1
1508-
●
●
192
197
197
196
196
197
191
175
196
197
197
192
191
197
196
177
115
290
224
242
211
241
485
241
205
278
169
254
219
211
213
241
211
211
241
2
208
207
207
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
8-98182-183-2
01
1
1508-
●
●
115
SENSOR; REVOLUTION,ENG SPD
8-97606-943-0
01
1
1508-
●
●
169
NUT; COVER
M8 FLANGE
0-91180-108-0
02
1
1508-
●
●
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY
8-97617-309-0
01
1
1508-
●
●
177
BOLT; SENSOR
M6X16 FLANGE
0-28650-616-0
01
1
1508-
●
●
191
STAY; FLYWHEEL HSG
1-11349-196-1
01
1
1508-
●
●
191
STAY; FLYWHEEL HSG
1-11349-195-1
01
1
1508-
●
●
192
BOLT; STAY TO HSG
M14X135
1-09020-055-0
02
1
1508-
●
●
196
BOLT; STAY TO C/BL
(A) M14X100
0-16956-400-0
02
1
1508-
●
●
196
BOLT; STAY TO C/BL
(B) M14X70
9-91666-470-0
02
1
1508-
●
●
197
WASHER; PL,STAY
ID=15 OD=26
0-91614-514-0
06
1
1508-
●
●
205
NUT; HSG
M14
0-91110-514-0
01
1
1508-
●
●
207
STUD; ENG FOOT
(B) M18X60 L=96
0-43211-860-0
04
1
1508-
●
●
207
STUD; ENG FOOT
(A) M18X80 L=116
0-43211-880-0
04
1
1508-
●
●
208
DOWEL; ENG FOOT
1-43249-001-0
04
1
1508-
●
●
211
BOLT; HSG
(C) M14X50
0-16956-450-0
02
1
1508-
●
●
211
BOLT; HSG
(B) M8X35 FLANGE
0-28050-835-0
08
1
1508-
●
●
211
BOLT; HSG
(D) M14X70
9-91666-470-0
02
1
1508-
●
●
211
BOLT; HSG
(A) M14X45
9-92361-445-0
10
1
1508-
●
●
213
POINTER; FLYWHEEL HSG
1-11327-045-1
01
1
1508-
●
●
219
COVER; POINTER
1-11349-131-0
01
1
1508-
●
●
224
STUD; STARTER
M14X35 L=56
0-44011-435-0
03
1
1508-
●
●
241
WASHER; PL,HSG
ID=15 OD=26
0-91614-514-0
15
1
1508-
●
●
242
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0
9-09571-420-0
01
1
1508-
●
●
254
STUD; POINTER & COVER
M8X14,M8X14 L=33
1-09300-058-1
02
1
1508-
●
●
255
STUD; RELAY LEVER BRKT
M12X30 L=48
8-98059-951-0
03
1
1508-
●
●
278
WASHER; COVER FIX
1-11349-127-0
01
1
1508-
●
●
290
PLUG; SENSOR HOLE
M20X10.5
8-98009-333-0
01
1
1508-
●
●
485
GASKET; SENSOR
ID=14.2 OD=18.8
8-97369-404-0
01
1
1508-
●
●
