0-12 — CYLINDER BLOCK (#165182) — 38 parça

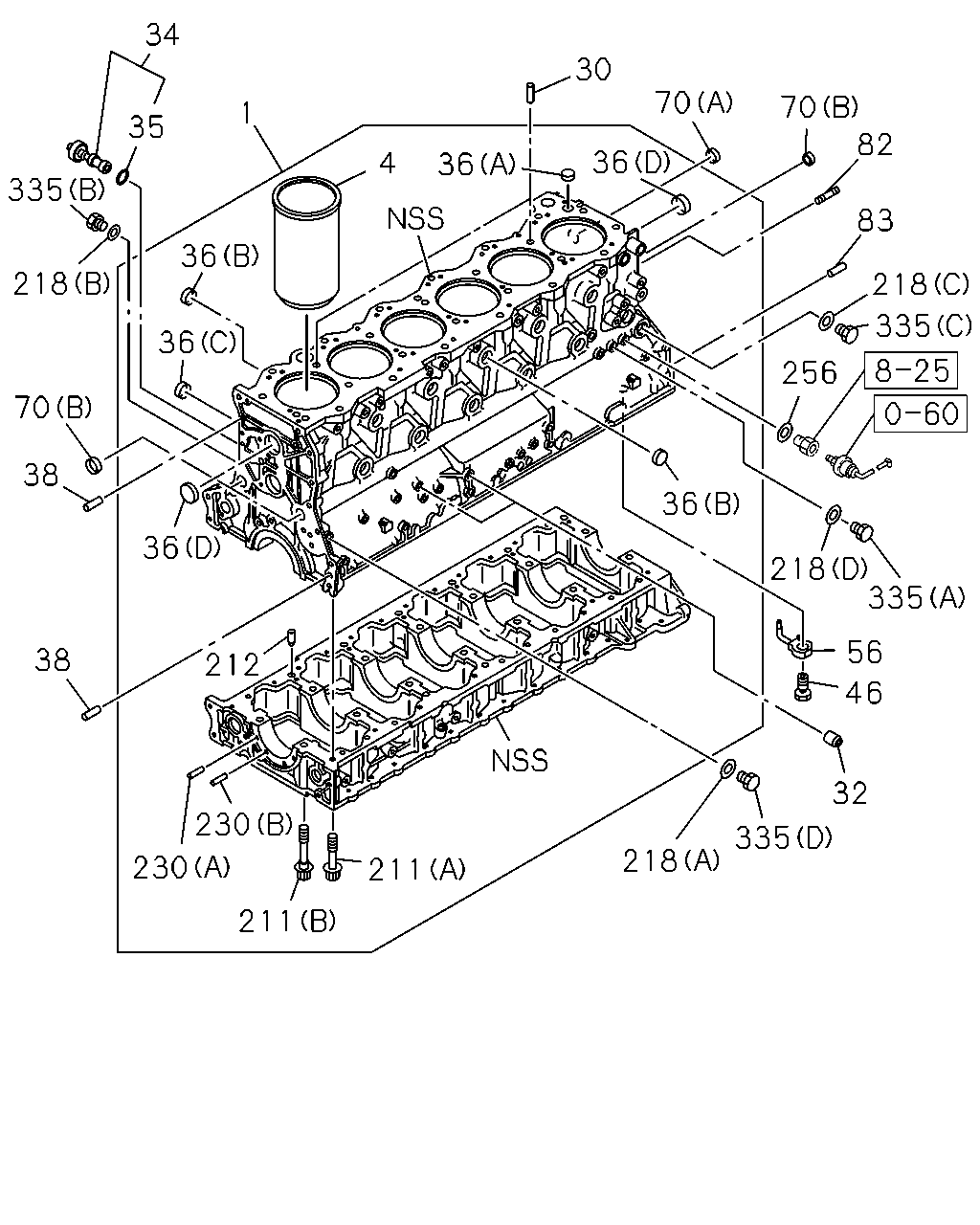

1 36 70 30 36 4 35 34 335 218 70 38 38 230 211 211 230 212 36 36 36 218 335 32 46 56 335 218 256 335 218 83 70 82 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98180-451-1	01	1	1508-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	1508-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	1508-	●	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	02	1	1508-	●	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	1508-	●	●
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	1508-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	1508-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	01	1	1508-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=40	1-09600-065-1	02	1	1508-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94241-637-0	13	1	1508-	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	8-97351-451-0	04	1	1508-	●	●
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	1508-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	1508-	●	●
56	JET; OIL,PISTON COOLING	1-13342-139-2	06	1	1508-	●	●
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	1508-	●	●
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	1508-	●	●
82	STUD; FLYWHEEL HSG M14X35 L=56	0-44011-435-0	01	1	1508-	●	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	1508-	●	●
211	BOLT; CRANKCASE (A) M12X114	1-09070-087-3	28	1	1508-	●	●
211	BOLT; CRANKCASE (B) M18X150	1-09070-151-0	14	1	1508-	●	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	1508-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1508-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22	1-09630-089-0	01	1	1508-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25	1-09630-141-0	01	1	1508-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	01	1	1508-	●	●
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	1508-	●	●
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	1508-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	02	1	1508-	●	●
335	PLUG; C/BL,SIDE (C) M22X12	1-09604-035-0	01	1	1508-	●	●
335	PLUG; C/BL,SIDE (D) M10X7	1-09604-094-0	01	1	1508-	●	●
335	PLUG; C/BL,SIDE (A) M14X9	8-98042-944-0	01	1	1508-	●	●
335	PLUG; C/BL,SIDE (B) M12X9	8-98047-054-0	01	1	1508-	●	●

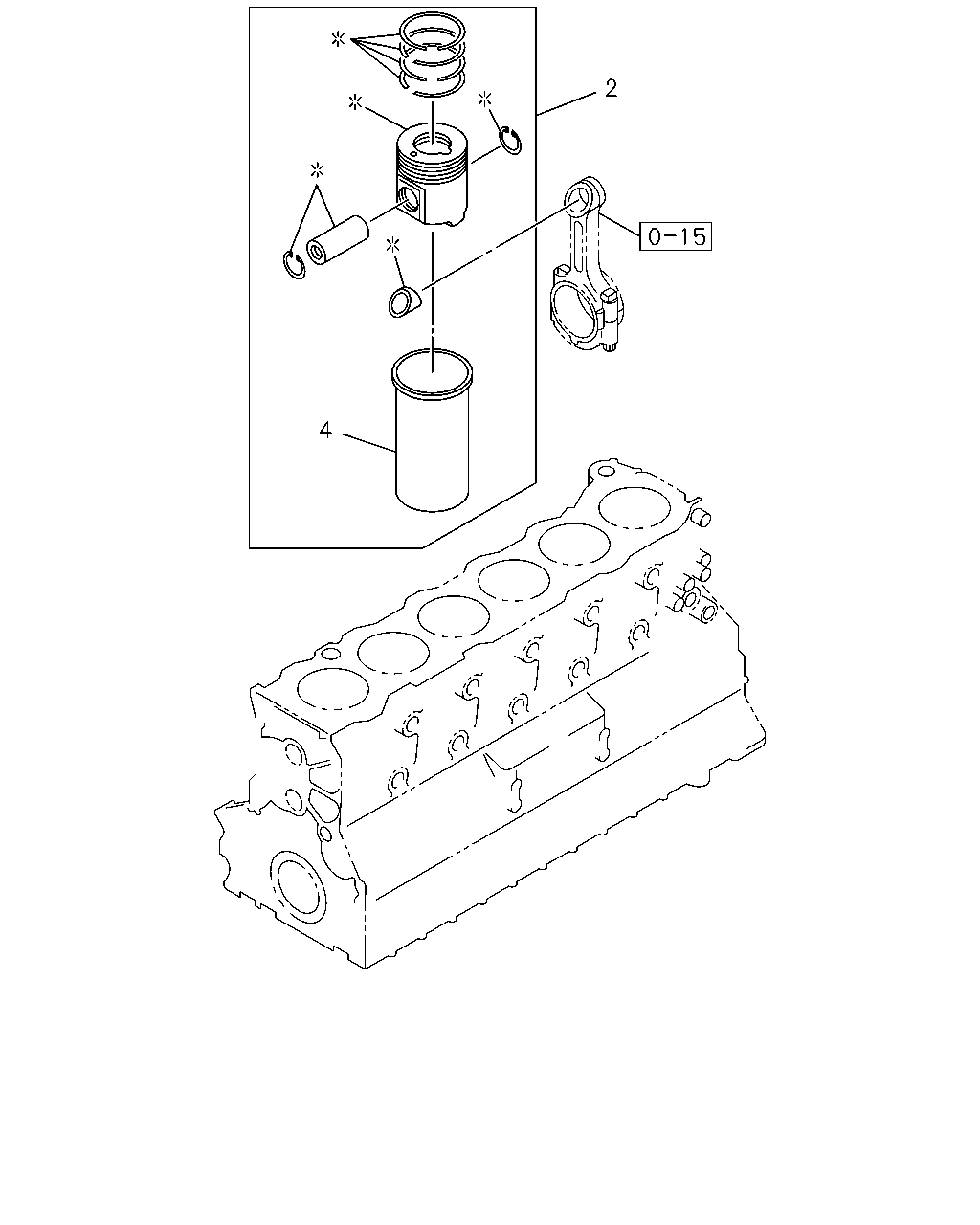

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87815-446-0	06	1	1508-	●
2	LINER SET; ENG CYL GRADE=3X	1-87815-447-0	06	1	1508-	●
2	LINER SET; ENG CYL GRADE=1X	1-87815-448-0	06	1	1508-		●
2	LINER SET; ENG CYL GRADE=3X	1-87815-449-0	06	1	1508-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	1508-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	1508-	●	●
