8-60 — HEATER UNIT; FRONT (#165170) — 38 parça

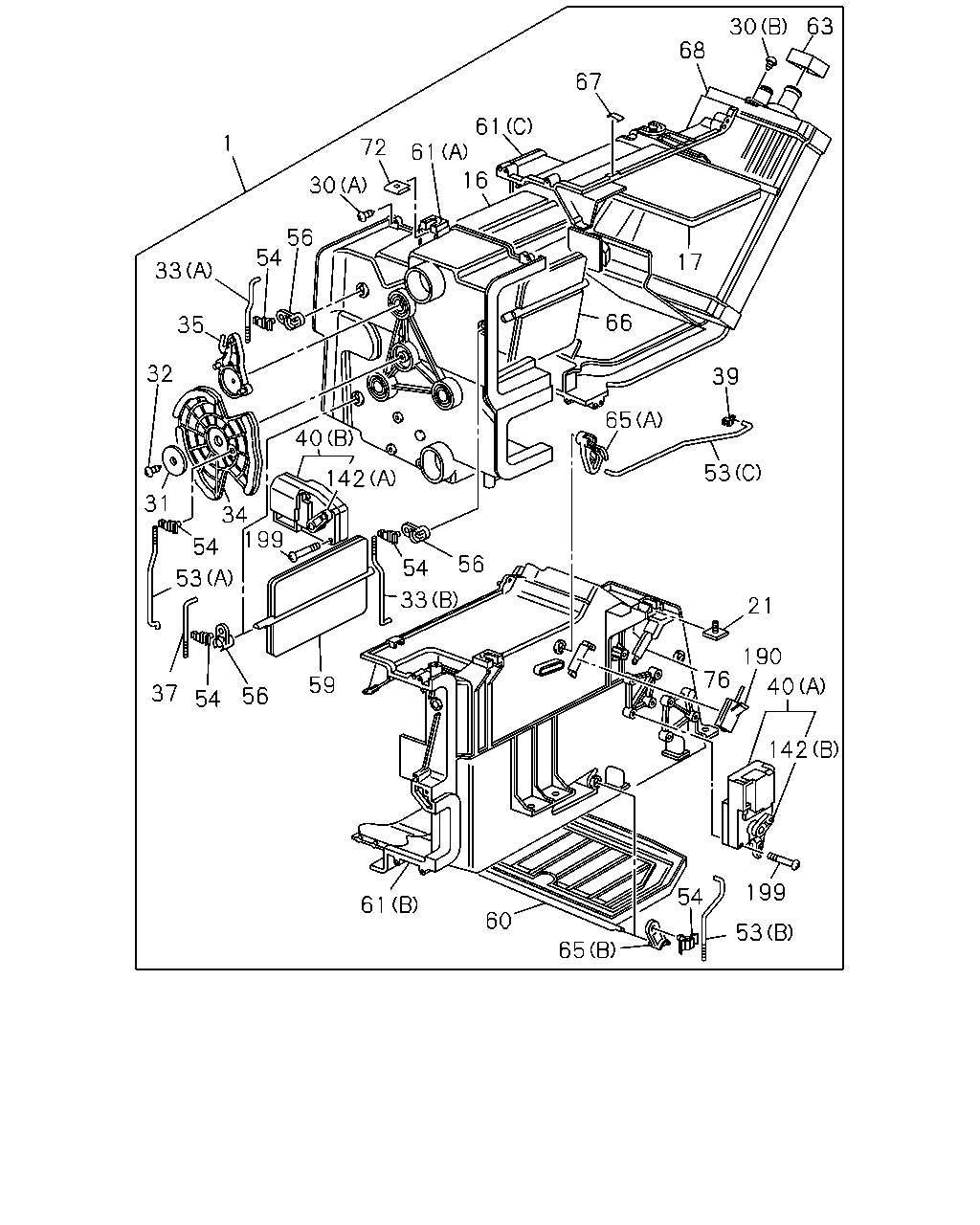

çizim 488609
72 61 61 67 68 30 63 16 33 54 56 35 32 31 34 54 53 37 54 56 59 54 33 56 61 60 76 65 54 53 199 142 40 190 21 53 65 39 66 17 199 142 40 30 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-98238-482-0 01 1 1508-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1508-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1508-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1508-
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1508-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1508-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1508-
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1508-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1508-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1508-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1508-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1508-
37 ROD; LEVER 1-83579-620-1 01 1 1508-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1508-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 1508-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1508-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1508-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1508-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1508-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1508-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1508-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1508-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1508-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1508-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1508-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1508-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1508-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1508-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1508-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 1508-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1508-
68 CORE; HTR UNIT 8-98238-475-0 01 1 1508-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1508-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 1508-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1508-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1508-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 1508-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1508-
