Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#165159) — 328 parça

1 1 224 1 1 178 178 178 178 178 178 178 530 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=29 OD=39 L=40	1-09337-013-0	02	1	1508-
1	SLEEVE; RUBBER (D) ID=38.1 OD=48.1 L=25	1-09337-052-0	02	1	1508-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	1508-
1	SLEEVE; RUBBER (B) ID=18 OD=22 L=77	8-98248-561-0	01	1	1508-
1	SLEEVE; RUBBER GENERATOR NIKKO 24V-60A 1.5KW(SC8) (D) ID=38.1 OD=48.1 L=25	1-09337-052-0	01	1	1508-
178	GROMMET; HARNESS (A) ID=39 OD=45 T=13	1-09332-076-0	02	1	1508-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-126-0	02	1	1508-
178	GROMMET; HARNESS (E)	1-82698-551-0	01	1	1508-
178	GROMMET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (F) ID=28 OD=35 T=25	1-09332-011-1	02	1	1508-
178	GROMMET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (C) ID=39 OD=45 T=19	1-09332-077-0	01	1	1508-
178	GROMMET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (G) ID=24 OD=30 T=22	1-09332-104-0	01	1	1508-
178	GROMMET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (D) ID=24 OD=30 T=17	9-09956-092-1	01	1	1508-
178	GROMMET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (H) ID=28 OD=35 T=17	9-09956-256-2	03	1	1508-
224	SLEEVE; RUBBER,HARNESS ID=32 OD=36 L=50	1-09337-023-0	01	1	1508-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1508-
530	SEAL; HARNESS 100X40	1-72498-022-1	02	1	1508-
530	SEAL; HARNESS OD=25 BLACK	1-76798-019-0	01	1	1508-
530	SEAL; HARNESS LOW ROOF<6XQ> 100X40	1-72498-022-1	01	1	1508-

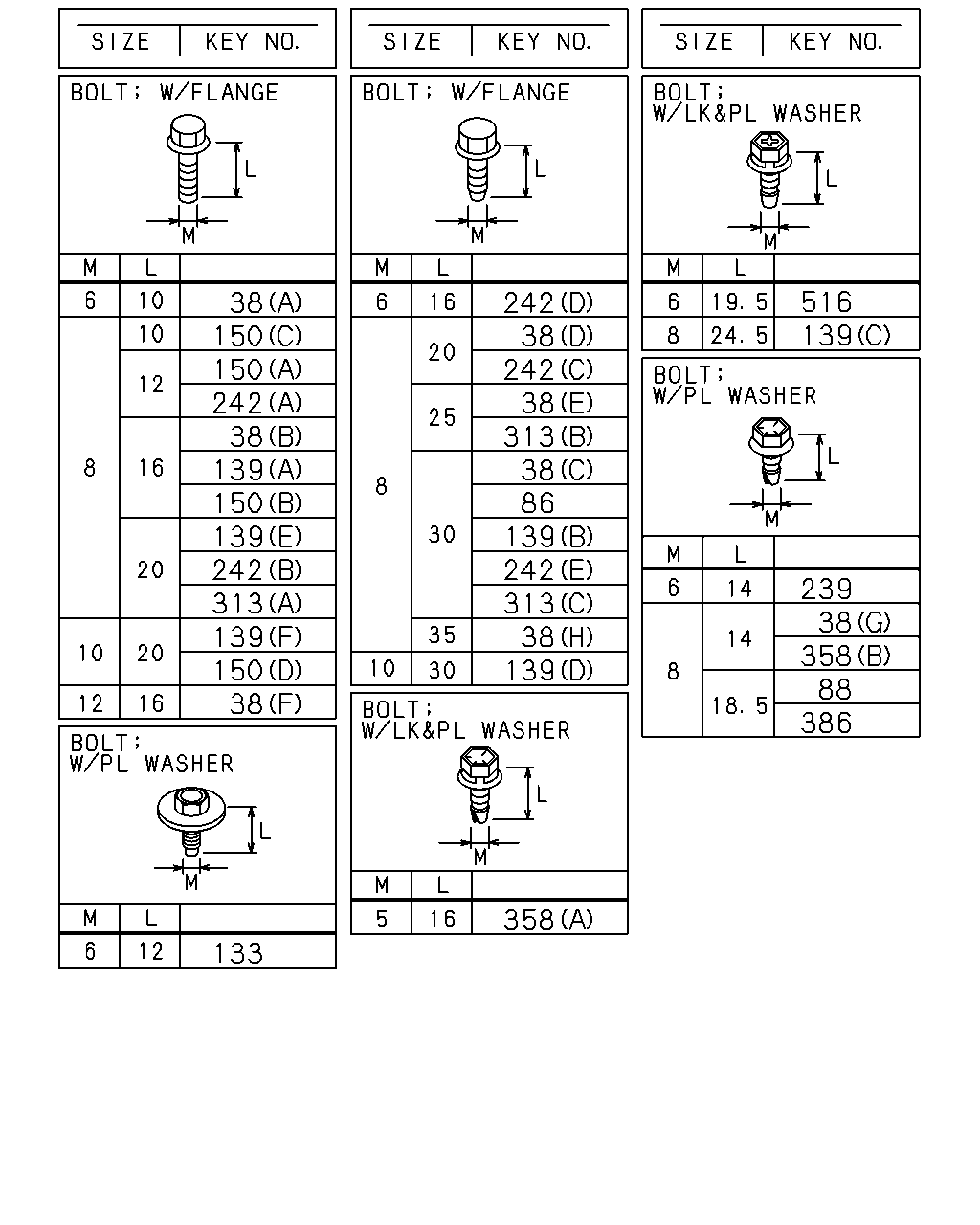

423 82 119 294 219 515 294 515 340 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	1508-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	05	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1508-
294	NUT GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) M8 FLANGE	0-91180-108-0	04	1	1508-
294	NUT HALOGEN HEADLAMPS<TT5> (B) M6 FLANGE	0-91180-106-0	02	1	1508-
340	NUT; HARNESS CAB TO FRAME GENERATOR NIKKO 24V-60A 1.5KW(SC8) M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1508-
423	WASHER; HARNESS,EARTH GENERATOR NIKKO 24V-60A 1.5KW(SC8) ID=8.4	1-09503-264-0	01	1	1508-
423	WASHER; HARNESS,EARTH GENERATOR NIKKO 24V-60A 1.5KW(SC8) ID=8.4	1-09503-264-0	03	1	1508-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1508-
515	NUT; BRKT GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) M8 FLANGE	0-91180-108-0	02	1	1508-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1508-

335 342 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1508-
342	BRACKET; HARNESS CAB MTG (B)	1-82698-588-0	02	1	1508-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1508-
375	BRACKET; AC GEN HARNESS CLIP GENERATOR NIKKO 24V-60A 1.5KW(SC8)	1-82699-182-0	01	1	1508-

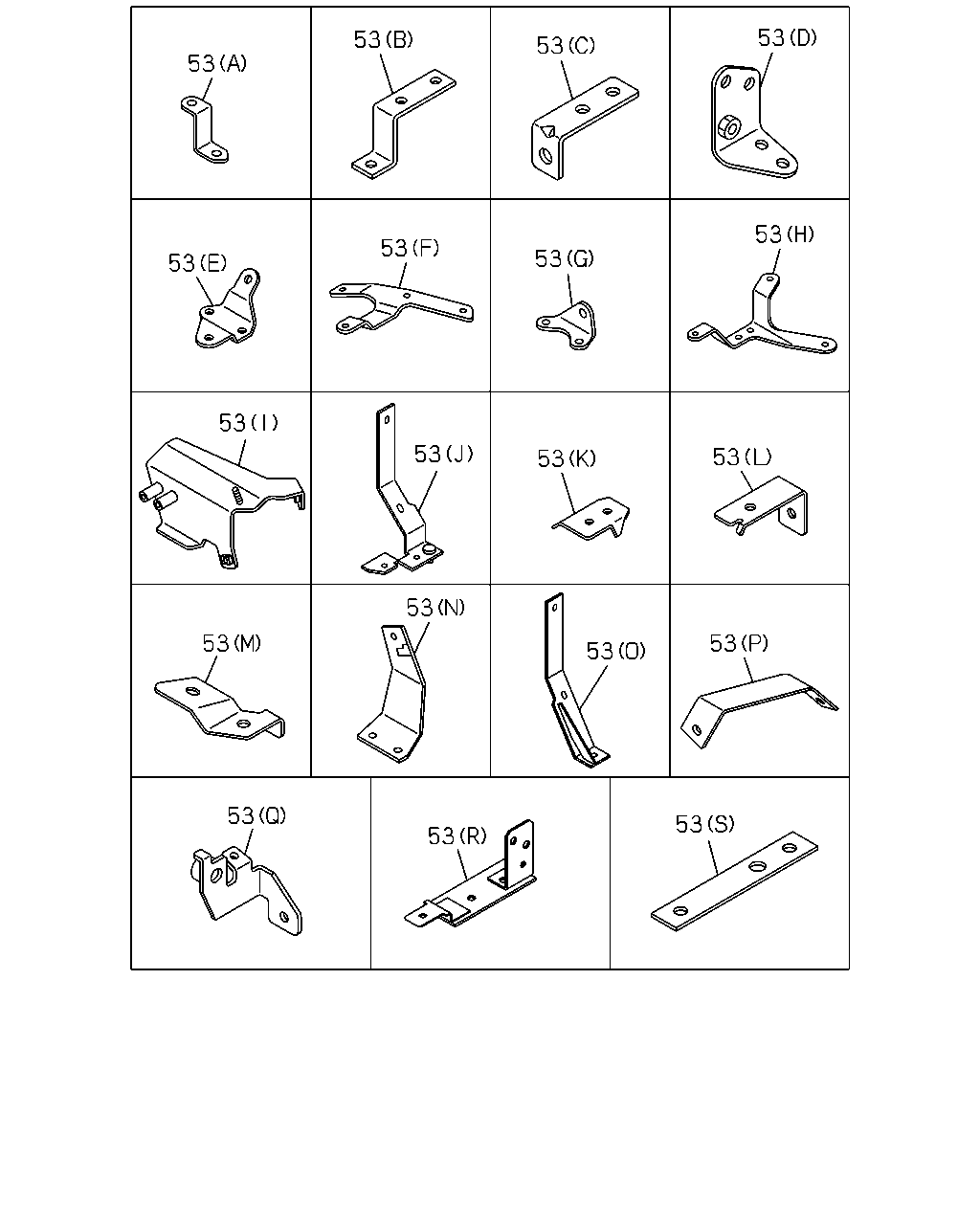

53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (S) L=130	1-47478-959-0	02	1	1508-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	1508-
53	BRACKET; HARNESS (K)	8-97625-412-0	02	1	1508-
53	BRACKET; HARNESS (L)	8-97625-794-0	01	1	1508-
53	BRACKET; HARNESS (M)	8-97630-437-0	01	1	1508-
53	BRACKET; HARNESS (R)	8-97638-190-0	01	1	1508-
53	BRACKET; HARNESS (A)	8-97640-913-0	02	1	1508-
53	BRACKET; HARNESS (C)	8-98021-694-1	01	1	1508-
53	BRACKET; HARNESS (E)	8-98122-986-0	01	1	1508-
53	BRACKET; HARNESS (Q)	8-98194-068-0	01	1	1508-
53	BRACKET; HARNESS (F)	8-98209-856-1	01	1	1508-
53	BRACKET; HARNESS (G)	8-98209-858-1	01	1	1508-
53	BRACKET; HARNESS (H)	8-98218-540-0	01	1	1508-
53	BRACKET; HARNESS (I)	8-98247-268-1	01	1	1508-
53	BRACKET; HARNESS (O)	8-98285-518-1	01	1	1508-
53	BRACKET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (P)	1-47479-537-0	05	1	1508-
53	BRACKET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B)	8-98124-778-0	01	1	1508-
53	BRACKET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (J)	8-98285-517-0	01	1	1508-
53	BRACKET; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (N)	8-98285-519-0	01	1	1508-

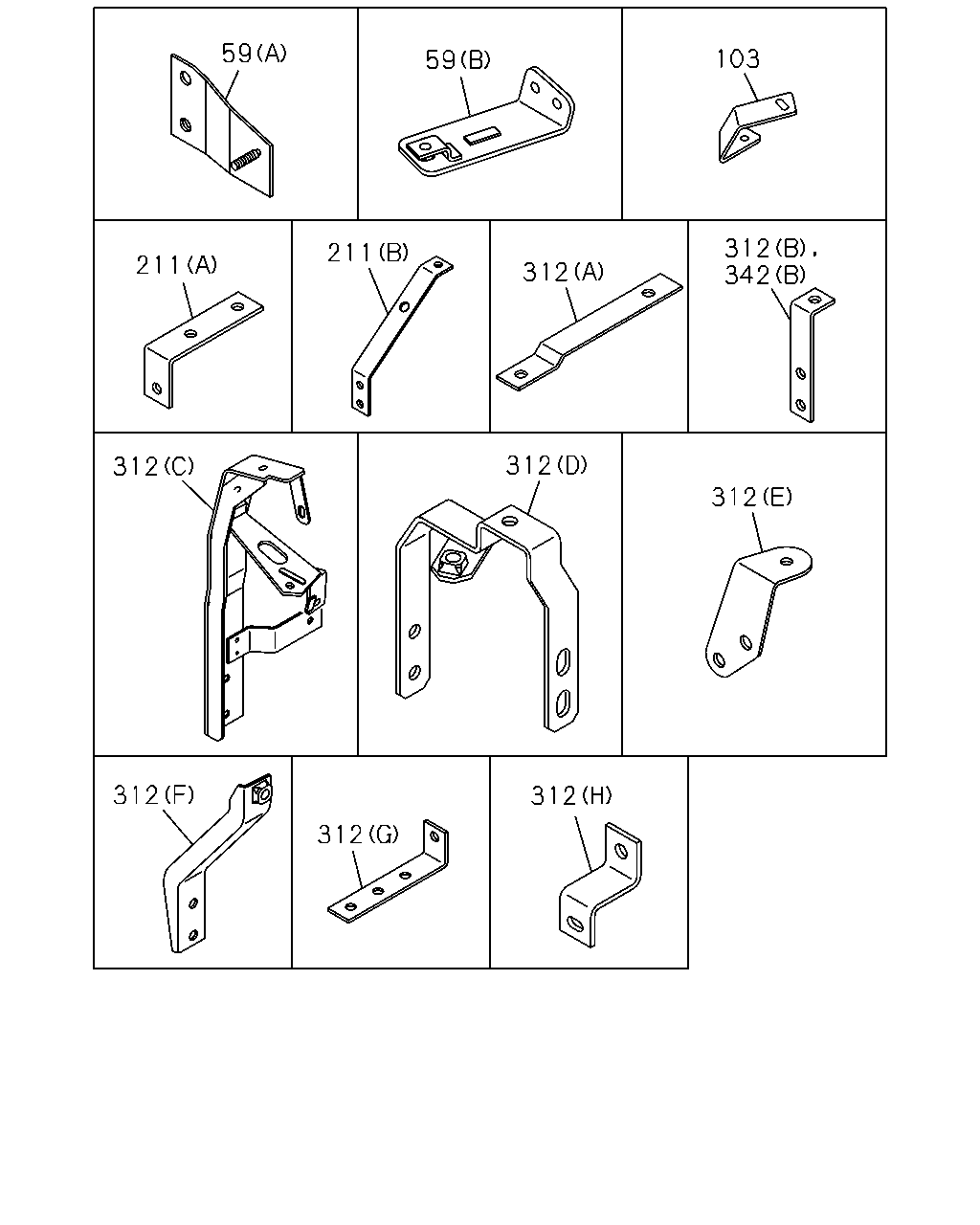

59 59 103 211 211 312 312 342 312 312 312 312 312 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	BRACKET; FRAME HARNESS (B)	8-97639-069-0	01	1	1508-
59	BRACKET; FRAME HARNESS (A)	8-98061-135-1	01	1	1508-
103	BRACKET; HD LAMP HARNESS HALOGEN HEADLAMPS<TT5>	8-98211-939-1	01	1	1508-
103	BRACKET; HD LAMP HARNESS HALOGEN HEADLAMPS<TT5>	8-98211-940-1	01	1	1508-
211	BRACKET; AXLE HARNESS (B)	1-47479-430-0	02	1	1508-
211	BRACKET; AXLE HARNESS (A)	1-82698-588-0	01	1	1508-
312	BRACKET; CLIP HARNESS (B)	1-82698-588-0	01	1	1508-
312	BRACKET; CLIP HARNESS (E)	8-98285-567-0	01	1	1508-
312	BRACKET; CLIP HARNESS (C)	8-98316-678-0	01	1	1508-1511
312	BRACKET; CLIP HARNESS (C)	8-98325-978-0	01	1	1512-
312	BRACKET; CLIP HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (G) L=120 H=35	1-82698-088-0	01	1	1508-
312	BRACKET; CLIP HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (F)	8-97636-868-1	01	1	1508-
312	BRACKET; CLIP HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A)	8-98035-927-1	01	1	1508-
312	BRACKET; CLIP HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (D)	8-98285-566-1	01	1	1508-
312	BRACKET; CLIP HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (H)	8-98319-720-0	01	1	1508-
342	BRACKET; HARNESS CAB MTG (B)	1-82698-588-0	02	1	1508-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1508-

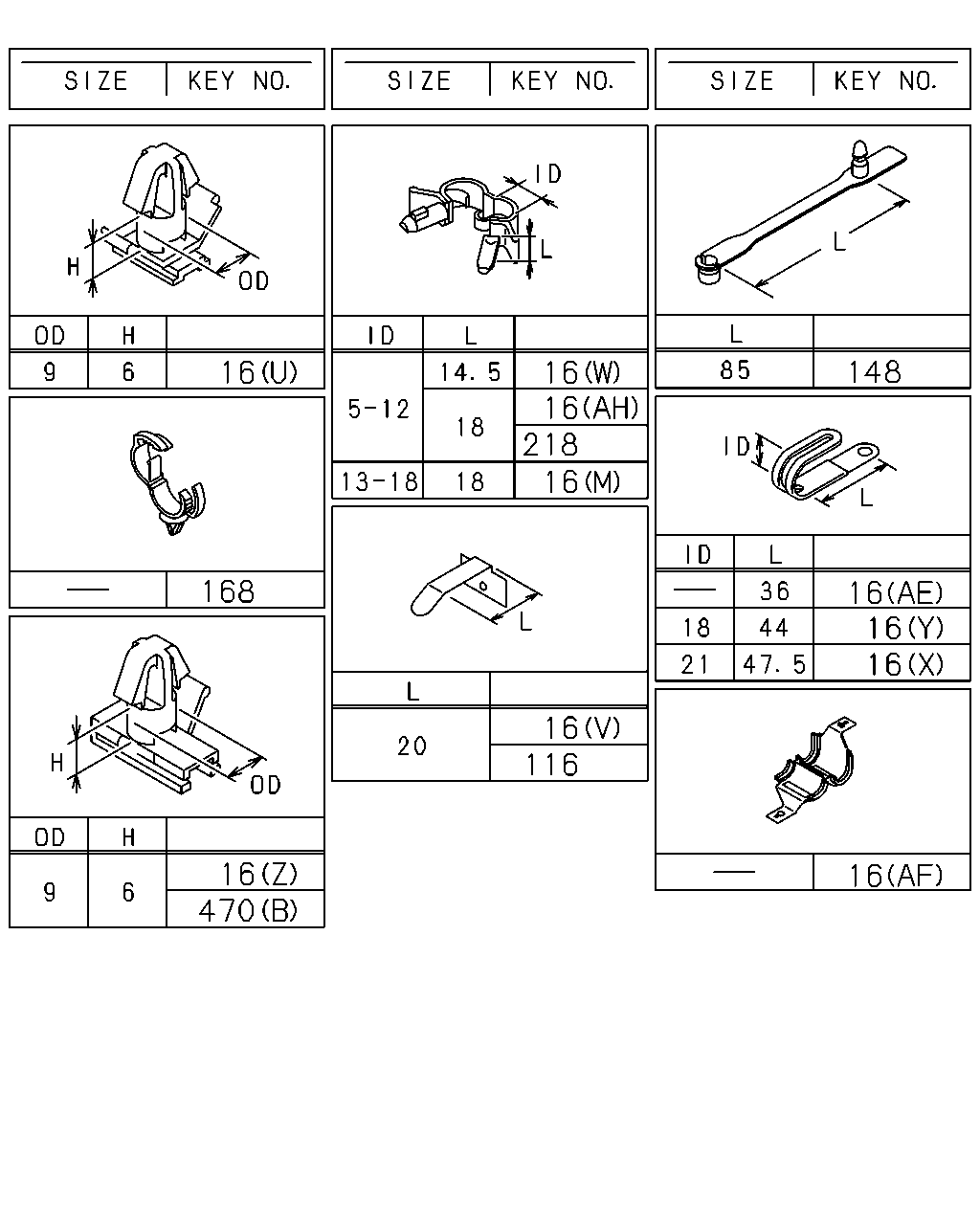

14 51 102 104 206 14 16 121 142 171 208 305 369 380 470 14 194 14 16 48 194 380 16 51 142 208 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (D) L=350	1-09707-183-0	02	1	1512-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1508-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	02	1	1508-1511
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	02	1	1508-1511
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	02	1	1512-
14	CLIP; BAND,HARNESS (C) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	01	1	1508-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1508-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1508-
16	CLIP; HARNESS (AD) ID=16 L=40	0-95235-576-0	01	1	1508-
16	CLIP; HARNESS (H) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	02	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1508-
16	CLIP; HARNESS (O) ID=26 L=27	1-09701-006-0	02	1	1508-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1508-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1508-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1508-
16	CLIP; HARNESS (AG) ID=18 L=38 H=23	1-09701-147-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AH) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (AH) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1508-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	03	1	1508-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1508-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1508-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	04	1	1508-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) ID=22 L=32	1-09700-126-1	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (L) ID=20 L=50	1-09700-679-1	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (AF) W/SPONGE RUBBER	1-09709-150-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (AH) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (M) ID=13-18 L=18	1-09709-291-0	02	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (M) ID=13-18 L=18	1-09709-291-0	03	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (P) ID=20 L=50	9-09917-430-0	03	1	1508-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE	1-09987-246-2	04	1	1508-
48	CLIP; FRAME HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) ID=39 H=28 L=32	1-09701-263-0	04	1	1508-
48	CLIP; FRAME HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1508-
48	CLIP; FRAME HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (C) L=350	1-09707-183-0	07	1	1508-
51	CLIP; COOLER CMPR GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) L=180	1-09707-162-1	01	1	1508-
51	CLIP; COOLER CMPR GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) L=140	5-09707-031-1	01	1	1508-
102	CLIP; BAND L=140	5-09707-031-1	01	1	1508-
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> L=140	5-09707-031-1	04	1	1508-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	1508-
142	CLIP; HARNESS,ENG (C) L=251	8-97619-917-0	03	1	1508-
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1508-
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	10	1	1508-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	02	1	1508-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1508-
194	CLIP; BAND (B) L=350	1-09707-183-0	03	1	1508-
194	CLIP; BAND GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) L=350	1-09707-183-0	01	1	1508-
206	CLIP; FUEL TANK HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) L=250	5-09707-030-1	02	1	1508-
208	CLIP; HARNESS,MAG VLV (A) L=250	5-09707-030-1	02	1	1508-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180	1-09707-162-1	01	1	1508-
305	CLIP; ENG HARNESS L=250	5-09707-030-1	04	1	1508-
369	CLIP; BAND EDS HARNESS L=140	5-09707-031-1	01	1	1508-
380	CLIP; EARTH HARNESS (A) L=350	1-09707-183-0	01	1	1508-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	03	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP GENERATOR NIKKO 24V-60A 1.5KW(SC8) (C) ID=11 L=41	1-09700-403-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) L=250	5-09707-030-1	01	1	1508-

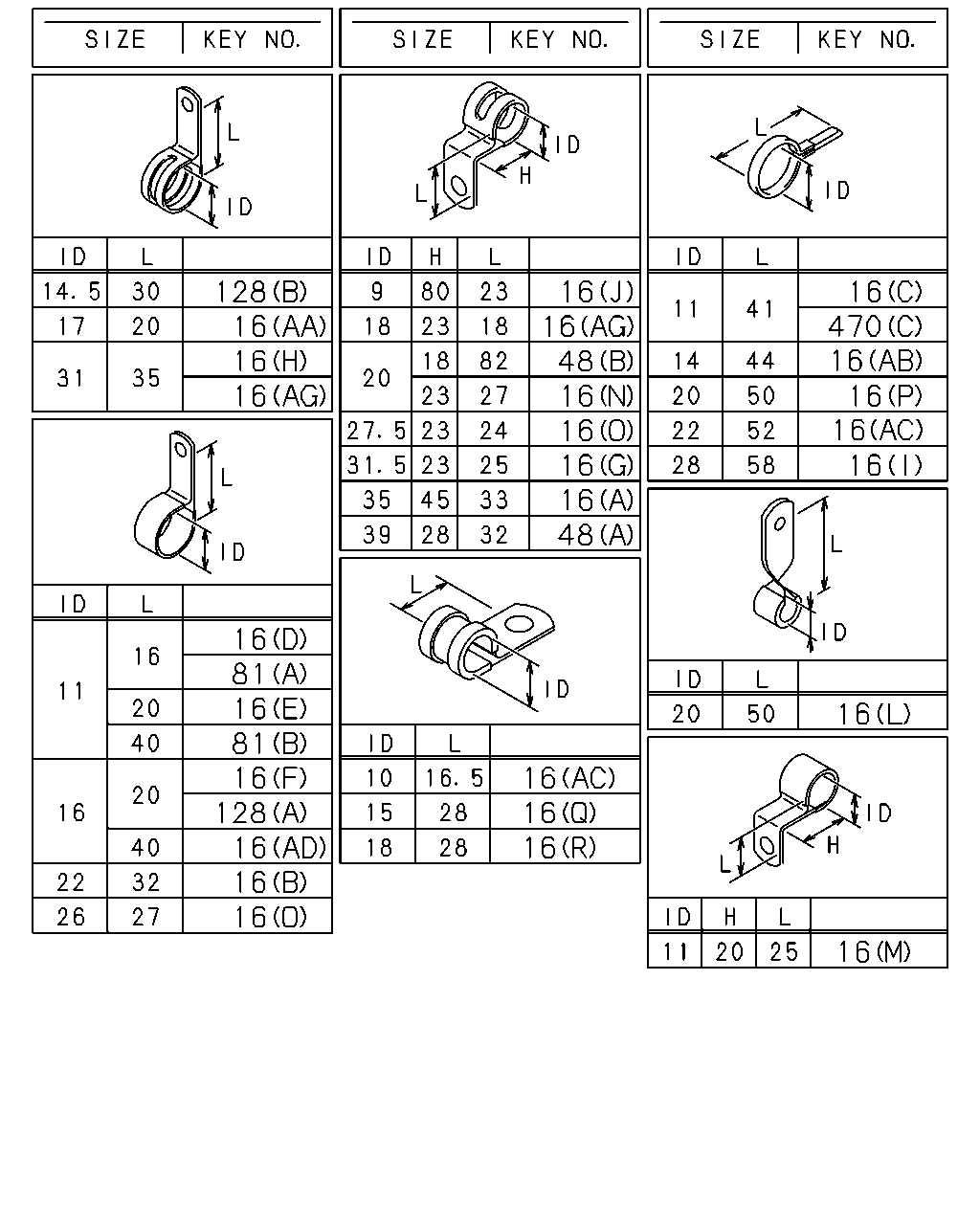

128 16 16 16 16 81 16 81 16 128 16 16 16 16 16 48 16 16 16 16 48 16 16 16 16 470 16 16 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	01	1	1508-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1508-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1508-
16	CLIP; HARNESS (AD) ID=16 L=40	0-95235-576-0	01	1	1508-
16	CLIP; HARNESS (H) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	02	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1508-
16	CLIP; HARNESS (O) ID=26 L=27	1-09701-006-0	02	1	1508-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1508-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1508-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1508-
16	CLIP; HARNESS (AG) ID=18 L=38 H=23	1-09701-147-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AH) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (AH) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1508-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	03	1	1508-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1508-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1508-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	04	1	1508-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) ID=22 L=32	1-09700-126-1	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (L) ID=20 L=50	1-09700-679-1	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (AF) W/SPONGE RUBBER	1-09709-150-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (AH) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (M) ID=13-18 L=18	1-09709-291-0	02	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (M) ID=13-18 L=18	1-09709-291-0	03	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (P) ID=20 L=50	9-09917-430-0	03	1	1508-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE	1-09987-246-2	04	1	1508-
48	CLIP; FRAME HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) ID=39 H=28 L=32	1-09701-263-0	04	1	1508-
48	CLIP; FRAME HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1508-
48	CLIP; FRAME HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (C) L=350	1-09707-183-0	07	1	1508-
81	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	01	1	1508-
81	CLIP; HARNESS (B) ID=11 L=40	0-95235-075-0	01	1	1508-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1508-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP GENERATOR NIKKO 24V-60A 1.5KW(SC8) (C) ID=11 L=41	1-09700-403-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) L=250	5-09707-030-1	01	1	1508-

16 168 16 470 16 16 218 16 16 116 148 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	01	1	1508-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1508-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1508-
16	CLIP; HARNESS (AD) ID=16 L=40	0-95235-576-0	01	1	1508-
16	CLIP; HARNESS (H) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	02	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1508-
16	CLIP; HARNESS (O) ID=26 L=27	1-09701-006-0	02	1	1508-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1508-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1508-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1508-
16	CLIP; HARNESS (AG) ID=18 L=38 H=23	1-09701-147-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AH) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (AH) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1508-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	03	1	1508-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1508-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1508-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	04	1	1508-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) ID=22 L=32	1-09700-126-1	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (L) ID=20 L=50	1-09700-679-1	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (AF) W/SPONGE RUBBER	1-09709-150-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (AH) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (M) ID=13-18 L=18	1-09709-291-0	02	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (M) ID=13-18 L=18	1-09709-291-0	03	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1508-
16	CLIP; HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (P) ID=20 L=50	9-09917-430-0	03	1	1508-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE	1-09987-246-2	04	1	1508-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	08	1	1508-
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	1508-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1508-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	05	1	1508-
218	CLIP; BAND,RR COMB GENERATOR NIKKO 24V-60A 1.5KW(SC8) ID=5-12 L=18	1-09709-287-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP GENERATOR NIKKO 24V-60A 1.5KW(SC8) (C) ID=11 L=41	1-09700-403-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) L=250	5-09707-030-1	01	1	1508-

38 150 150 242 139 38 150 242 139 313 150 38 139 242 242 38 38 38 313 86 242 139 313 139 38 516 139 239 358 88 38 386 358 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (B) M8X16 FLANGE	0-28050-816-0	02	1	1508-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1508-
38	BOLT; CLIP,HARNESS (C) M8X30 FLANGE	0-28650-830-0	02	1	1508-
38	BOLT; CLIP,HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) M6X10 FLANGE	0-28050-610-0	01	1	1508-
38	BOLT; CLIP,HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (C) M8X30 FLANGE	0-28650-830-0	04	1	1508-
38	BOLT; CLIP,HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (H) M8X35 FLANGE	0-28650-835-0	01	1	1508-
38	BOLT; CLIP,HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (G) M8X14 W/PL WASHER	8-98164-837-0	03	1	1508-
86	BOLT; CLIP BRKT GENERATOR NIKKO 24V-60A 1.5KW(SC8) M8X30 FLANGE	0-28650-830-0	01	1	1508-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1508-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1508-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	05	1	1508-
139	BOLT; BRKT (E) M8X20 FLANGE	0-28050-820-0	02	1	1508-
139	BOLT; BRKT (F) M10X20 FLANGE	0-28151-020-0	02	1	1508-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1508-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1508-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	1508-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1508-
139	BOLT; BRKT GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) M8X30 FLANGE	0-28650-830-0	02	1	1508-
150	BOLT; CLIP (C) M8X10 FLANGE	0-28050-810-0	01	1	1508-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	04	1	1508-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	10	1	1508-
150	BOLT; CLIP (D) M10X20 FLANGE	0-28151-020-0	01	1	1508-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1508-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1508-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1508-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	1508-
242	BOLT; BRKT,HARNESS (E) M8X30 FLANGE	0-28650-830-0	02	1	1508-
242	BOLT; BRKT,HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) M8X12 FLANGE	0-28050-812-0	01	1	1508-
242	BOLT; BRKT,HARNESS HALOGEN HEADLAMPS<TT5> (D) M6X16 FLANGE	0-28650-616-0	02	1	1508-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1508-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1508-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1508-
313	BOLT; BRKT GENERATOR NIKKO 24V-60A 1.5KW(SC8) (C) M8X30 FLANGE	0-28650-830-0	05	1	1508-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1508-
358	BOLT; EARTH GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) M8X14 W/PL WASHER	8-98164-837-0	01	1	1508-
386	BOLT; GRAND HARNESS GENERATOR NIKKO 24V-60A 1.5KW(SC8) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1508-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
