◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11679 - CYZ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#165154) — 39 parça

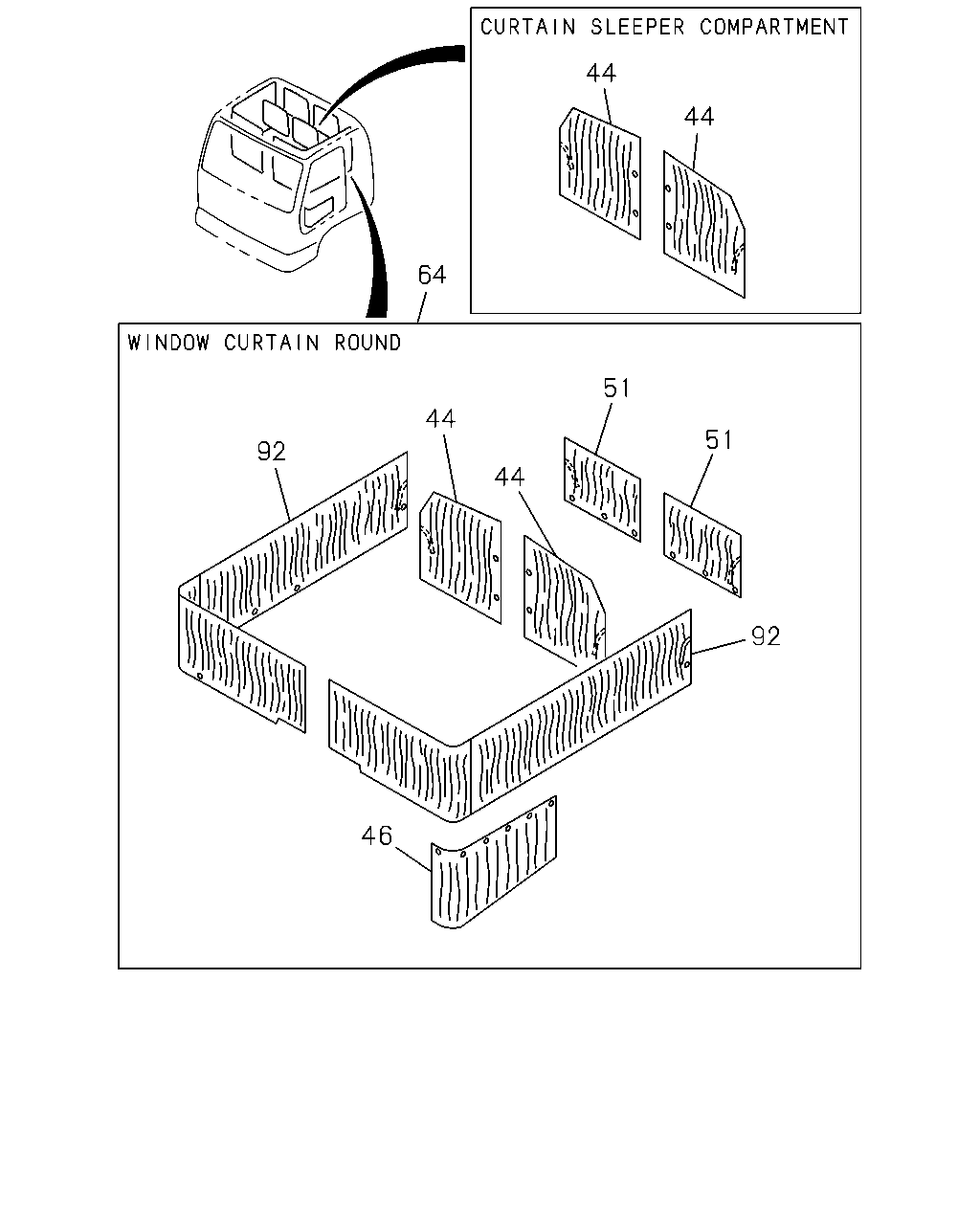

çizim 488261
44 44 64 44 44 92 51 51 92 46
BalonParca AdiParca NoAdetTipApplied Date
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> 		1-73907-505-1 01 1 1508-
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> 		1-73907-504-1 01 1 1508-
44 CURTAIN ASM; CABIN CENTER
LOW ROOF<6XQ> 		1-73907-481-1 01 1 1508-
44 CURTAIN ASM; CABIN CENTER
LOW ROOF<6XQ> 		1-73907-480-1 01 1 1508-
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-426-0 01 1 1508-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-483-1 01 1 1508-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-482-1 01 1 1508-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-578-1 01 1 1508-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-479-1 01 1 1508-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-485-1 01 1 1508-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-484-1 01 1 1508-

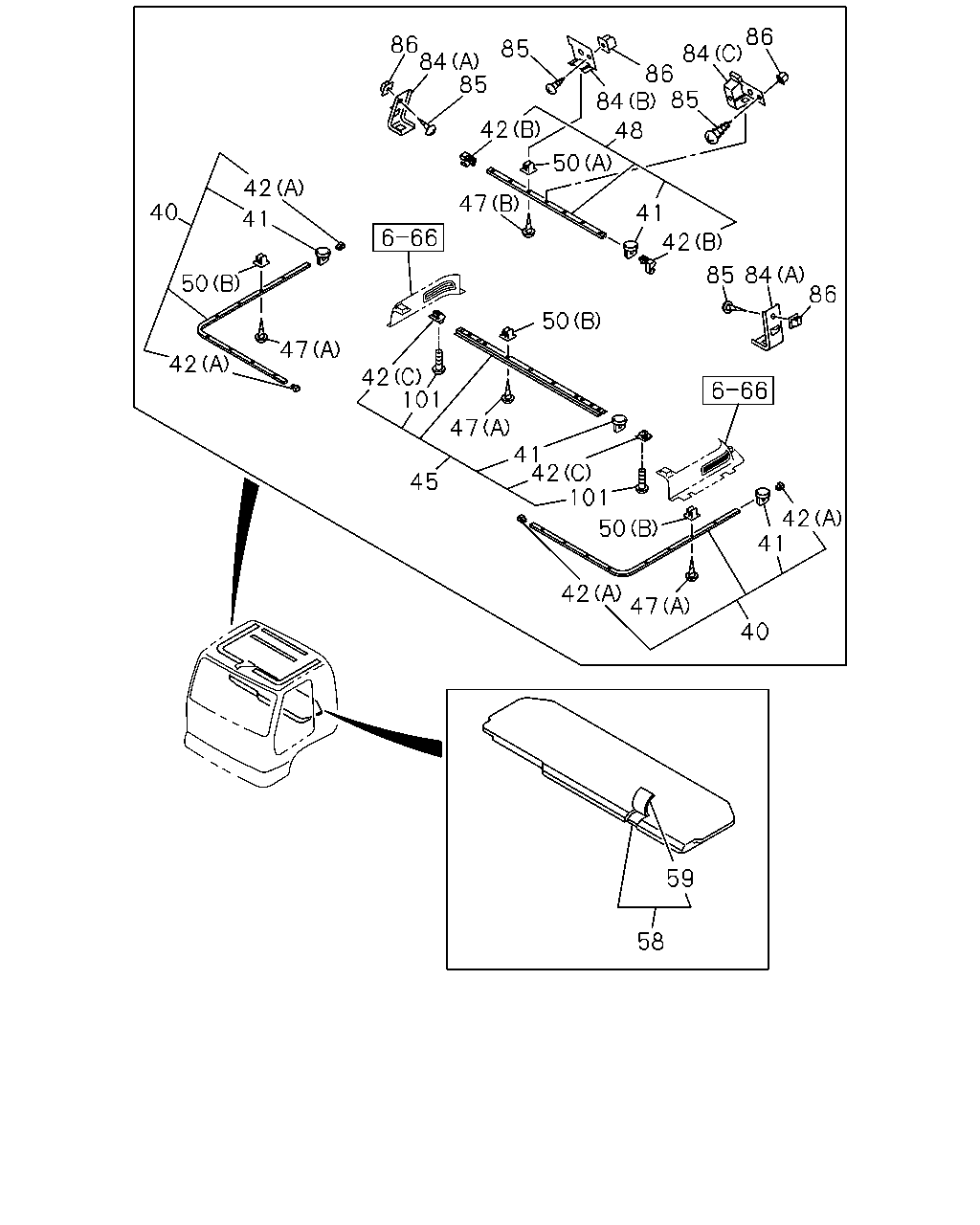

çizim 488737
58 59 40 41 42 50 101 42 47 42 41 47 45 101 42 47 42 50 40 41 42 86 85 84 85 42 47 50 42 41 50 48 84 86 84 86 85 85 84 86
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-536-1 01 1 1508-
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-535-1 01 1 1508-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1508-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1508-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 1508-
41 HOOK; CURTAIN RAIL
HIGH ROOF<S2F>,LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 1508-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73996-393-0 02 1 1508-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73996-399-0 01 1 1508-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 04 1 1508-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1508-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-657-0 02 1 1508-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> 		1-73907-592-2 01 1 1508-
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> 		1-73907-546-3 01 1 1508-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1508-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1508-
48 RAIL; CURTAIN,BACK
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73996-385-1 01 1 1508-
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1508-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1508-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1508-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 1508-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 1508-
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1508-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 1508-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 1508-
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1508-
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1508-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1508-
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 1508-
