Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11679 - CYZ RHD EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#165152) — 76 parça
◀

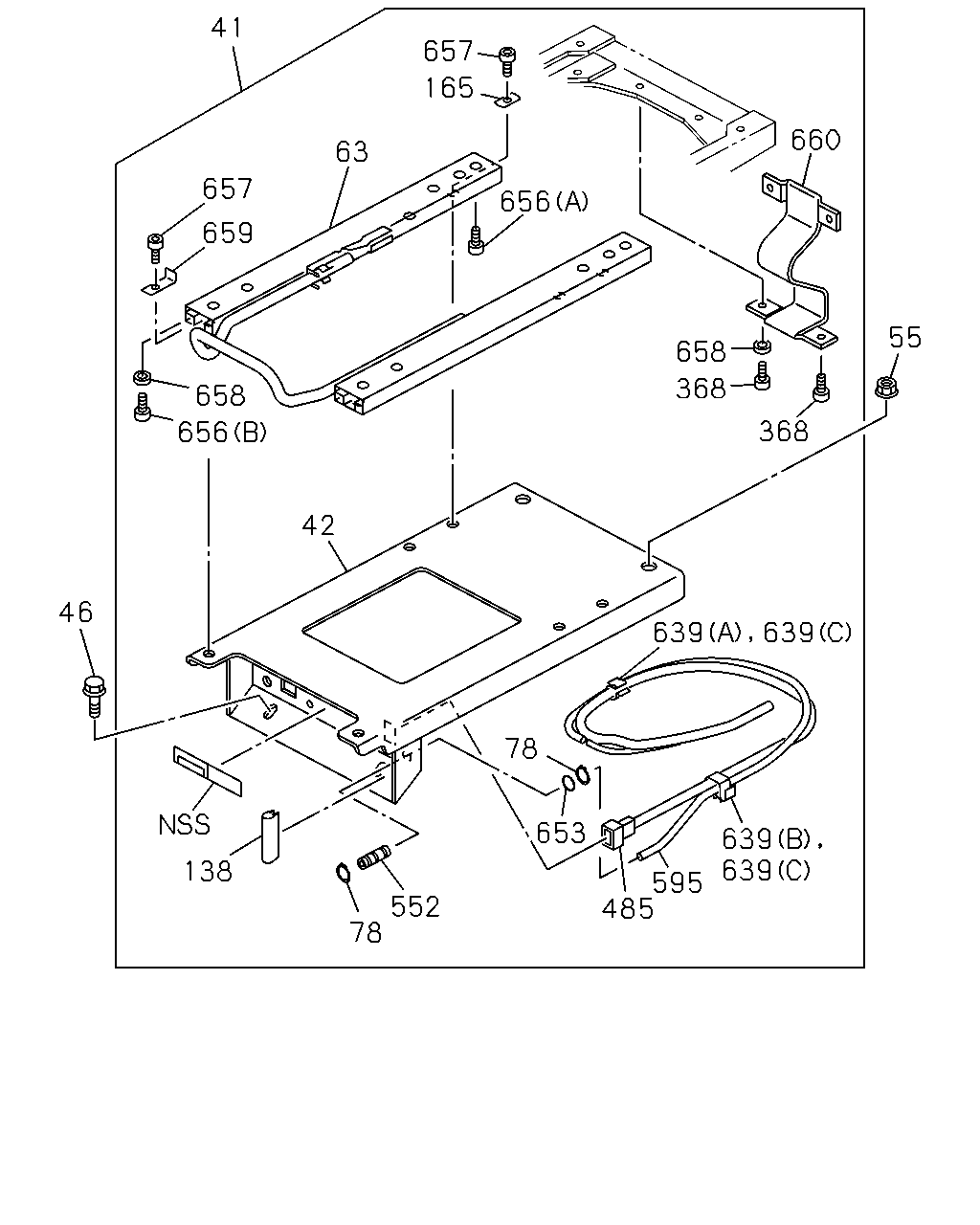

[750A] DRIVER NO.3 (23 parça)

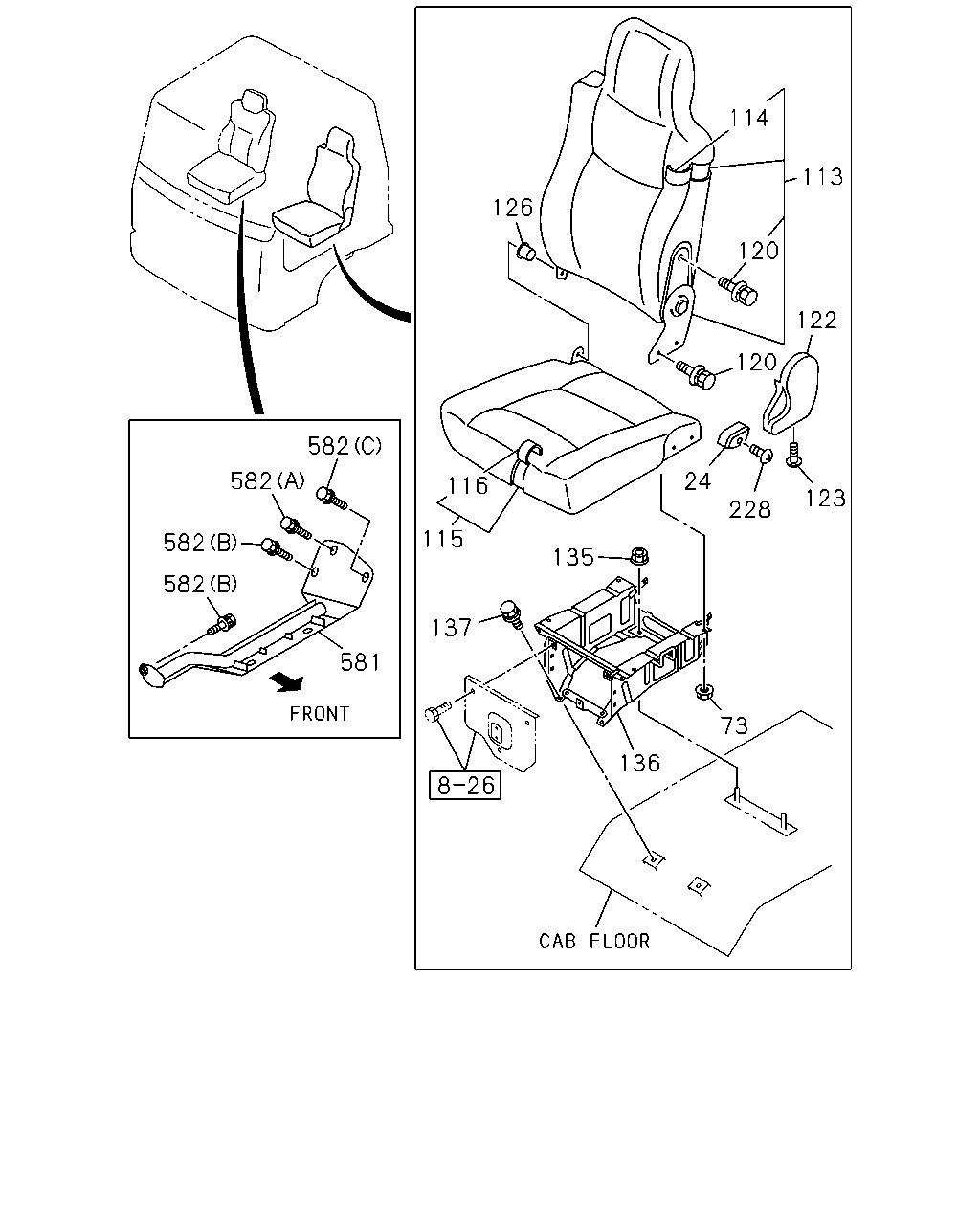

[750A] PASSENGER AND PIPE ASM (18 parça)

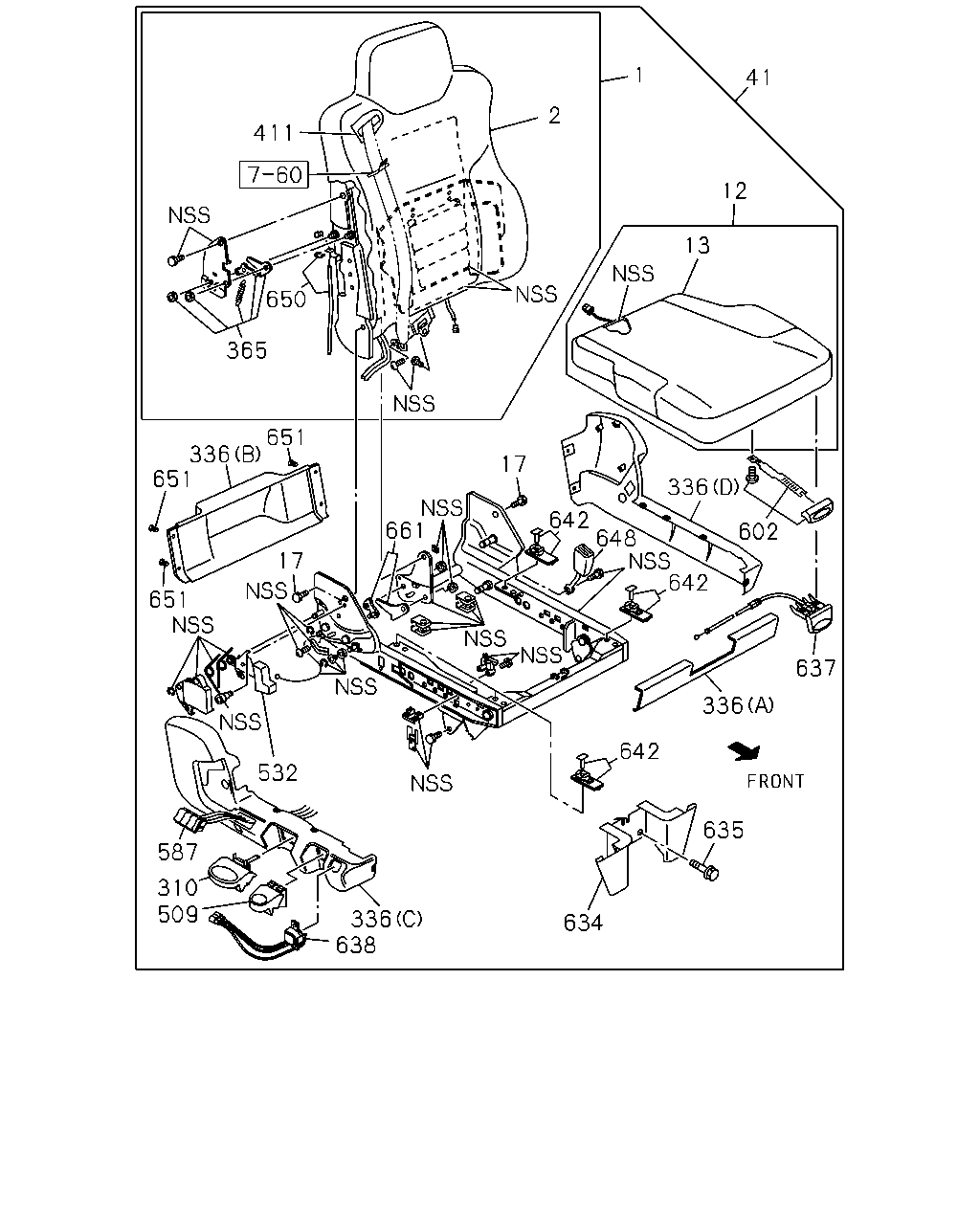

[750A] DRIVER NO.1 (27 parça)

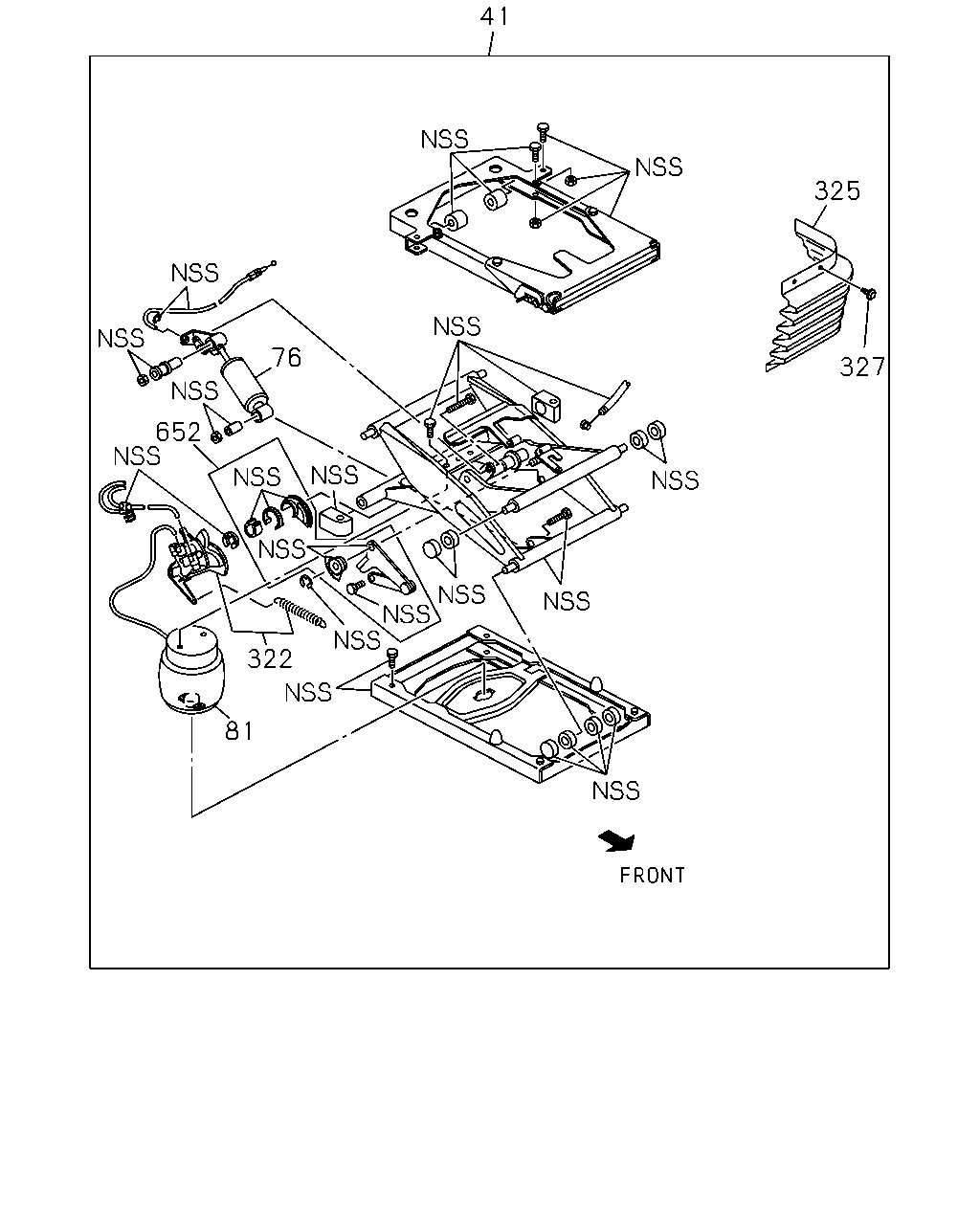

[750A] DRIVER NO.2 (8 parça)
▶
41
657
63
165
656
660
658
55
368
657
368
659
658
656
42
46
138
552
78
78
653
595
485
639
639
639
639
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
SEAT ASM; DRIVER
8-98195-067-1
01
1
1508-
42
STAND; DRIVER SEAT
8-98106-347-0
01
1
1508-
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
1508-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
1508-
63
ADJUSTER; SEAT SLIDE
8-98098-005-0
01
1
1508-
78
RING; SNAP
8-98101-900-0
02
1
1508-
138
PROTECTOR; SEAT STAND
8-98106-351-0
01
1
1508-
165
WASHER; PL
1-75590-086-0
04
1
1508-
368
BOLT; SEAT
8-98106-353-0
04
1
1508-
485
HARNESS; FRT SEAT
8-98106-360-0
01
1
1508-
552
CONNECTOR
8-98101-902-0
01
1
1508-1508
552
CONNECTOR
8-98308-101-0
01
1
1509-
595
TUBE; NYLON
8-98106-348-0
01
1
1508-
639
CLIP; SEAT
(A)
8-98106-349-0
01
1
1508-1508
639
CLIP; SEAT
(C)
8-98308-100-0
02
1
1509-
639
CLIP; SEAT
(B)
8-98106-350-0
01
1
1508-1508
653
GASKET
8-98101-901-0
01
1
1508-
656
BOLT; SLIDER TO SEAT
(A)
1-75590-085-0
04
1
1508-
656
BOLT; SLIDER TO SEAT
(B)
8-98106-354-0
02
1
1508-
657
BOLT; SLIDER TO STAND
1-75590-085-0
06
1
1508-
658
SPACER; BOLT
8-98106-355-0
02
1
1508-
659
STOPPER
8-98106-356-0
02
1
1508-
660
BELT; TETHER
8-98106-357-0
01
1
1508-
582
582
582
582
581
126
116
115
137
136
73
135
228
123
24
120
122
113
120
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
KNOB; RECLINING,FRT,SEAT
1-75418-067-0
01
1
1508-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
1508-
113
BACK ASM; SEAT
8-98054-773-0
01
1
1508-
114
COVER; TRIM,PASSENGER SEAT,BACK
8-98054-777-0
01
1
1508-
115
CUSHION ASM; PASSENGER SEAT
8-98054-770-0
01
1
1508-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
8-98054-775-0
01
1
1508-
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
02
1
1508-
122
COVER; ADJ,RECLINING
DARK GRAY
8-97859-018-0
01
1
1508-
123
SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER
0-74360-516-0
01
1
1508-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
1508-
135
NUT; SEAT STAND
M10 FLANGE
0-91180-110-0
02
1
1508-
136
STAND; PASSENGER SEAT
8-98242-298-0
01
1
1508-
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
1508-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
1508-
581
PIPE; SEAT
1-73907-605-2
01
1
1508-
582
BOLT; PIPE,SEAT
(B)
1-09980-619-1
02
1
1508-
582
BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
01
1
1508-
582
BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
1508-
41
12
1
13
2
411
650
365
651
336
651
17
651
17
661
642
648
336
602
642
637
336
642
532
587
310
509
336
638
634
635
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
8-98097-964-0
01
1
1508-
2
COVER; TRIM,FRT SEAT,BACK
8-98232-353-0
01
1
1508-
12
CUSHION; SEAT,FRT
8-98098-006-0
01
1
1508-
13
COVER; TRIM,FRT SEAT,CUSHION
8-98098-007-0
01
1
1508-
17
BOLT; RECLINING
8-98097-974-0
02
1
1508-
41
SEAT ASM; DRIVER
8-98195-067-1
01
1
1508-
310
LEVER ASM; HEIGHT ADJ DRIVER SEAT
8-98097-992-0
01
1
1508-
336
COVER; DRIVER SEAT
(D)
8-98097-978-0
01
1
1508-1508
336
COVER; DRIVER SEAT
(D)
8-98331-313-0
01
1
1509-
336
COVER; DRIVER SEAT
(C)
8-98097-984-0
01
1
1508-
336
COVER; DRIVER SEAT
(A)
8-98097-995-0
01
1
1508-
336
COVER; DRIVER SEAT
(B)
8-98097-996-0
01
1
1508-
365
LOCK ASM; SEAT
8-98097-972-0
01
1
1508-
411
GUIDE; SEAT BELT
8-98097-967-0
01
1
1508-
509
LEVER; DAMPER
8-98097-988-0
01
1
1508-
532
LEVER ASM; TILT
8-98097-982-0
01
1
1508-
587
VALVE; LUMBAR SUPPORT
8-98097-986-0
01
1
1508-
602
KNOB; ADJ,SEAT
8-98098-008-0
01
1
1508-
634
COVER; CONNECTOR,SEAT
8-98088-279-0
01
1
1508-
635
BOLT; COVER
M6X16
0-52000-616-0
02
1
1508-
637
LEVER; SLOPE ADJ
8-98097-989-0
01
1
1508-
638
VALVE; LOWERING
8-98097-994-0
01
1
1508-
642
SLIDER; CUSHION
8-98192-932-0
04
1
1508-
648
BUCKLE; SEAT BELT
8-98097-976-0
01
1
1508-
650
CABLE
8-98232-354-0
01
1
1508-
651
RIVET
8-98194-075-0
04
1
1508-
661
LOCK ASM; RECLINING
8-98097-980-0
01
1
1508-
325
327
41
76
652
322
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
SEAT ASM; DRIVER
8-98195-067-1
01
1
1508-
76
DAMPER; AIR SUSP
8-98097-999-0
01
1
1508-
81
SPRING; AIR
8-98098-000-0
01
1
1508-
322
VALVE; AIR SPRING
8-98098-001-0
01
1
1508-1508
322
VALVE; AIR SPRING
8-98331-314-0
01
1
1509-
325
COVER; SUSPENSION DEVICE
8-98098-003-0
01
1
1508-
327
CLIP; COVER
8-98098-004-0
01
1
1508-
652
LOCK ASM; HEIGHT
8-98098-002-0
01
1
1508-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
