Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11679 - CYZ RHD EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶
7-45 — CONSOLE BOX
(#165151) — 47 parça
◀

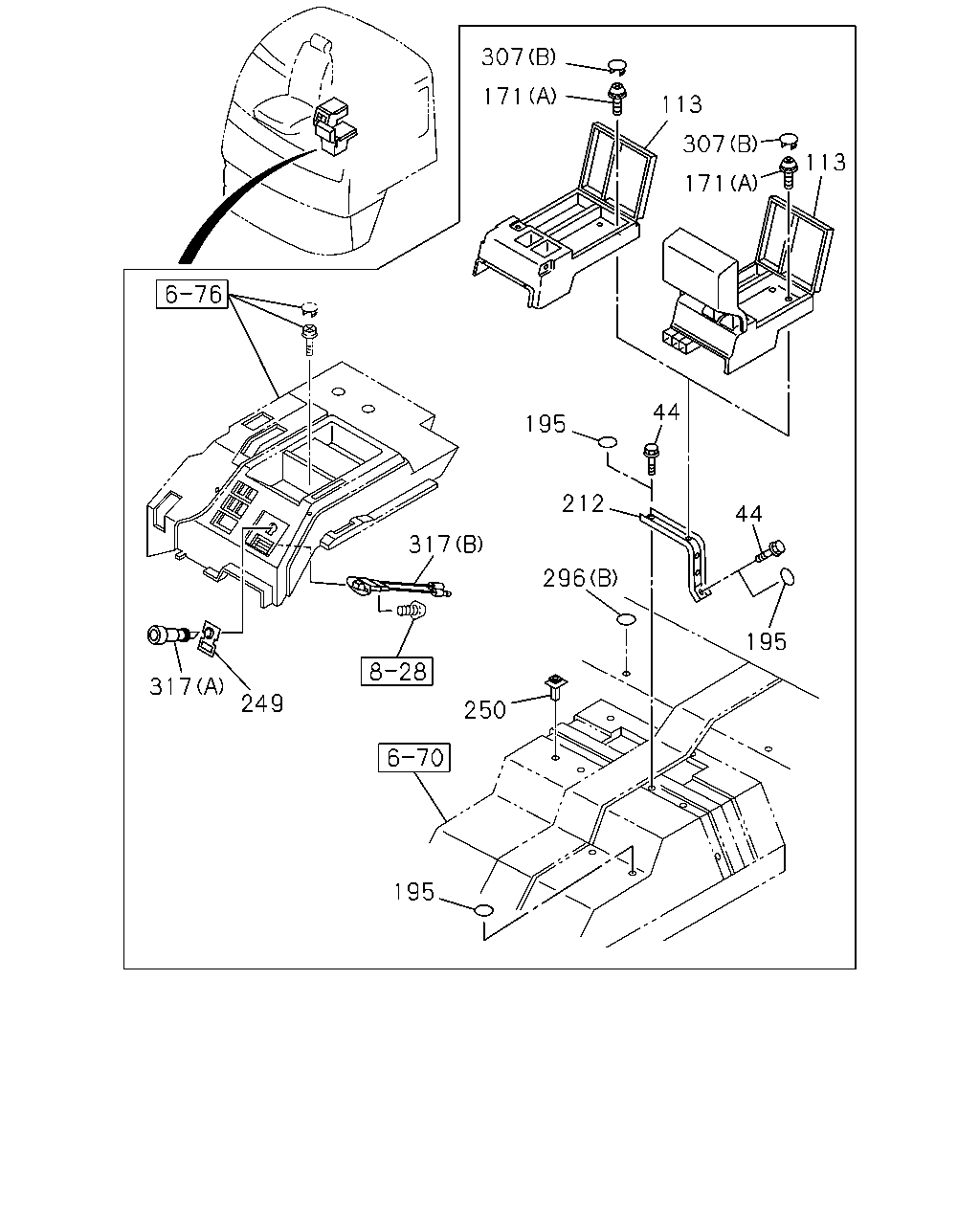

[745A] CONSOLE BOX AND OTHER PARTS (17 parça)

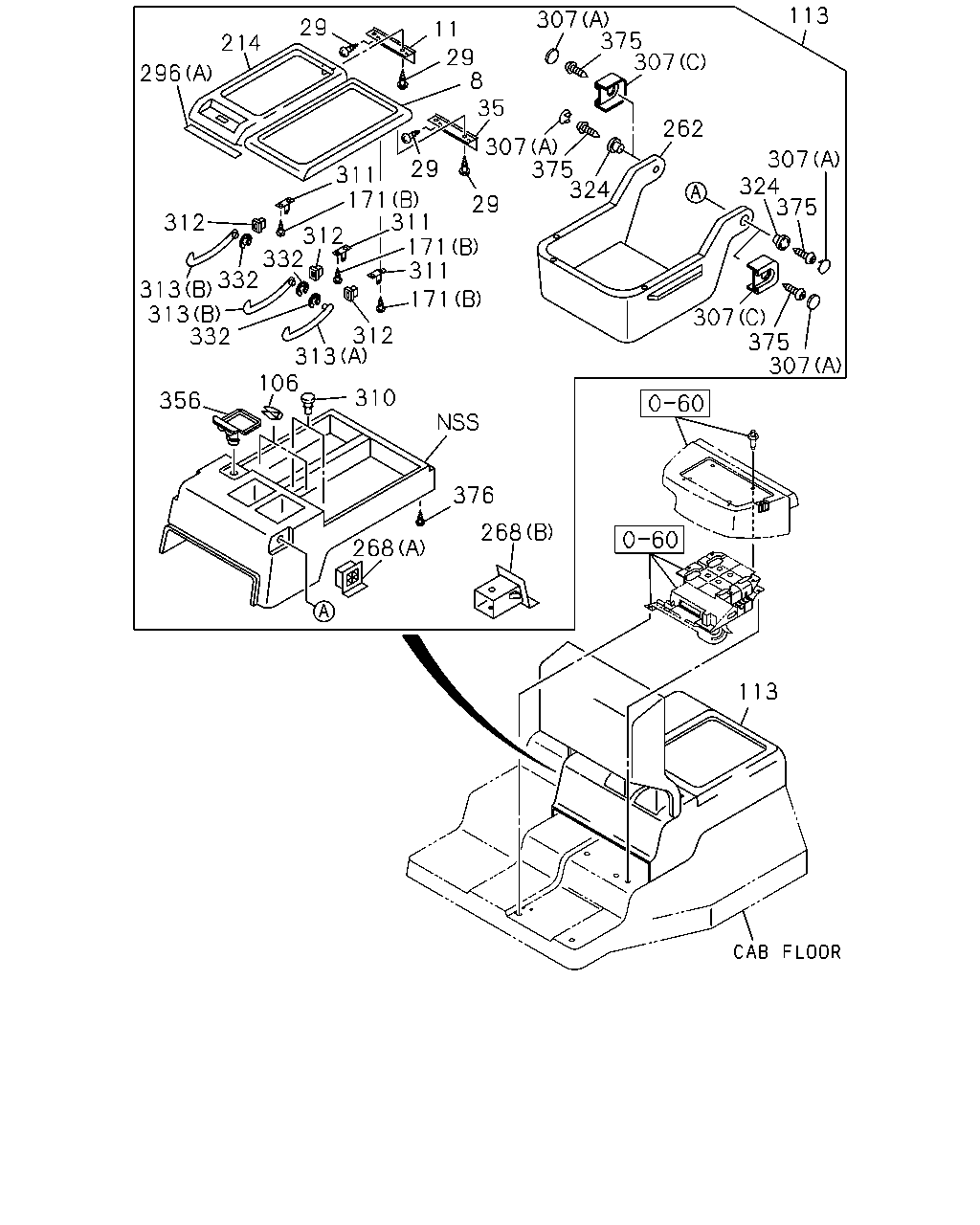

[745A] COMPONENT (28 parça)

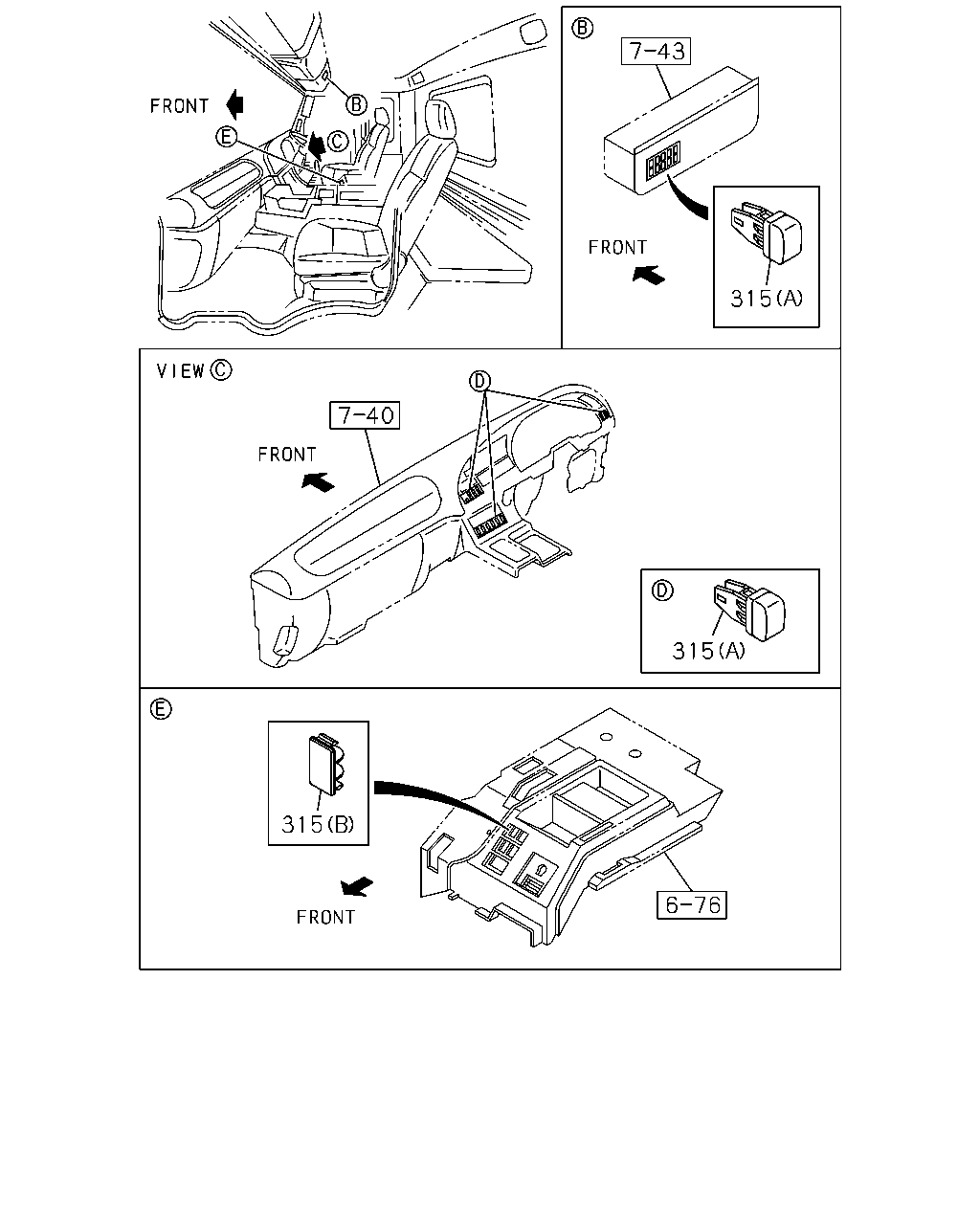

[745A] SWITCH HOLE COVER (2 parça)
▶
307
171
113
307
171
113
44
195
212
195
44
296
250
195
317
249
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
BOLT; SUPPORT,CTR CONSOLE
FRONT CONSOLE<D55> M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1512-
113
BOX; CONSOLE
FRONT CONSOLE<D55> TABLE CONSOLE BOX<TDL>
8-98337-067-0
01
1
1512-
113
BOX; CONSOLE
FRONT CONSOLE<D55> EXC. TABLE CONSOLE BOX<TDL>
1-72537-325-1
01
1
1512-
171
SCREW; CONSOLE BOX
FRONT CONSOLE<D55> (B) M5X14 FLAT HEAD
1-72537-169-0
06
1
1512-
171
SCREW; CONSOLE BOX
FRONT CONSOLE<D55> (A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1512-
195
SEAL; CENTER CONSOLE
OD=25 BLACK
1-76798-019-0
05
1
1508-1511
195
SEAL; CENTER CONSOLE
EXC. FRONT CONSOLE<D55> OD=25 BLACK
1-76798-019-0
05
1
1512-
212
SUPPORT; CONSOLE TO COMPT
FRONT CONSOLE<D55>
1-72537-095-1
01
1
1512-
249
COVER
1-82529-001-0
01
1
1508-
250
GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
03
1
1508-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
1508-
296
SEAL
FRONT CONSOLE<D55> (A)
1-72537-094-1
01
1
1512-
307
COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> (A)
1-72537-188-0
02
1
1512-
307
COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> (B)
1-76337-461-0
04
1
1512-
307
COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> EXC. TABLE CONSOLE BOX<TDL> (C)
1-72537-270-1
02
1
1512-
317
CONSENT
(B)
1-82523-020-2
01
1
1508-
317
CONSENT
(A)
8-94382-451-1
01
1
1508-
296
214
29
312
313
313
332
356
106
313
310
268
376
268
171
311
171
311
171
312
332
332
311
29
29
11
29
8
35
307
375
307
324
375
307
262
307
324
375
307
375
307
113
113
312
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LID; CENTER CONSOLE
FRONT CONSOLE<D55>
1-72537-332-0
01
1
1512-
11
HINGE; CONSOLE LID
FRONT CONSOLE<D55>
1-72537-070-2
01
1
1512-
29
SCREW; HINGE
FRONT CONSOLE<D55> M5X14 BINDING HEAD
1-72537-168-0
08
1
1512-
35
HINGE; CENTER CONSOLE
FRONT CONSOLE<D55>
1-72538-182-1
01
1
1512-
106
LOCK; CONSOLE LID
FRONT CONSOLE<D55>
1-72537-079-0
02
1
1512-
113
BOX; CONSOLE
FRONT CONSOLE<D55> TABLE CONSOLE BOX<TDL>
8-98337-067-0
01
1
1512-
113
BOX; CONSOLE
FRONT CONSOLE<D55> EXC. TABLE CONSOLE BOX<TDL>
1-72537-325-1
01
1
1512-
171
SCREW; CONSOLE BOX
FRONT CONSOLE<D55> (B) M5X14 FLAT HEAD
1-72537-169-0
06
1
1512-
171
SCREW; CONSOLE BOX
FRONT CONSOLE<D55> (A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1512-
214
LID; CONSOLE
FRONT CONSOLE<D55>
1-72537-339-0
01
1
1512-
262
TABLE ASM
FRONT CONSOLE<D55> TABLE CONSOLE BOX<TDL>
1-72537-187-1
01
1
1512-
268
COVER; DUCT
FRONT CONSOLE<D55> (B)
1-72537-268-0
01
1
1512-
268
COVER; DUCT
FRONT CONSOLE<D55> (A)
1-72537-269-0
01
1
1512-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
1508-
296
SEAL
FRONT CONSOLE<D55> (A)
1-72537-094-1
01
1
1512-
307
COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> (A)
1-72537-188-0
02
1
1512-
307
COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> (B)
1-76337-461-0
04
1
1512-
307
COVER; HOLE,CTR CONSOLE
FRONT CONSOLE<D55> EXC. TABLE CONSOLE BOX<TDL> (C)
1-72537-270-1
02
1
1512-
310
CUSHION; CTR CONSOLE
FRONT CONSOLE<D55>
1-72538-187-0
02
1
1512-
311
HOLDER; CONSOLE
FRONT CONSOLE<D55>
1-72538-188-2
03
1
1512-
312
STOPPER; CONSOLE
FRONT CONSOLE<D55>
1-72538-186-1
03
1
1512-
313
ARM; CTR CONSOLE
FRONT CONSOLE<D55> (A)
1-72538-184-3
01
1
1512-
313
ARM; CTR CONSOLE
FRONT CONSOLE<D55> (B)
1-72538-185-3
02
1
1512-
324
BUSHING
FRONT CONSOLE<D55> TABLE CONSOLE BOX<TDL>
1-72537-116-0
02
1
1512-
332
RING; SNAP,CONSOLE BOX
FRONT CONSOLE<D55>
1-72537-170-0
03
1
1512-
356
COVER; KNOB
FRONT CONSOLE<D55>
1-72537-271-1
01
1
1512-
375
SCREW; TAP BUSHING
FRONT CONSOLE<D55> M6X20
1-72537-319-0
02
1
1512-
376
SCREW; TAP DUCT
FRONT CONSOLE<D55> EXC. TABLE CONSOLE BOX<TDL> M4X14
1-72537-320-0
03
1
1512-
315
315
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
315
COVER; HOLE,SW
(A)
8-98025-954-1
AR
1
1508-
315
COVER; HOLE,SW
(B)
8-97043-732-1
AR
1
1508-
