6-76 — FLOOR EQUIPMENT AND SEALING (#165138) — 17 parça

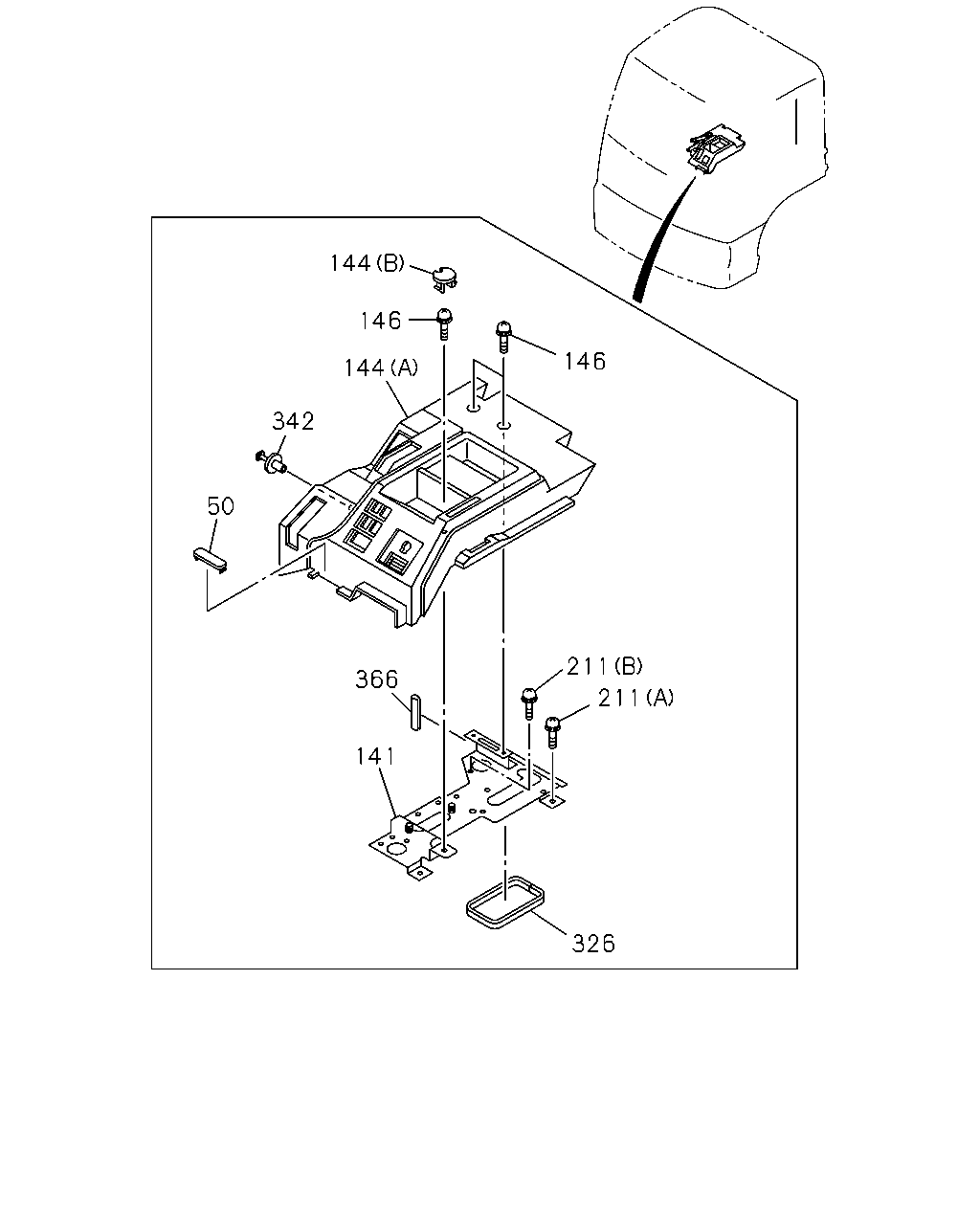

144 146 144 146 342 50 366 141 211 211 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	COVER ASM; SUPPORT,SIDE	1-72537-124-0	01	1	1508-
141	HOLDER	1-79907-076-2	01	1	1508-
144	COVER; HAND BRK VLV (A)	1-72417-380-1	01	1	1508-
144	COVER; HAND BRK VLV (B)	1-76337-461-0	01	1	1508-
146	BOLT; COVER BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	03	1	1508-
211	BOLT; COVER (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1508-
211	BOLT; COVER (B) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	1508-
326	SEAL; COVER	1-79997-978-1	01	1	1508-
342	FASTENER D8X13.5	1-09987-248-1	01	1	1508-
366	FINISHER; COVER L=50	8-94270-377-1	01	1	1508-

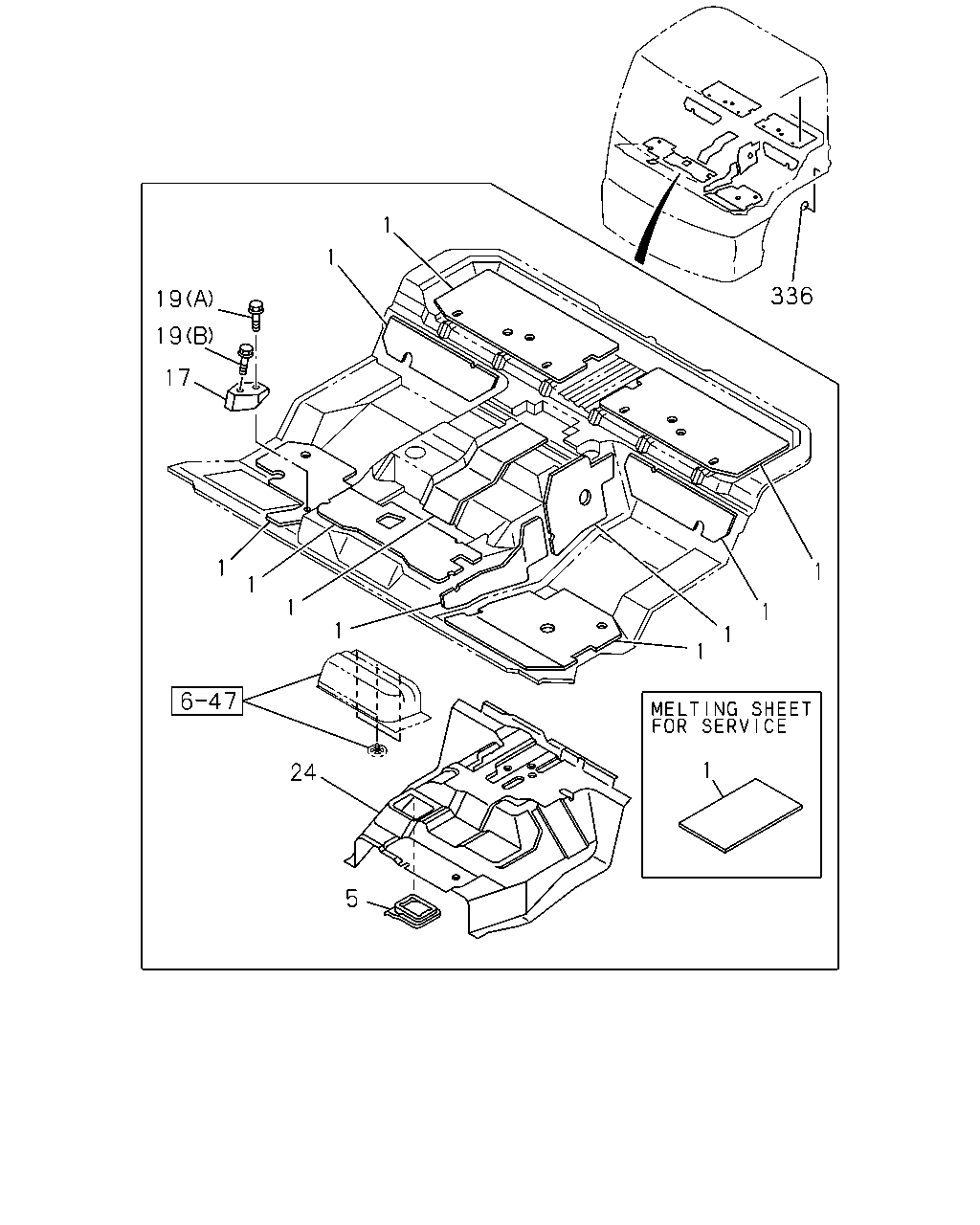

336 1 1 1 1 1 5 24 1 1 1 1 17 19 19 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	1508-
5	COVER; CHANGE LEVER FULL FLOATING CAB(W16)	1-33619-163-0	01	1	1508-
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	1508-
19	BOLT; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1508-
19	BOLT; FOOT REST (B) M6X47	8-94407-876-1	01	1	1508-
24	INSULATOR; HEAT,FRT	1-71907-711-2	01	1	1508-
336	SEAL; FLOOR SIDE BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK	1-76798-019-0	02	1	1508-
