◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11679 - CYZ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#165133) — 115 parça

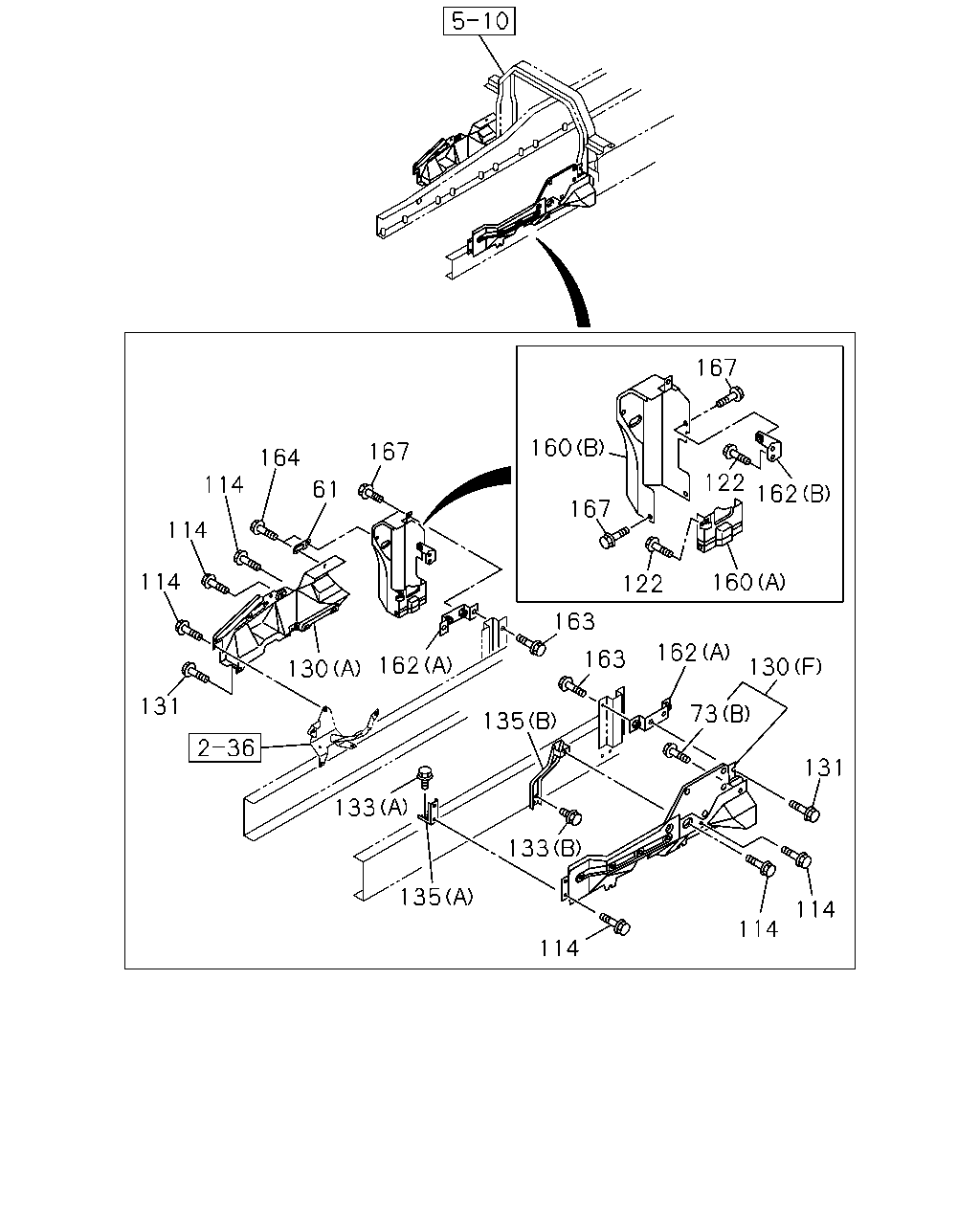

çizim 488423
167 61 164 114 114 114 131 130 162 135 163 163 162 130 73 131 114 114 114 135 133 133 160 122 167 160 167 122 162
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 1508-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1508-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1508-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1508-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1508-
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 1508-
130 PANEL; SHUTTER NOISE
(F) 		8-98240-672-0 01 1 1508-
130 PANEL; SHUTTER NOISE
(B) 		8-98295-974-0 01 1 1508-
130 PANEL; SHUTTER NOISE
(C) 		8-98295-975-0 01 1 1508-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1508-
130 PANEL; SHUTTER NOISE
(D) 		8-98198-654-2 01 1 1508-
130 PANEL; SHUTTER NOISE
(E) 		8-98285-217-0 01 1 1508-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1508-
133 BOLT; FRAME
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
133 BOLT; FRAME
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 1508-
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1508-
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 1508-
160 COVER ASM; EXH
(B) 		8-98297-108-0 01 1 1508-
162 BRACKET
(A) 		1-53441-520-0 02 1 1508-
162 BRACKET
(B) 		8-98297-109-0 01 1 1508-
162 BRACKET
FULL FLOATING CAB(W16) (C) 		1-71907-815-0 01 1 1508-
163 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1508-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1508-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 1508-

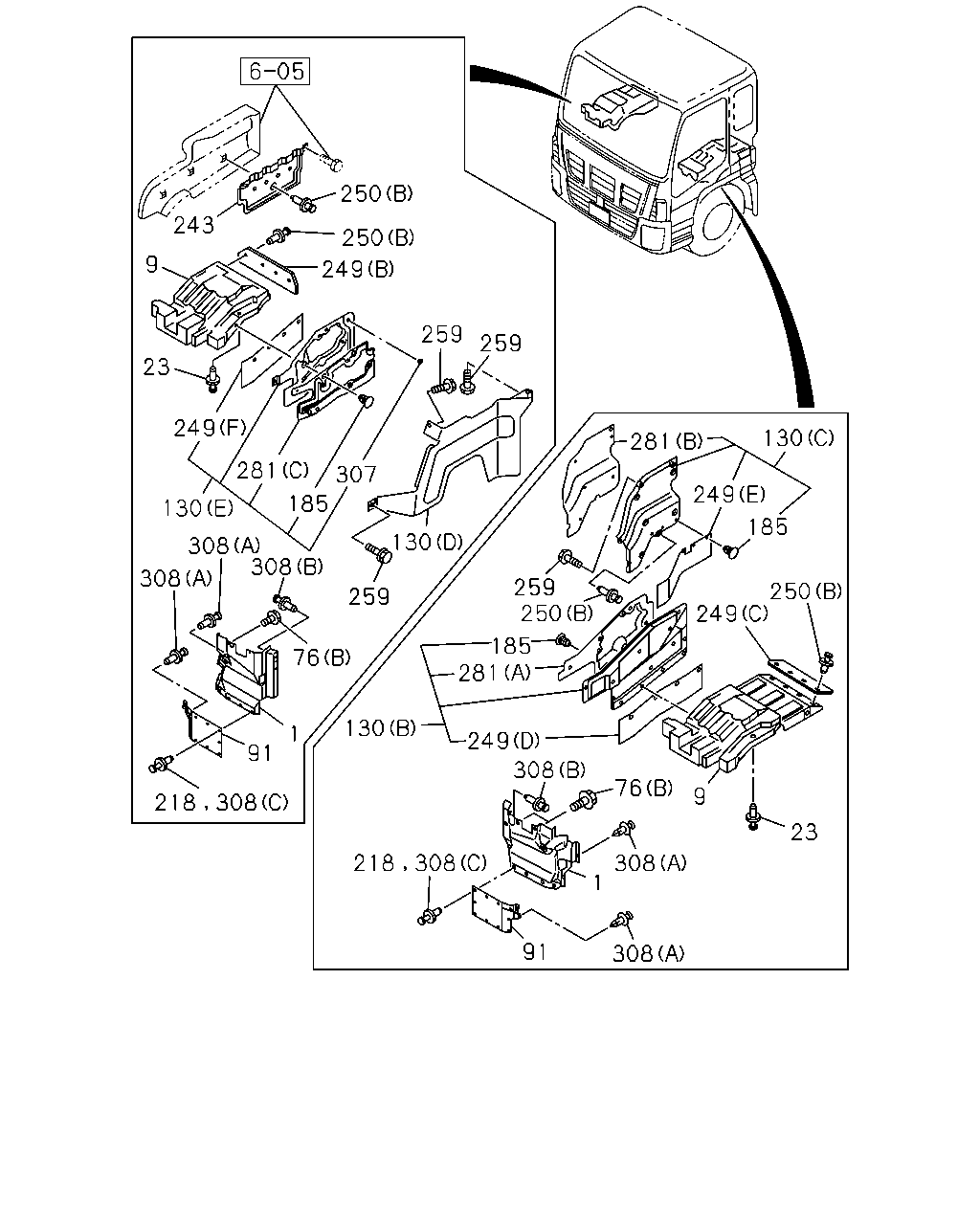

çizim 488616
250 250 249 243 9 23 249 281 307 185 130 259 259 281 130 249 250 249 23 9 76 308 249 130 1 91 218 308 259 308 308 130 185 250 259 308 218 1 308 308 91 308 185 76 281
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1508-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1508-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1508-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1508-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1508-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1508-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1508-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1508-
91 COVER; MUD,FRT 8-98200-908-1 01 1 1508-
91 COVER; MUD,FRT 8-98200-907-1 01 1 1508-
130 PANEL; SHUTTER NOISE
(F) 		8-98240-672-0 01 1 1508-
130 PANEL; SHUTTER NOISE
(B) 		8-98295-974-0 01 1 1508-
130 PANEL; SHUTTER NOISE
(C) 		8-98295-975-0 01 1 1508-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1508-
130 PANEL; SHUTTER NOISE
(D) 		8-98198-654-2 01 1 1508-
130 PANEL; SHUTTER NOISE
(E) 		8-98285-217-0 01 1 1508-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1508-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1508-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1508-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1508-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1508-
249 RUBBER; SHUTTER
(C) 		8-98198-743-0 01 1 1508-
249 RUBBER; SHUTTER
(D) 		8-98285-475-0 01 1 1508-
249 RUBBER; SHUTTER
(E) 		8-98285-476-0 01 1 1508-
249 RUBBER; SHUTTER
(B) 		8-98198-741-0 01 1 1508-
249 RUBBER; SHUTTER
(F) 		8-98285-474-0 01 1 1508-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1508-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1508-
250 FASTENER; SHUTTER
FULL FLOATING CAB(W16) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1508-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1508-
281 INSULATOR; NOISE
(E) 		1-73237-931-0 01 1 1508-1511
281 INSULATOR; NOISE
EXC. FRONT CONSOLE<D55> (E) 		1-73237-931-0 01 1 1512-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1508-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1508-
281 INSULATOR; NOISE
(C) 		1-71907-170-1 01 1 1508-
281 INSULATOR; NOISE
FULL FLOATING CAB(W16) (D) 		8-98227-396-0 01 1 1508-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (F) 		1-73237-445-4 01 1 1508-
307 RETAINER 8-98164-293-0 01 1 1508-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 04 1 1508-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1508-
308 FASTENER; MUD GUARD
(C) D8X13.5 		1-09987-248-1 04 1 1508-

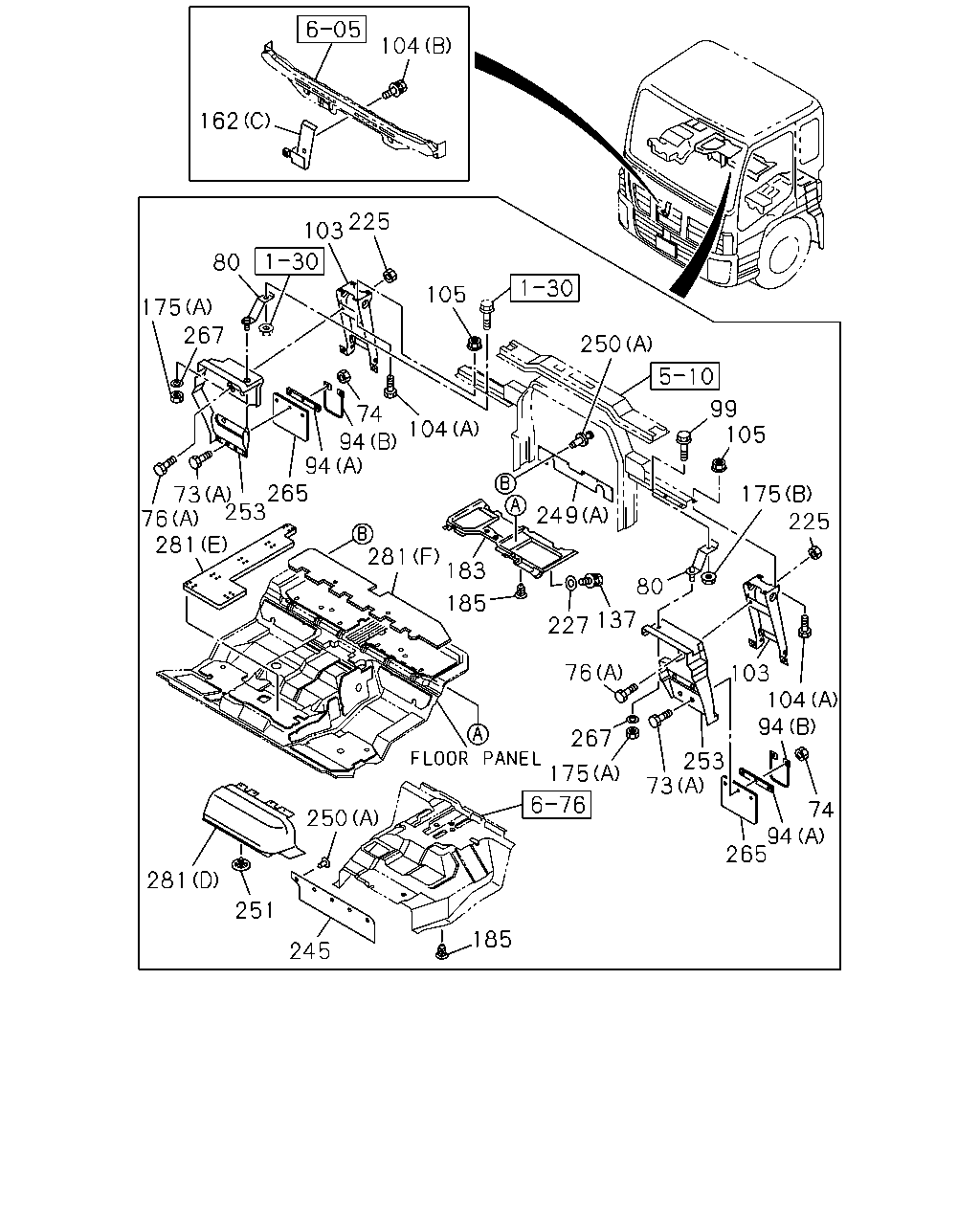

çizim 488702
162 104 103 225 105 250 99 105 175 225 104 175 267 73 76 281 253 265 94 94 74 183 185 227 137 76 267 175 73 253 94 104 103 80 249 94 74 265 185 245 251 281 250 80 281
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1508-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1508-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 1508-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1508-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1508-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1508-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1508-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1508-
94 RETAINER; FLAP RUBBER
(A) 		8-98035-095-0 01 1 1508-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1508-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 01 1 1508-
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1508-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1508-
104 BOLT; BRKT
FULL FLOATING CAB(W16) (B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 1508-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1508-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1508-
162 BRACKET
(A) 		1-53441-520-0 02 1 1508-
162 BRACKET
(B) 		8-98297-109-0 01 1 1508-
162 BRACKET
FULL FLOATING CAB(W16) (C) 		1-71907-815-0 01 1 1508-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1508-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 01 1 1508-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1508-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1508-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1508-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1508-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1508-
245 RUBBER; SHUTTER,RAD
FULL FLOATING CAB(W16) 		8-98227-395-0 01 1 1508-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1508-
249 RUBBER; SHUTTER
(C) 		8-98198-743-0 01 1 1508-
249 RUBBER; SHUTTER
(D) 		8-98285-475-0 01 1 1508-
249 RUBBER; SHUTTER
(E) 		8-98285-476-0 01 1 1508-
249 RUBBER; SHUTTER
(B) 		8-98198-741-0 01 1 1508-
249 RUBBER; SHUTTER
(F) 		8-98285-474-0 01 1 1508-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1508-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1508-
250 FASTENER; SHUTTER
FULL FLOATING CAB(W16) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1508-
251 CLIP; NOISE INSULATOR
FULL FLOATING CAB(W16) ID=6.2 L=11.4 		8-97808-623-0 04 1 1508-
253 GUARD; MUD 8-98123-038-1 01 1 1508-
253 GUARD; MUD 8-98134-759-0 01 1 1508-
265 RUBBER; FLAP,REAR 8-98159-862-0 01 1 1508-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1508-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1508-
281 INSULATOR; NOISE
(E) 		1-73237-931-0 01 1 1508-1511
281 INSULATOR; NOISE
EXC. FRONT CONSOLE<D55> (E) 		1-73237-931-0 01 1 1512-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1508-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1508-
281 INSULATOR; NOISE
(C) 		1-71907-170-1 01 1 1508-
281 INSULATOR; NOISE
FULL FLOATING CAB(W16) (D) 		8-98227-396-0 01 1 1508-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (F) 		1-73237-445-4 01 1 1508-
