11679 - CYZ RHD EURO5
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

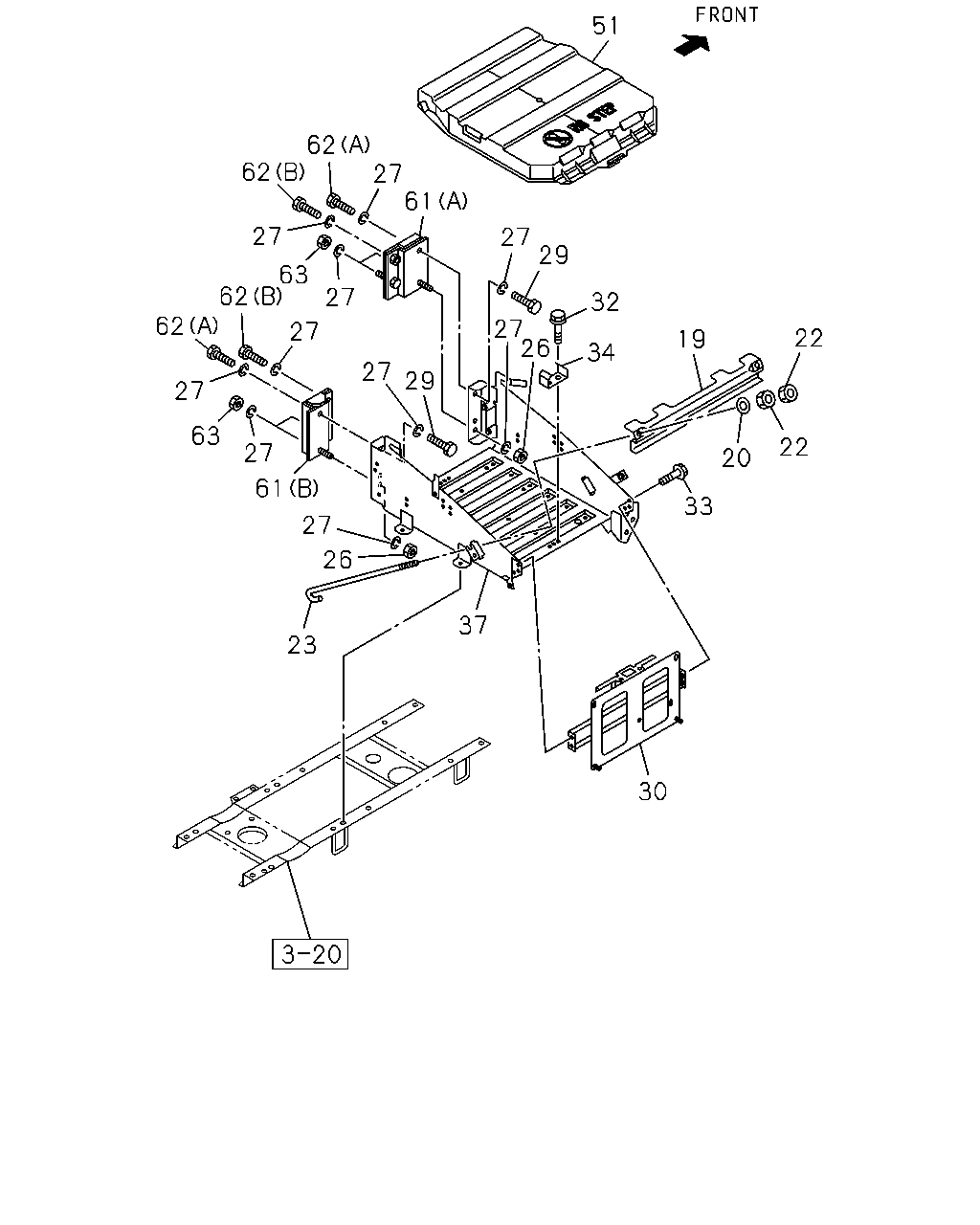

5-20 — BATTERY CARRIER
(#165121) — 19 parça
51
22
22
20
19
33
34
32
29
27
61
27
62
62
27
63
27
62
27
62
27
63
27
61
27
29
27
26
27
26
37
23
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
1-53618-039-2
01
1
1508-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
1508-
22
NUT; STAY
M8
0-91110-508-0
04
1
1508-
23
BOLT; STAY
L=250
1-53616-108-0
02
1
1508-
26
NUT; BRKT
M14
0-91110-514-0
02
1
1508-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
1508-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
08
1
1508-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
1508-
30
PLATE; BATTERY
8-97629-454-2
01
1
1508-
32
BOLT; PLATE TO SPACER
M8X16 FLANGE
0-28050-816-0
04
1
1508-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1508-
34
SPACER; BATTERY BRKT
1-53619-084-0
02
1
1508-
37
BRACKET; BATTERY
8-98260-836-0
01
1
1508-
51
COVER; BATTERY
8-98097-715-3
01
1
1508-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-504-0
01
1
1508-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
1508-
62
BOLT; DIST TO FRAME,BATTERY
(A) M14X45
1-09000-764-0
02
1
1508-
62
BOLT; DIST TO FRAME,BATTERY
(B) M14X60
1-09000-778-0
02
1
1508-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
1508-
