Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#165117) — 229 parça

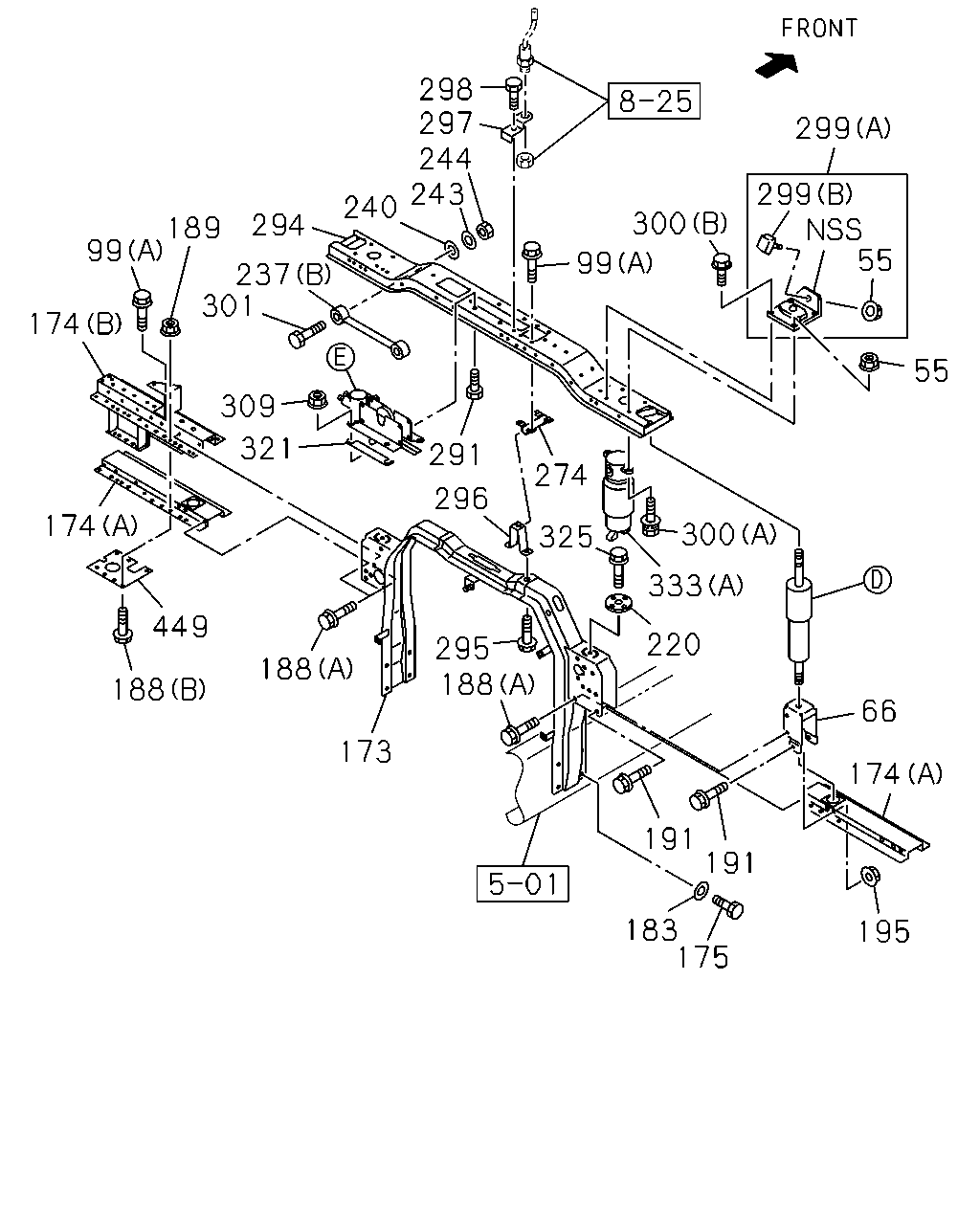

298 297 244 243 240 294 237 301 189 99 174 174 449 188 309 321 188 173 291 296 295 188 325 274 99 300 300 333 220 191 191 183 175 195 174 66 55 55 299 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	1508-
66	BRACKET; S/ABS	8-98214-572-0	01	1	1508-
66	BRACKET; S/ABS	8-98268-796-0	01	1	1508-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	06	1	1508-
99	BOLT; BRKT FULL FLOATING CAB(W16) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1508-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-98268-779-2	01	1	1508-
174	OUTRIGGER (A)	8-97614-275-1	01	1	1508-
174	OUTRIGGER (B)	8-98260-975-1	01	1	1508-
174	OUTRIGGER (A)	8-98158-646-0	01	1	1508-
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	1508-
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1508-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	06	1	1508-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	14	1	1508-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	1508-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	08	1	1508-
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1508-
220	GUIDE; SPR	1-53458-648-1	02	1	1508-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1508-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1508-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1508-
240	WASHER; PL,BRKT ID=12.5 OD=22	0-91610-512-0	02	1	1508-
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	1508-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	1508-
274	PIN	1-53458-996-0	01	1	1508-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	1508-
294	MEMBER; FLOATING	1-53454-949-2	01	1	1508-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	1508-
296	STOPPER; UPR	1-53458-973-1	01	1	1508-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	1508-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1508-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	1508-
299	RUBBER; MTG (A)	1-53366-194-0	02	1	1508-
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	1508-
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1508-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	1508-
309	NUT M10 FLANGE	0-91180-210-0	04	1	1508-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	1508-
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	1508-
333	SPRING (A)	1-52110-143-4	02	1	1508-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1508-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	1508-

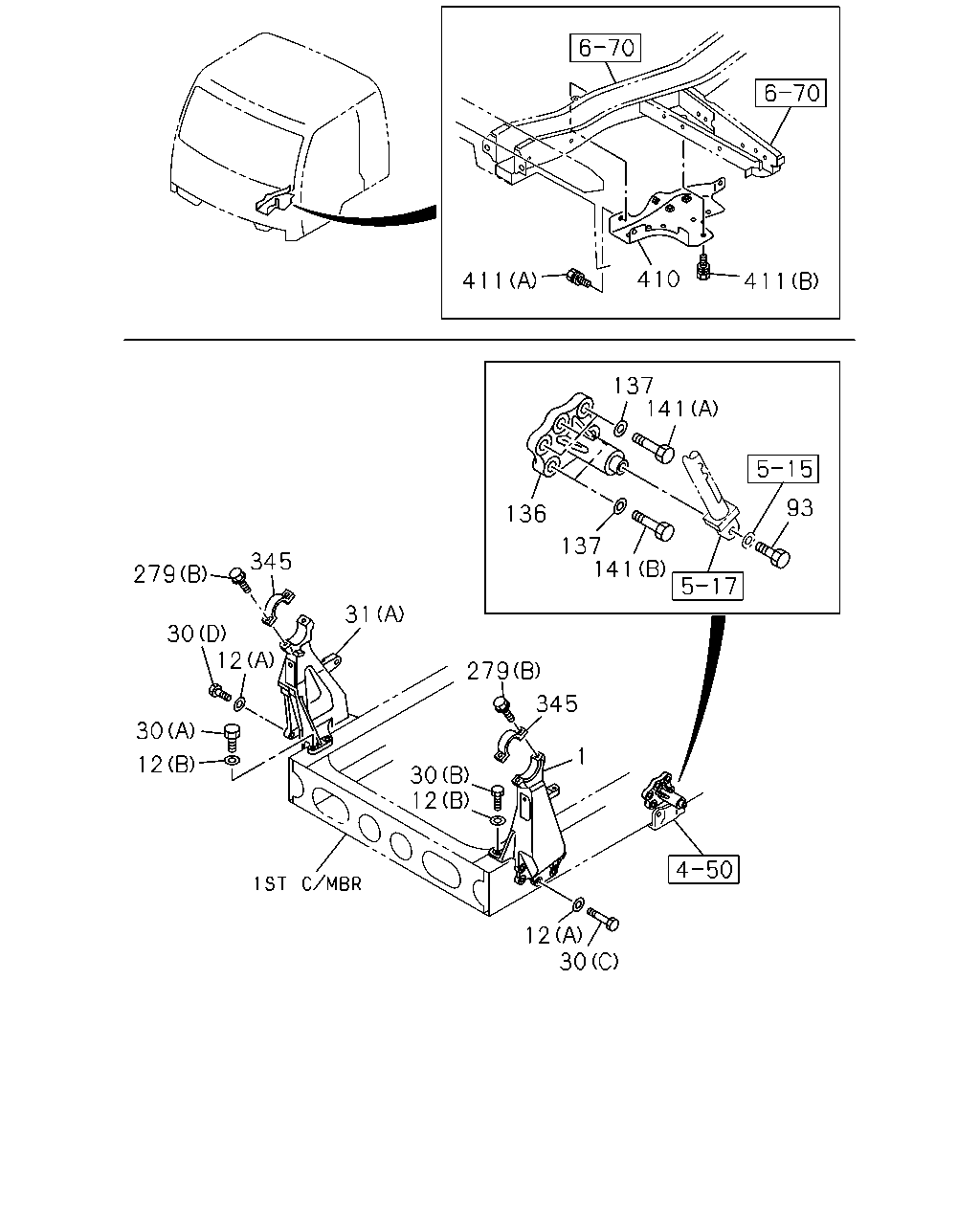

411 410 411 137 141 93 136 137 141 279 30 12 30 12 345 31 279 345 30 12 1 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	8-98260-973-0	01	1	1508-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	12	1	1508-
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1508-
30	BOLT; CAB FRT FOOT (B) M14X50	0-20951-450-0	02	1	1508-
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	1508-
30	BOLT; CAB FRT FOOT (D) M16X50	0-20951-650-0	06	1	1508-
30	BOLT; CAB FRT FOOT (C) M16X60	0-20951-660-0	06	1	1508-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1508-
31	BRACKET; CAB (A)	8-98260-980-0	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1508-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	1508-
136	BRACKET; OIL CYL	8-98260-982-0	01	1	1508-
137	WASHER; PL,BRKT ID=16.2	1-09503-316-0	05	1	1508-
141	BOLT; BRKT (A) M16X45	0-20951-645-0	03	1	1508-
141	BOLT; BRKT (B) M16X50	0-20951-650-0	02	1	1508-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1508-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1508-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1508-
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1508-
345	CAP; CAB	1-53458-336-3	02	1	1508-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	1508-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	1508-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1508-

202 202 203 204 205 204 203 203 204 205 66 174 205 204 203 202 202 173 294 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS	8-98214-572-0	01	1	1508-
66	BRACKET; S/ABS	8-98268-796-0	01	1	1508-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-98268-779-2	01	1	1508-
174	OUTRIGGER (A)	8-97614-275-1	01	1	1508-
174	OUTRIGGER (B)	8-98260-975-1	01	1	1508-
174	OUTRIGGER (A)	8-98158-646-0	01	1	1508-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	1508-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1508-
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	1508-
202	NUT; S/ABS FULL FLOATING CAB(W16) (C) M10 FLANGE	0-91180-110-0	02	1	1508-
202	NUT; S/ABS FULL FLOATING CAB(W16) (B) M10	9-09111-410-0	02	1	1508-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	1508-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	1508-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1508-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	1508-
204	RUBBER; CUSHION,SHOCK FULL FLOATING CAB(W16)	1-51631-004-0	04	1	1508-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	1508-
205	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16)	1-51631-079-0	02	1	1508-
294	MEMBER; FLOATING	1-53454-949-2	01	1	1508-

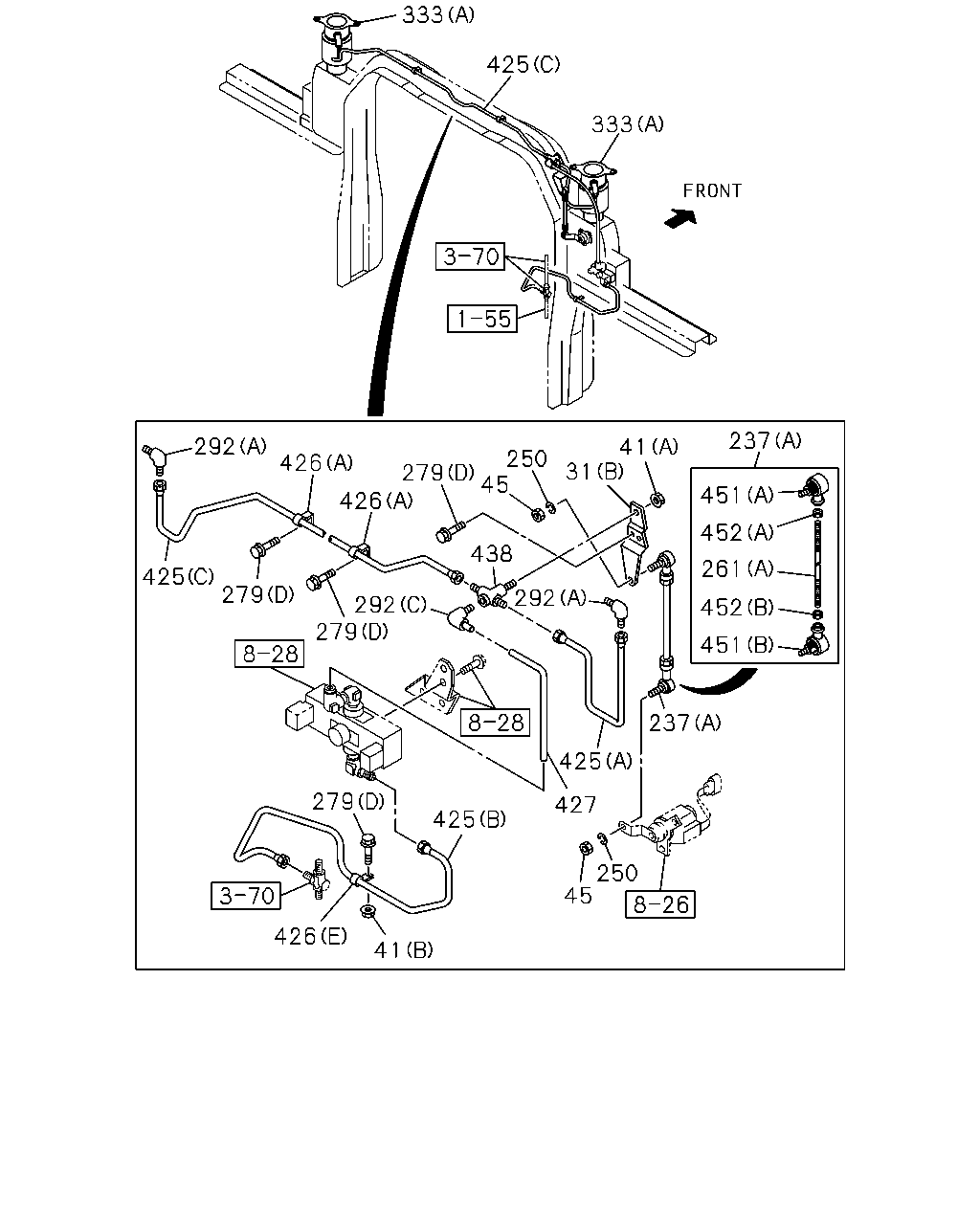

333 425 333 292 425 426 426 279 279 292 279 426 41 425 45 250 427 425 237 292 438 279 45 250 31 41 237 451 452 261 452 451

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1508-
31	BRACKET; CAB (A)	8-98260-980-0	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1508-
41	NUT (B) M8 FLANGE	0-91180-108-0	01	1	1508-
41	NUT (A) M12 FLANGE	0-91180-212-0	01	1	1508-
45	NUT M5	0-91110-505-0	02	1	1508-
45	NUT M5	0-91110-505-0	02	1	1508-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1508-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1508-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1508-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1508-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1508-
261	ROD; LINK (A)	9-08410-514-0	01	1	1508-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1508-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1508-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1508-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1508-
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1508-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1508-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION (B) M12	1-53458-941-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1508-
333	SPRING (A)	1-52110-143-4	02	1	1508-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1508-
425	PIPE ASM; AIR (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1508-
425	PIPE ASM; AIR (A) L=291	8-98095-656-0	01	1	1508-
425	PIPE ASM; AIR (B)	8-98293-279-0	01	1	1508-
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1508-
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1508-
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1508-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1508-
426	CLIP FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	02	1	1508-
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1508-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1508-
438	UNION M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1508-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1508-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1508-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1508-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1508-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1508-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1508-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1508-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1508-

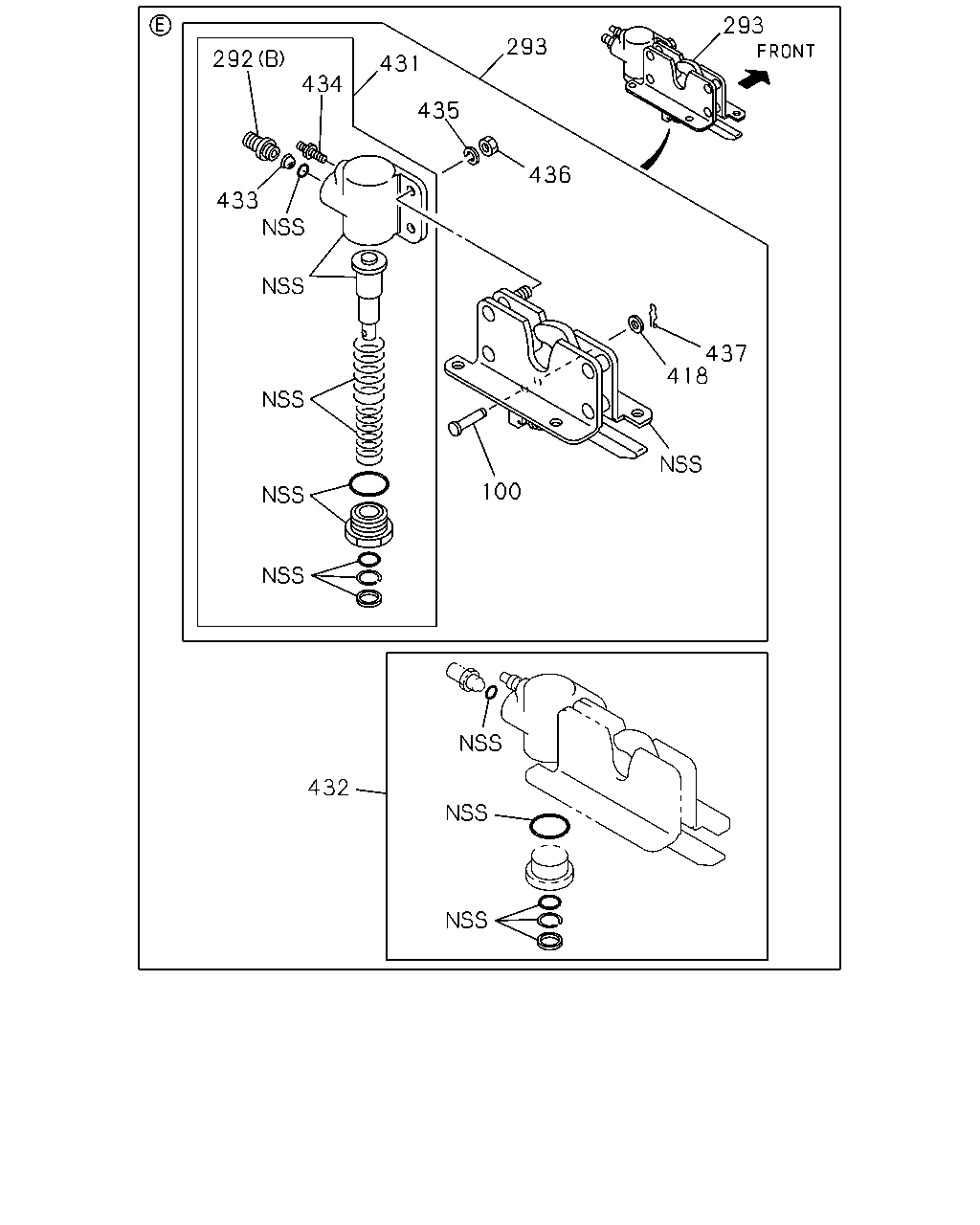

292 434 431 293 435 436 293 433 100 418 437 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1508-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION (B) M12	1-53458-941-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1508-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	1508-
418	WASHER; PL,PIN	1-53458-059-0	01	1	1508-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	1508-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	1508-
433	FILTER; AIR CYL	1-53458-048-0	01	1	1508-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	1508-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	1508-
436	NUT; AIR CYL	1-53458-528-0	02	1	1508-
437	PIN; SNAP	1-53458-526-0	01	1	1508-

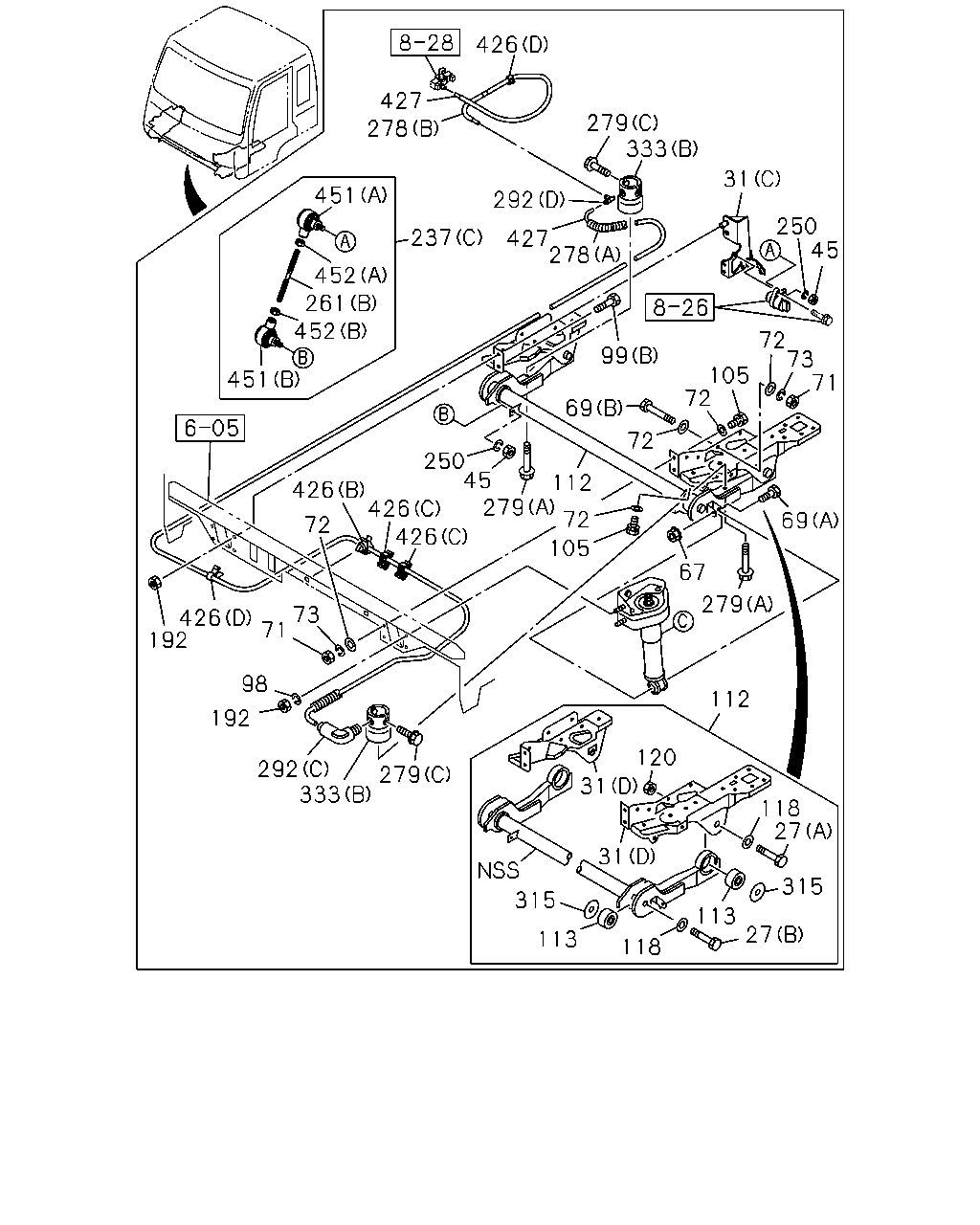

426 427 278 451 452 261 452 451 426 192 98 192 292 333 279 71 73 72 426 426 426 250 45 279 105 72 112 69 99 278 427 237 292 279 333 31 250 45 72 73 71 105 72 72 67 279 112 120 31 31 315 113 118 113 27 315 27 118 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING FULL FLOATING CAB(W16) (B) M18X120	1-09000-442-1	02	1	1508-
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	1508-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1508-
31	BRACKET; CAB (A)	8-98260-980-0	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1508-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-5	01	1	1508-
45	NUT M5	0-91110-505-0	02	1	1508-
45	NUT M5	0-91110-505-0	02	1	1508-
67	NUT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) M12 FLANGE	0-91180-212-0	02	1	1508-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) (A) M12X60	0-20801-260-0	02	1	1508-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) (B) M10X105	1-79198-008-1	08	1	1508-
71	NUT; BRKT TO CAB FRAME FULL FLOATING CAB(W16) M10	1-09984-142-0	06	1	1508-
72	WASHER; PL,BRKT TO FRAME FULL FLOATING CAB(W16) ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1508-
73	WASHER; LK,BRKT TO CAB FRAME FULL FLOATING CAB(W16) ID=10	1-09985-185-0	12	1	1508-
98	WASHER; LK,BRKT FULL FLOATING CAB(W16) ID=10	1-09985-185-0	04	1	1508-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	06	1	1508-
99	BOLT; BRKT FULL FLOATING CAB(W16) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1508-
105	BOLT; BRKT TO CAB FRAME FULL FLOATING CAB(W16) M10X30 W/SP WASHER	1-09980-546-0	08	1	1508-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-684-2	01	1	1508-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI FULL FLOATING CAB(W16)	1-53458-714-0	04	1	1508-
118	WASHER; PL,STOPPER RUBBER,LINK ARM FULL FLOATING CAB(W16) ID=19 OD=30	1-09503-279-0	04	1	1508-
120	NUT; STOPPER RUBBER,LINK ARM FULL FLOATING CAB(W16) M18	0-91110-518-0	02	1	1508-
192	NUT; BRKT FIX FULL FLOATING CAB(W16) M10	1-09984-142-0	05	1	1508-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1508-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1508-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1508-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1508-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	1508-
261	ROD; LINK (A)	9-08410-514-0	01	1	1508-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1508-
278	COVER FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1508-
278	COVER FULL FLOATING CAB(W16) (A) L=750 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1508-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1508-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1508-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1508-
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1508-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1508-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION (B) M12	1-53458-941-0	01	1	1508-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1508-
315	WASHER; CAB MTG FULL FLOATING CAB(W16) ID=34.5	1-53458-281-1	04	1	1508-
333	SPRING (A)	1-52110-143-4	02	1	1508-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1508-
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	1508-
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1508-
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1508-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1508-
426	CLIP FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	02	1	1508-
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1508-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1508-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1508-
451	JOINT; BALL (B)	1-09760-103-2	01	1	1508-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1508-
451	JOINT; BALL (A)	1-09760-104-2	01	1	1508-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1508-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	1508-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1508-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	1508-

202 202 203 204 205 65 204 203 70 72 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB(W16)	1-51630-604-1	02	1	1508-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) (A) M12X60	0-20801-260-0	02	1	1508-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB(W16) (B) M10X105	1-79198-008-1	08	1	1508-
70	BRACKET; S/ABS,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53458-493-1	01	1	1508-
70	BRACKET; S/ABS,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53458-492-1	01	1	1508-
72	WASHER; PL,BRKT TO FRAME FULL FLOATING CAB(W16) ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1508-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1508-
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	1508-
202	NUT; S/ABS FULL FLOATING CAB(W16) (C) M10 FLANGE	0-91180-110-0	02	1	1508-
202	NUT; S/ABS FULL FLOATING CAB(W16) (B) M10	9-09111-410-0	02	1	1508-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	1508-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	1508-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16) (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1508-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	1508-
204	RUBBER; CUSHION,SHOCK FULL FLOATING CAB(W16)	1-51631-004-0	04	1	1508-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	1508-
205	WASHER; RUBBER,SHOCK FULL FLOATING CAB(W16)	1-51631-079-0	02	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
