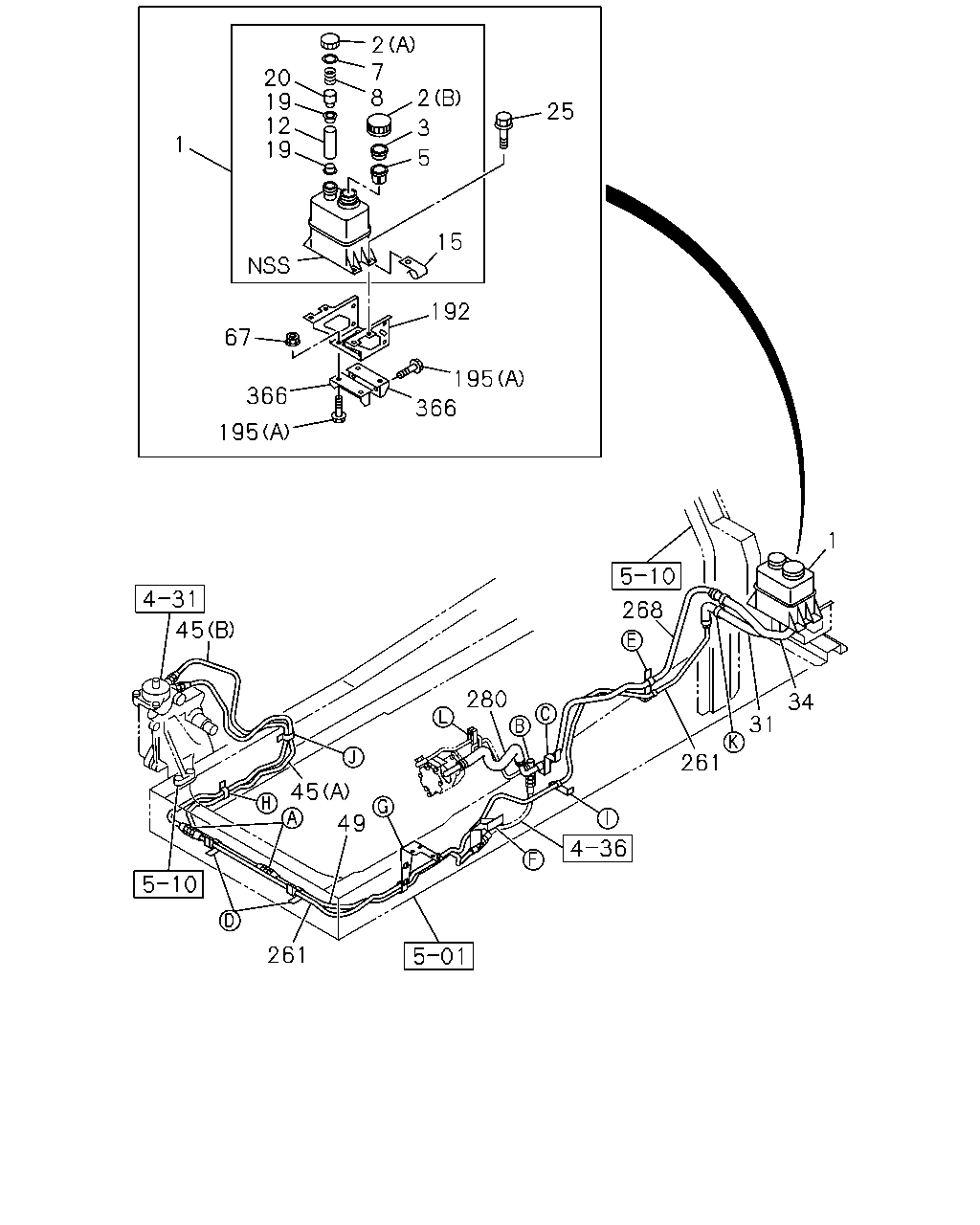

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#165107) — 88 parça

25 2 8 7 3 2 5 15 192 195 366 1 19 20 19 12 67 366 195 45 1 268 34 31 261 280 45 49 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1508-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1508-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1508-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1508-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1508-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1508-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1508-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1508-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1508-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1508-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1508-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1508-
31	HOSE; P/S OIL TANK,INL	8-98307-820-0	01	1	1508-
34	HOSE; P/S OIL TANK,OUTLET	8-98307-821-0	01	1	1508-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98240-513-0	01	1	1508-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98240-515-0	01	1	1508-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98293-774-0	01	1	1508-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1508-
192	BRACKET; P/S OIL TANK	8-98302-382-0	01	1	1508-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1508-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1508-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1508-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1508-
261	PIPE; OIL,UNION TO HOSE	8-98293-775-0	01	1	1508-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98228-055-0	01	1	1508-
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1508-
366	SPACER; BRKT TO MEMBER	8-98302-380-0	02	1	1508-

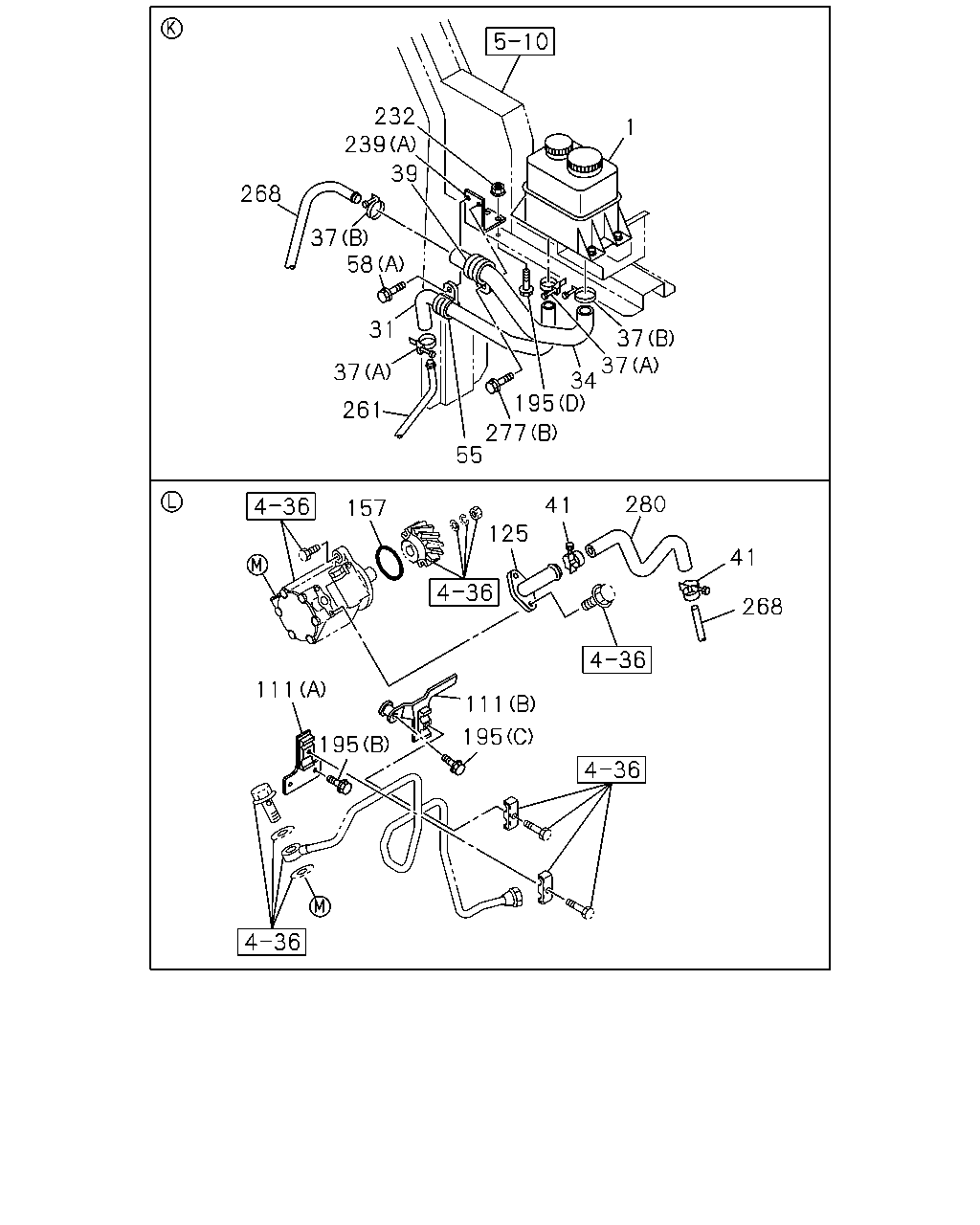

1 232 239 37 268 39 58 31 37 277 55 261 37 37 34 195 280 41 41 125 157 111 195 195 111 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1508-
31	HOSE; P/S OIL TANK,INL	8-98307-820-0	01	1	1508-
34	HOSE; P/S OIL TANK,OUTLET	8-98307-821-0	01	1	1508-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1508-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1508-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1508-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1508-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1508-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	1508-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1508-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1508-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1508-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1508-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1508-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1508-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1508-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1508-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1508-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1508-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1508-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1508-
261	PIPE; OIL,UNION TO HOSE	8-98293-775-0	01	1	1508-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98228-055-0	01	1	1508-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1508-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1508-

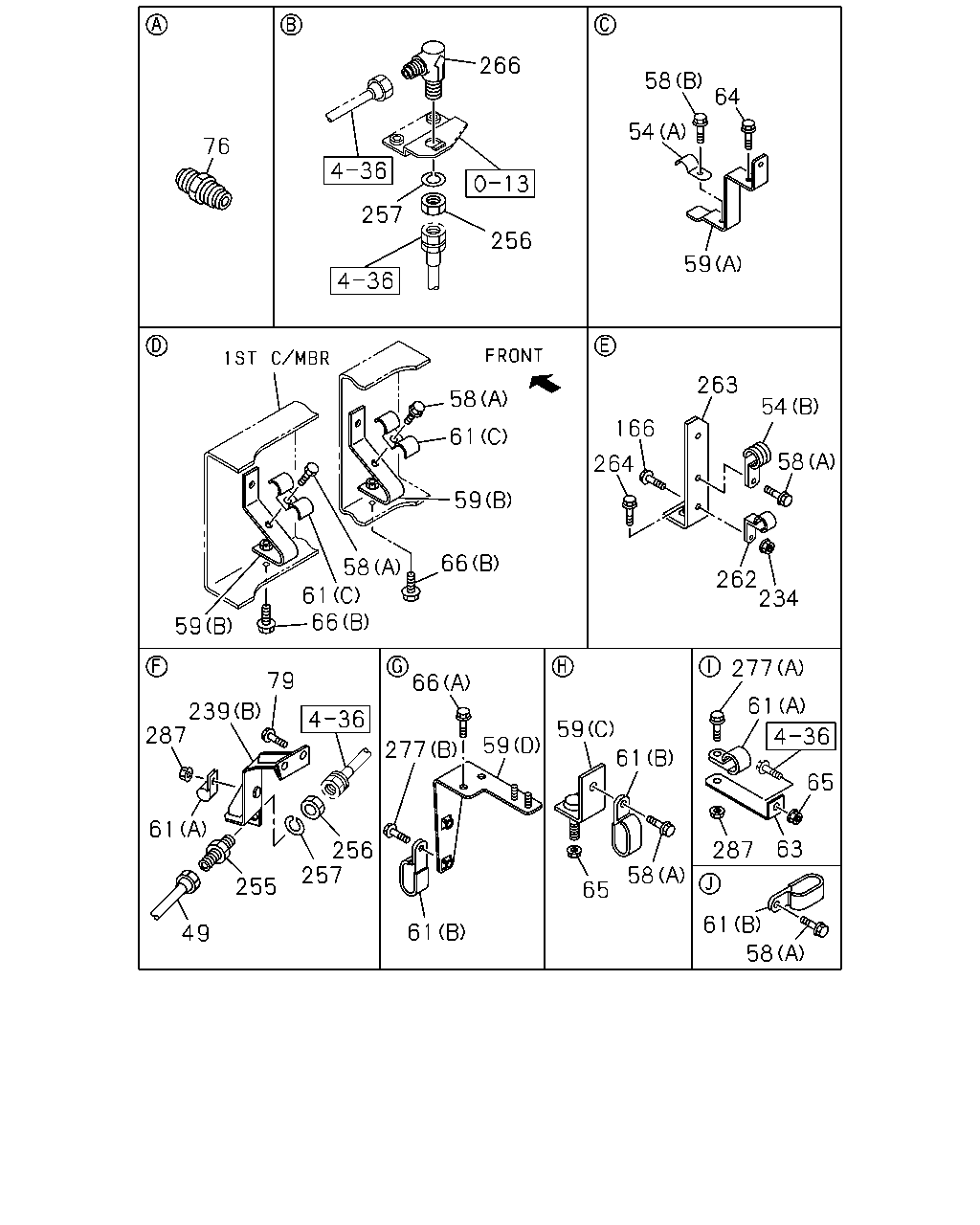

58 54 64 59 263 166 264 54 58 262 234 256 257 76 58 266 61 59 66 58 61 66 59 239 287 79 255 61 49 257 277 66 59 61 65 61 59 58 63 65 61 277 287 61 58 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION	8-98293-774-0	01	1	1508-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1508-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1508-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	1508-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1508-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1508-
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1508-
59	BRACKET; CLIP,OIL PIPE (D)	8-98299-378-2	01	1	1508-
59	BRACKET; CLIP,OIL PIPE (B)	8-98310-282-0	02	1	1508-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1508-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	1508-
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1508-
63	BRACKET; CLIP,P/S L=112	1-47475-694-1	01	1	1508-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1508-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1508-
66	BOLT; BRKT,OIL PIPE (B) M8X20 FLANGE	0-28650-820-0	02	1	1508-
66	BOLT; BRKT,OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	1508-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1508-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1508-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1508-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1508-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1508-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1508-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1508-
256	NUT; UNION M22	0-91111-522-0	01	1	1508-
256	NUT; UNION M22	0-91111-522-0	01	1	1508-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1508-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1508-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1508-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1508-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1508-
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1508-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1508-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1508-
