4-10 — FRONT AXLE (#165100) — 86 parça

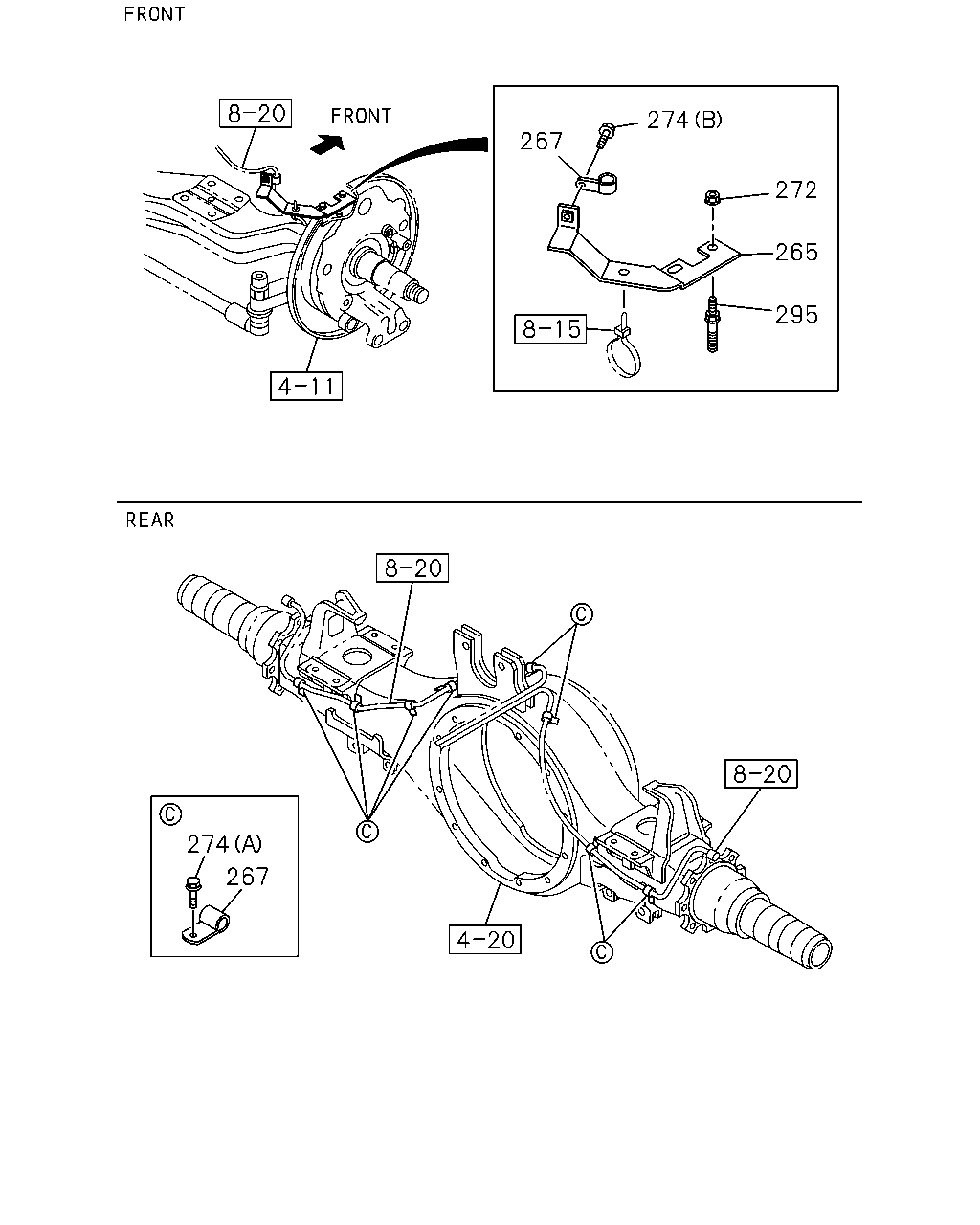

274 267 267 274 272 265 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1508-
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1508-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	08	1	1508-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1508-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1508-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	1508-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1508-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1508-

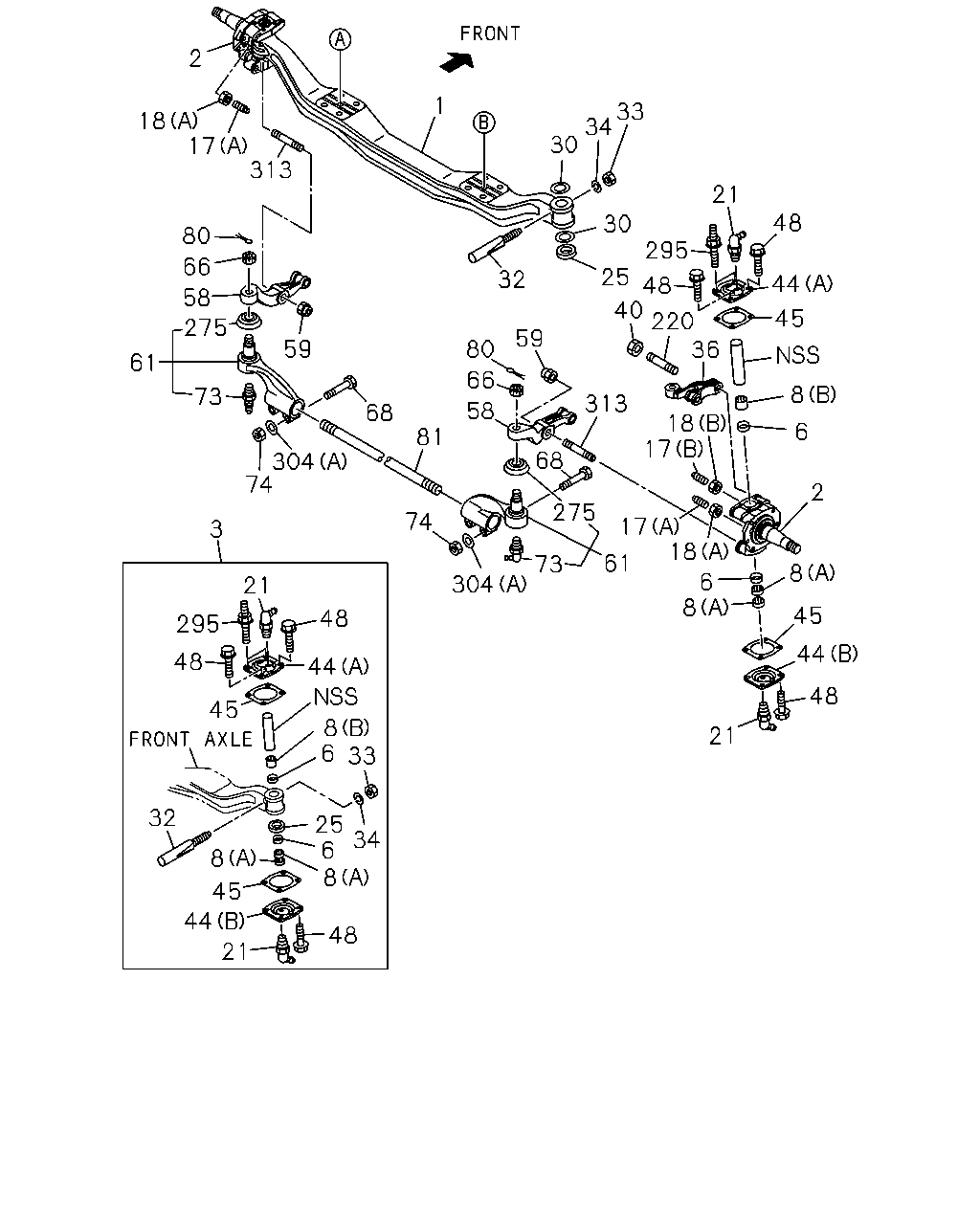

73 59 275 58 66 80 17 18 2 313 1 30 34 33 21 32 80 58 66 68 304 74 3 61 81 74 304 275 68 313 30 25 295 48 44 8 45 220 40 48 59 17 18 36 6 2 8 45 44 48 21 8 18 17 61 6 73 48 21 295 48 45 44 8 6 33 34 25 6 8 48 44 8 45 32 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-178-3	01	1	1508-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1508-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1508-
3	KING PIN SET	1-87831-349-3	02	1	1508-
6	SEAL; KING PIN	9-09926-024-0	04	1	1508-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1508-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1508-
17	BOLT; STOPPER KNUCKLE (B) M18X53	1-09009-066-0	01	1	1508-
17	BOLT; STOPPER KNUCKLE (A) M18X38	1-09009-164-0	02	1	1508-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1508-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1508-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1508-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1508-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1508-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1508-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1508-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1508-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1508-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1508-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1508-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1508-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1508-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1508-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1508-
58	ARM; TIE ROD	1-43135-049-4	01	1	1508-
58	ARM; TIE ROD	1-43134-049-4	01	1	1508-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1508-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1508-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1508-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1508-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1508-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1508-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1508-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1508-
81	ROD; TIE	8-98105-064-0	01	1	1508-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1508-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1508-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1508-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1508-
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1508-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1508-

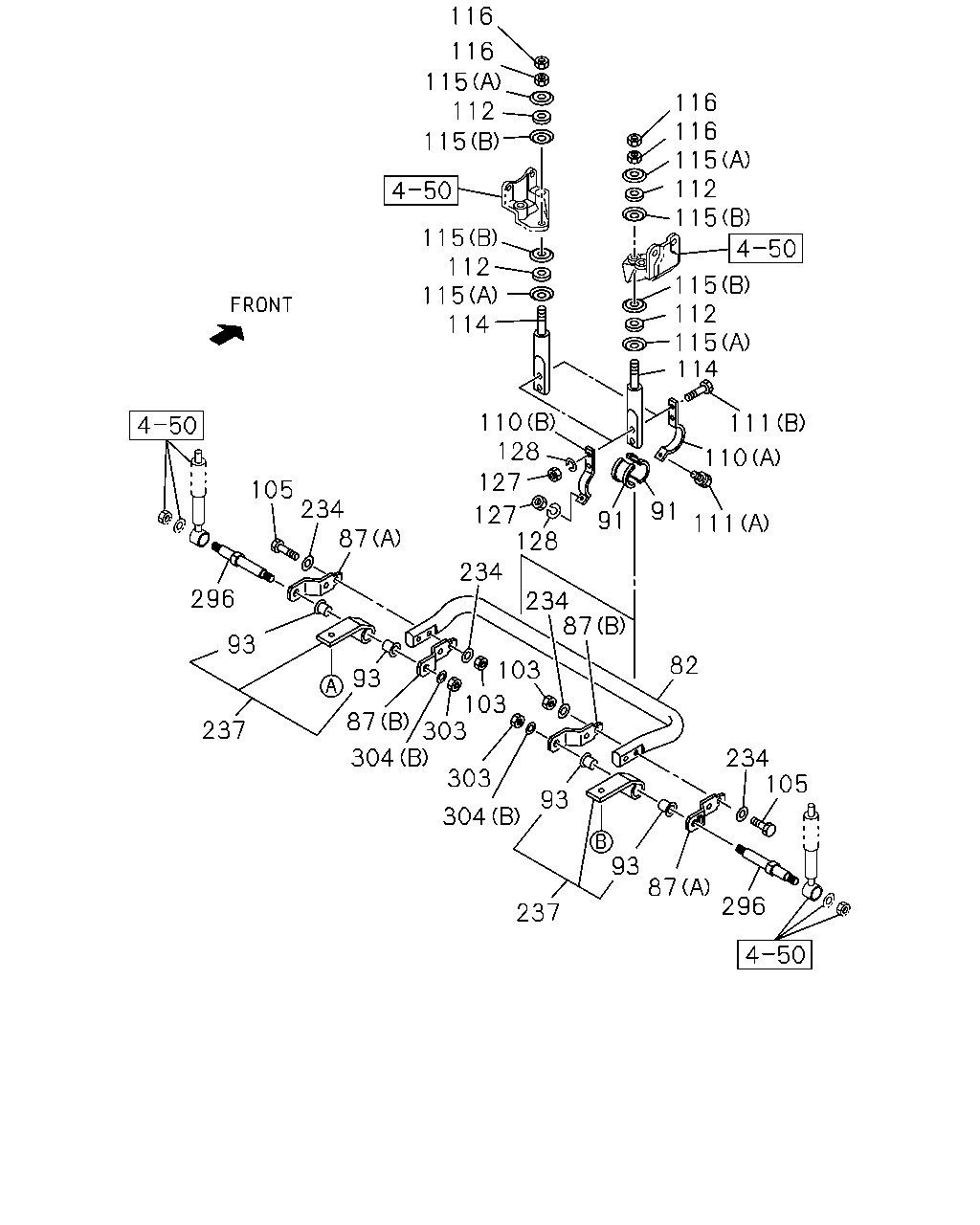

116 116 115 115 112 115 115 112 114 116 115 112 115 116 115 115 112 114 111 110 111 91 91 127 127 128 110 105 87 234 234 128 234 87 82 234 105 87 296 93 93 237 304 303 304 103 103 303 87 93 93 296 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP	1-51771-134-1	01	1	1508-
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1508-
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1508-
91	BUSHING; RUBBER,STAB BAR	1-51779-079-1	04	1	1508-
93	BUSHING; STABILIZER	1-51689-015-3	04	1	1508-
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	1508-
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	1508-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	1508-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	1508-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	1508-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	1508-
112	BUSHING; ROD	9-51631-039-0	04	1	1508-
114	ROD; STAB BAR	1-51773-072-2	02	1	1508-
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	1508-
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	1508-
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	1508-
127	NUT; CLAMP M12	0-91110-512-0	06	1	1508-
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1508-
234	WASHER; STAB ID=15	8-98010-627-1	08	1	1508-
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	1508-
296	PIN; STAB	8-98022-874-1	02	1	1508-
303	NUT; PIN M20	0-91110-520-0	02	1	1508-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1508-
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1508-
