Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11679 - CYZ RHD EURO5
▶
3 - Brakes, Brake System
▶

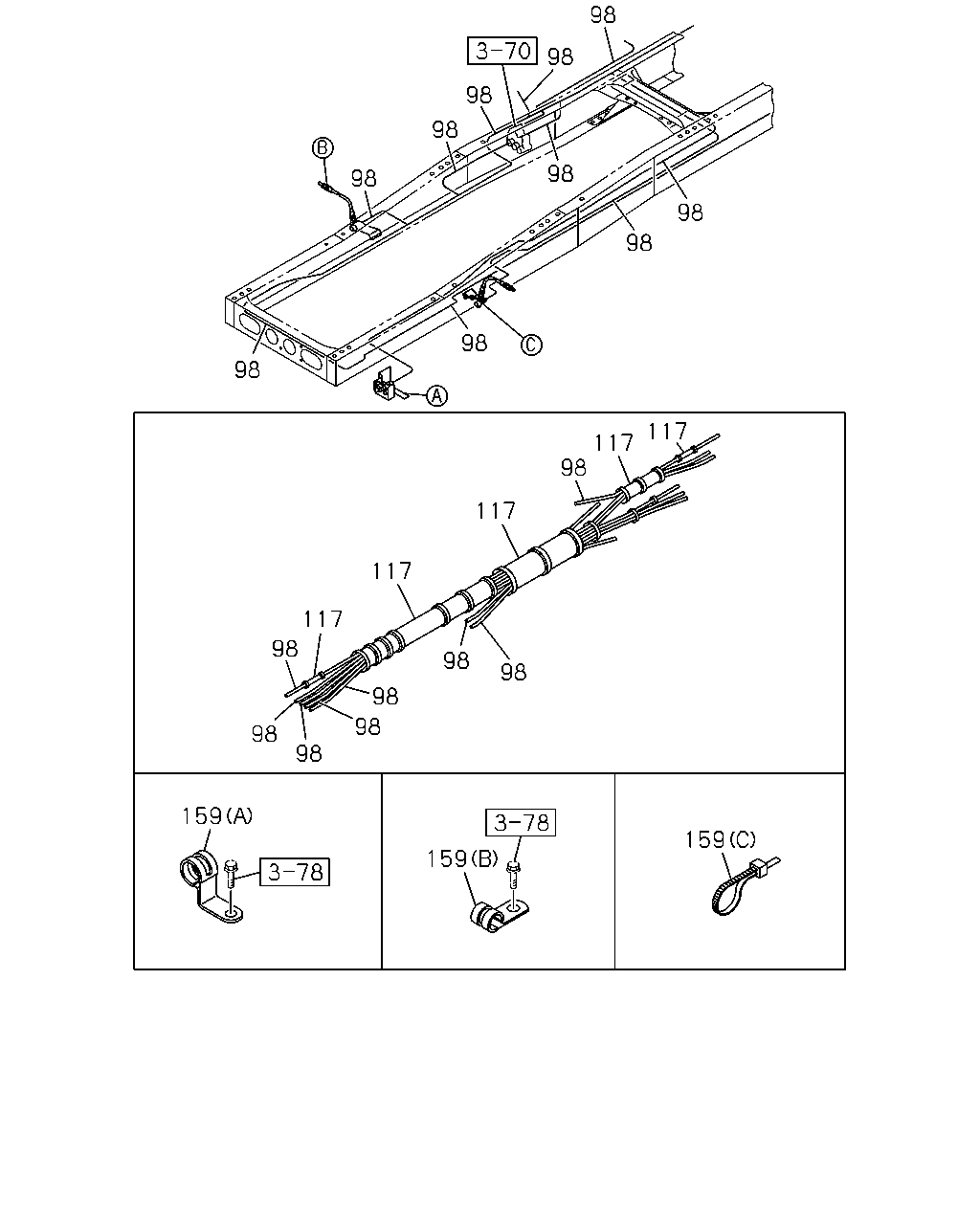

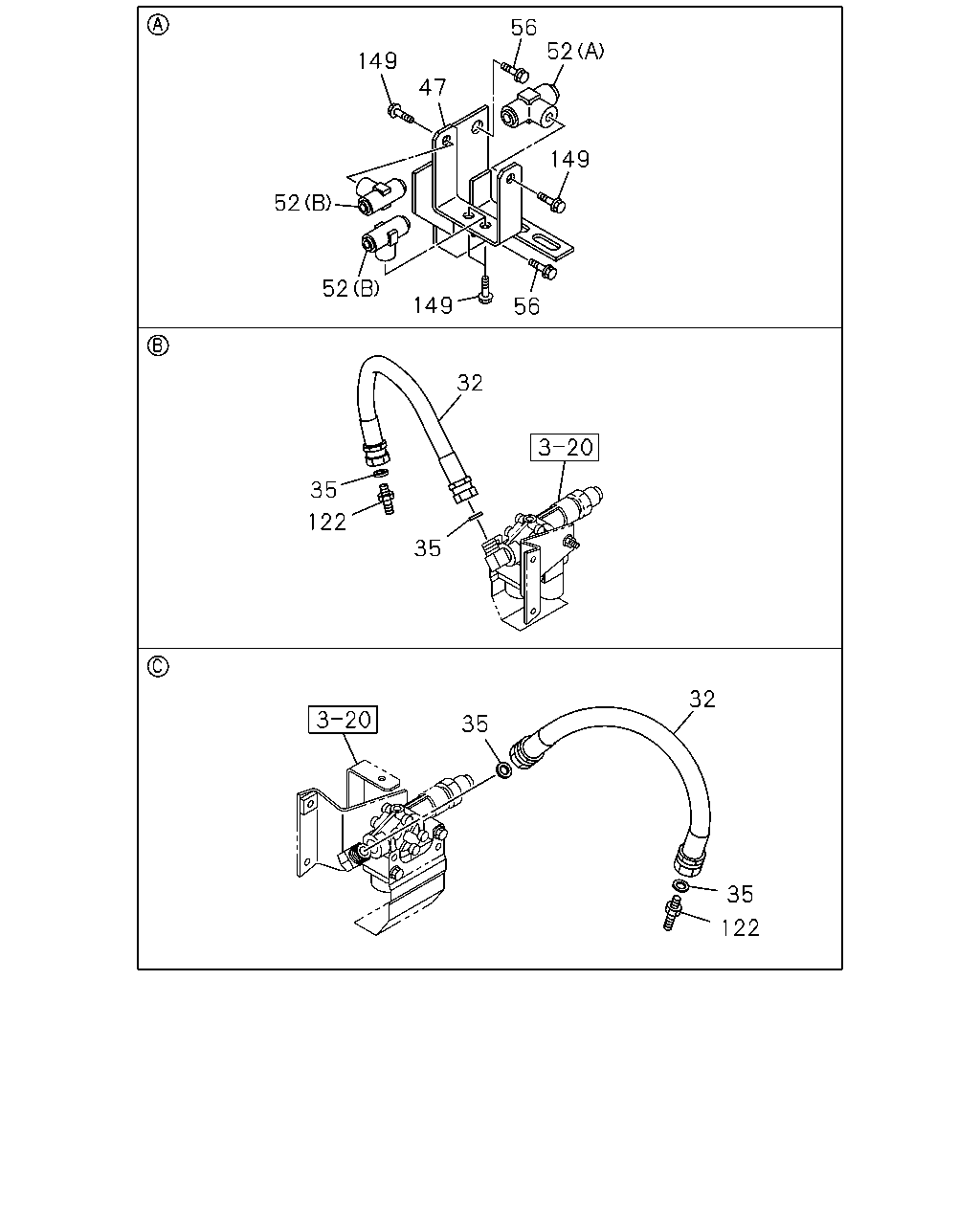

3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#165093) — 21 parça
◀
[375A] NO.1 (13 parça)
[375A] NO.2 (8 parça)
▶
98
98
98
98
98
98
98
98
98
98
117
117
98
117
117
117
98
98
98
98
98
98
98
159
159
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1508-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1508-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1508-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1508-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1508-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1508-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1508-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1508-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=22
1-87411-030-0
AR
1
1508-
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
13
1
1508-
159
CLIP; NYLON TUBE
(A) ID=28 H=45 L=30
1-09700-948-0
02
1
1508-
159
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
01
1
1508-
159
CLIP; NYLON TUBE
(B) ID=28 L=40
1-09701-261-0
02
1
1508-
149
56
52
47
149
149
56
52
52
32
35
122
35
35
32
35
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
HOSE; FLEX,FRT
L=430
0-57847-430-1
02
1
1508-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
1508-
47
BRACKET; PIPE UNION
8-98298-063-0
01
1
1508-
52
CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY
1-09661-128-0
01
1
1508-
52
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
03
1
1508-
56
BOLT; UNION BRKT
M12X30 FLANGE
0-28051-230-0
02
1
1508-
122
CONNECTOR; FLEX HOSE
M20 & PT3/8
1-09660-731-1
02
1
1508-
149
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
04
1
1508-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
