3-20 — AIR TANK (#165083) — 174 parça

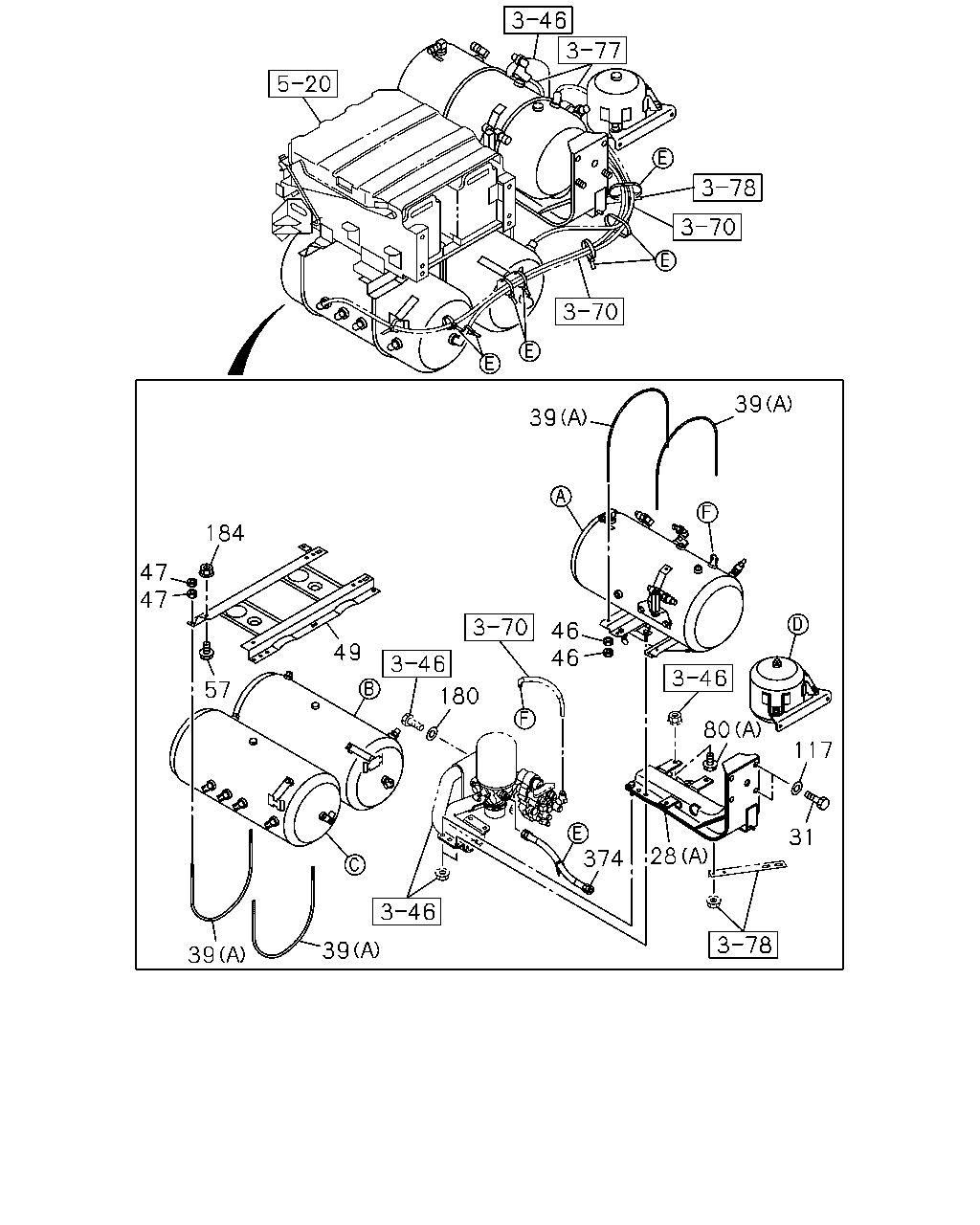

çizim 488222
39 39 184 47 47 57 49 180 46 46 80 117 31 28 374 39 39
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		8-98319-127-0 01 1 1508-1508
28 BRACKET; AIR TANK
(A) 		8-98329-776-0 01 1 1508-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1508-
28 BRACKET; AIR TANK
(C) 		8-98302-066-0 01 1 1508-
31 BOLT; BRKT TO FRAME
M14X45 		1-09000-764-0 04 1 1508-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1508-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1508-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1508-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1508-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1508-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1508-
49 BRACKET; AIR TANK 8-98293-598-0 01 1 1508-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1508-
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1508-
80 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 03 1 1508-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1508-
180 WASHER; LK
ID=12.5 OD=22 		0-91610-512-0 02 1 1508-
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1508-
374 HOSE; RUBBER 8-98319-126-0 01 1 1508-
çizim 488224
26 103 136 2 164 164 27 26 27 27 7 6 26 10 2 126 207
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
(C) 		8-98319-896-0 01 1 1508-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1508-
2 TANK; AIR
(B) 		8-98294-884-0 01 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 02 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 03 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1508-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1508-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1508-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1508-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1508-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 03 1 1508-
27 UNION; ELBOW,AIR TANK
(A) 		8-98313-295-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 05 1 1508-1508
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1508-
27 UNION; ELBOW,AIR TANK
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1508-1508
27 UNION; ELBOW,AIR TANK
(B) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1508-
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1508-
27 UNION; ELBOW,AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 03 1 1508-1508
27 UNION; ELBOW,AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 1508-
103 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
103 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1508-
126 CONNECTOR; ELBOW
DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1508-
136 BRACKET; CLIP
(C) 		8-98319-720-0 01 1 1508-
136 BRACKET; CLIP
(A) 		8-98293-617-0 01 1 1508-
136 BRACKET; CLIP
(B) 		8-98293-630-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 03 1 1508-
164 CONNECTOR; SUB AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(C) PT3/8 		1-48319-058-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1508-
207 CLIP; AIR PIPE
L=350 		1-09707-183-0 09 1 1508-

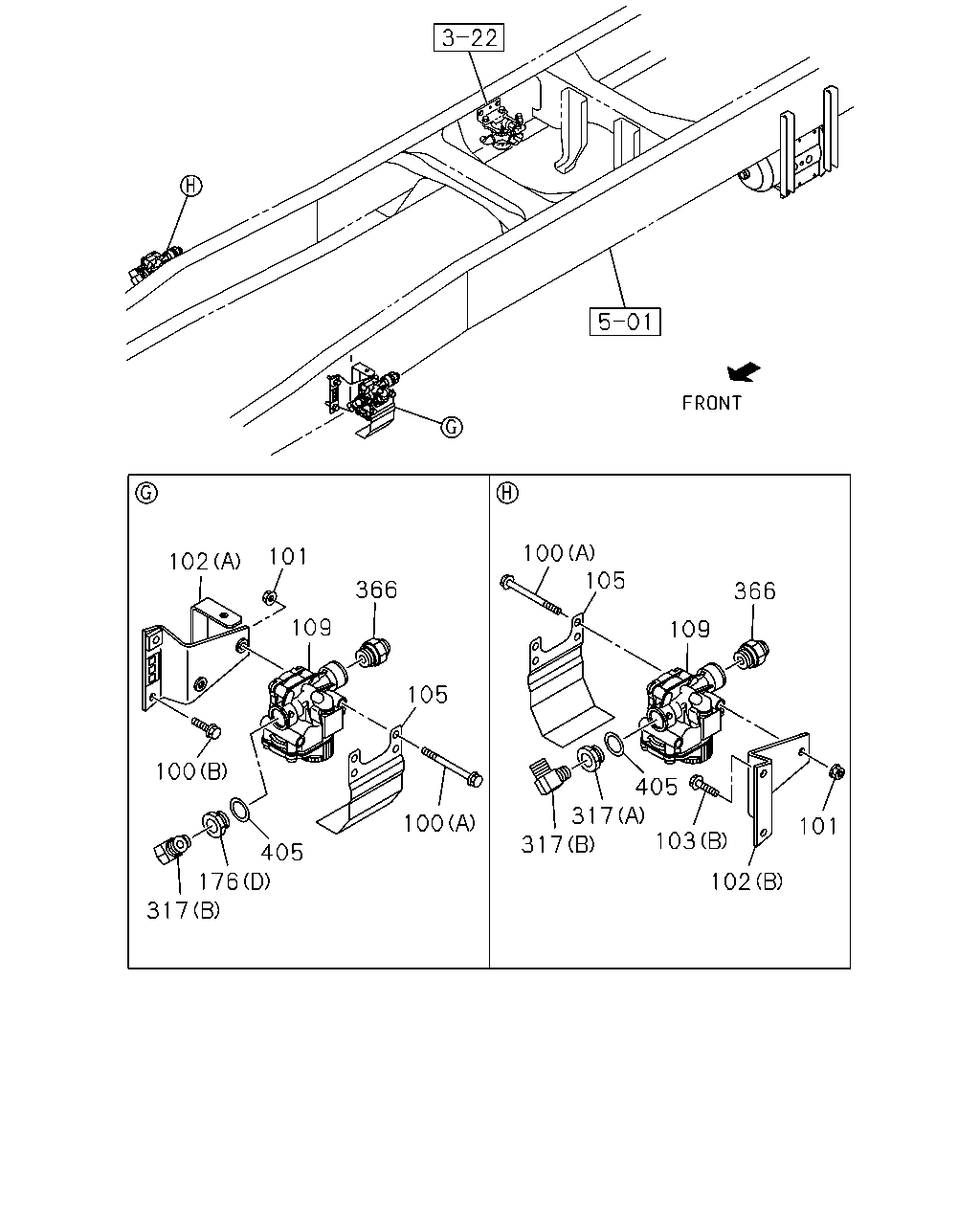

çizim 488227
102 101 366 109 105 100 405 176 100 317 317 317 405 103 102 101 109 366 105 100
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(D) M8X140 FLANGE 		0-28055-814-0 02 1 1508-
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
100 BOLT; MODULATOR
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1508-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 1508-
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 1508-
102 BRACKET; MODULATOR
(A) 		8-98302-584-0 01 1 1508-
102 BRACKET; MODULATOR
(C) 		8-98302-986-0 01 1 1508-
103 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
103 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1508-
105 COVER; MODULATOR 8-97648-209-0 02 1 1508-
109 MODULATOR; FRT 8-98215-454-0 02 1 1508-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1508-
176 ADAPTER
(C) PT3/8 ELBOW 		1-09660-696-0 02 1 1508-
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1508-
176 ADAPTER
(B) PT3/8 		1-48319-058-0 01 1 1508-
317 CONNECTOR; MODULATOR
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1508-
317 CONNECTOR; MODULATOR
(B) M20 & PT3/8 ELBOW 		1-09660-684-0 02 1 1508-
366 CONNECTOR; NYLON TUBE
DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1508-
405 GASKET
ID=22.5 		9-09571-422-0 06 1 1508-

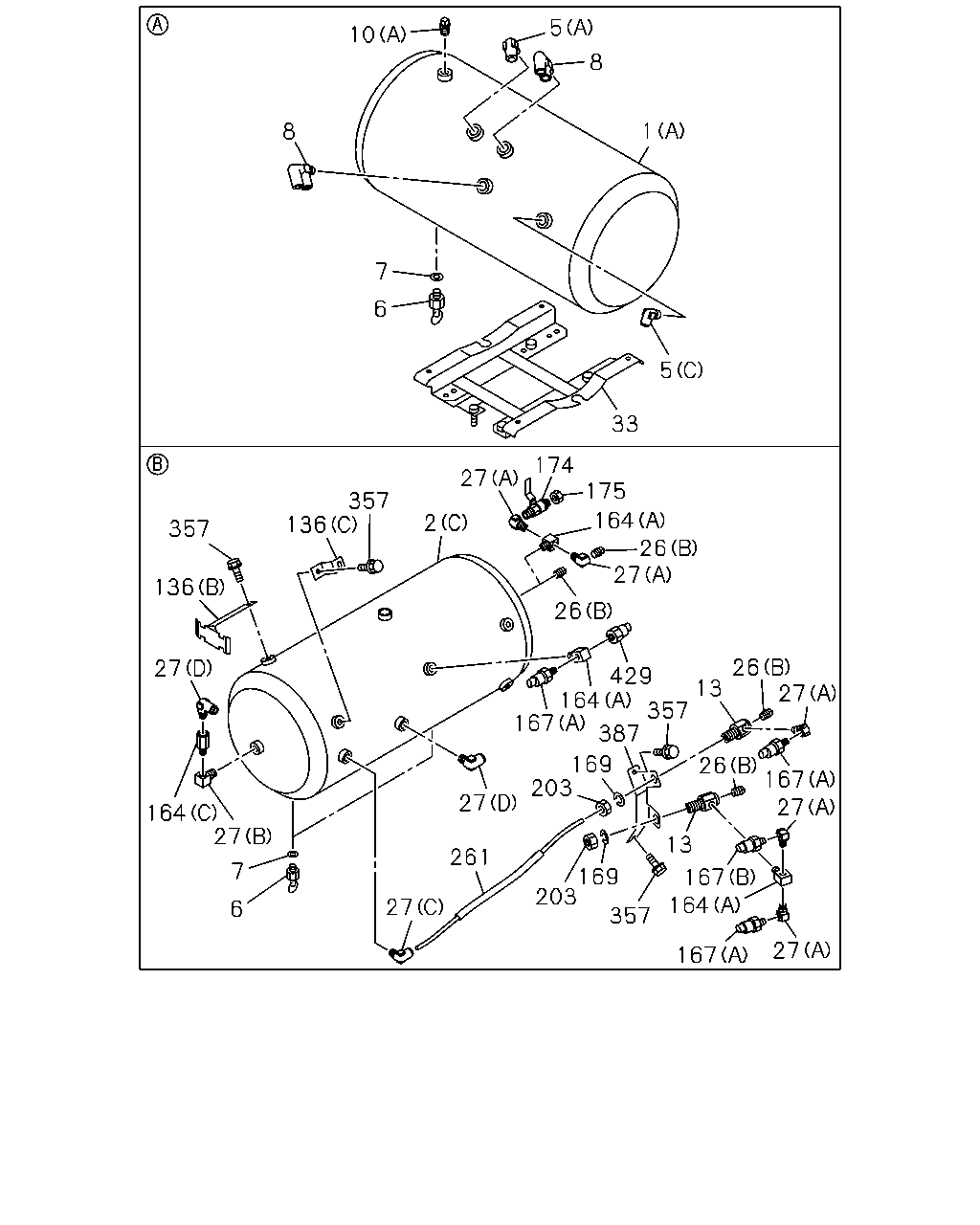

çizim 488542
10 5 8 5 7 6 27 174 164 26 27 26 2 357 136 357 136 27 164 27 7 6 27 261 27 167 387 429 164 169 203 203 13 169 357 26 357 26 27 13 167 27 167 164 167 27 33 175 1 8
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98319-899-1 01 1 1508-
1 TANK ASM; AIR
(B) 		8-97626-720-0 01 1 1508-
2 TANK; AIR
(C) 		8-98319-896-0 01 1 1508-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1508-
2 TANK; AIR
(B) 		8-98294-884-0 01 1 1508-
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1508-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 02 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 03 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1508-
8 CONNECTOR; AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1508-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1508-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1508-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
13 ADAPTER; NYLON TUBE 1-09661-092-0 02 1 1508-
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1508-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1508-
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 03 1 1508-
27 UNION; ELBOW,AIR TANK
(A) 		8-98313-295-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 05 1 1508-1508
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1508-
27 UNION; ELBOW,AIR TANK
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1508-1508
27 UNION; ELBOW,AIR TANK
(B) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1508-
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
27 UNION; ELBOW,AIR TANK
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1508-
27 UNION; ELBOW,AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 03 1 1508-1508
27 UNION; ELBOW,AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 1508-
33 BRACKET; BRKT,AIR TANK 8-98319-128-1 01 1 1508-
136 BRACKET; CLIP
(C) 		8-98319-720-0 01 1 1508-
136 BRACKET; CLIP
(A) 		8-98293-617-0 01 1 1508-
136 BRACKET; CLIP
(B) 		8-98293-630-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 03 1 1508-
164 CONNECTOR; SUB AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
(C) PT3/8 		1-48319-058-0 01 1 1508-
164 CONNECTOR; SUB AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1508-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
(A) STAMP 5.5 		8-97609-249-0 03 1 1508-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
(B) STAMP 6.5 		8-97609-252-0 01 1 1508-
169 WASHER; LK,U-BOLT
ID=18.2 		0-91510-518-0 02 1 1508-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1508-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1508-
203 NUT
M18 		0-91110-518-0 02 1 1508-
261 TUBE; NYLON 8-98319-073-0 01 1 1508-
357 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1508-
387 BRACKET; UNION 8-98293-653-0 01 1 1508-
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1508-
çizim 488660
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1508-

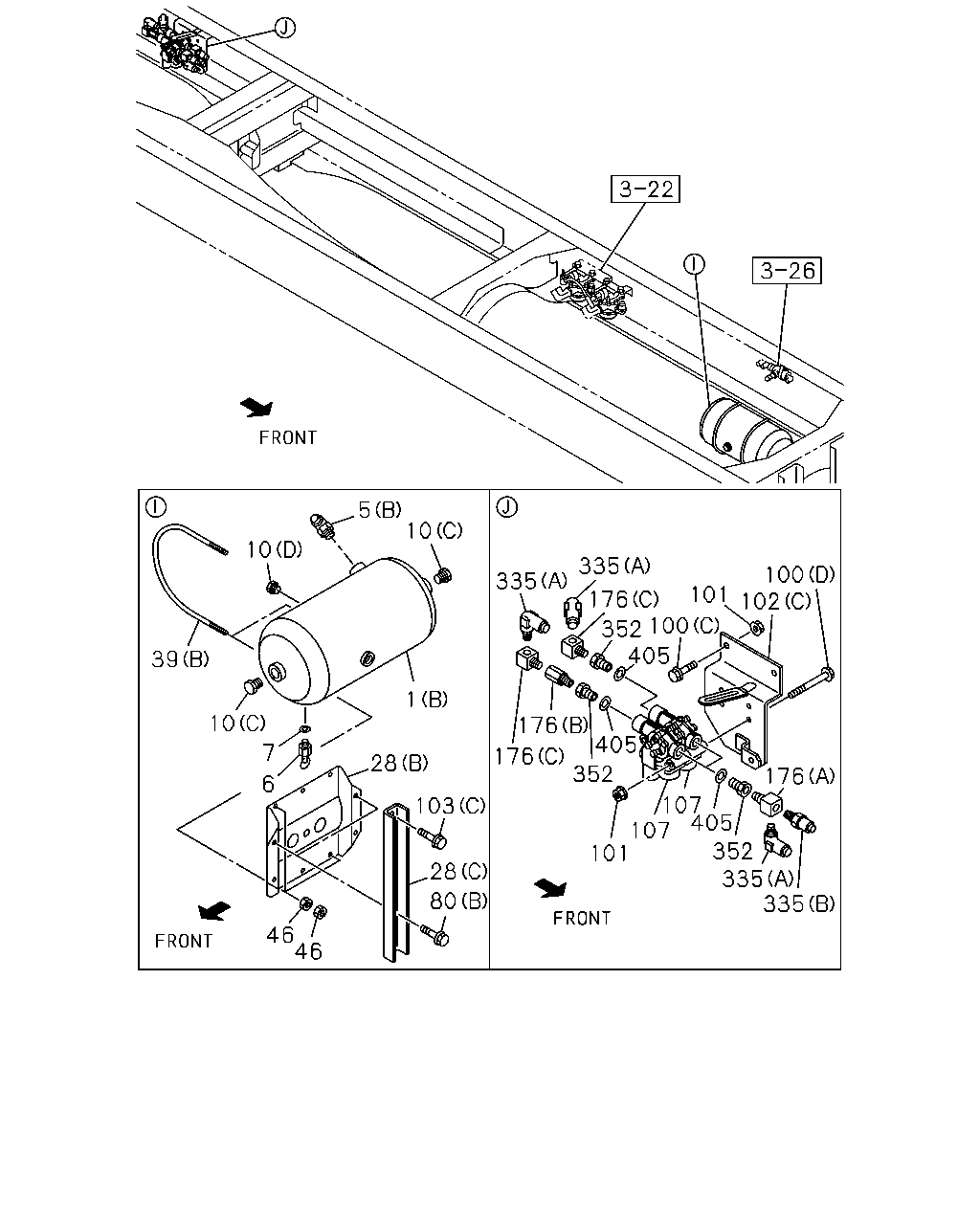

çizim 488761
10 5 10 39 10 7 6 28 1 335 335 176 352 405 100 101 102 100 176 176 405 352 107 101 107 405 352 335 335 176 103 28 80 46 46
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98319-899-1 01 1 1508-
1 TANK ASM; AIR
(B) 		8-97626-720-0 01 1 1508-
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1508-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1508-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 02 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 03 1 1508-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1508-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1508-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1508-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1508-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1508-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1508-
28 BRACKET; AIR TANK
(A) 		8-98319-127-0 01 1 1508-1508
28 BRACKET; AIR TANK
(A) 		8-98329-776-0 01 1 1508-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1508-
28 BRACKET; AIR TANK
(C) 		8-98302-066-0 01 1 1508-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1508-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1508-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1508-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1508-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1508-
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1508-
80 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 03 1 1508-
100 BOLT; MODULATOR
(D) M8X140 FLANGE 		0-28055-814-0 02 1 1508-
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
100 BOLT; MODULATOR
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1508-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 1508-
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 1508-
102 BRACKET; MODULATOR
(A) 		8-98302-584-0 01 1 1508-
102 BRACKET; MODULATOR
(C) 		8-98302-986-0 01 1 1508-
103 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
103 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1508-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1508-
107 MODULATOR; RR 8-98215-454-0 02 1 1508-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1508-
176 ADAPTER
(C) PT3/8 ELBOW 		1-09660-696-0 02 1 1508-
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1508-
176 ADAPTER
(B) PT3/8 		1-48319-058-0 01 1 1508-
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1508-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1508-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1508-
405 GASKET
ID=22.5 		9-09571-422-0 06 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
