2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#165072) — 34 parça

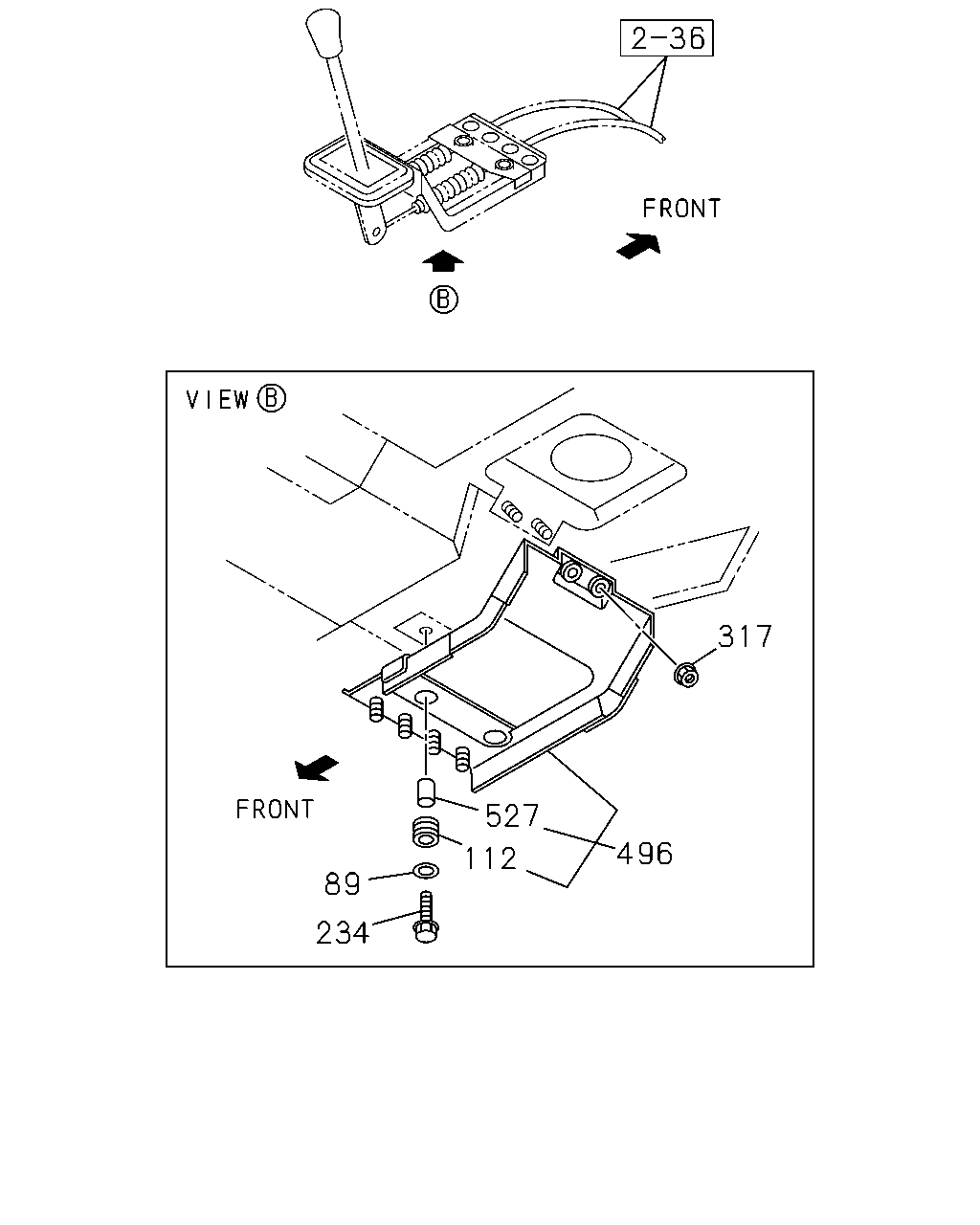

89 234 112 527 496 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	WASHER; PL,LWR SUPPORT BRKT FULL FLOATING CAB(W16) ID=8.4 OD=22	0-91610-708-0	02	1	1508-
112	RUBBER; CUSHION FULL FLOATING CAB(W16)	1-33619-442-0	04	1	1508-
234	BOLT; BRKT FULL FLOATING CAB(W16) M8X25 FLANGE	0-28650-825-0	02	1	1508-
317	NUT; BRKT FULL FLOATING CAB(W16) M8 W/DISHED WASHER	8-97329-625-0	02	1	1508-
496	BRACKET ASM; T/M CABLE FULL FLOATING CAB(W16)	1-33657-852-2	01	1	1508-
527	COLLAR; DIST,T/M CABLE BRACKET FULL FLOATING CAB(W16)	1-33619-443-0	04	1	1508-

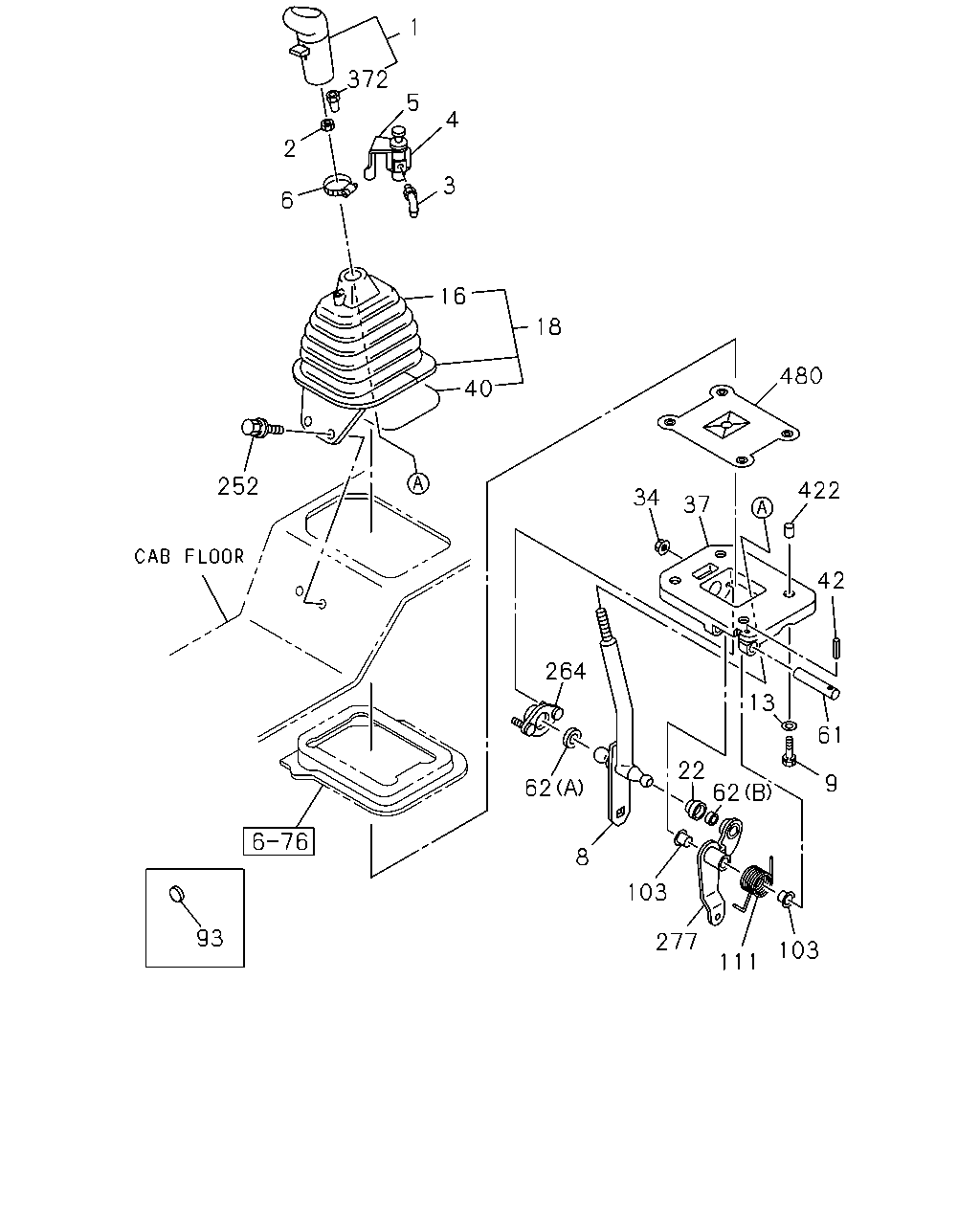

1 372 2 4 5 3 16 18 40 252 93 264 62 22 103 8 277 111 103 62 13 61 9 42 422 37 34 480 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER FULL FLOATING CAB(W16)	8-98224-285-0	01	1	1508-
2	NUT; KNOB FULL FLOATING CAB(W16) 1/2-13UNC	1-33619-033-0	01	1	1508-
3	CONNECTOR; CONT TUBE FULL FLOATING CAB(W16)	8-98114-398-0	02	1	1508-
4	VALVE; ACTUATOR FULL FLOATING CAB(W16)	1-33712-003-0	01	1	1508-
5	BRACKET; ACTUATOR VLV FULL FLOATING CAB(W16)	1-33719-078-0	01	1	1508-
6	CLAMP; BRKT FULL FLOATING CAB(W16)	1-33719-079-0	01	1	1508-
8	LEVER; CHANGE FULL FLOATING CAB(W16)	1-33613-349-0	01	1	1508-
9	BOLT; CHANGE LEVER FULL FLOATING CAB(W16) M8X25 FLANGE	0-28650-825-0	04	1	1508-
13	WASHER; PL,SUPER SHIFT LEVER FULL FLOATING CAB(W16) ID=8.4 OD=22	0-91610-708-0	04	1	1508-
16	BOOT; CHANGE LEVER	1-79996-367-1	01	1	1508-
18	BOOT; CHANGE LEVER	8-98239-342-0	01	1	1508-
22	COVER; DUST,CHANGE LEVER FULL FLOATING CAB(W16)	1-33619-573-0	01	1	1508-
34	NUT FULL FLOATING CAB(W16) M6 FLANGE	0-91180-106-0	02	1	1508-
37	BRACKET; CHANGE LEVER SUPPORT FULL FLOATING CAB(W16)	8-98100-876-1	01	1	1508-
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	1508-
42	PIN; SPRING,SELECT LEVER PIN FULL FLOATING CAB(W16) D=5 L=28	8-94252-581-0	01	1	1508-
61	PIN; SELECT LEVER FULL FLOATING CAB(W16)	1-33619-470-0	01	1	1508-
62	SEAT; BALL,CHANGE LEVER FULL FLOATING CAB(W16) (A)	1-33619-427-0	01	1	1508-
62	SEAT; BALL,CHANGE LEVER FULL FLOATING CAB(W16) (B)	8-97011-900-0	01	1	1508-
93	SEAL; HOLE COVER,GEAR CONT OD=25 BLACK	1-76798-019-0	02	1	1508-
103	BUSHING; RELAY LEVER FULL FLOATING CAB(W16) ID=14 OD=16	8-94252-671-0	02	1	1508-
111	SPRING FULL FLOATING CAB(W16)	1-09585-142-1	01	1	1508-
252	BOLT; COVER,CHANGE LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1508-
264	PLATE; COVER FULL FLOATING CAB(W16)	1-33619-469-0	01	1	1508-
277	LEVER; RELAY FULL FLOATING CAB(W16)	1-33651-636-1	01	1	1508-
372	CONNECTOR; CHANGE LEVER FULL FLOATING CAB(W16)	8-98114-396-0	04	1	1508-
422	BUSHING; CHANGE LEVER FULL FLOATING CAB(W16)	8-97091-427-0	04	1	1508-
480	RUBBER; COVER FULL FLOATING CAB(W16)	8-98119-365-0	01	1	1508-
