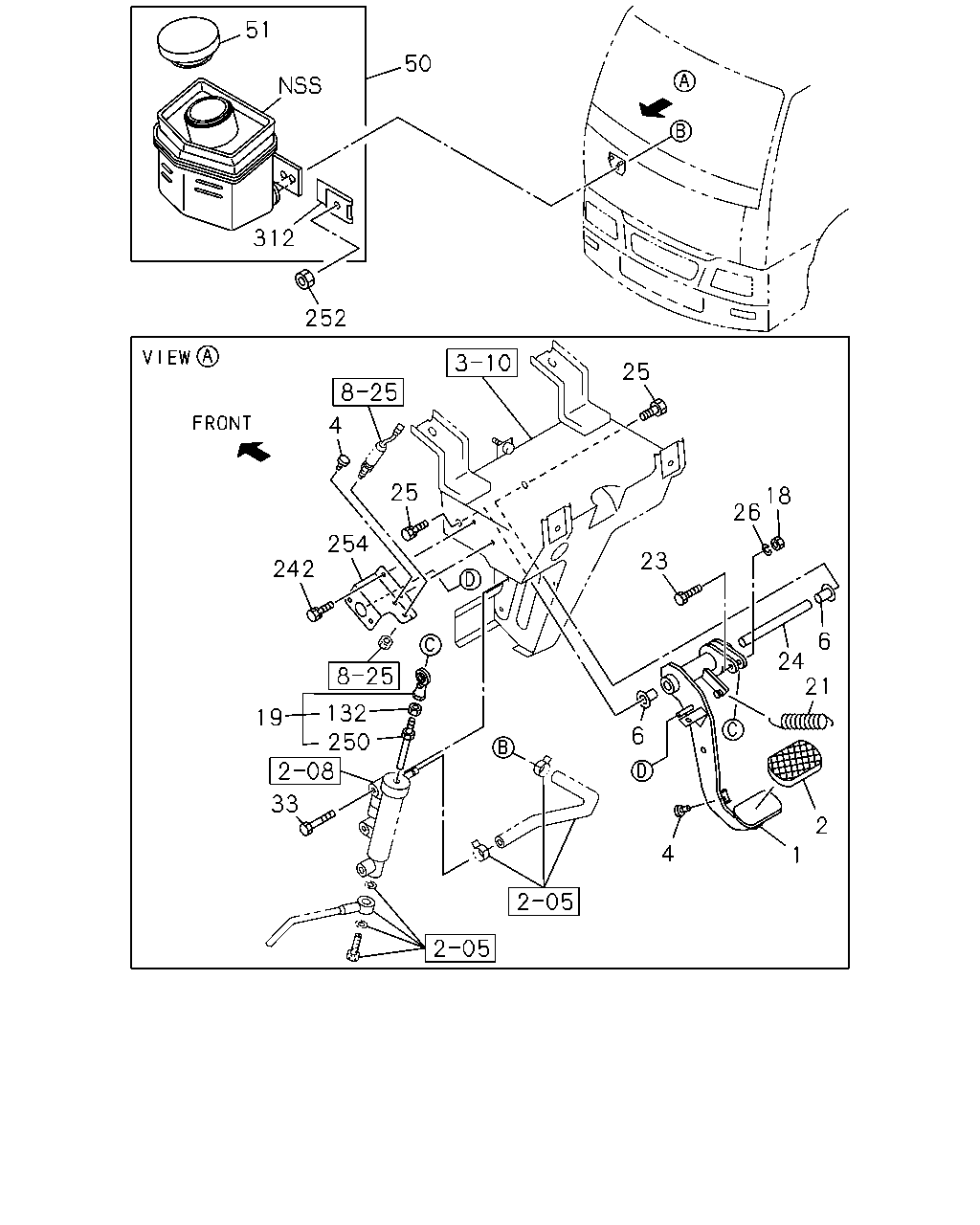

2-03 — CLUTCH PEDAL AND CONTROL
(#165064) — 20 parça
51
50
312
25
25
18
26
23
254
242
19
132
250
33
6
1
4
2
21
24
6
252
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73907-474-1
01
1
1508-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
1508-
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
1508-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
1508-
18
NUT; PUSH ROD
M8
0-91110-508-0
01
1
1508-
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
1508-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
1508-
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
1508-
24
SHAFT; CLU PEDAL
1-73908-195-1
01
1
1508-
25
BOLT; PEDAL
M10X35 W/LK WASHER
0-50051-035-0
02
1
1508-
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
1508-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
1508-
50
TANK; OIL,CLU
1-47530-182-0
01
1
1508-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
1508-
132
NUT; LK,PUSH ROD
M8
0-91110-508-0
01
1
1508-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
04
1
1508-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
1508-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1508-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
1508-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
1508-
